Kloparty Boombox

A party speaker for the bathroom, integrated into the Home Assistant to turn on and off automatically with the lights. See it live in action here:

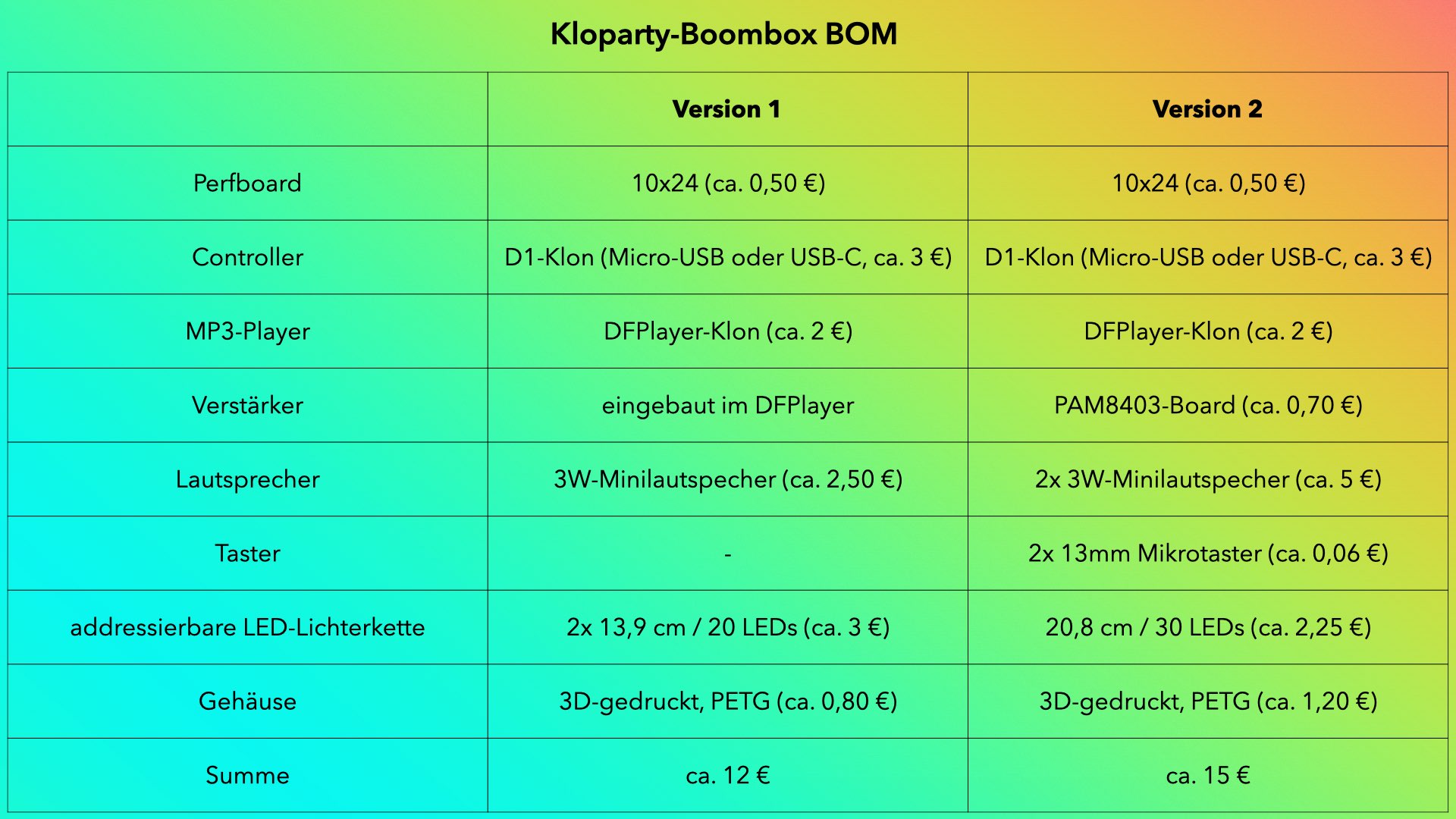

Here's the sources for all the parts on German Amazon:

Perfboard https://amzn.to/3Yb5DyF

D1-Klon https://amzn.to/4eM3e4i

DFPlayer-Klon https://amzn.to/4h94jVG

PAM8403-Board https://amzn.to/48cicyk

3W-Minilautspecher https://amzn.to/486xxAn

Mikrotaster-Sortiment https://amzn.to/48bP2iv

WS8212B-Lichterkette 144 LEDs/m https://amzn.to/4dN8fZd

Draht mit Silikonmantel https://amzn.to/3Y9qgLC



For v2, print the case and labels STL as one part with multiple materials, the case color being a bit transparent to make the labels shine through.



ESPHome-Configuration:

esp8266:
  board: d1_mini
api:
  services:

service: dfplayer_set_volume
variables:
  volume: int
then:

dfplayer.set_volume: !lambda 'return volume;'



uart:
  tx_pin: D2
  rx_pin: D6
  baud_rate: 9600
dfplayer:
binary_sensor:

platform: gpio
pin:
  number: D7
  inverted: True
  mode:
input: true
pullup: true

name: "Vol-/Pause"
on_multi_click:

timing:

ON for at most 0.5s
OFF for at least 0.2s
then:
dfplayer.volume_down
logger.log: "Vol- pressed"


timing:

ON for at least 1s
OFF for at least 0.2s
then:
if:
  condition:
dfplayer.is_playing

  then:
- dfplayer.pause:
- logger.log: "Pause pressed"

  else:
- dfplayer.start:
- logger.log: "Play pressed"




platform: gpio
pin:
  number: D5
  inverted: True
  mode:
input: true
pullup: true

name: "Vol+/Skip"
on_multi_click:

timing:

ON for at most 0.5s
OFF for at least 0.2s
then:
dfplayer.volume_up
logger.log: "Vol+ pressed"


timing:

ON for at least 1s
OFF for at least 0.2s
then:
dfplayer.play_next





switch:

platform: template
name: "Play"
optimistic: True
id: track2
turn_on_action:
  then:
- delay: 1s
- dfplayer.random:
    # folder: 1
    # loop: true

turn_off_action:
  then:
- dfplayer.stop

light:

platform: neopixelbus
variant: WS2812
pin: D3
num_leds: 30
type:  GRB
id: right
name: "Light"
effects:

addressable_rainbow:
  name: Rainbow
  speed: 10
  width: 30
on_turn_on:
light.turn_on:
  id: right
  effect: "Rainbow"
