V6 flip cover for Leica M10 M11 cameras LCD
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Photo & Video
- License
- Creative Commons — Attribution — Noncommercial — Share Alike

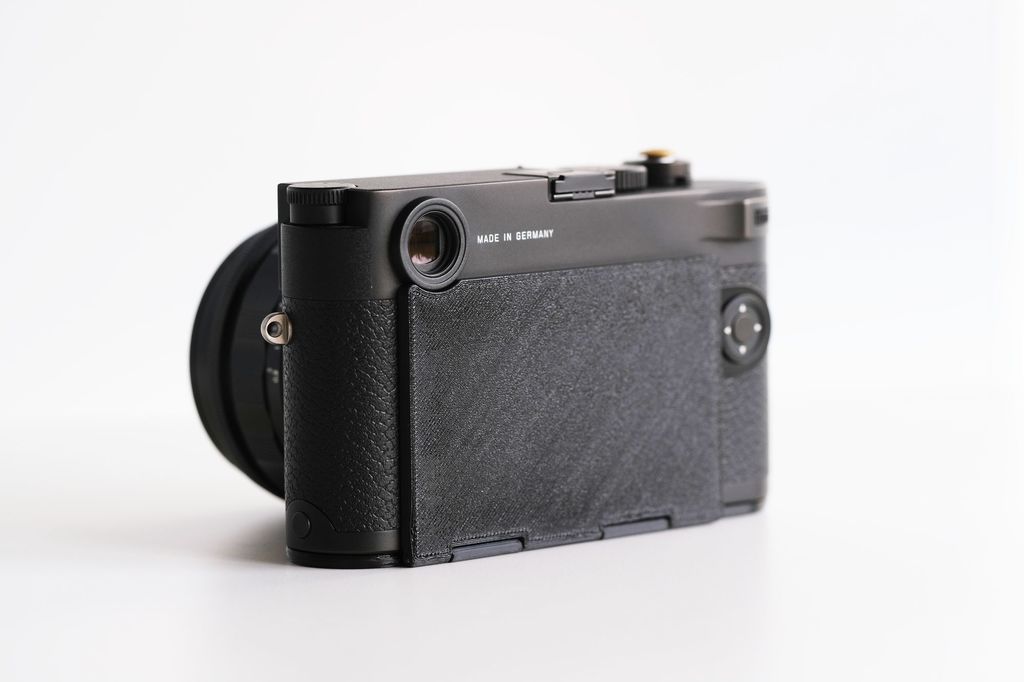

LCD screen and buttons cover for Leica M10 series cameras - V6 version
Improvements over V5 model
mount plate is completely covering base plate of Leica camera, providing extra protection but also more comfortable grip

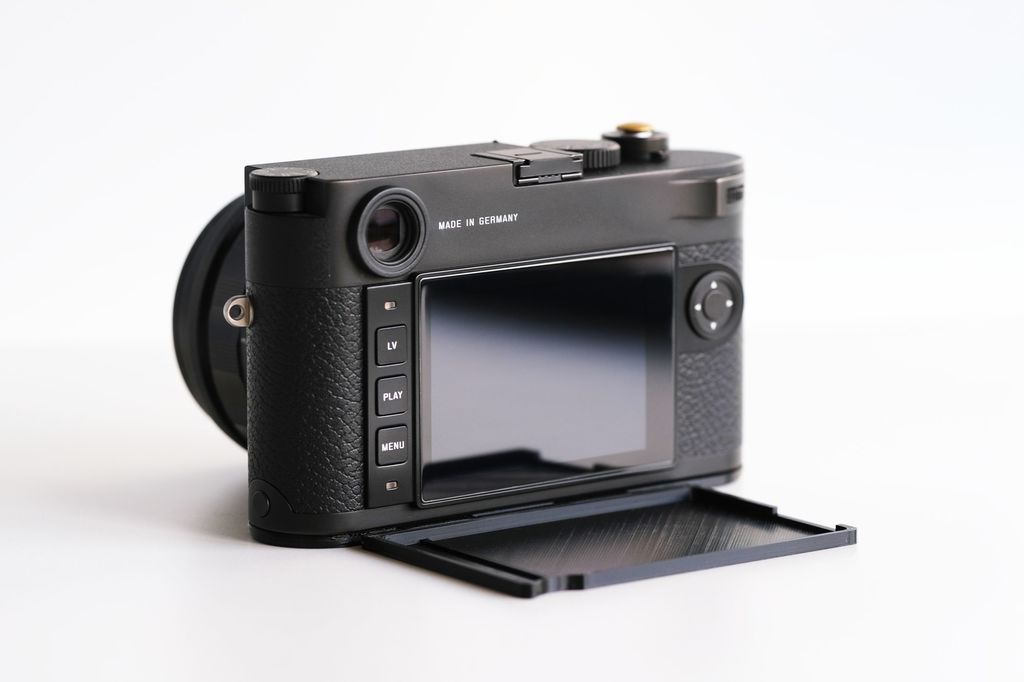

LCD cover plate has wider more durable hinge with ergonomic curves in the bottom area
access to base plate lock, allowing to attach mount plate to base plate with double side adhesive tape instead of using tripod mount
After printing you need to straighten standard steel paperclip into a long rod and use it to connect hinge.
TBD: I'm currently working on redesigning mount mechanics, so far including same tripod bolt used in previous models

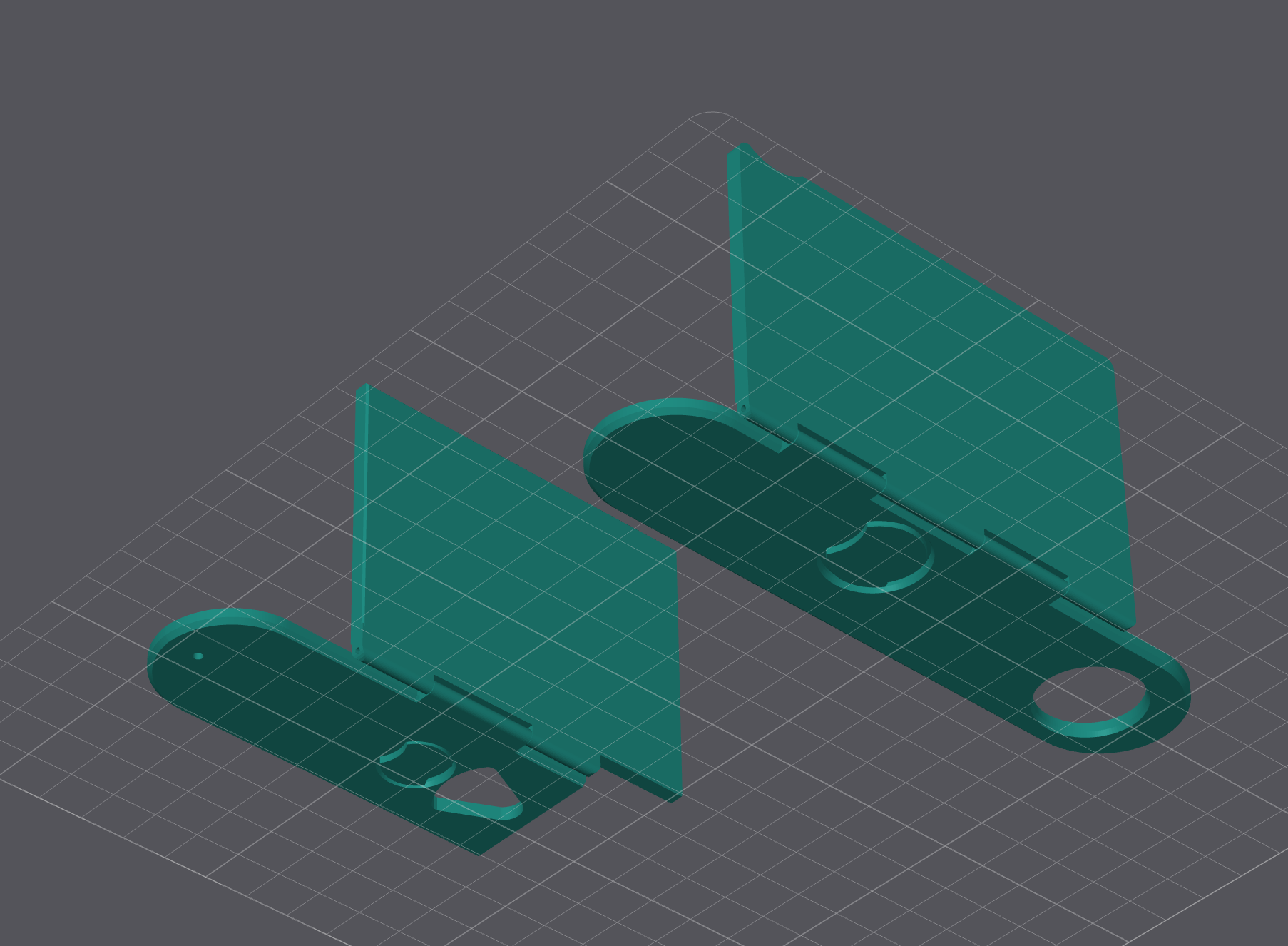

UPDATE (2026-01-30): Included Leica M11 version of half-bottom plate (due to a large battery size), screen cover, and mount screw
Print Settings
Printer Brand:
ELEGOO
Printer:
ELEGOO NEPTUNE 3 Pro
**Rafts:**
No
Supports:
No
**Resolution:**
0.2
Infill:
15%
**Filament:** ELEGOO PLA PRO black
