Hideplug = bitplug alternative/ fake buttplug

I saw this idea and when I checked, it was nowhere to be found for download.

So I designed one myself and tuned it to have more space inside and option to print out TPU seal to have it waterproof.

There are two variants:

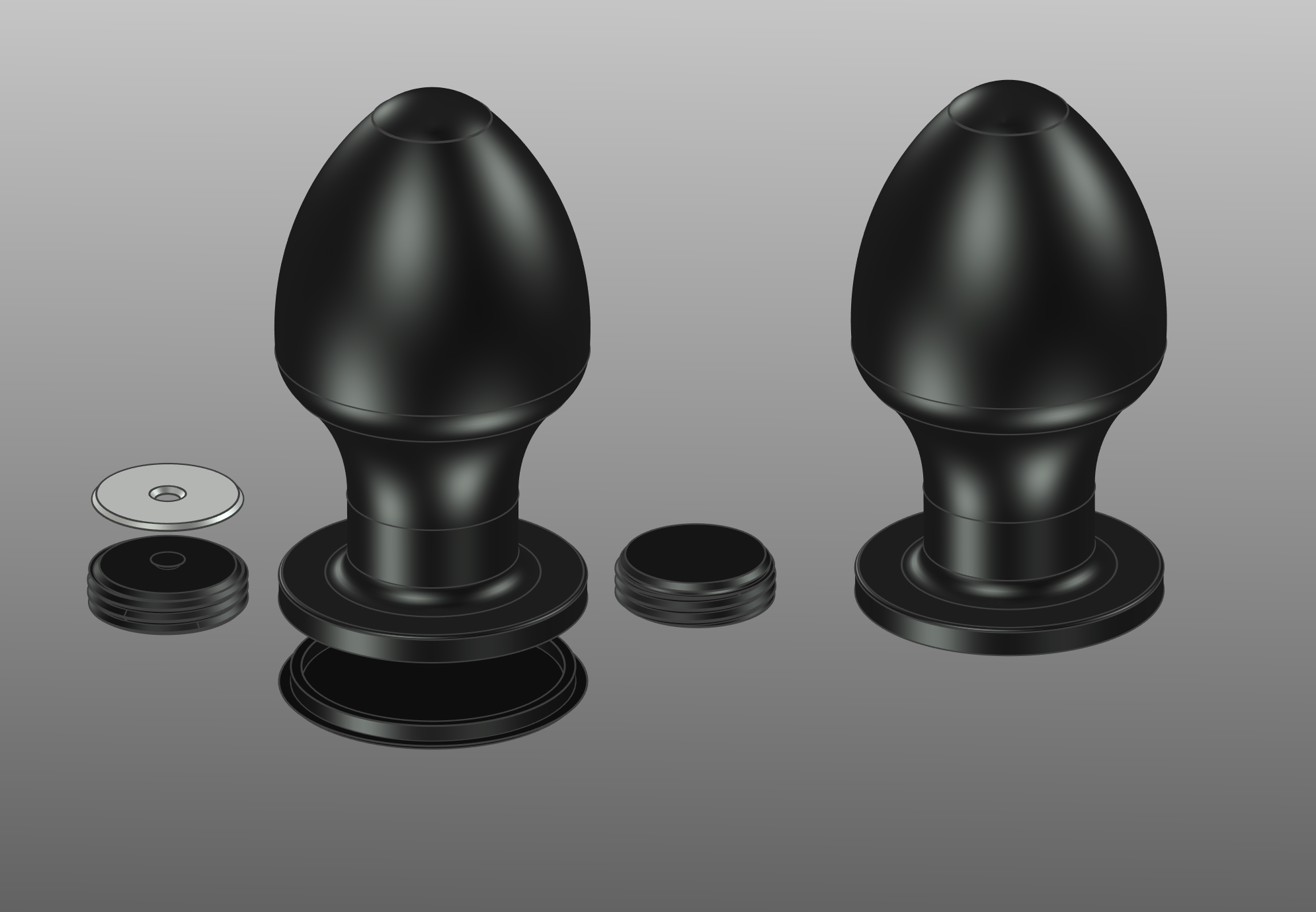

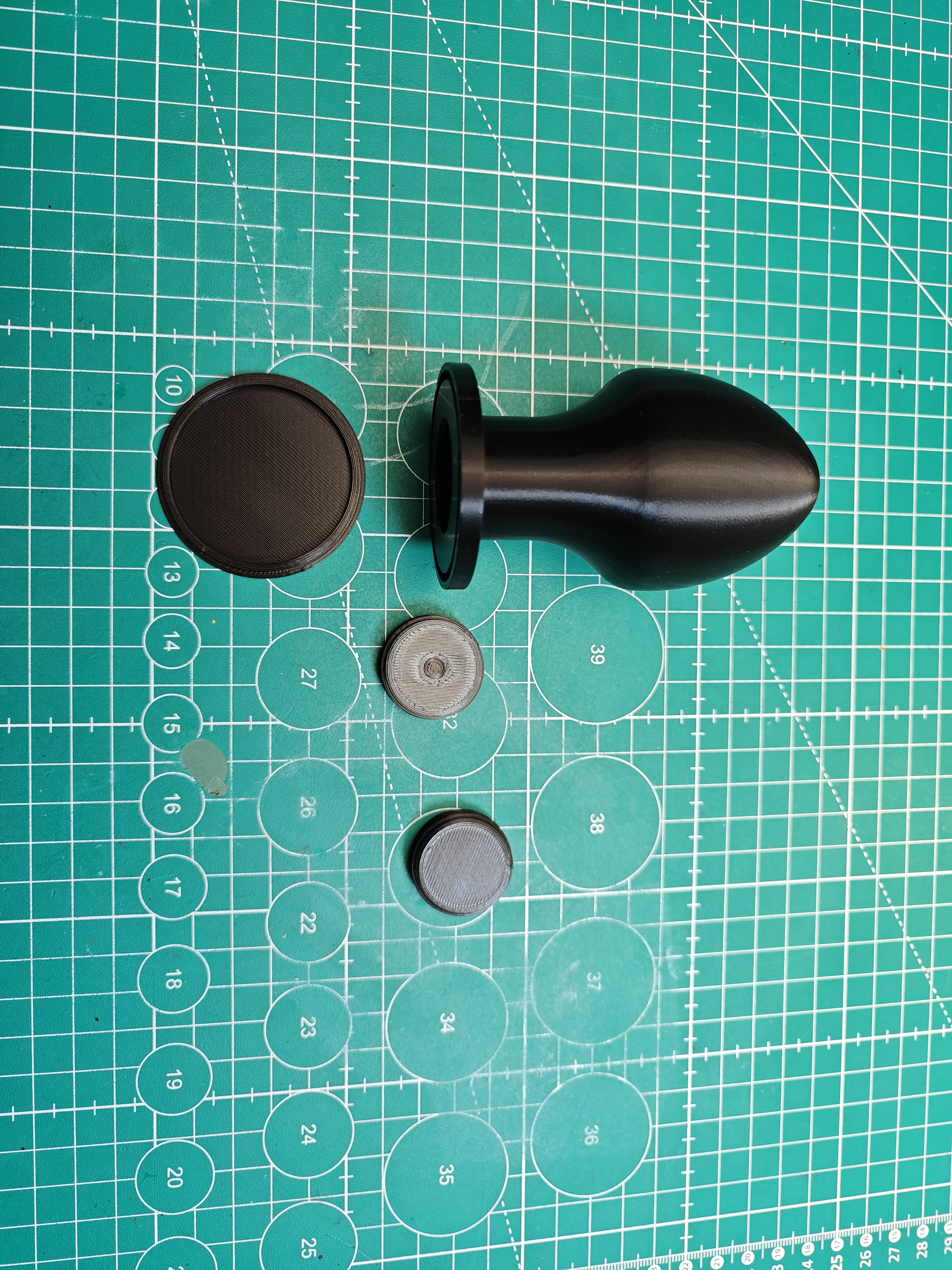

• Hideplug v1 = with small plug that can be screwed at the bottom with your fingers or pliers.
  • In this, there is also version of the screw on plug that can be fitted with TPU seal to make it more leak resistant (file for TPU included).

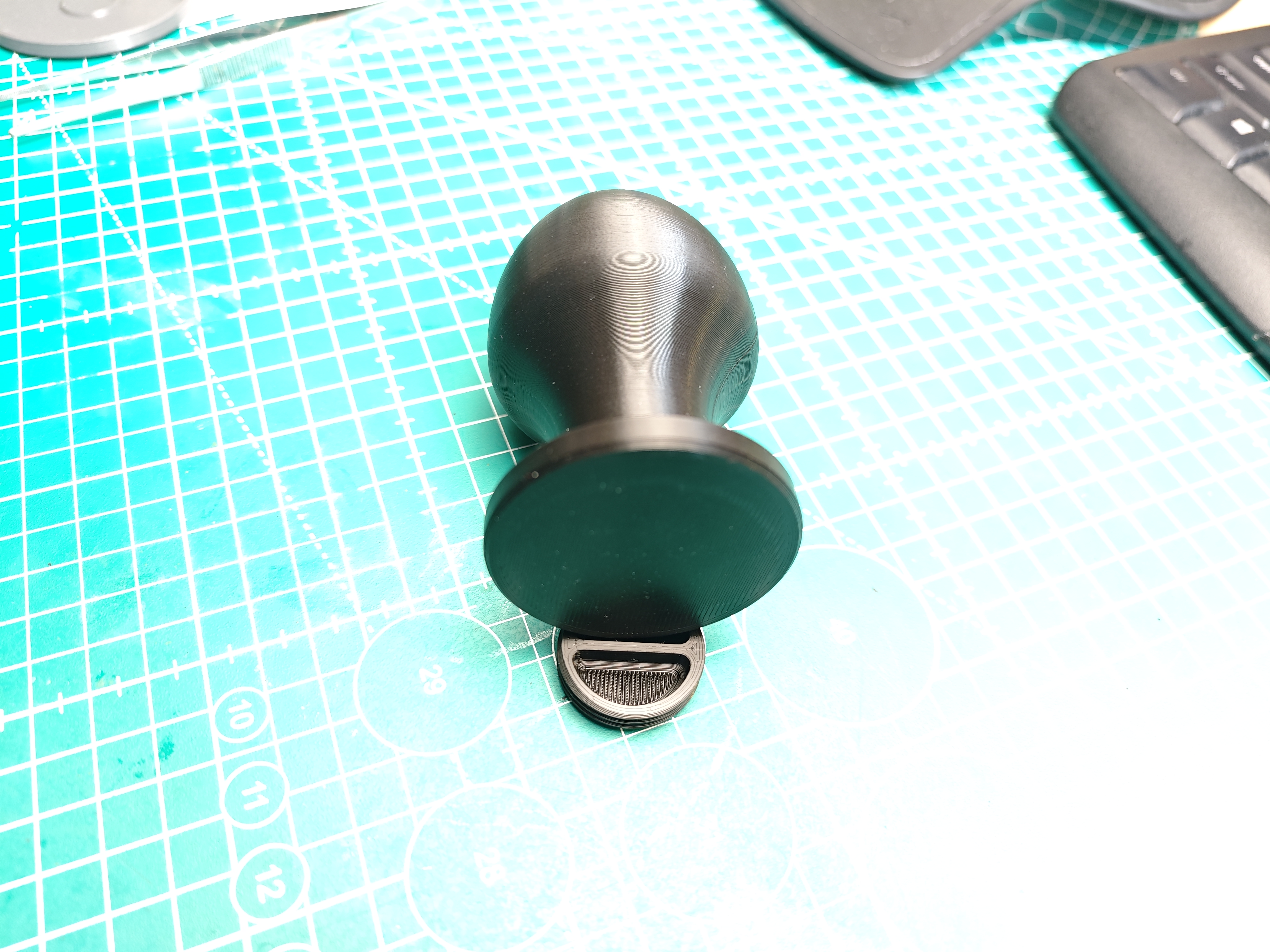

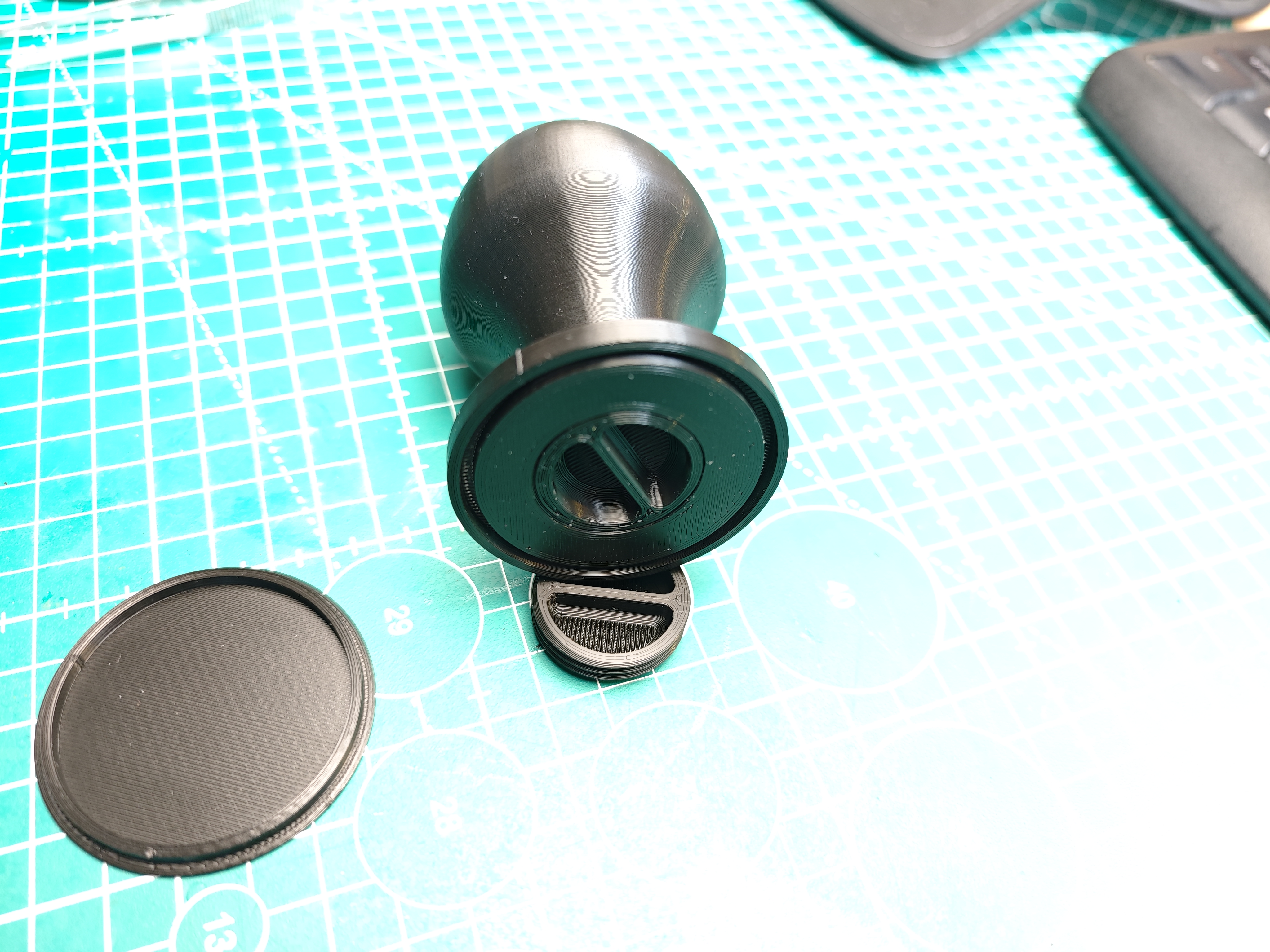

  • It also includes version of the hideplug that has grove at the bottom so cover can be snapped into place (holds with friction) to make compartment more discrete. Please tune your printer before printing this cover version as tolerances are crucial to make it work.
  • If you tighten it too much, you might need pliers to unscrew.

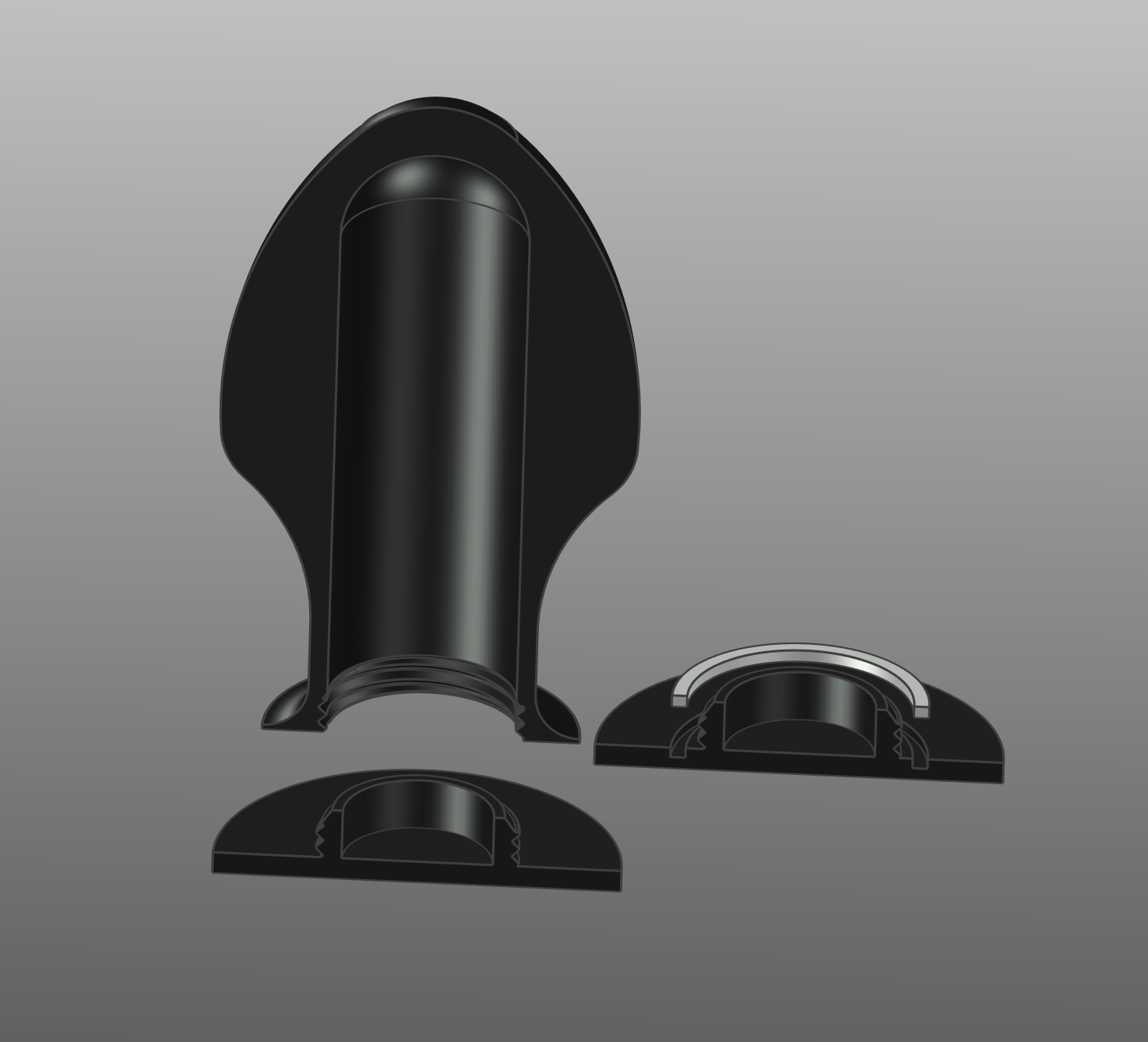

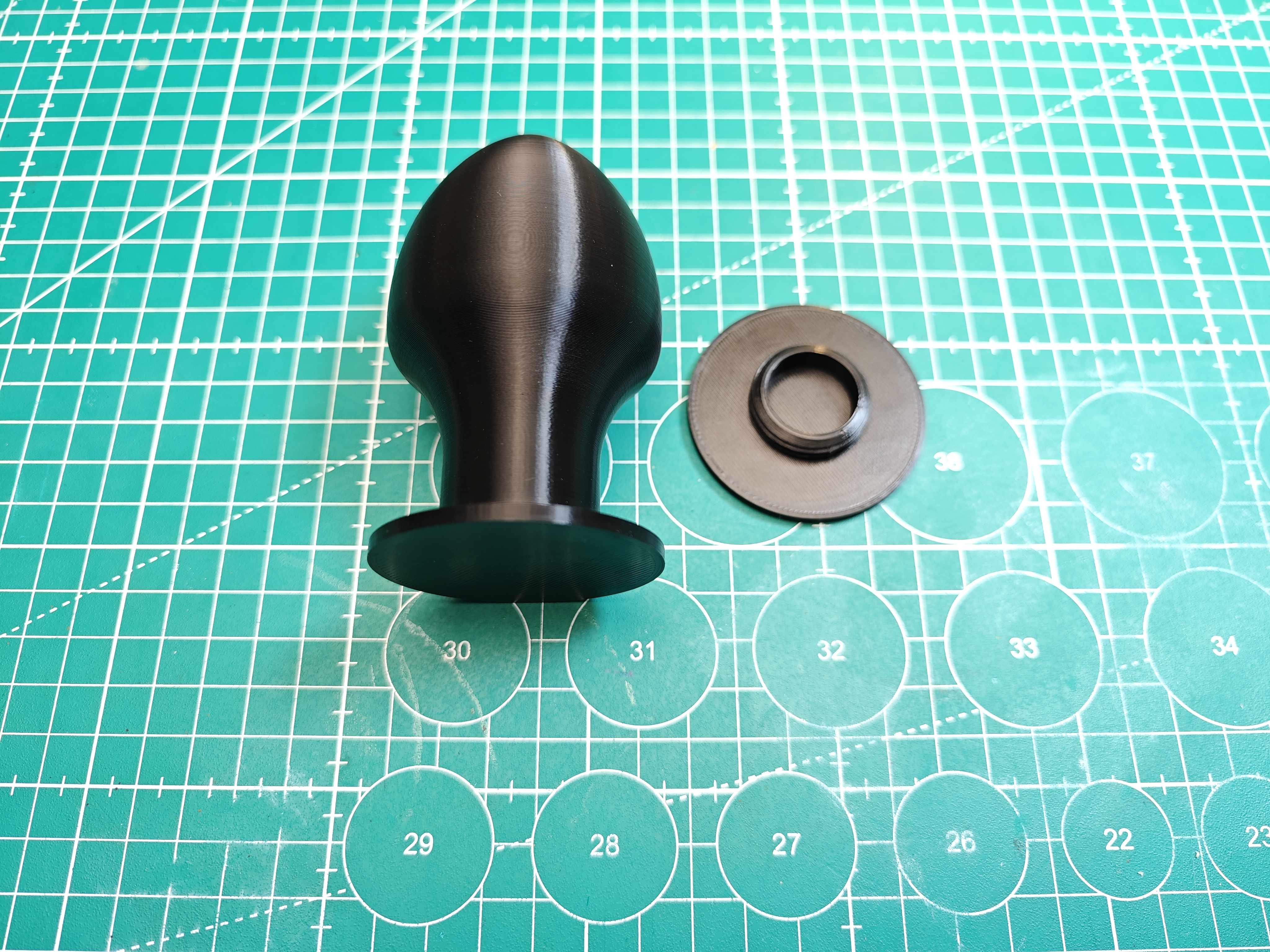

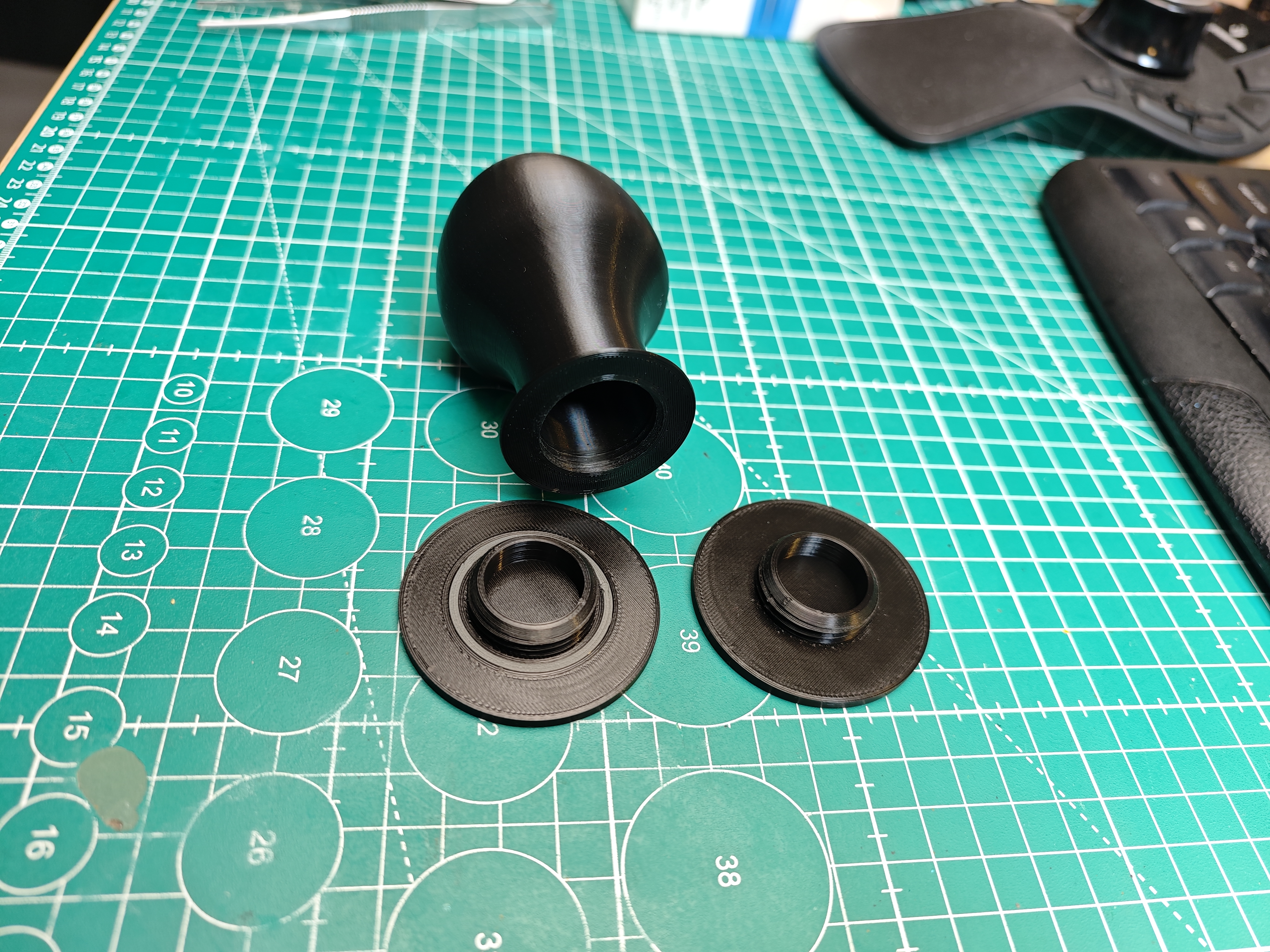

• Hideplug v2 = base can be screwed on. This makes it easier to tighten or open the compartment.

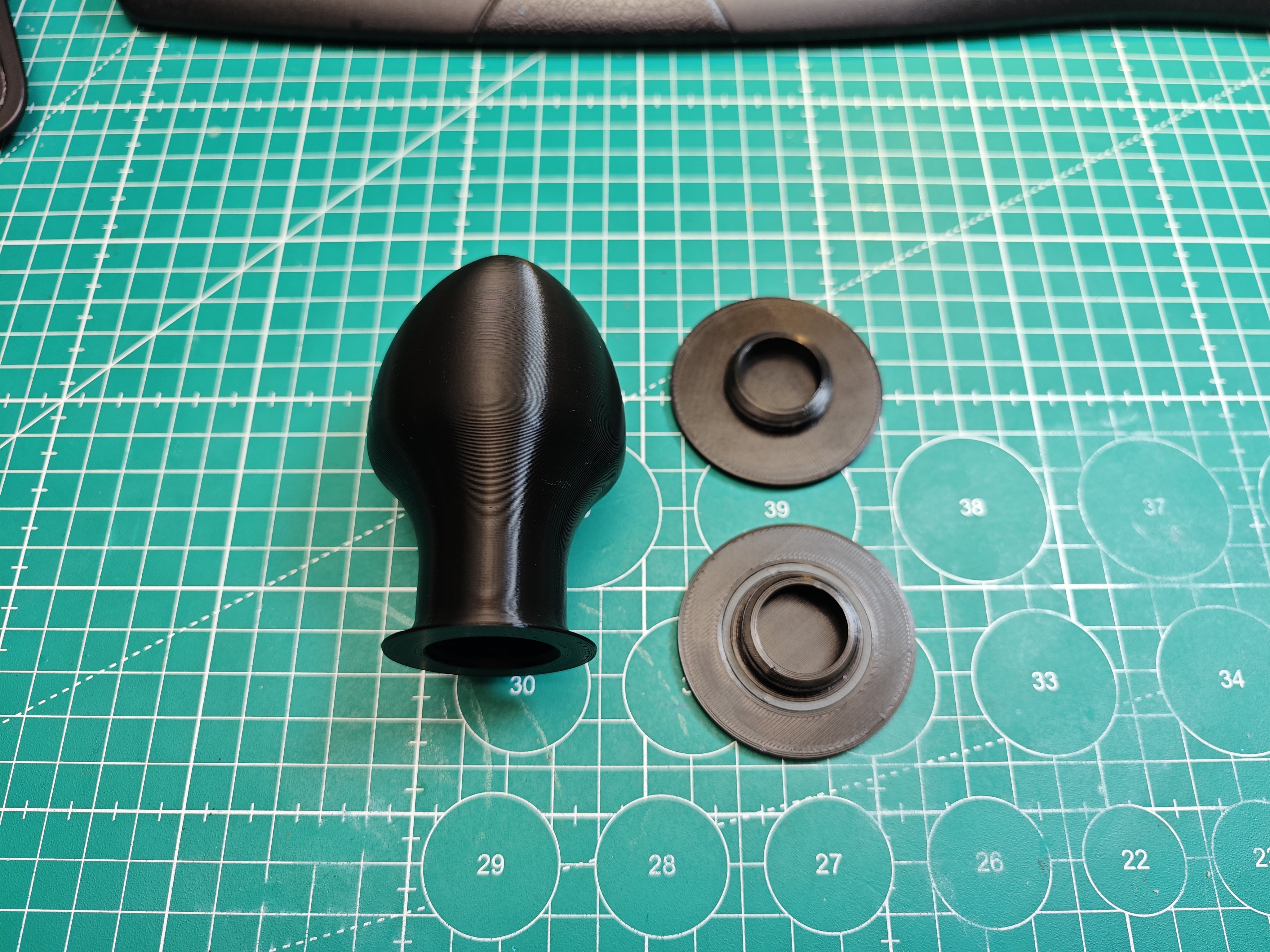

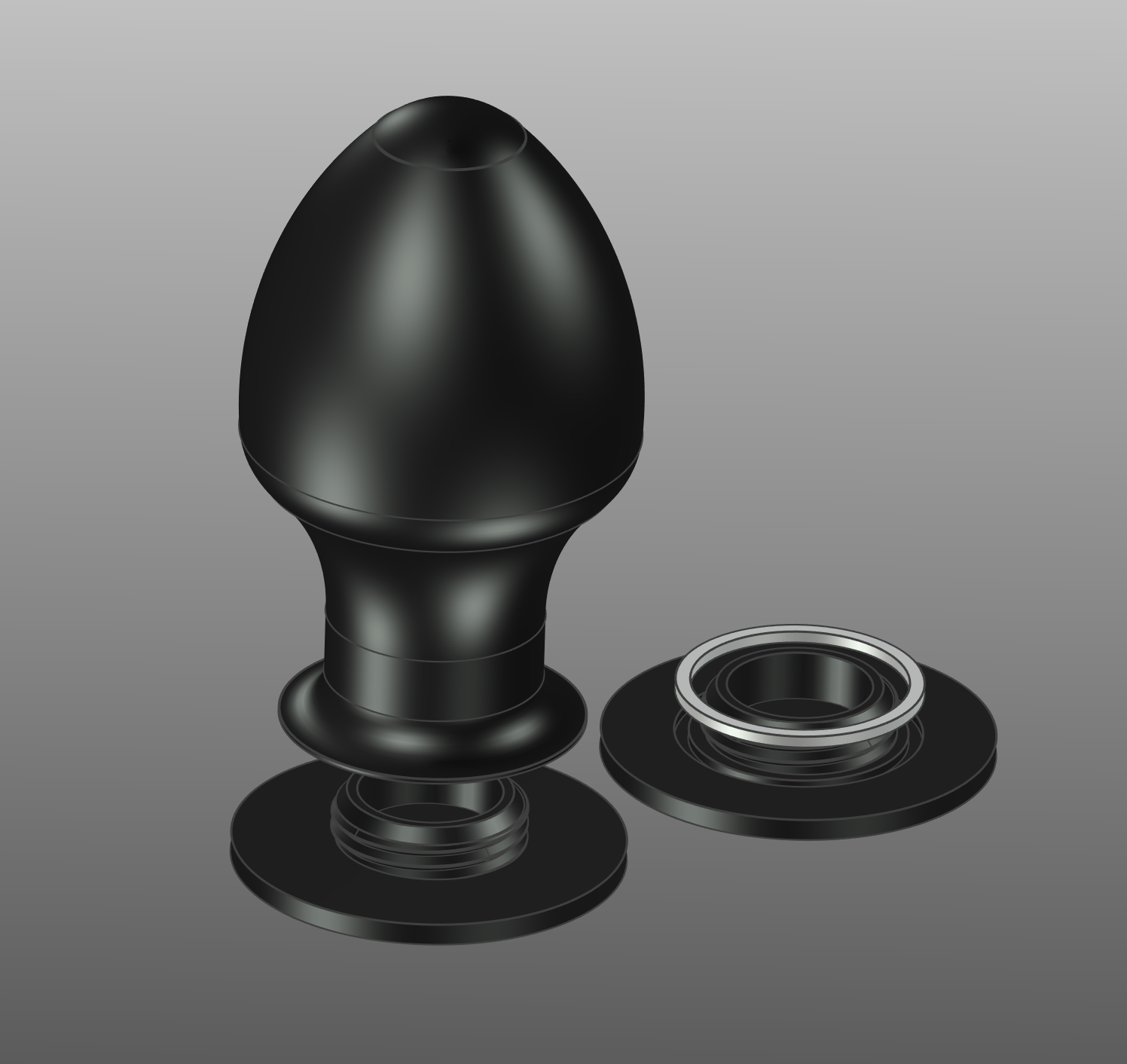

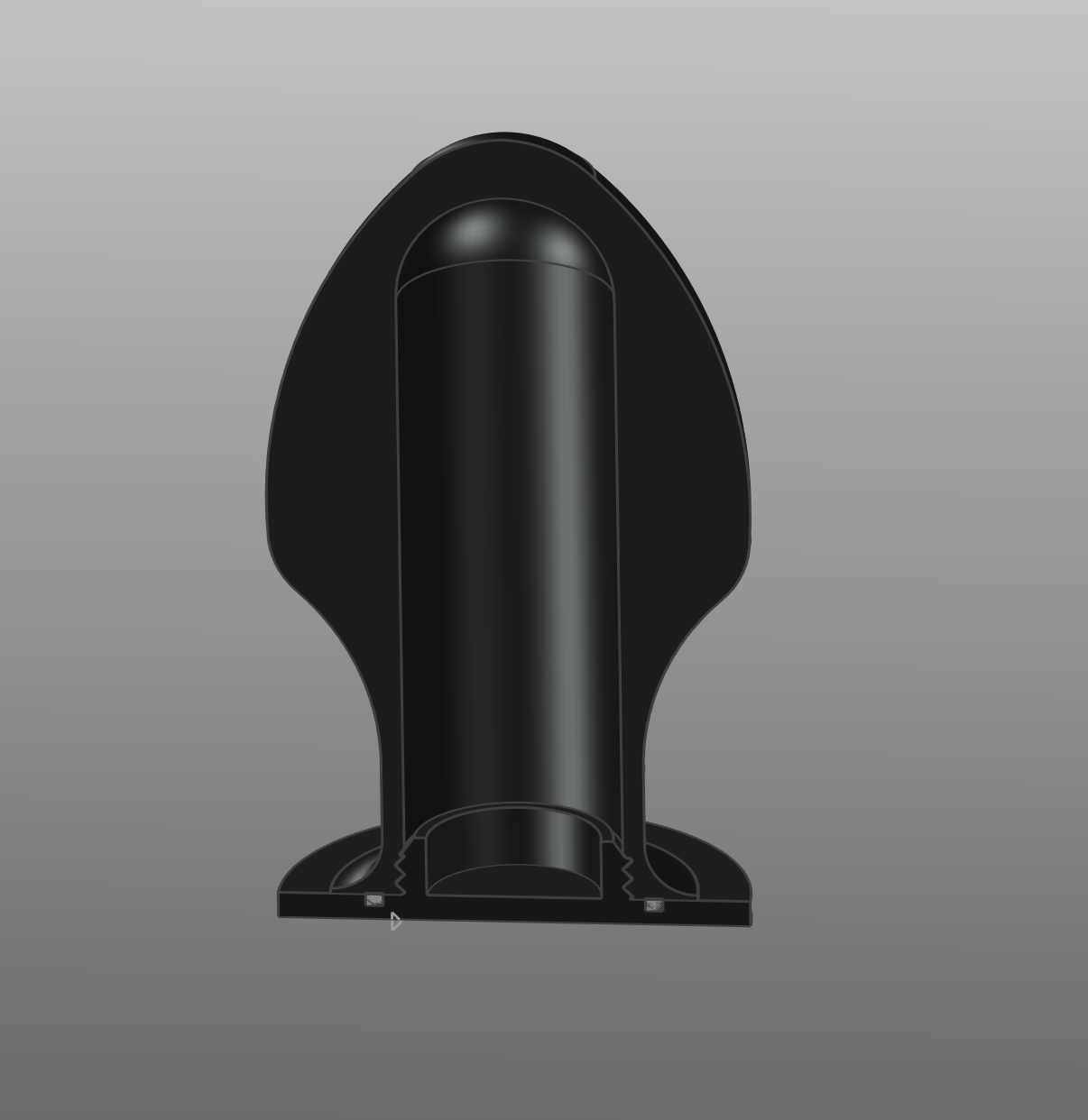

  • In this, there is also base included that has grove for TPU to make it more leak resistant (file for TPU included)

If your printer is not very good with tight tolerances, I recommend version 2 without base for TPU seal.

Enjoy :)

Disclaimer:

This is not designed for actual buttplug use. It is meant to be left somewhere and scare of (or disgust) potentional thief, leaving this and contents of the compartment where it is.

My print settings:

- printer: Prusa MK4
- layer height: 0.2mm
- sheet: Smooth PEI sheet
- nozzle diameter: 0.4mm
- print orientation: as on STLs
- material: PLA black for bodies and TPU for seals (Fiberflex 40D)
- supports: not needed
- perimeters: 3
- solid layers (top/bottom): 5/4

Source files available here: https://ko-fi.com/s/a832bfb778

If you need other formats, please let me know.
