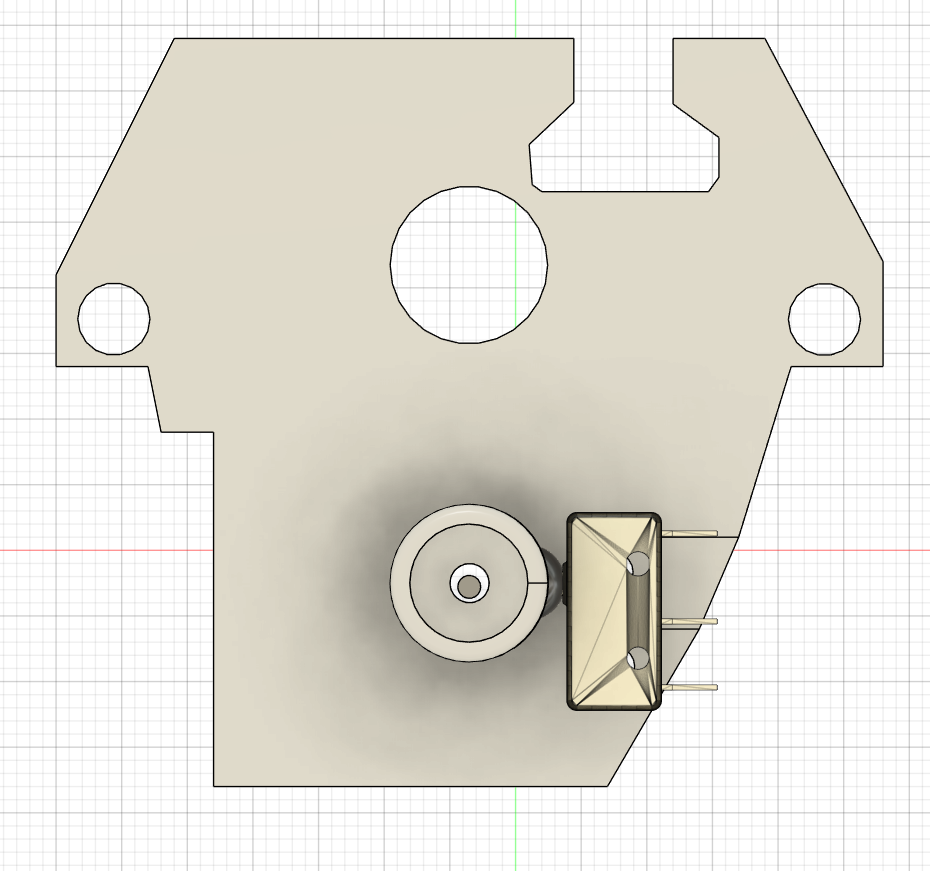

Flashforge AD5M ERCF V2 Entry Sensor Mount
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Other Printer Parts & Upgrades
- License
- Creative Commons — Attribution
Flashforge mod for ERCF v2 featuring an entry sensor
- Pneumatic valve connector ensures filament doesn't pop-out during filament changes
- Entry sensor gives Happy Hare an additional sensor to work with during filament changes.
Installation Steps
- Place steel ball inside
- Screw in limit micro-switch after removing lever. (not needed)
- Ensure switch is facing the steel ball
- Glue Pneumatic Valve Connector Head on top of housing.
- Place on top of Flashforge AD5M/Pro Extruder Housing
Printing Recommendation
- Tree Supports
- ABS
- 3-5 walls
Parts needed
- AC 1A 125V 3Pin SPDT Limit Micro Switch
- Precision Steel Ball
- Pneumatic Valve Connector Head PTFE ECAS04 Component
Feel free to offer recommendations or enhancements!
