Replacement Part for Footboard Cover H102 of E-Scooter SoFlow MyTier
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Other House Equipment
- License
- Creative Commons — Attribution — Noncommercial

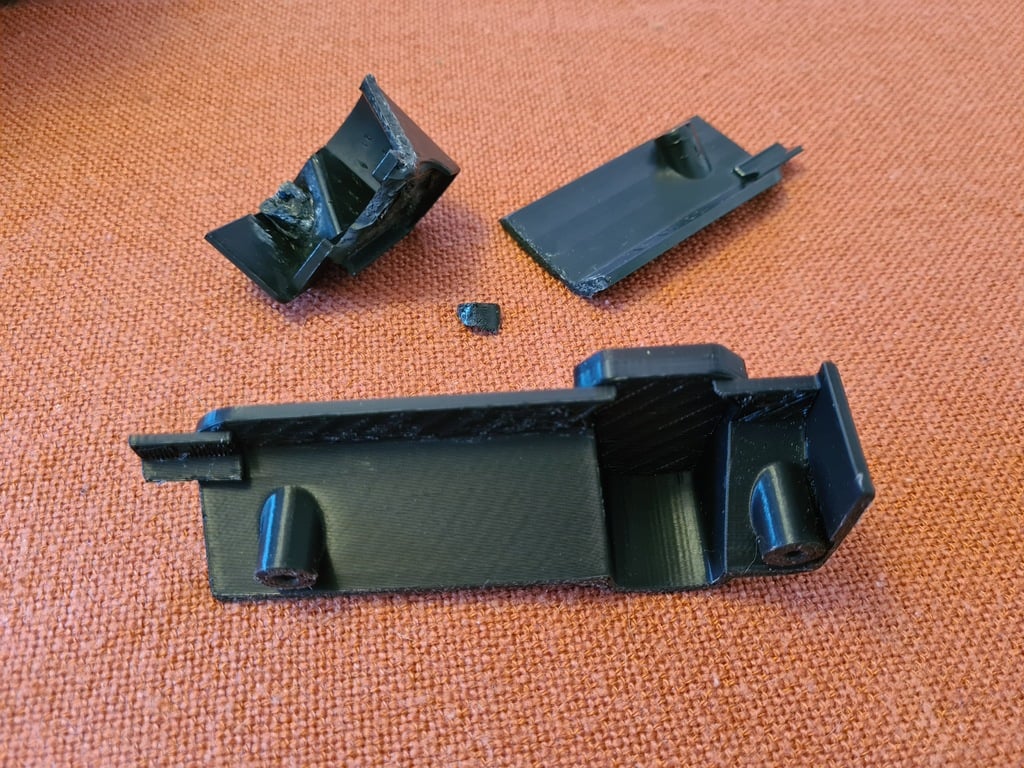

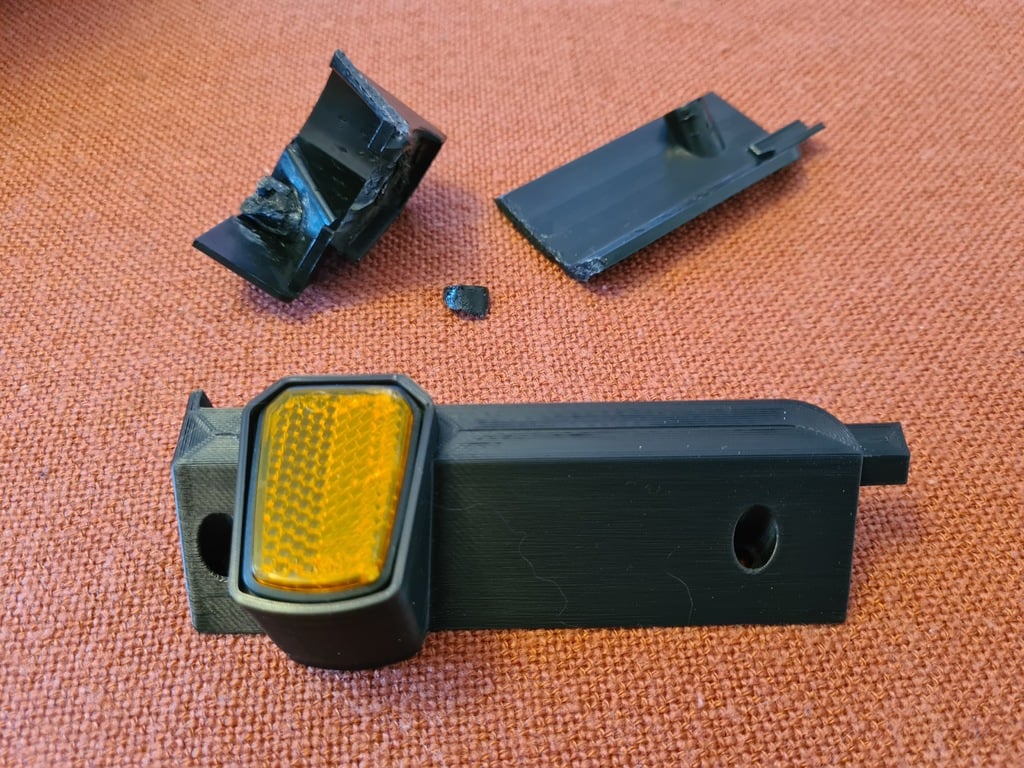

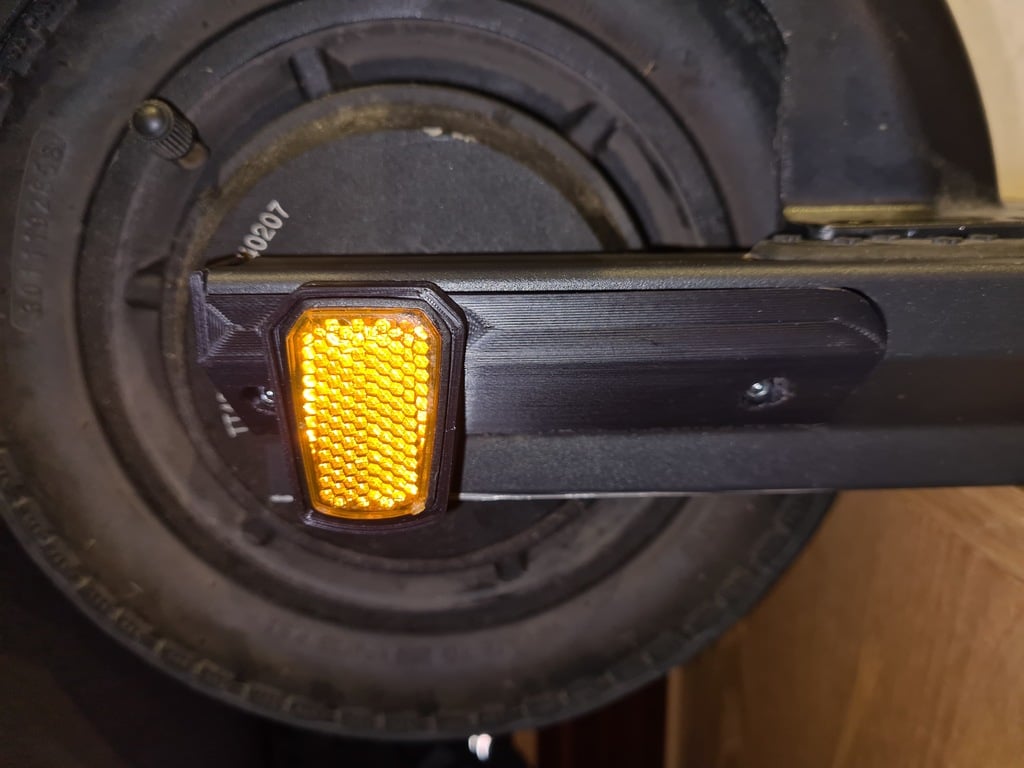

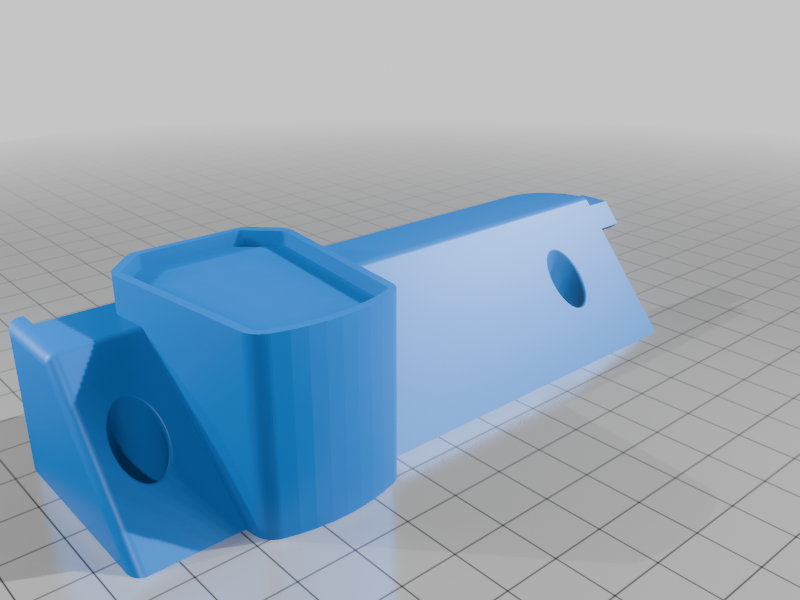

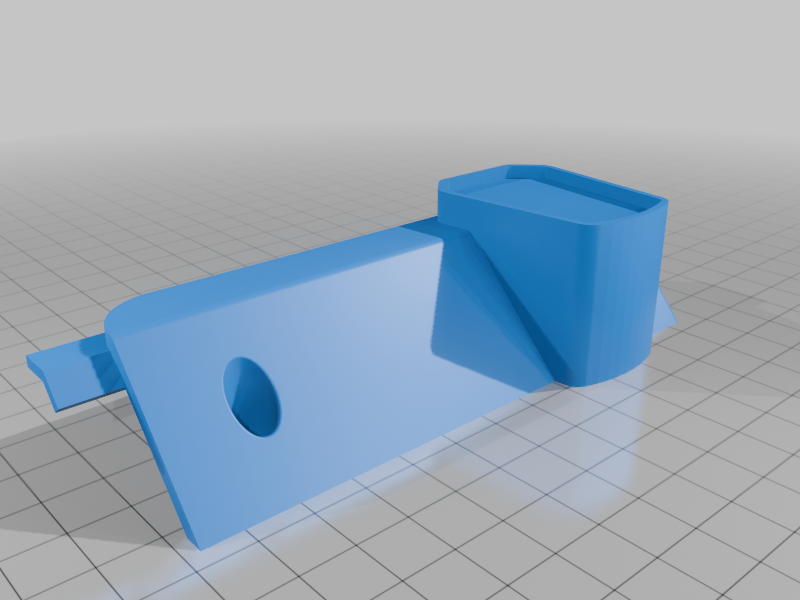

Unfortunately, the rear footboard covers on the Soflow MyTier e-scooter protrude far and are very fragile. You often get caught on door panels and tear them off, breaking them every time. Because of the thin wall thickness, a repair with glue usually doesn't last long and doesn't really help the next time you get caught. That's why I've redesigned the parts here so that they can be easily replaced after a crash. The reflector must be taken from the damaged part.
Print Settings
Printer Brand:
Snapmaker
Printer:
J1
Yes
Supports:
Yes
0.2mm
Infill:
100% / 15%
Notes:

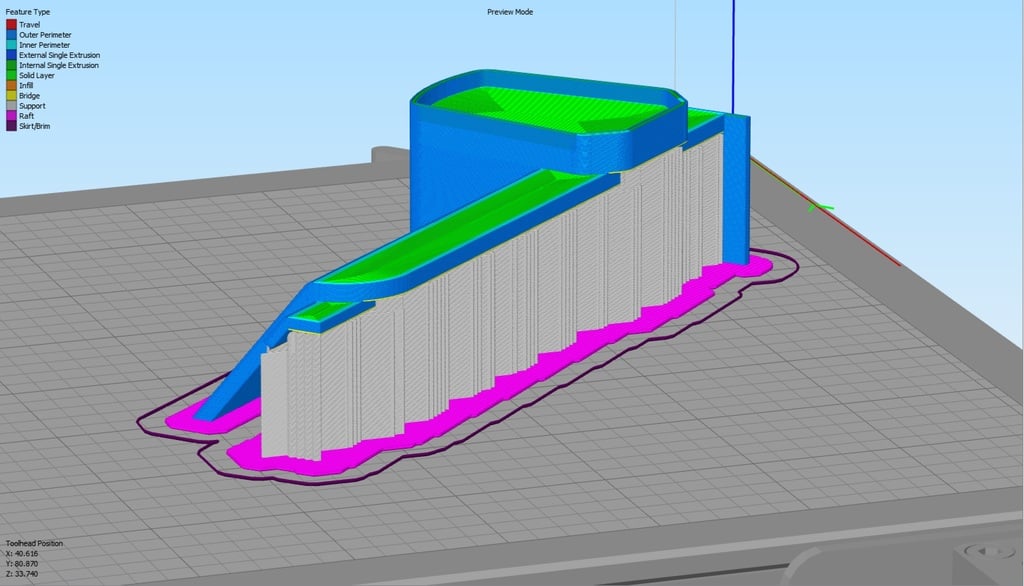

Print in the given orientation with support. A raft is recommended.
For better stability it is recommended, to print up to a height of 26mm with 100% infill. The reflector bed above doesn't need to be so strong. Here a infill of 15% is sufficient.
Category: Replacement Parts
