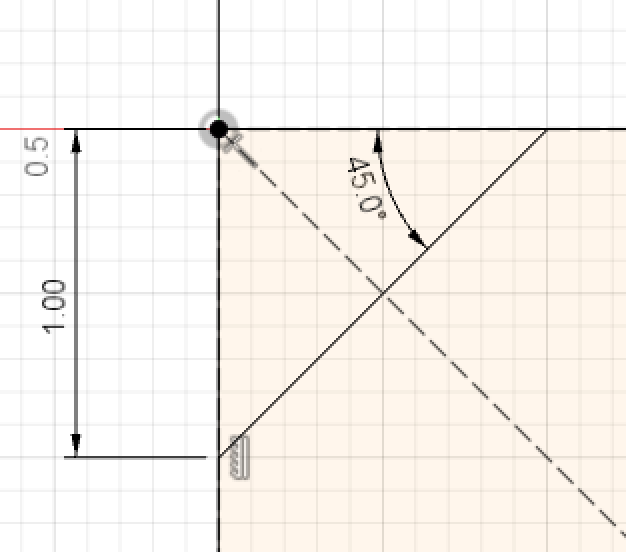

A very similar concept to my radius jig (https://www.thingiverse.com/thing:2438336/files), only this is a chamfer instead. The length written on them is a measure from the corner of the board to the edge of the template. See the diagram in the 3rd picture. As an isosceles triangle, it is the leg length, not the hypotenuse length.
For more information, see my blog post on the subject. https://kiltedcraftworks.com/2019/01/19/corner-chamfer-router-template/
Print instructions
Category: Machine Tools Print Settings
Infill: 30%
Filament: Push Plastic PLA
Notes:
I did 3 perimeters at a 0.2mm layer height. That might be overkill, but it should help really stiffen up that edge and make it handle more abuse.
