Voidrunner
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Outdoor Sports
- License
- Creative Commons — Attribution — Noncommercial — Share Alike

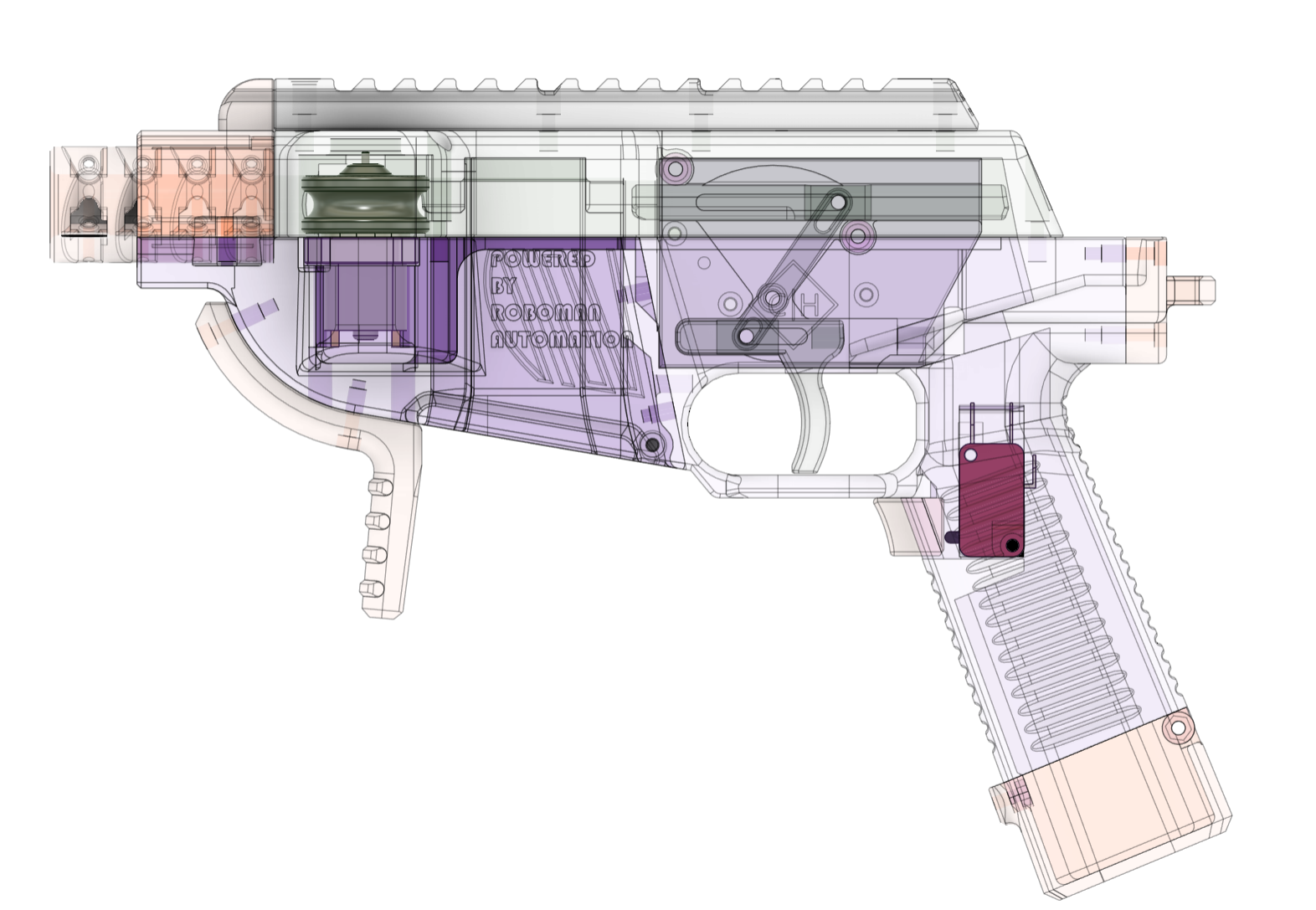

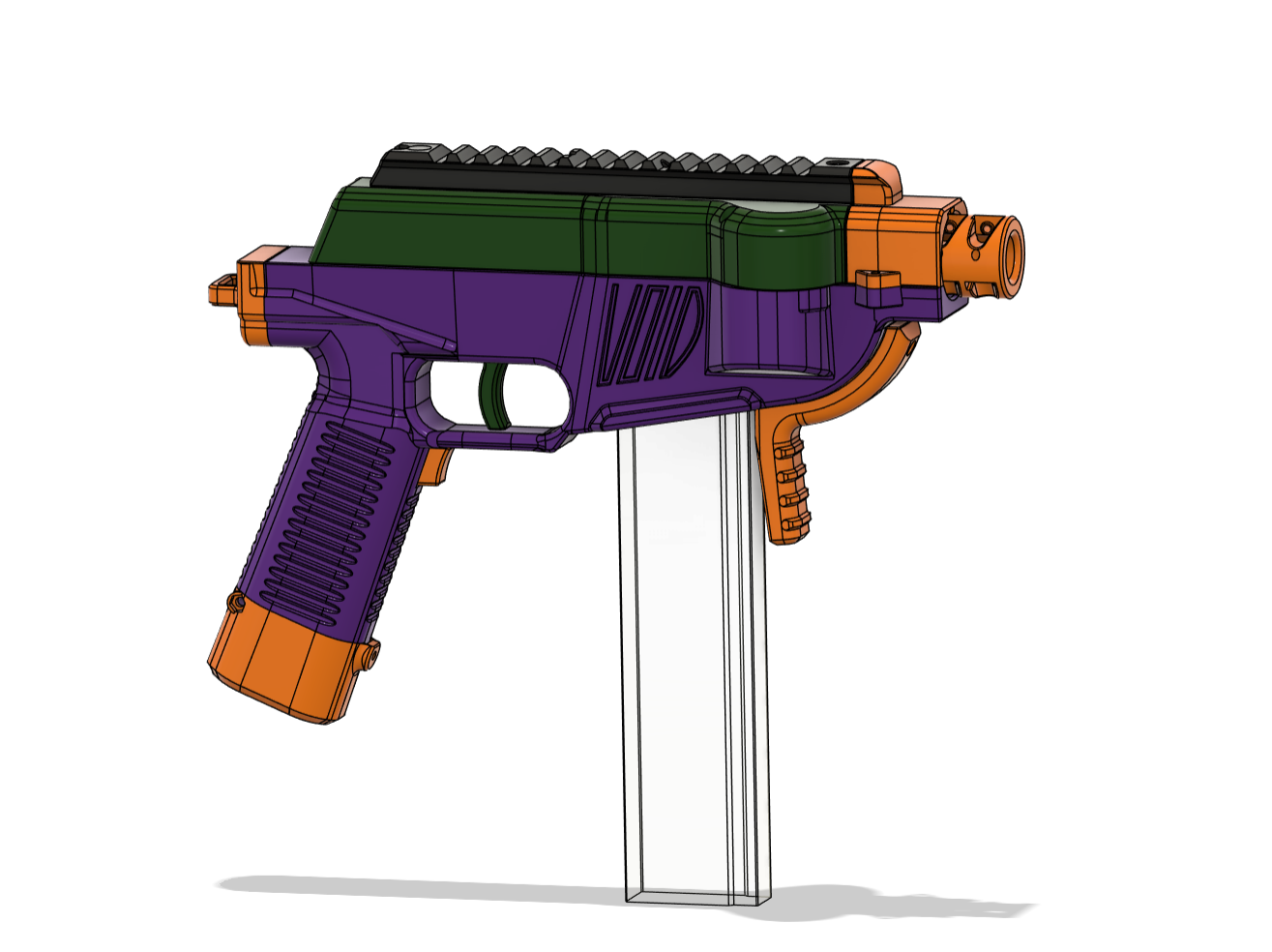

Voidrunner is a chopped and spliced Freerunner (by Chance) that was built for team Void to compete at the 2024 Ragnarocktoberfest 5v5 KoTH tournament. Designed to be light and compact to facilitate quick spawn pose transitions into active play. Adapted to accept Roboman's aluminum 32.5mm Flycore cage and Turbo Ranger Mini (7mm circular gap) wheels (also designed by Chance) for excellent consistency at 160-170 FPS. Accepts a 4-inline no-spin “BCAR” secured by twist lock for compliance with a 160 FPS cap. Minor ergonomic modifications and redesigned grip allow for the comfortable use of a 3S 1000-1100 mAh pack with an XT30.
Bill of Materials:
- x2 M3x20
- x3 M3x25 (2 for cage mount, 1 for switch cover)
- x12 M3x8 (for BCAR)
- x1 M3x14 (could be 12 to 16, for upper switch mount)
- x13 M3x10
- x10 M3x4.6x5.7 heatset inserts
- x1 M3 hex nut
- x5 M3x12 pins
- x12 MF63ZZ 3x6x2.5 bearings (for BCAR)
- x1 15-21A full-sized microswitch
- 16-20 AWG silicone insulated hobby wire
- x1 XT30 connector
- x2 130-180 20.4mm brushed motors
- x2 mini-sized wheels, intended for Turbo Ranger Minis but compatible with Worker Hurricane, Kurykafe Pulsar, and Banned Blasters Banshee Jrs.
- x1 Machined 32.5mm Flycore Cage module
