Gilbert Engineering - Spiral Tree Stand | 20mm electrical installation pipe
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Winter & Christmas & New Year's
- License
- Creative Commons — Attribution — Share Alike

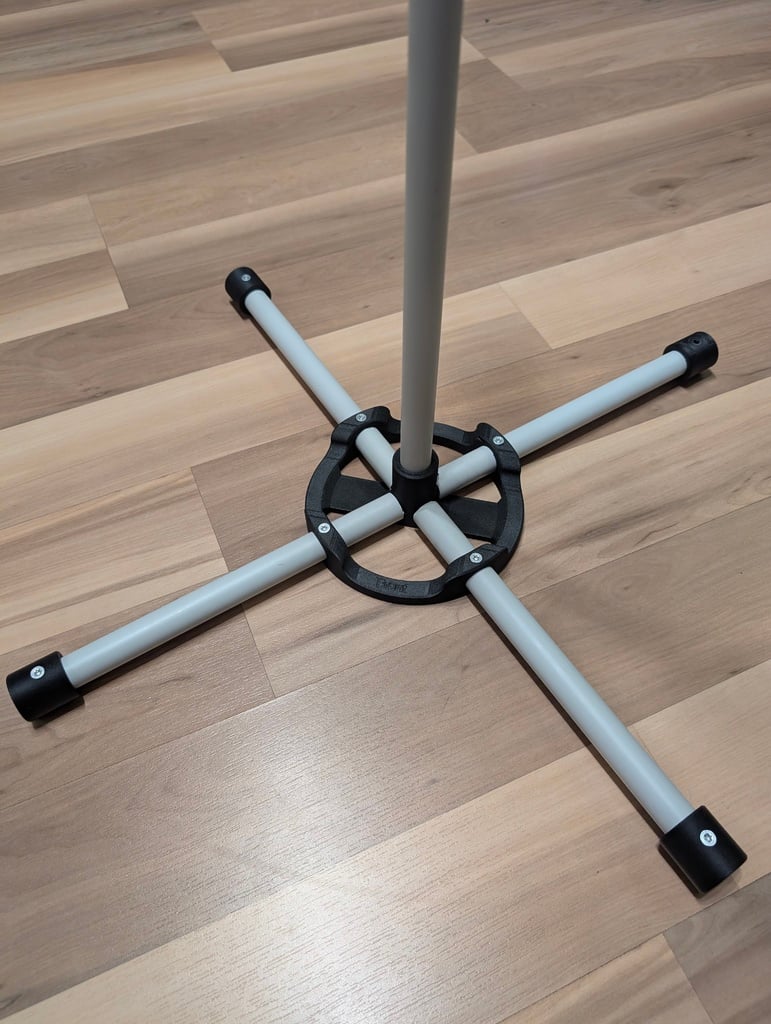

This are parts for the GE spiral mini tree. It's designed to use 20mm electrical pipes (e.g. https://www.obi.at/leerrohre/isolierrohr-starr-en-20-laenge-2-m/p/1846310 )
I cutted the 2 meter pipe in the following dimensions:
> 25 cm for every leg

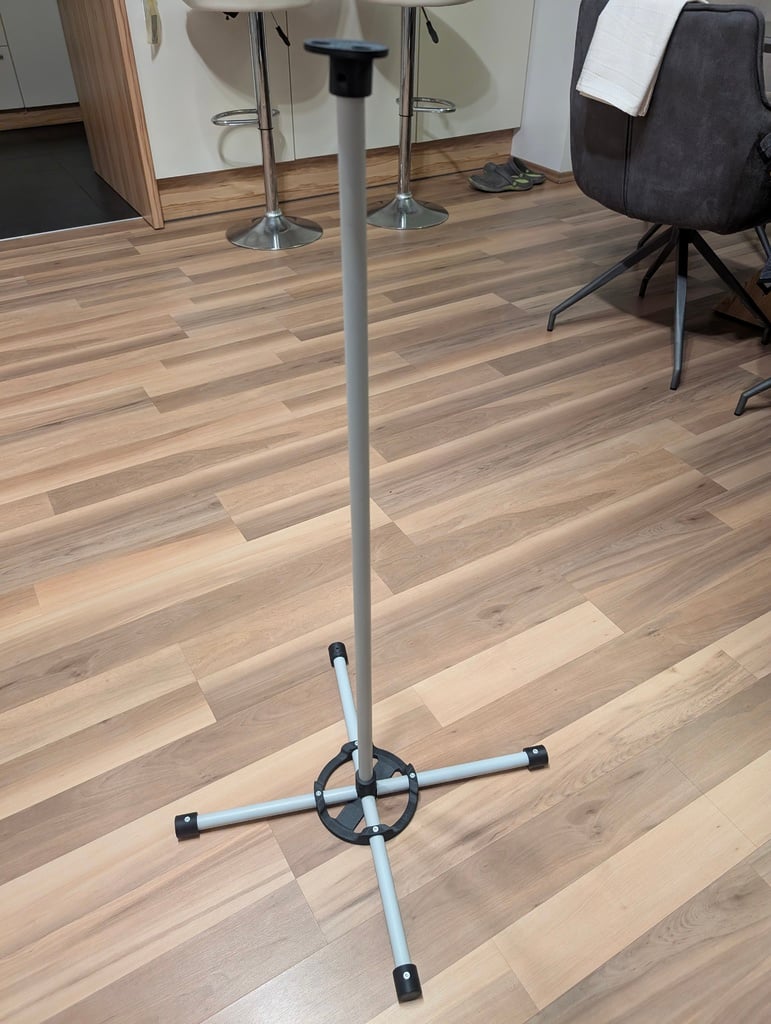

> 90 cm for the main shaft
so you'll need one 2 Meter pipe for every Spiral mini tree

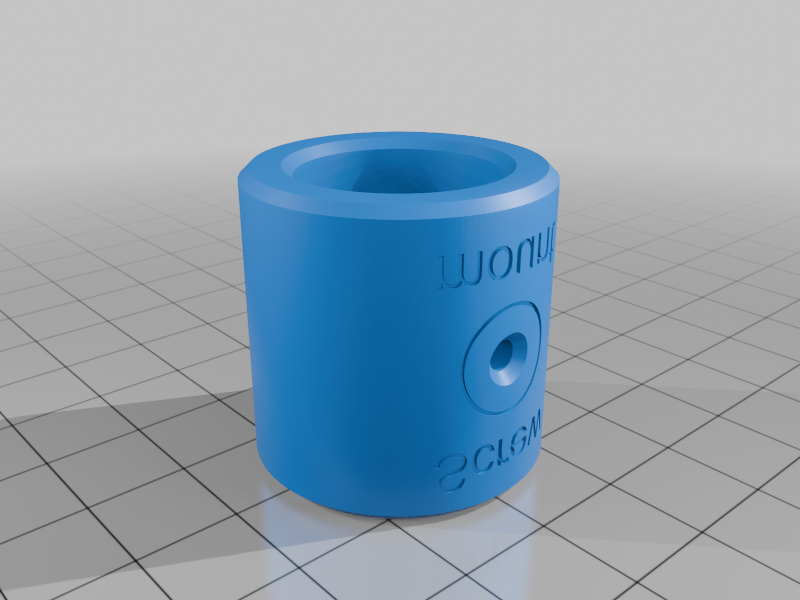

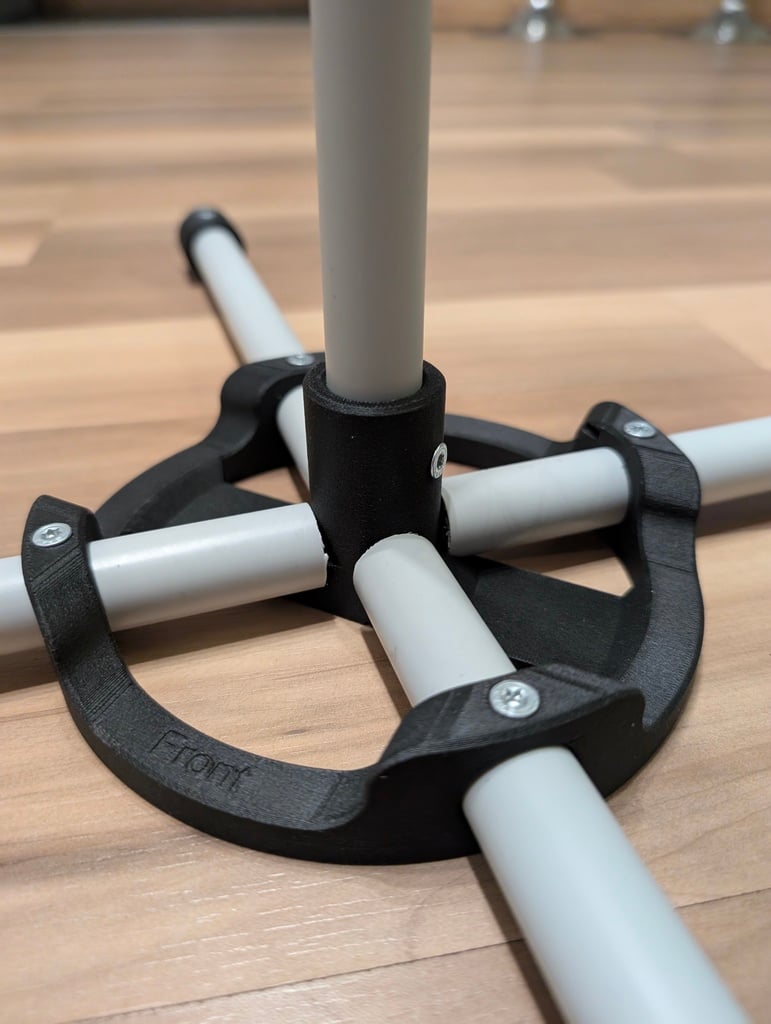

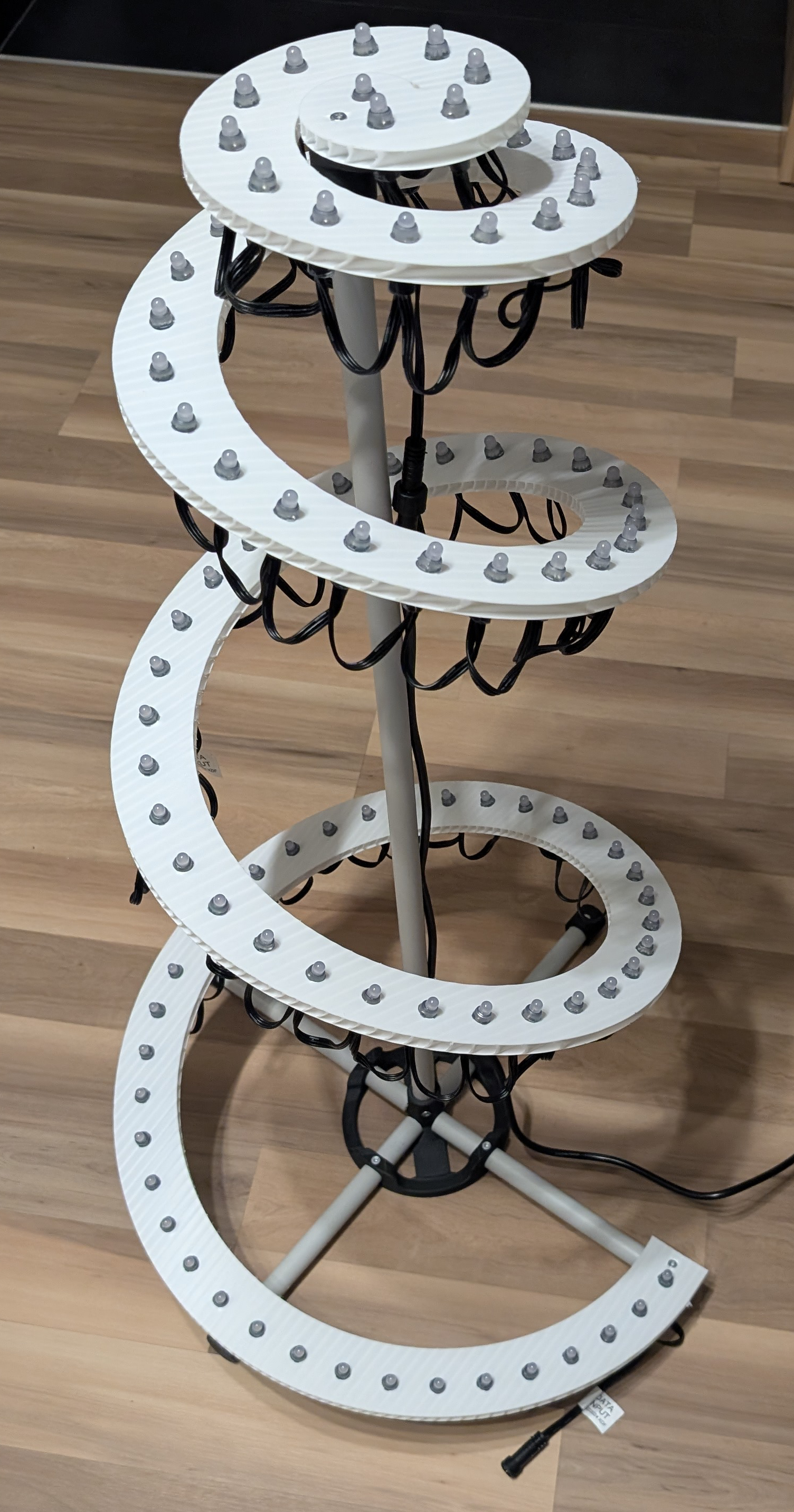

The spiral tree prop can be mounted on the top - cover with one screw and zip-ties. On the bottom its screwed to one leg (GE_SpiralTree_Stand_1x_CoverLeg_Mount.stl)
One complete set consists of: 1x GE_SpiralTree_Stand_1x_CoverLeg_Mount.stl 3x GE_SpiralTree_Stand_3x_CoverLeg.stl 1x GE_SpiralTree_Stand_1x_Base.stl 1x GE_SpiralTree_Stand_1x_CoverTop.stl
and fits on one Buildplate on my Bambu X1C. 3Mf File also provided

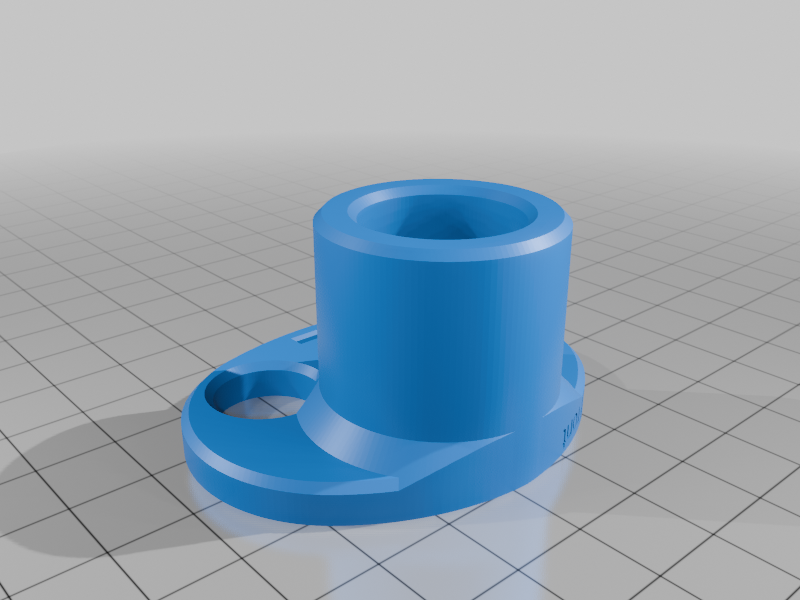

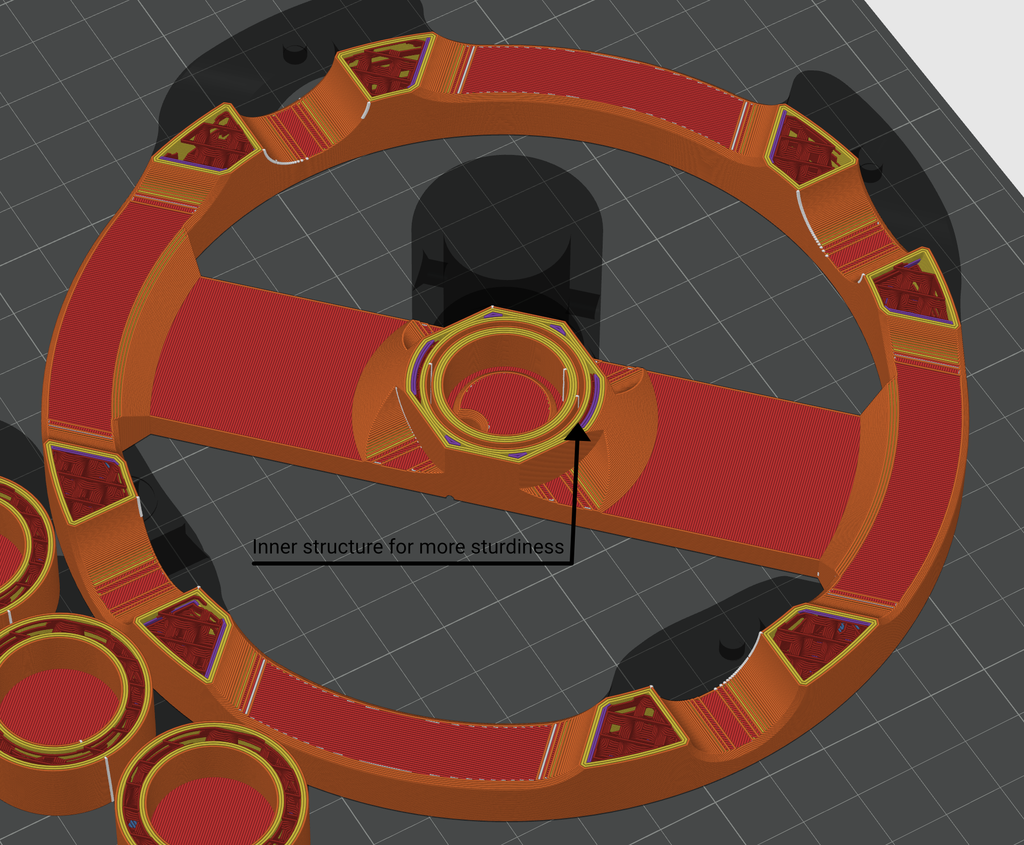

Center shaft has an inner structure for more sturdiness. The top - Cover is not finished yet, will be added in the next 2-3 weeks.
Designed to be secured with 4x20 Screws
Notes:
Printed with 3 Wall loops (GE_SpiralTree_Stand_1x_CoverTop.stl: 4 Wall-loops), 4 Bottom shell layers, 5 Top Shell layers
