Modular USB-C variable PSU
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Electronics
- License
- Creative Commons — Public Domain

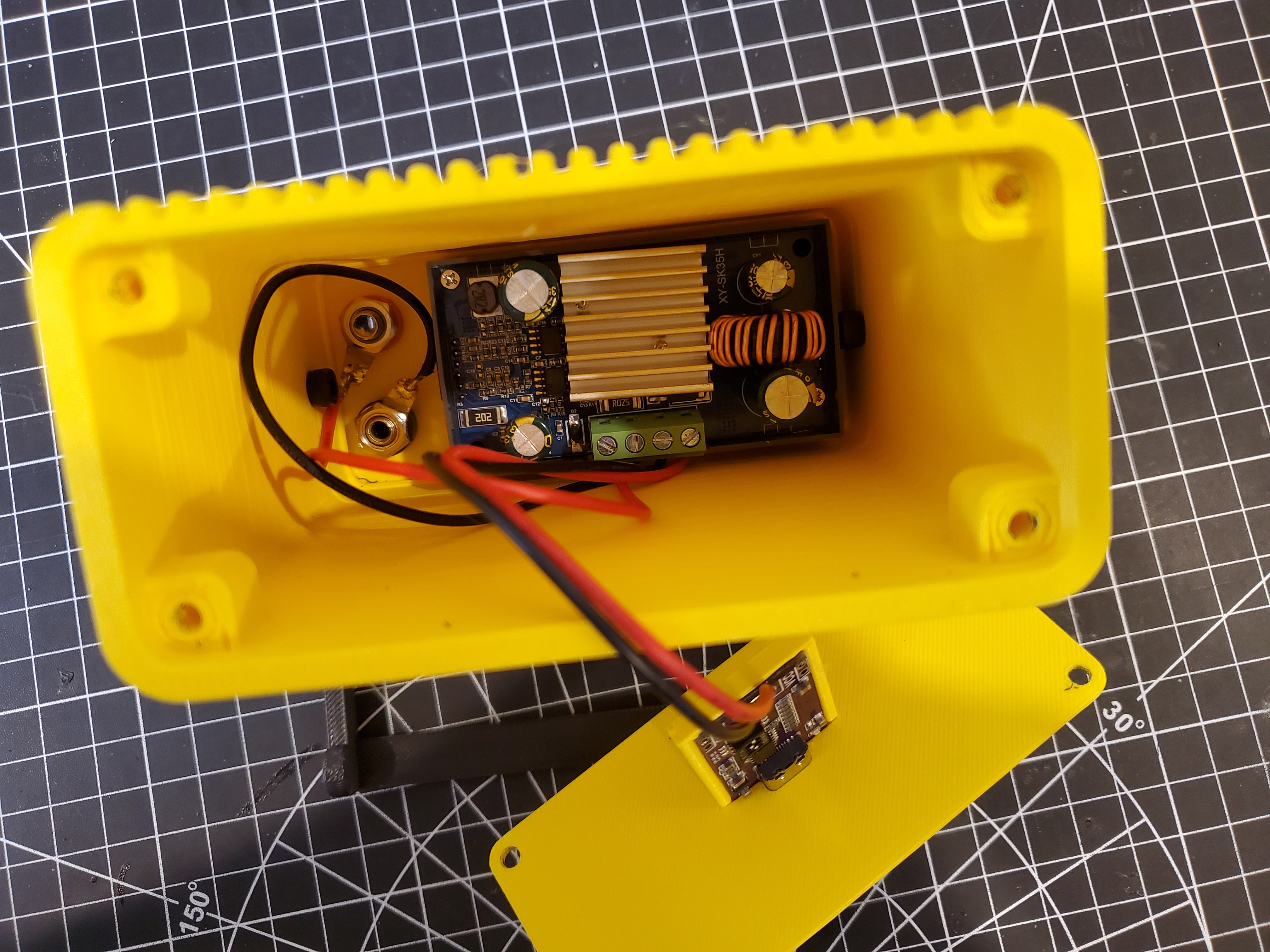

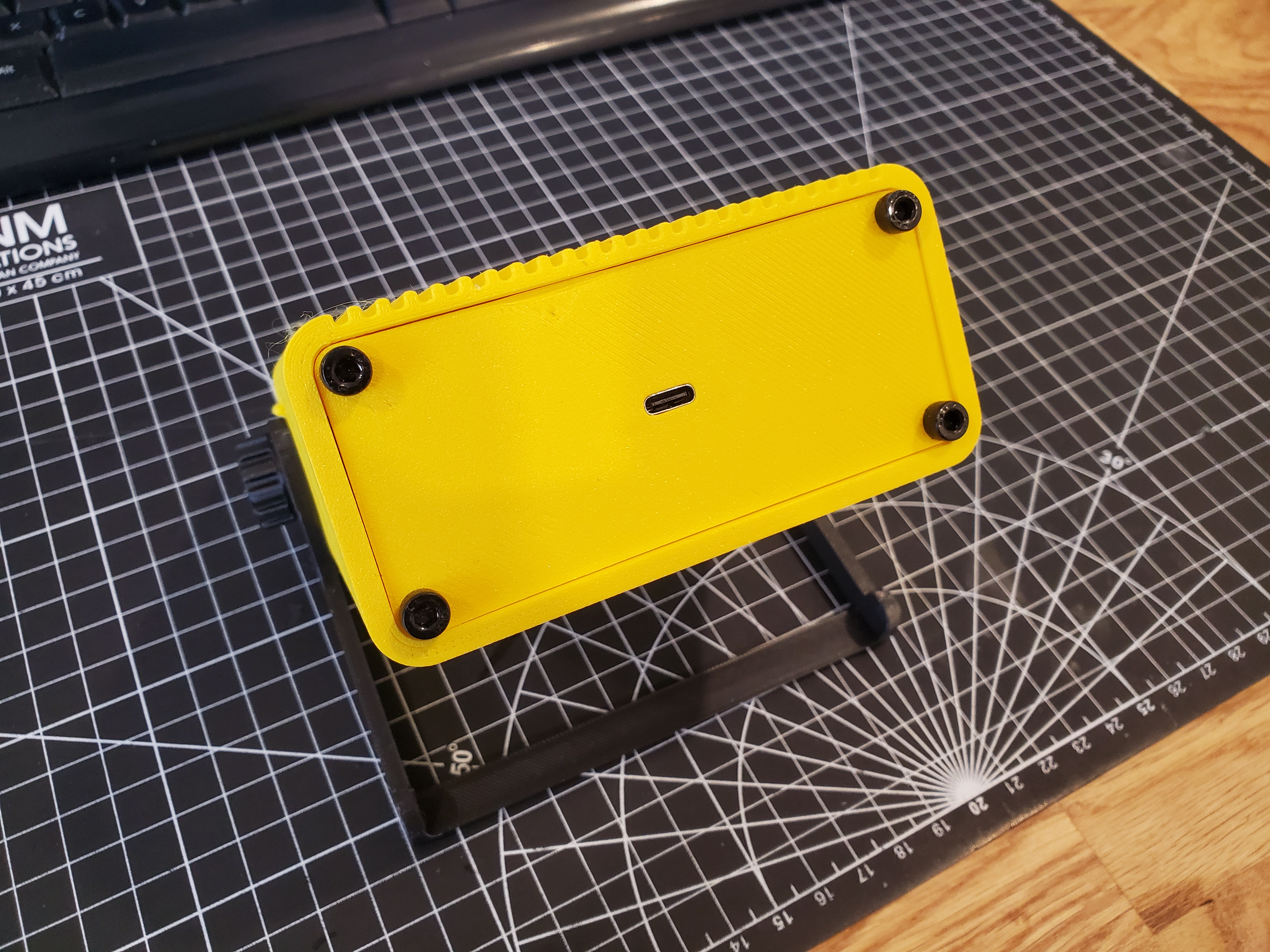

I redesigned this model with a modular face plate. The goal was to access the internals more easily and to be able to replace the face plate with speaker terminal clips when I receive them.
I also didn't have the same model of USB-C decoy, so I tweaked the back mount for my model. I configured it for 15V (from 27 to 45W).
I used the following additional parts for this face plate:
- Buck/Boost converter (~13 CAD): https://www.aliexpress.com/item/1005006387669453.html
- Speaker terminal clips (~4 CAD): https://www.aliexpress.com/item/4000446277100.html
- Banana plug connectors (~4 CAD): https://www.aliexpress.com/item/1005006430223084.html
- USB-C decoy (~2 CAD): https://www.aliexpress.com/item/1005007000886808.html
I cut the speaker terminal clips using a wire cutter along the red lines below, flush to the main body on the short end, and with a 45 degrees cut so its hold nicely with the provided model. I then used some strong glue to fix it in place.
