Select Fire Pusher!

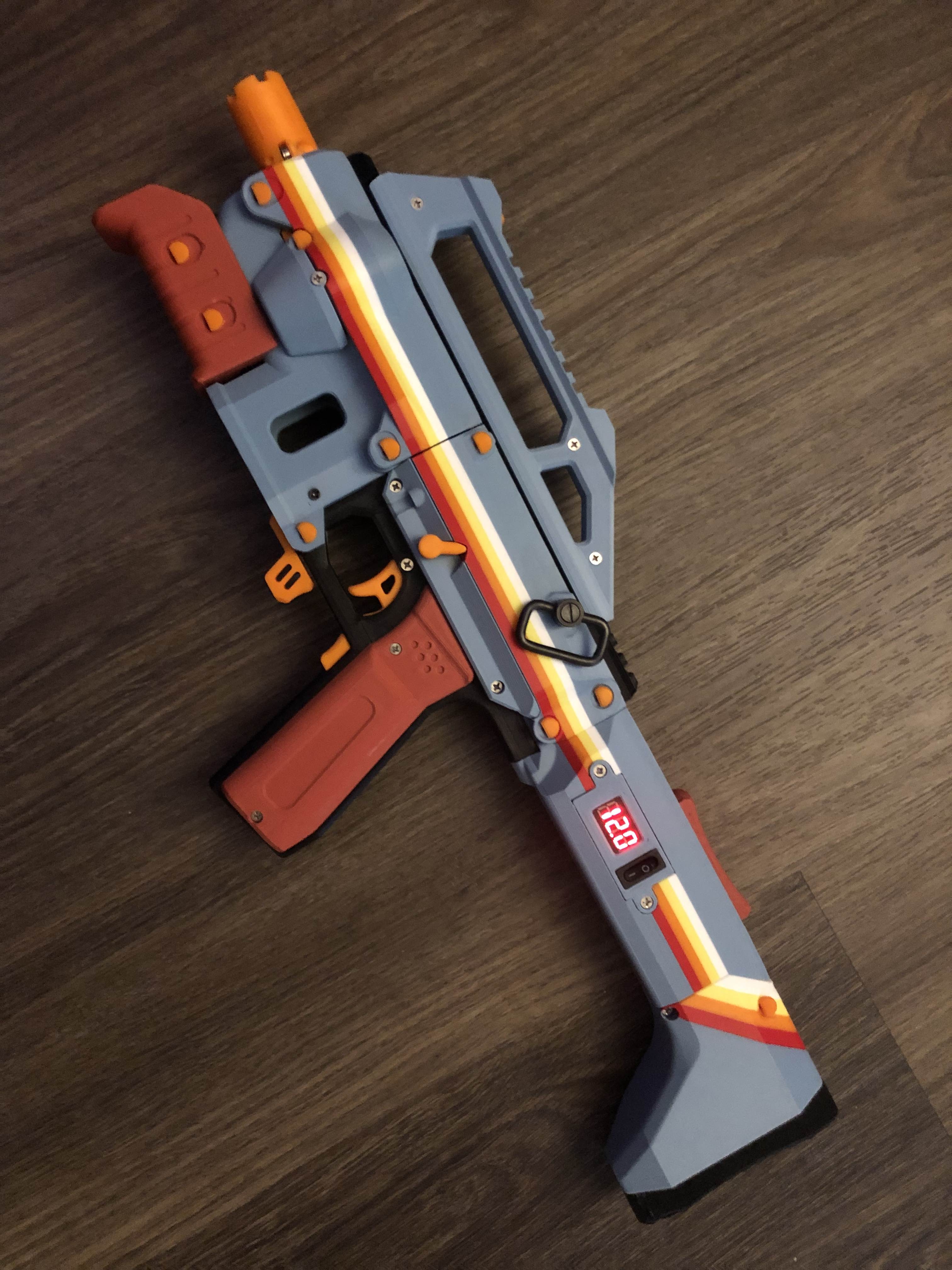

This in essence a “merging forward” of Skwiggums' Shirdal Gryphon into the newer protean. This builds a fully modular pusher unit for a Protean blaster that should be compatible with any other stocks and receivers. It is adapted from the (currently) in-beta solenoid protean pusher, and borrows some parts and geometry from the original Shirdal.
You Will Need:
Attached links are just where I got my supplies, most of these components have many vendor options.
- Neutron solenoid
- 2x 21a microswitch, button style
- Arduino Nano
- 12V-5V Voltage Dropper
- Mosfet switch board
- RS101 Rotary switch
- Solenoid diode
- 13x 5mm M3 Brass Insert
- 13x M3x10 Machine Screws
Instructions

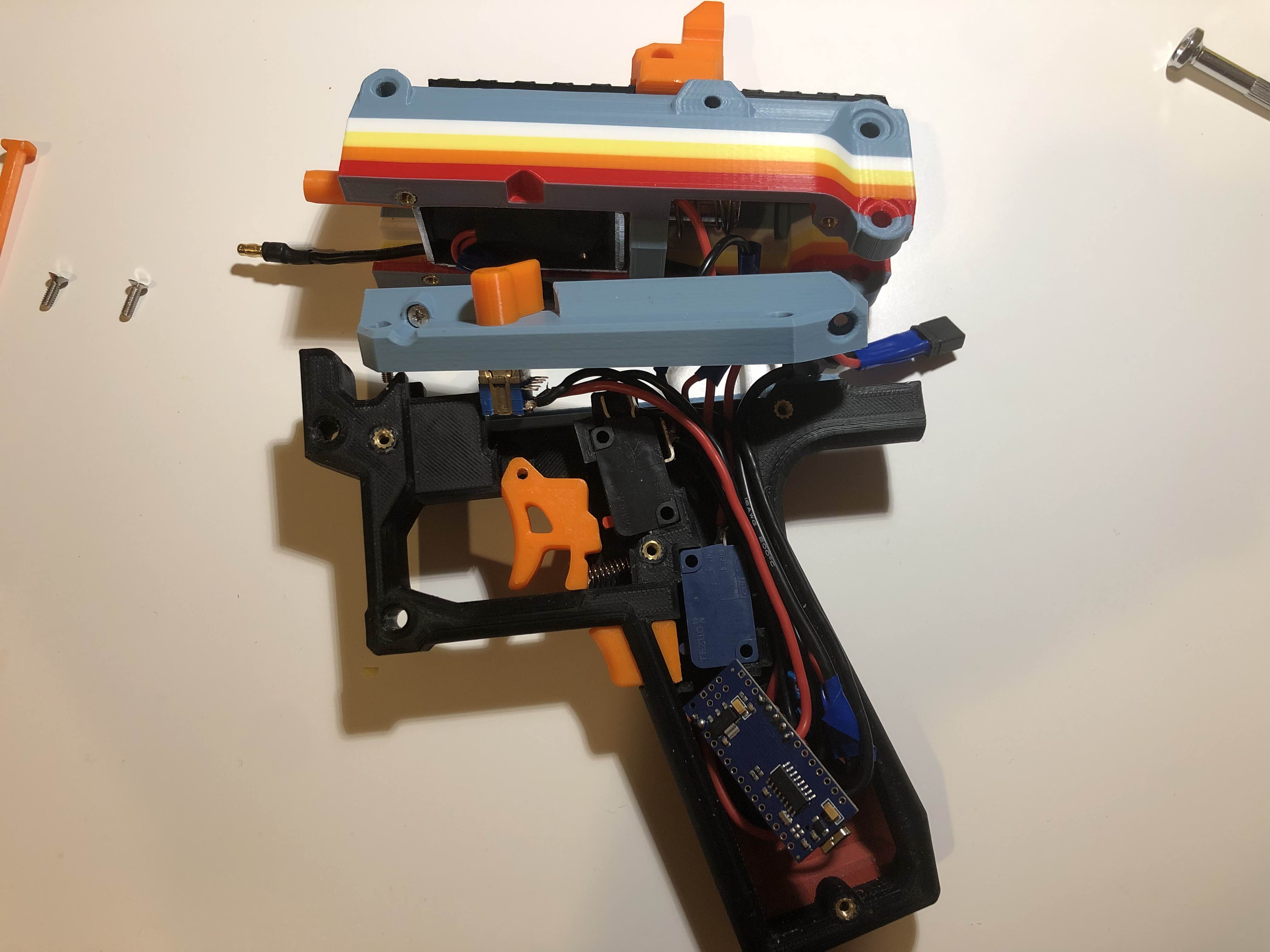

coming soon. circuit is essentially the same as the original Shirdal, but without voltmeter or on/off switch, and with bullet plugs instead of wiring directly to the cage and motors (as most proteans are built)
if anyone actually wants to build this and wants more in-depth instructions please contact me and I'll be happy to help and update this section.
