.280 Remington, Double Spring Latch, Snap Hinge Modular Ammo Box
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Tools

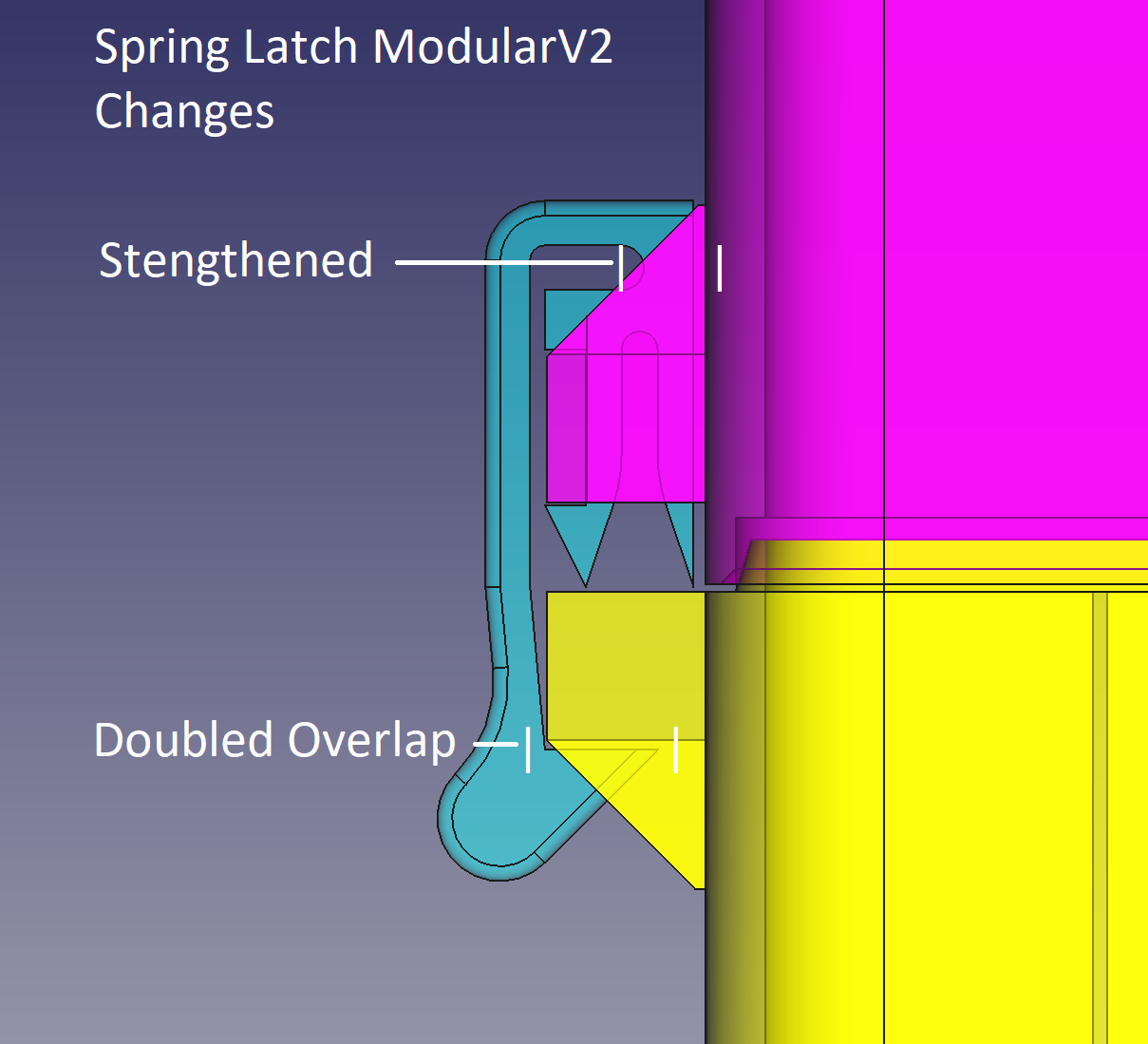

This version has these improved features:
- hinge that snaps the box to and bottom together
- two box tops - one that prints as a single part and one that is stronger, but requires simple assembly
- ramped front catch
- text for multicolor
- ramped latch fixture for easier assembly
Look in my Ammo Boxes Collection https://www.printables.com/social/261776-brass_ring/collections/167118 to see my ammo boxes with different latches and hinges options.
Other ammo boxes of this type can be found in my Double Spring Latch Ammo Boxes Collection https://www.printables.com/social/261776-brass_ring/collections/176714.
This cartridge box is printed as separate parts that are printed in orientations chosen to maximize strength and then snapped together.
The box halves require moderate infill (10%-20%) and can be printed with no supports, but I prefer to paint on supports under the flat sections on the hinge hoops, the latch hoops, and the latch catch. I printed with 0.16 layer height in PETG and PLA.
Check for the latest hinges and latches in https://www.printables.com/model/187176-modular-ammo-box-common-parts or https://www.thingiverse.com/thing:5270385 .
Assembly instructions: See the attached PDFs
Category: Tool Holders & Boxes
