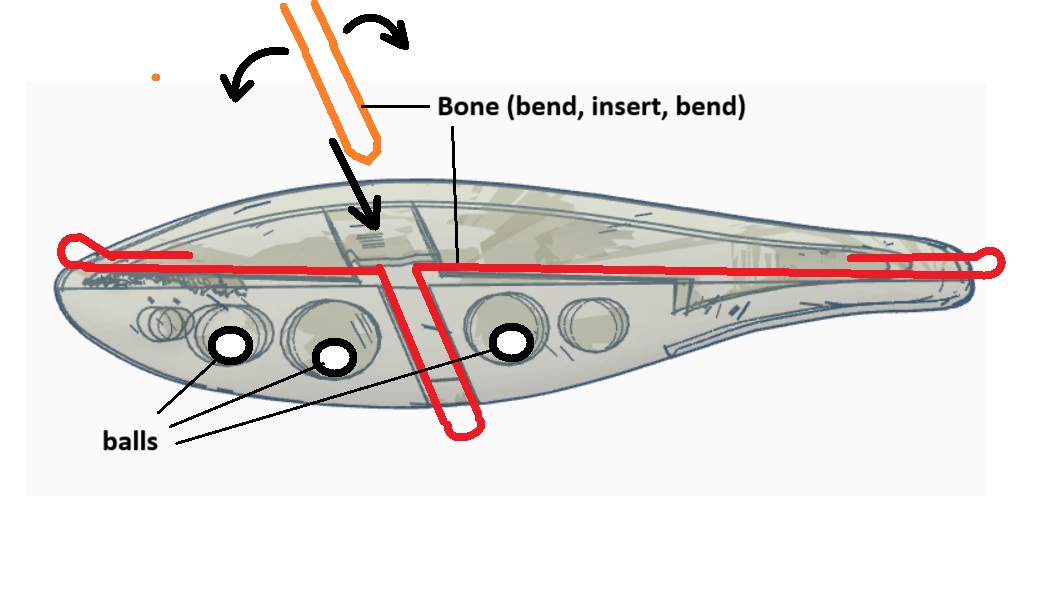

After long time of experiments and trials I made another succesfull fishing lure, this lipless jerkbait, made especially for pikes. This fishing lure is traditionally fitted with a steel wire frame, unconventionally the frame is glued with epoxy glue from the back side, mainly to create dry chambers for inserting steel balls from a bicycle wheel bearing. These are inserted into the chambers after printing layer no. 63 at a layer thickness of 0.20 mm.
Settings:
material: PLA
top, bottom, wall thickness - 1 mm
infill 30% zig zag for floating, 50+% zig zag for sinking version (it also wobble during passive sinking)
support 30% for angle 60 degrees
! pause at layer 63 for steel balls. (one ball for each big chamber on the bottom side)
