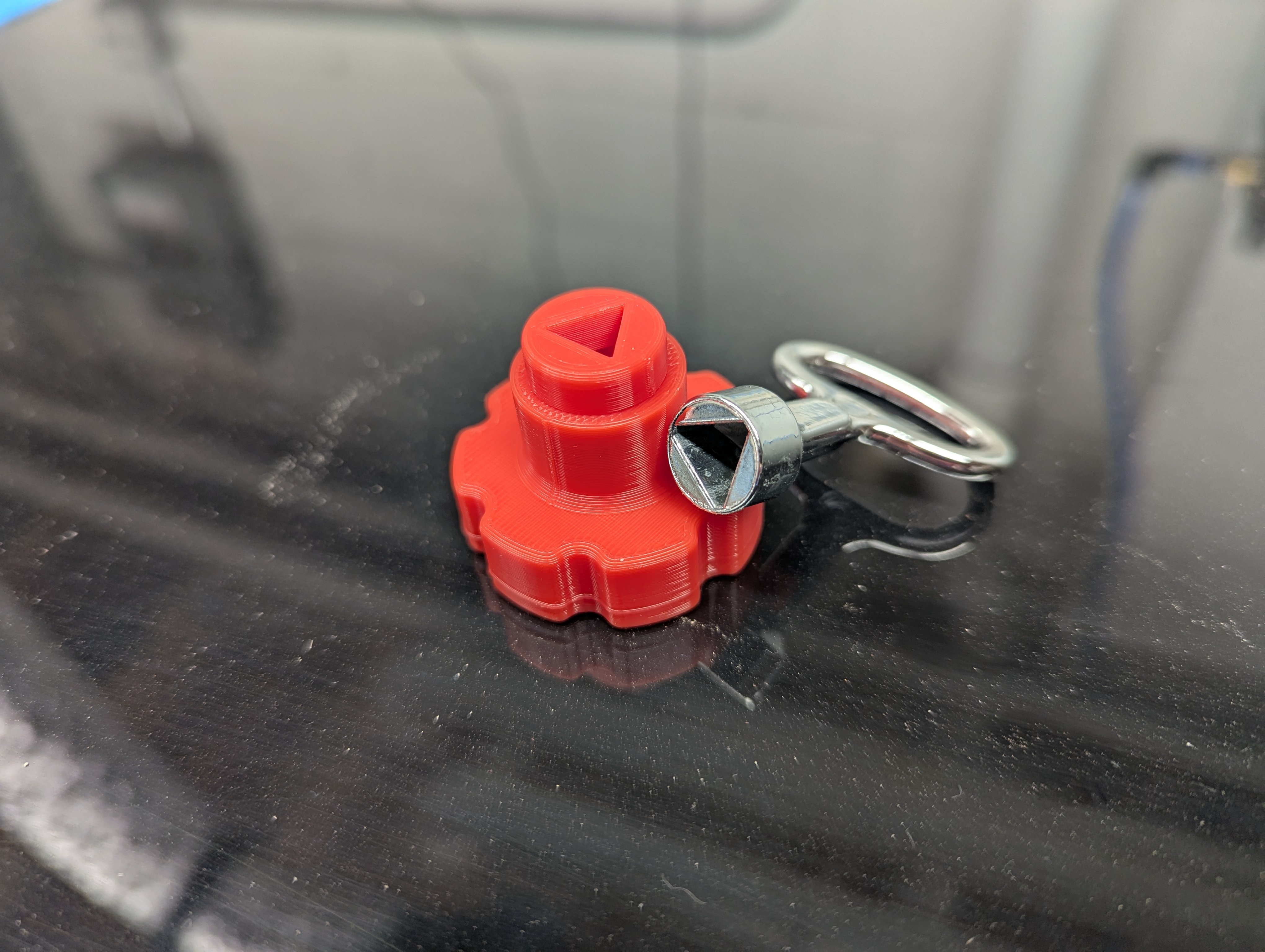

Replacement knob for the triangle key to open the side panels of OMTech laser machines.
- Rating
- 0 / 5
- Likes
- 1
- Downloads
- 41
- Makes
- 0
- Views
- 181
- Reviews
- 0
Updated at source:
Model information
- Source
- Printables
- Category
- Tools
- License
- Creative Commons — Attribution — Noncommercial

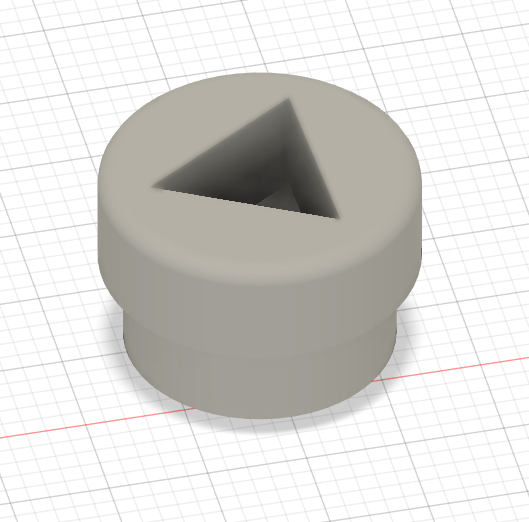

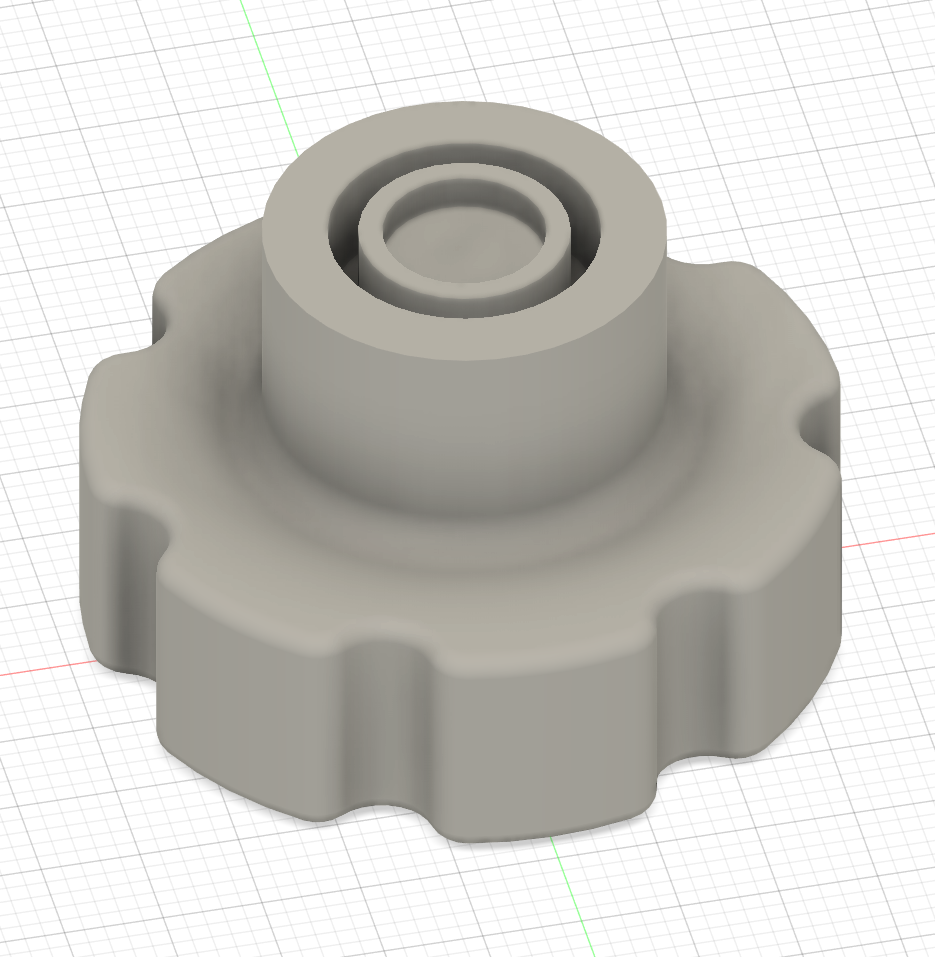

This was modeled in two snap-together parts to allow for the insertion of an 8x2mm round magnet to hold the knob in place on the triangle. It's designed to be more or less a friction fit, but there was some variability in the fit on all the panel locks on my laser, so I allowed the option to insert the magnet. If they're not needed, snap the parts together and hit with a drop of thin CA if necessary. If the magnet is needed, insert one into the depression on the knob body, then snap in the top piece. I found I needed to add plate attached supports because of the indent on the top of the knob. This added a negligible amount of print time and was easy to remove.
