Workbench Extension Arm
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Tools
- License
- Creative Commons — Attribution — Noncommercial — Share Alike
Extension arm design to keep the dust extractor hose and sander cable away from the sanded part or the workbench edges.
Functions :
- Hose and cable holder
- 140° rotation of the arm
- Deported Slot nut connection
Components:
- D35/ d32mm Steel or Aluminum tube – 1200mm
- D35/ d32mm Steel or Aluminum tube – 600mm
- 4x M4 x 20 10642 screws
- 6x M4x10 ISO 4762 screws
- 6x M4 ISO 4032 nuts
- 24x M3 x 16 ISO 4762 screws
- 2x M3 x 12 ISO 10642 screws
- 1x M6 x 25 ISO 4762 screw
- 1x M6 ISO 4032 nut
Assembly :
Base assembly
- 1x M6 ISO 4032 nut
- 4x M4 x 20 10642 screws

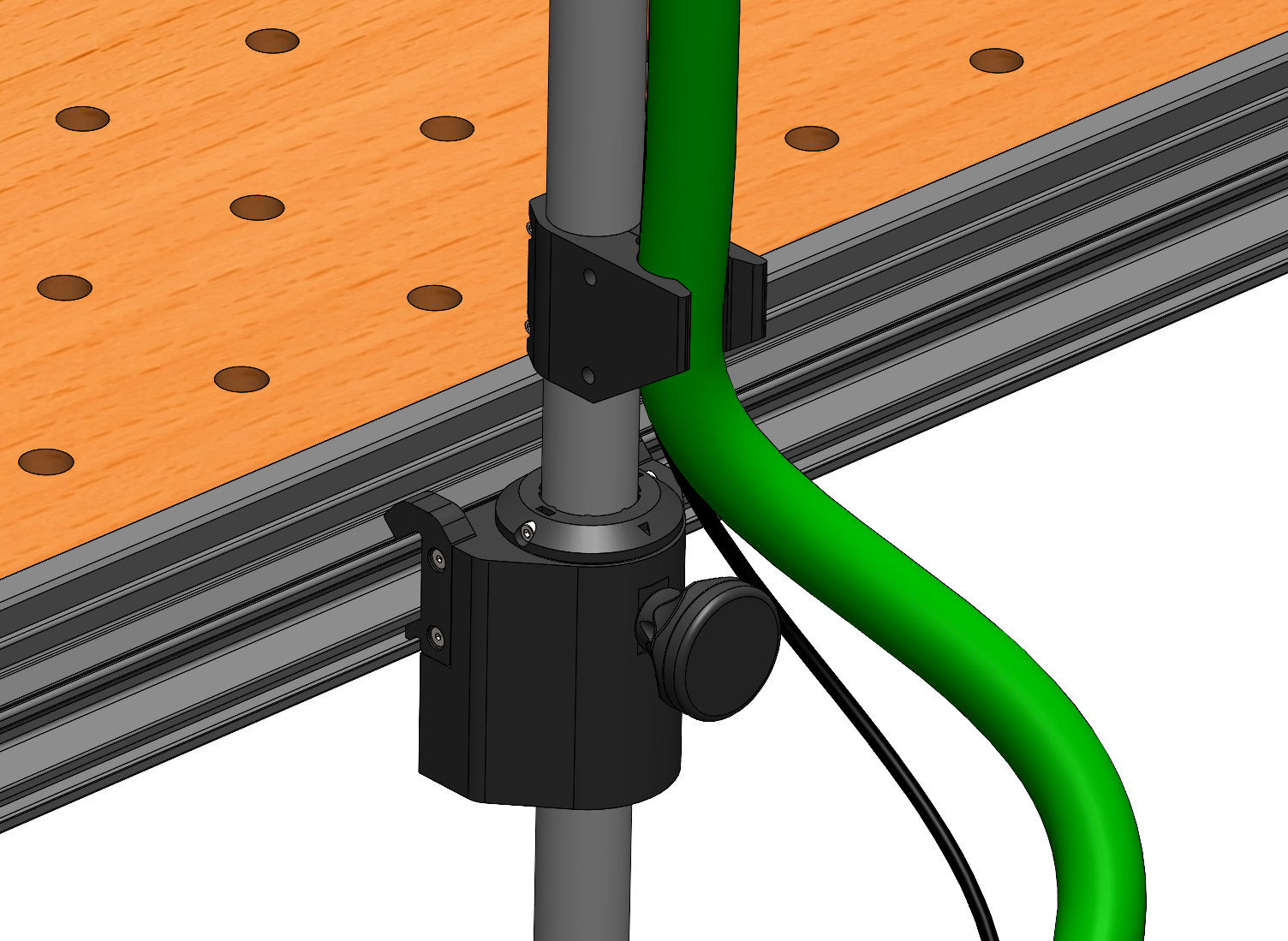

Tube pivot assembly
- 2x M4x10 ISO 4762 screws
- 2x M4 ISO 4032 nuts

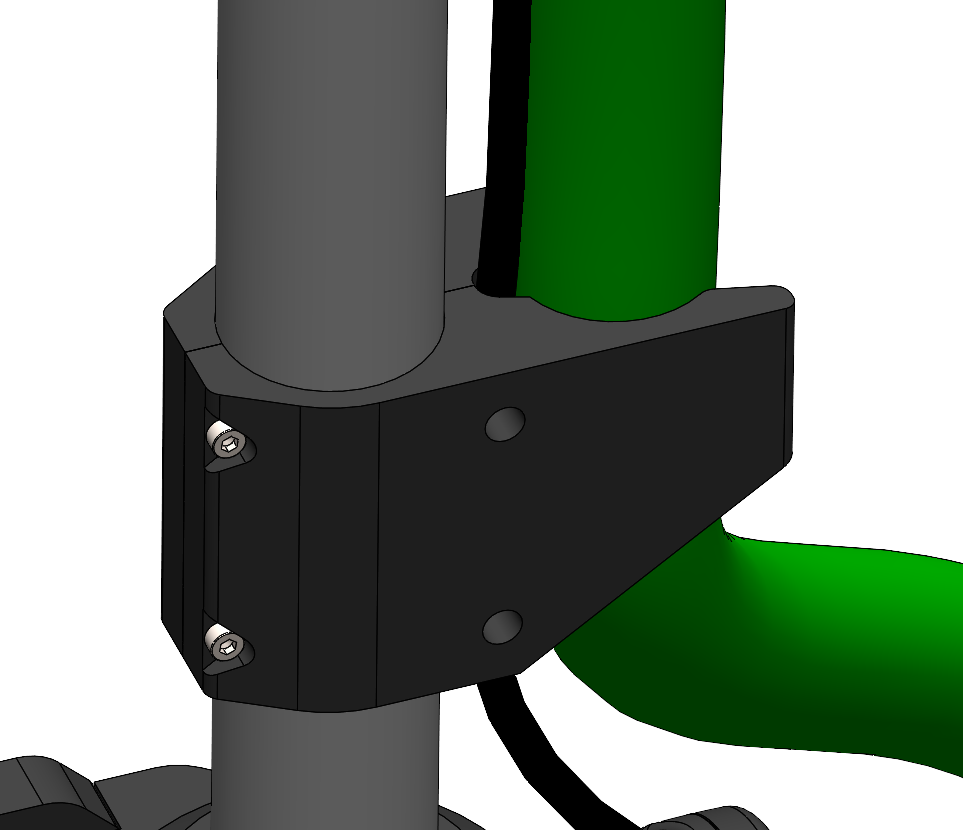

Hose & cable supports assembly
- 4x M3 x 16 ISO 4762 screws

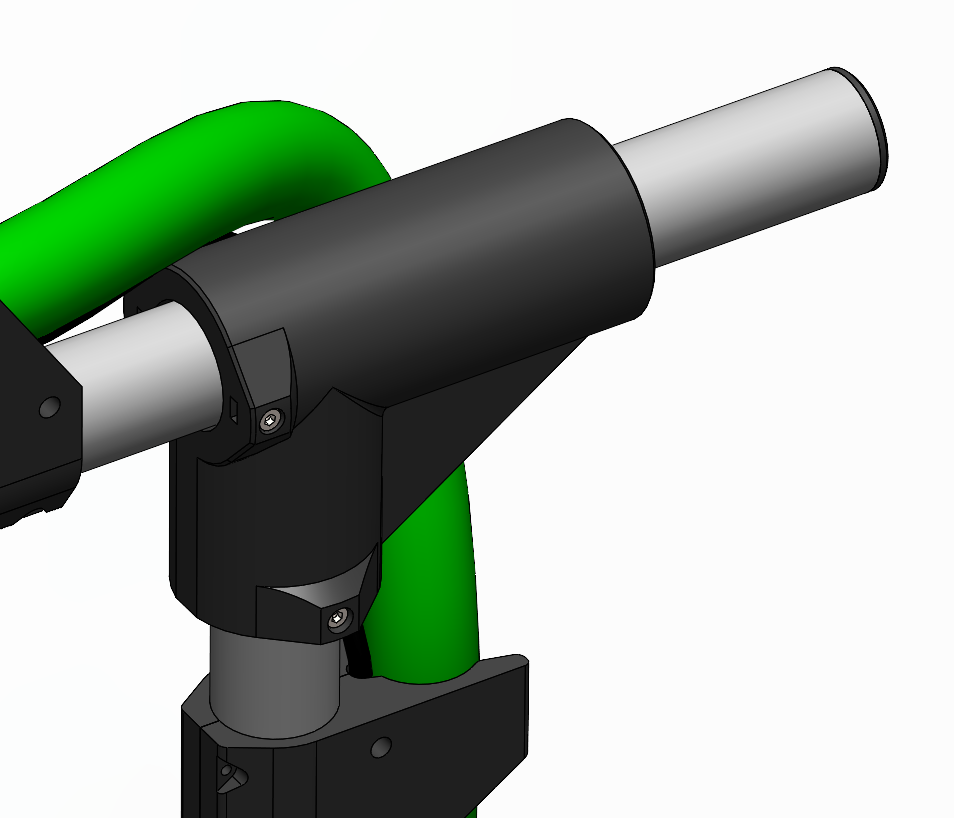

Square tube connector assembly
- 4x M4 ISO 4032 nuts
- 4x M3 x 16 ISO 4762 screws

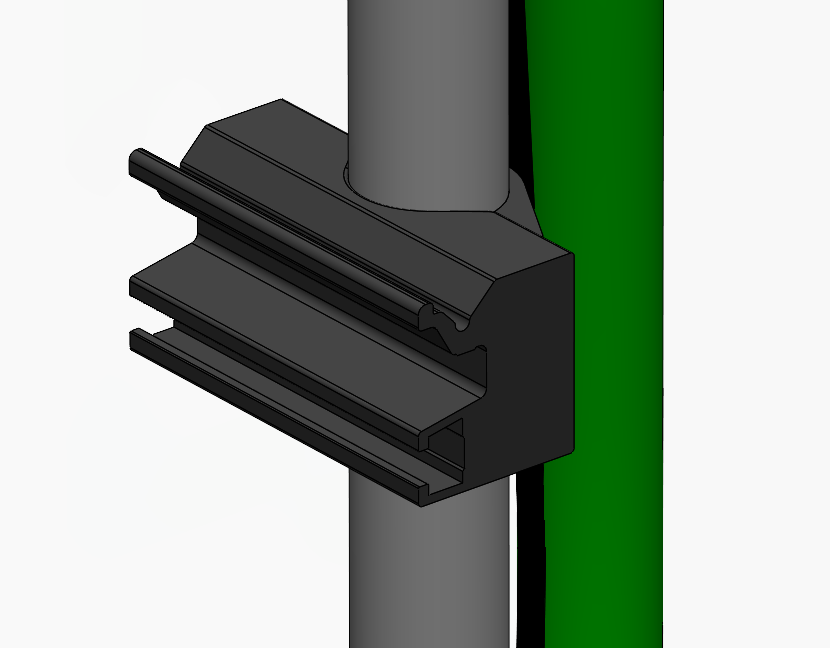

Deported Slot nut assembly
- 4x M3 x 16 ISO 4762 screws
Clamping sleeve
- 2x M3 x 12 ISO 10642 screws
- 1x M6 x 25 ISO 4762 screw
Arm and base assembly
