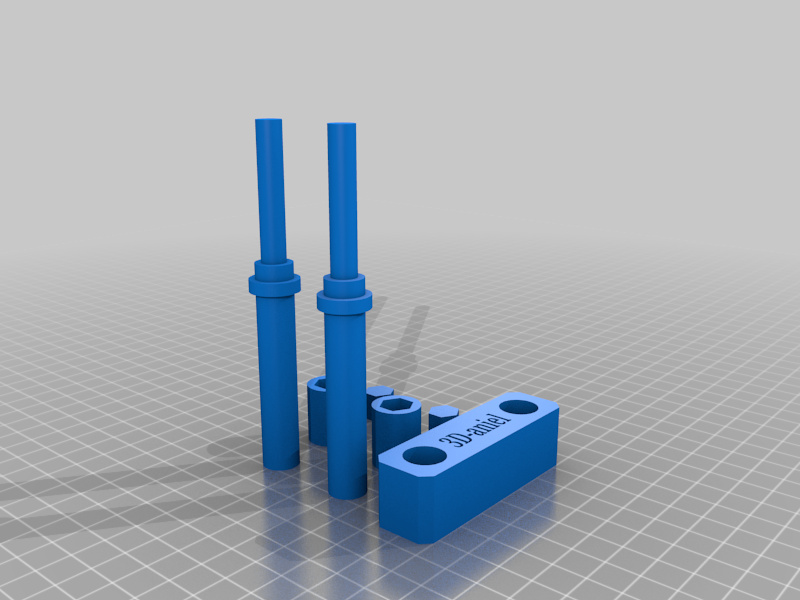

Camshaft lock for an timingbelt change VW 1.4 / 1.6 16V

Order a print of this model

We calculate the final price from your selected file. You review and accept it before payment.

Saved on this device.

Model information

Source
Printables
Category
Automotive
License
Creative Commons — Attribution — Noncommercial
DetailsMakes & commentsRemixesCollectionsRelated

Its a tool to lock your camshaft at an timingbelt change on your VW 1.4 / 1.6 16V Engine.

➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖ YOU NEED:

  • M6 Thread Drill
  • Two DIN933 M6 Screws with a length of 20mm.
  • Glue (If you want)

➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖ HOW TO:

  • At the end of the two longer parts you need to drill an M6 Thread.
  • Then you put the Screws in the little knobs and press/glue the covers on.

➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖

Cars for this Tool:

VW CADDY III Kasten (2KA, 2KH, 2CA, 2CH) 1.4 59kW / 80PS Baujahr: 05/2006 - 08/2010

VW CADDY III Kombi (2KB, 2KJ, 2CB, 2CJ) 1.4 59kW / 80PS Baujahr: 05/2006 - 08/2010

VW GOLF PLUS (5M1, 521) 1.4 16V 55kW / 75PS Baujahr: von 01/2005

VW GOLF PLUS (5M1, 521) 1.4 16V 59kW / 80PS Baujahr: von 05/2006

VW GOLF V (1K1) 1.4 16V 59kW / 80PS Baujahr: 05/2006 - 11/2008

VW GOLF V Variant (1K5) 1.4 59kW / 80PS Baujahr: 06/2007 - 07/2009

VW GOLF VI (5K1) 1.4 59kW / 80PS Baujahr: 10/2008 - 11/2012

VW GOLF VI Variant (AJ5) 1.4 59kW / 80PS Baujahr: 07/2009 - 07/2013

VW POLO (6R1, 6C1) 1.4 63kW / 85PS Baujahr: von 06/2009

VW POLO (6R1, 6C1) 1.4 BiFuel 60kW / 82PS Baujahr: 03/2010 - 01/2011

VW POLO (9N_) 1.4 16V 59kW / 80PS Baujahr: 05/2006 - 11/2009

Skoda FABIA I Combi (6Y5) 1.4 16V 55kW / 75PS Baujahr: 03/2006 - 12/2007

Skoda FABIA I Combi (6Y5) 1.4 16V 59kW / 80PS Baujahr: 04/2006 - 12/2007

Skoda FABIA I Stufenheck (6Y3) 1.4 16V 59kW / 80PS Baujahr: 04/2006 - 12/2007

Skoda OCTAVIA II (1Z3) 1.4 59kW / 80PS Baujahr: 06/2006 - 04/2013

Skoda OCTAVIA II Combi (1Z5) 1.4 59kW / 80PS Baujahr: 05/2006 - 06/2013

Seat IBIZA IV (6J5, 6P1) 1.4 63kW / 85PS Baujahr: von 03/2008

Seat IBIZA IV SPORTCOUPE (6J1, 6P5) 1.4 63kW / 85PS Baujahr: von 07/2008

Seat IBIZA IV ST (6J8, 6P8) 1.4 63kW / 85PS Baujahr: von 03/2010

➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖
