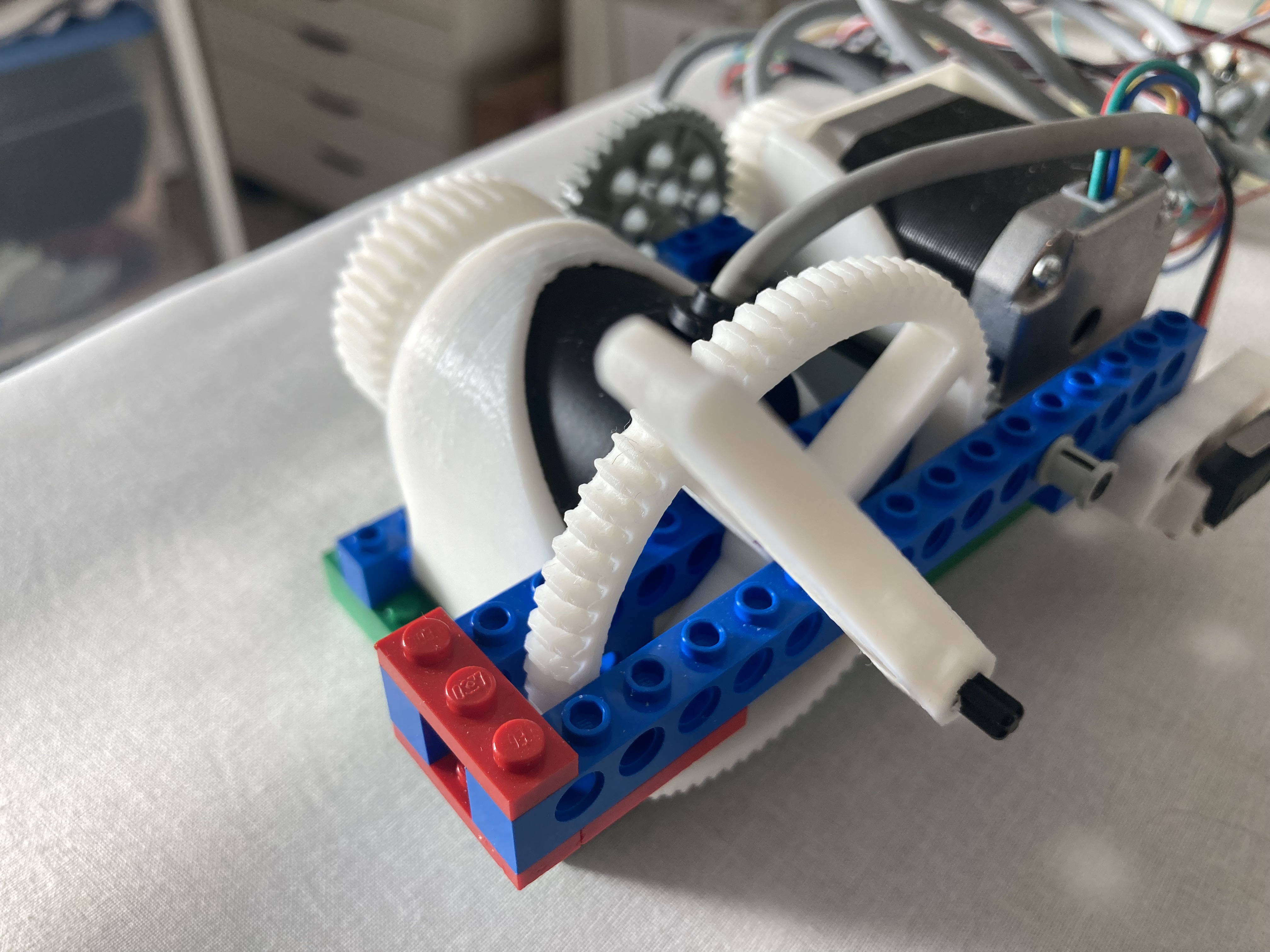

This model lets you easily incorporate a rotary encoder into your Lego Tecnics mechanical designs. The gear is a press fit onto the encoder shaft and the shaft is centered on a Technics pin location for easy meshing.

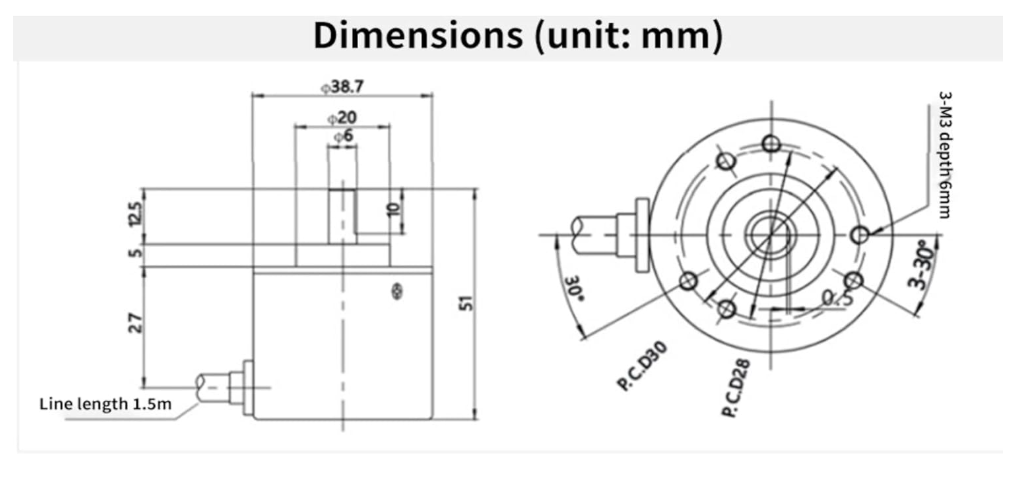

Designed to fit standard optical incremental rotary encoders with a 28mm or 30mm bolt circle.
This is an easy, no support print that attaches to beams using pins or axels.
