HackRF backpack for uConsole
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Accessories
- License
- Creative Commons — Attribution — Share Alike
This a HackRF case that is made to fit on the backside of uConsole. The case is made to be as small as possible, it will only stick out 12mm from the backside.

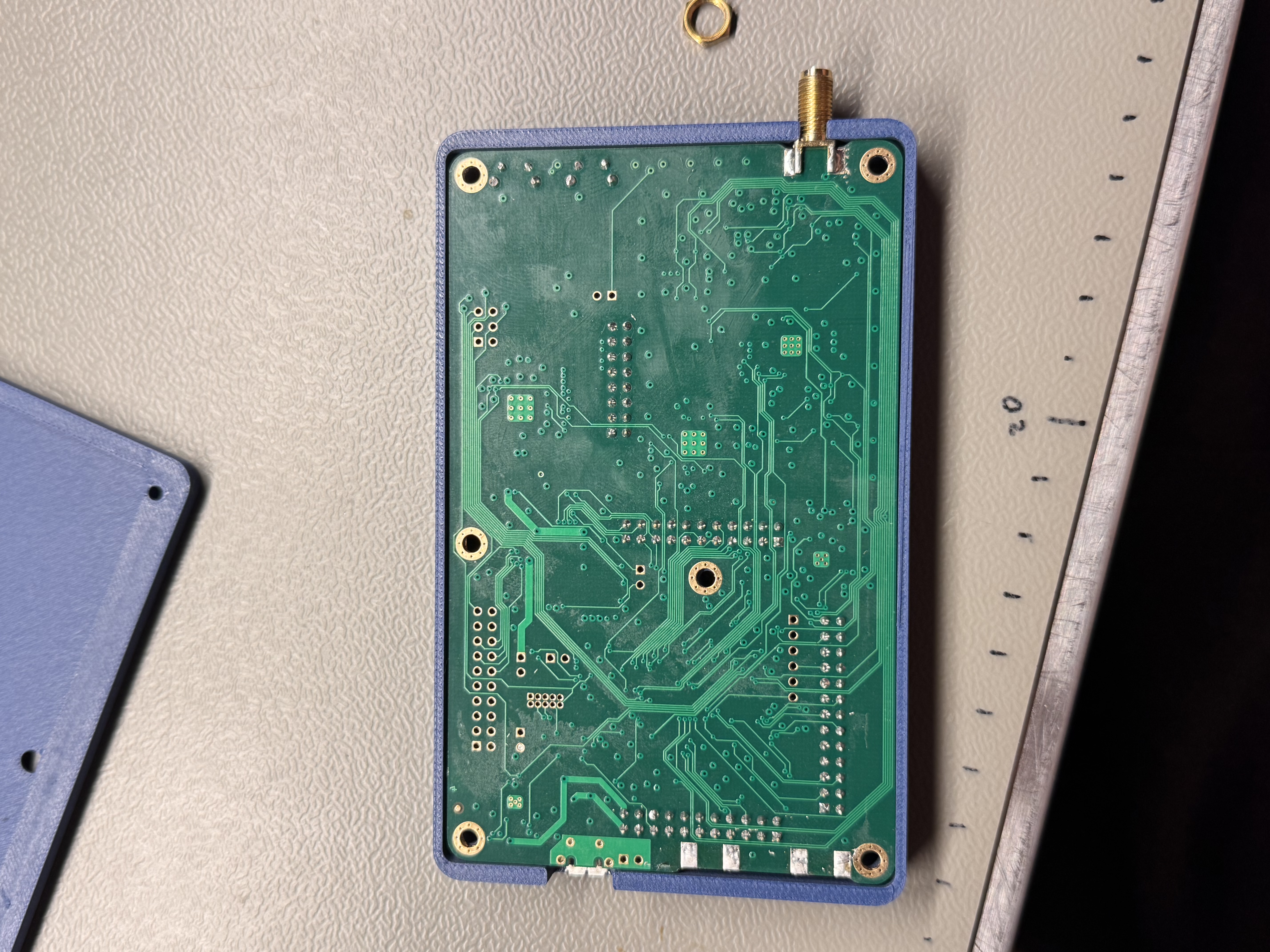

Make sure the header arrangement of your HackRF board is the same as on mine, i have another HackRF board that has one more header soldered to it, if yours is the same, the case wont fit.
I also suggest trimming the solder joints on the bottom a little bit if they stick out too much.
The CLCK IN/OUT connectors on my board are removed, i suggest you do the same if you plan on having it on the back of uconsole, otherwise you have to modify the case.
Here is a guide for easy removal of soldered SMA connectors:
https://github.com/portapack-mayhem/mayhem-firmware/wiki/SMA-connector-replacement-or-removal
The uConsole stand will need to be removed while using this. you will also need some screws.
The screws i used are:
x2 M4x10mm
x1 M4x6mm
x4 M3x15mm (longer than 15mm will go into the metal on uConsole and leave marks)

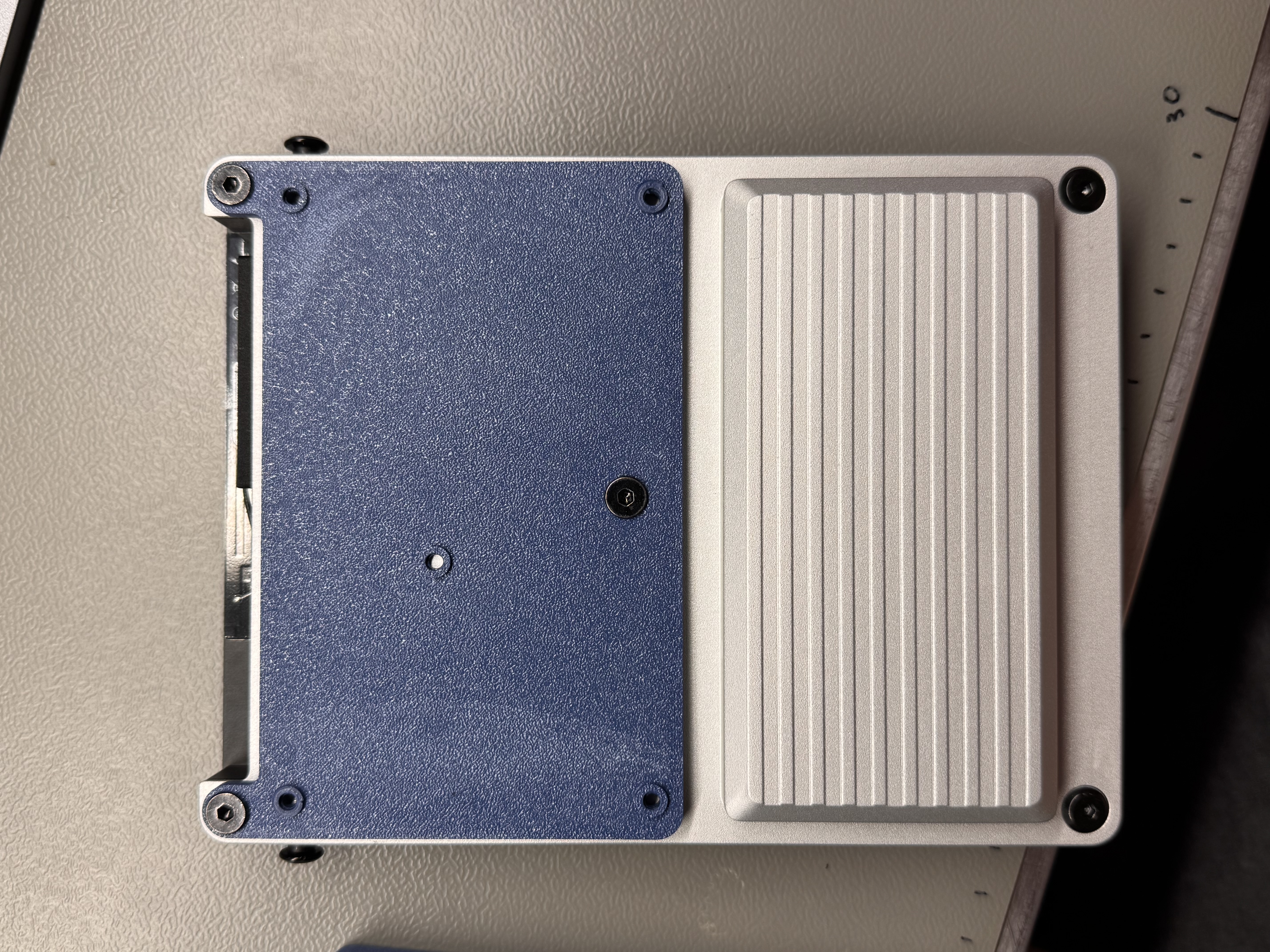

The parts are easy to print, you will need to print 5 washers and glue them to the bottom plate as shown on one of the photos. There is a screw hole in the middle of the board, but i didnt use it, it is there mostly to support the board inside.
