During the design I was focusing in having the most amount of movement possible using only 3D printed parts and M3 bolts and nuts to improve durability and smooth movement , however is to complex and present several problems that will be solved in a next embodiment. Posting so anyone can use it, soon I will publish a simplified version.

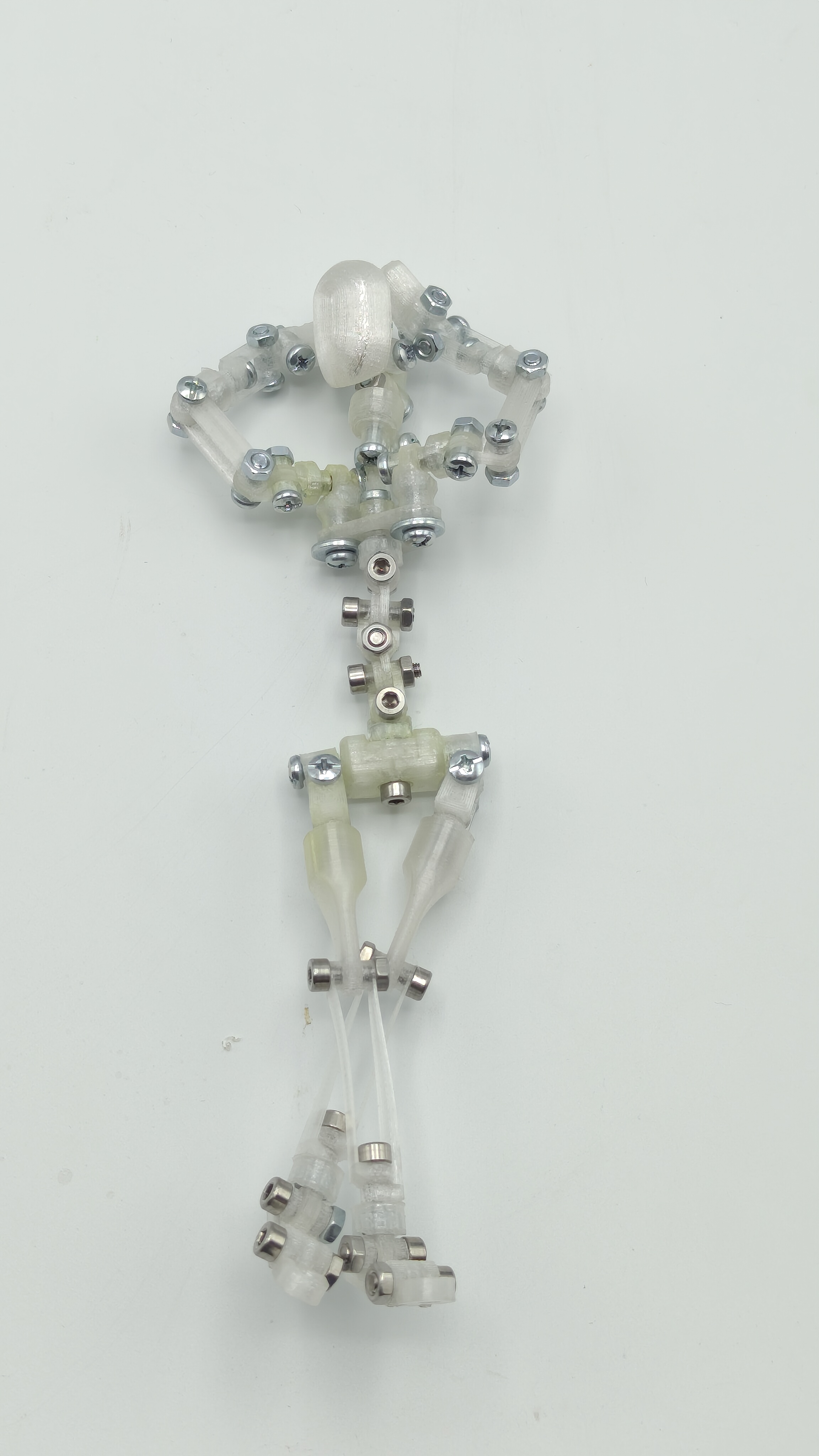

The total height of the puppet is 16 cms. PETG, PP of even TPU is recommended to print this pieces since they are so small and need to resist a lot of stress.
Some parts need special printing labeled as “Pause and Embed” and other parts function as print-in-place micro bearings.
Print at 4 Perimeters, 0.12 Layer Height and brim wherever is absolutely necessary since removing from all the pieces is very time consuming.

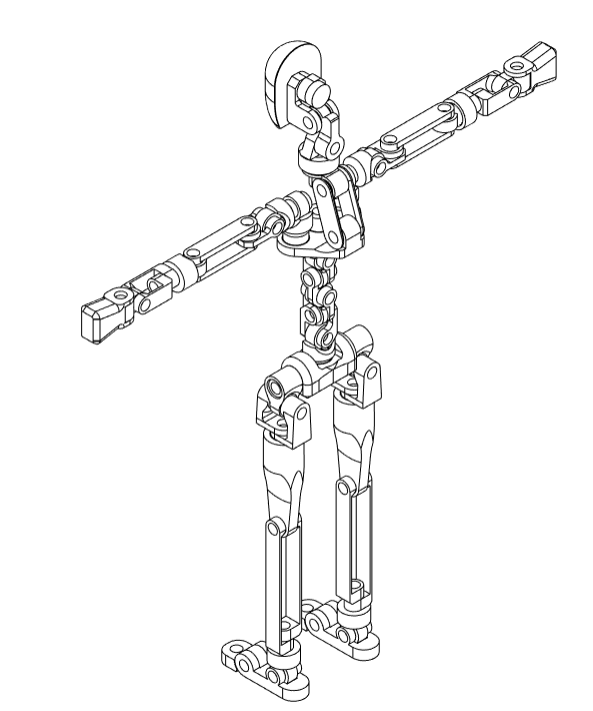

Adding the .step file so anyone can mdofiy, fix or add anything as needed and to also have a guide to assembly the puppet.
