This is a linear sample selector I have created. It is made to hold the following samples:
https://www.printables.com/model/1133954-filament-samples

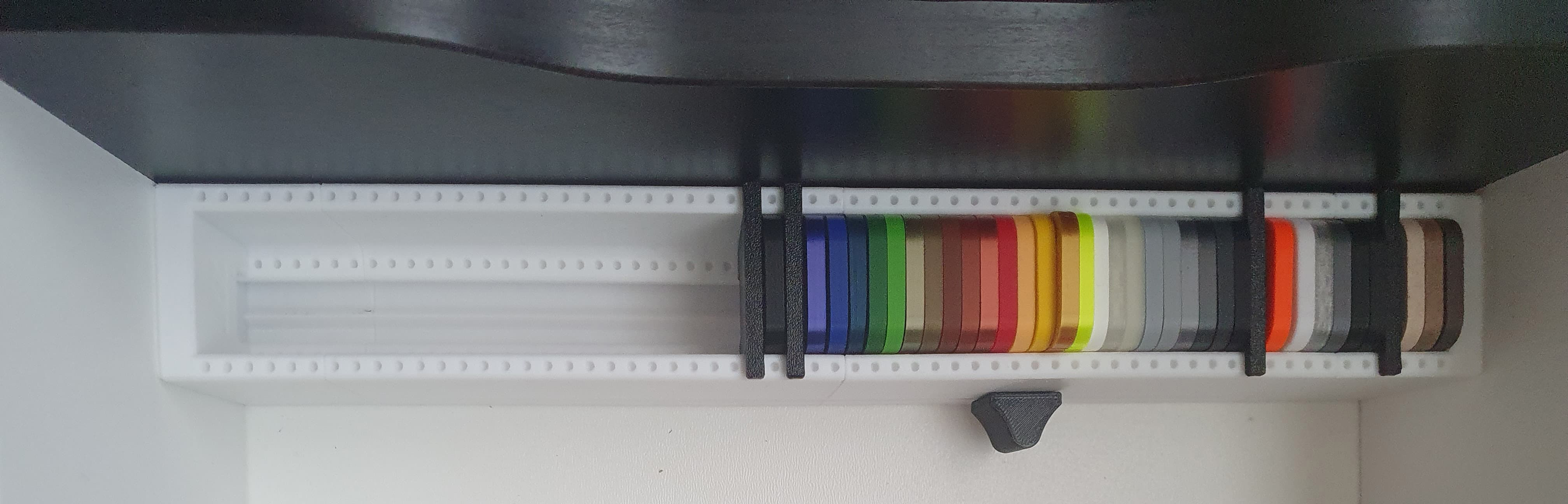

The selector is made up of multiple segments. And is made to fit into a IKEA ALEX desk drawer (295mm (~11,6in)). (See images attached.)
Feel free to combine or adjust multiple segments to fit your needs. For ease of adjustment I have included a STEP-file containing all the necessary parts.
This model includes:
- guide rails
- end caps
- connectors for the guide rails

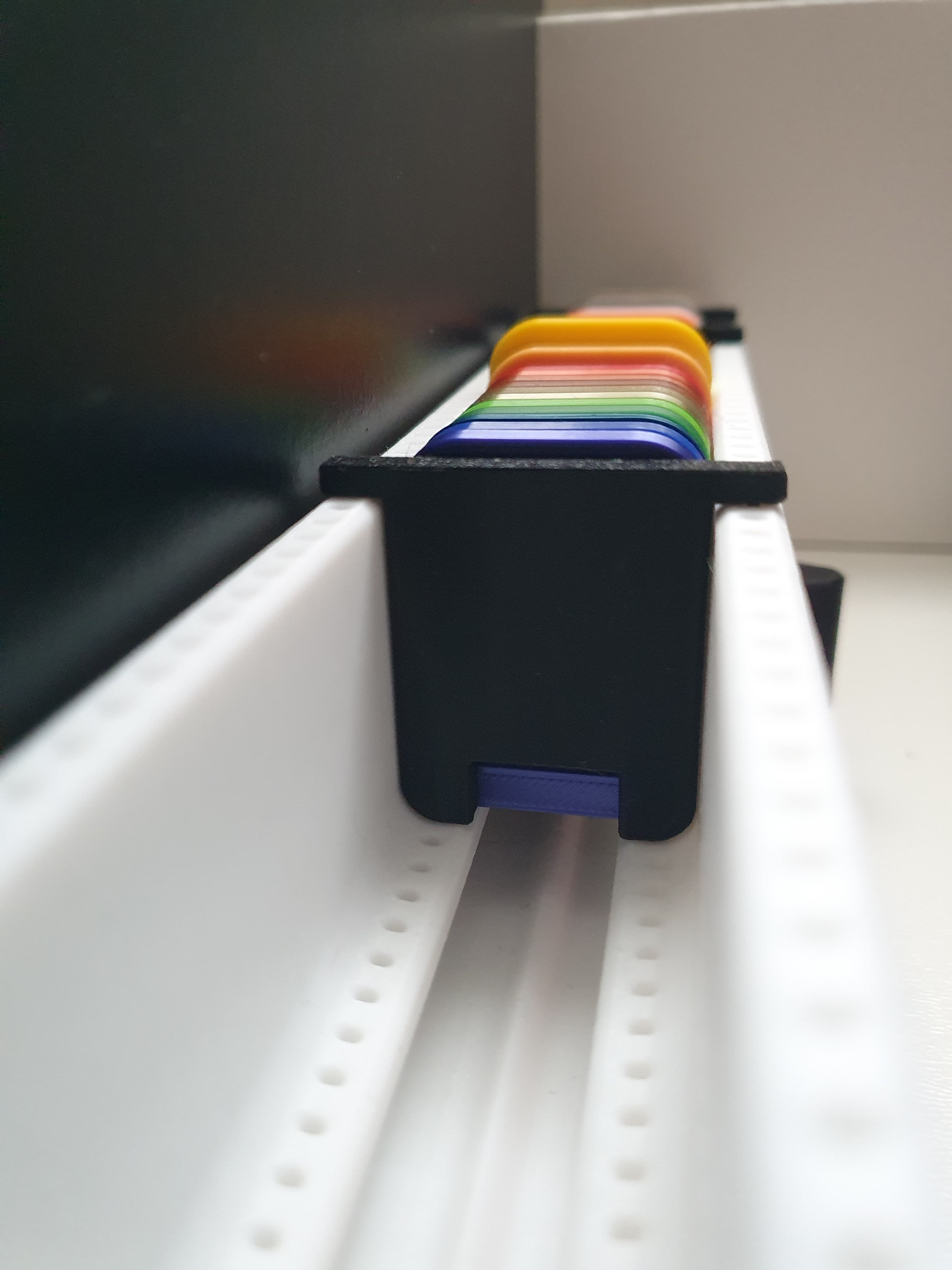

- selector
- spacers to separate different kinds of filament
To connect the guide rails use the connectors and push them in the provided holes as shown:
Don't forget to insert the selector before putting on the second end cap.

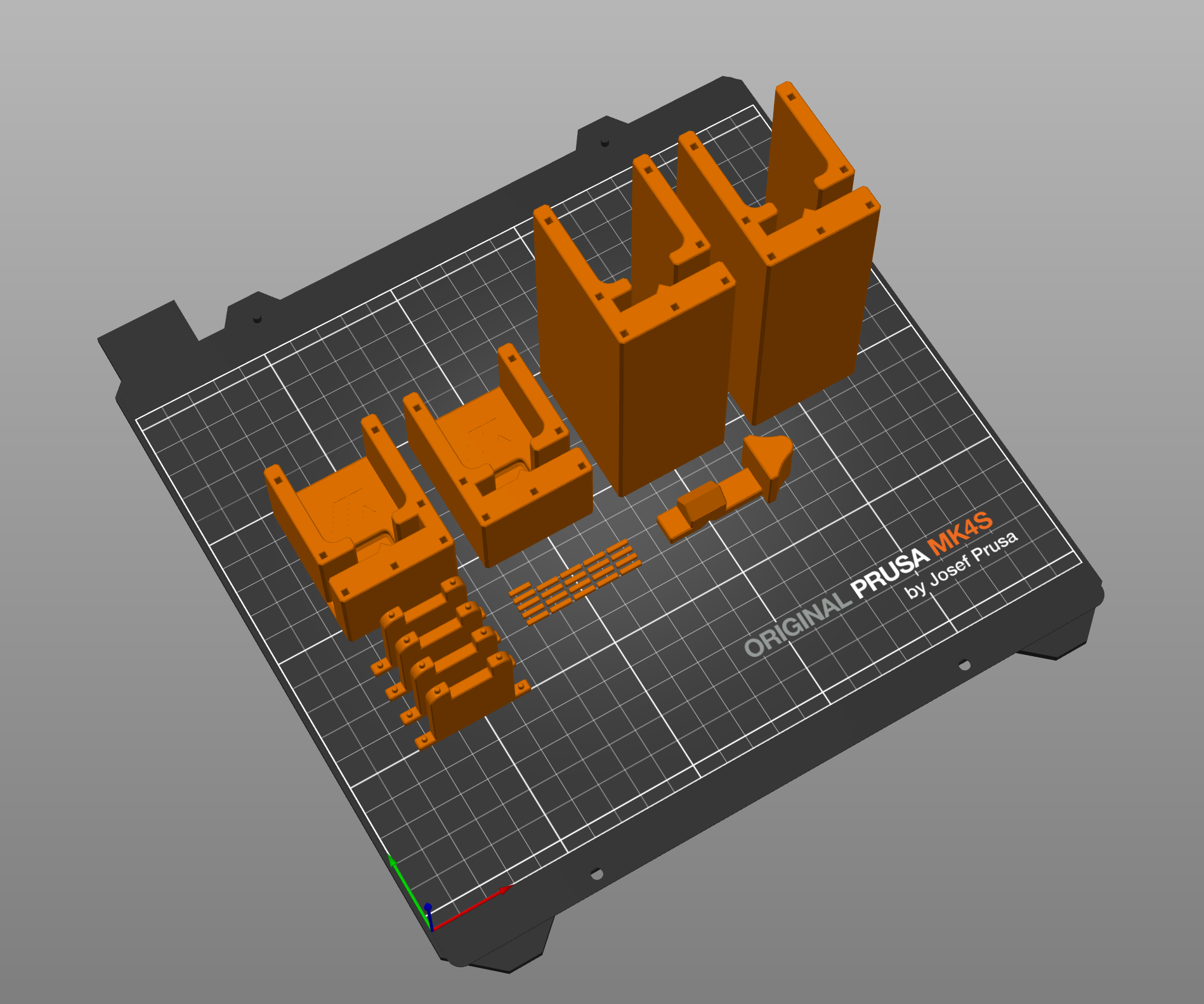

All parts might require some post processing to make sure the selector can smoothly run through the guide rails and push up the filament samples. If you arrange the parts as shown in the screenshot from the build plate you won't need any support structures. A brim might be good to secure the spacers while printing.
All of the parts as shown in the images were printed in PETG.
