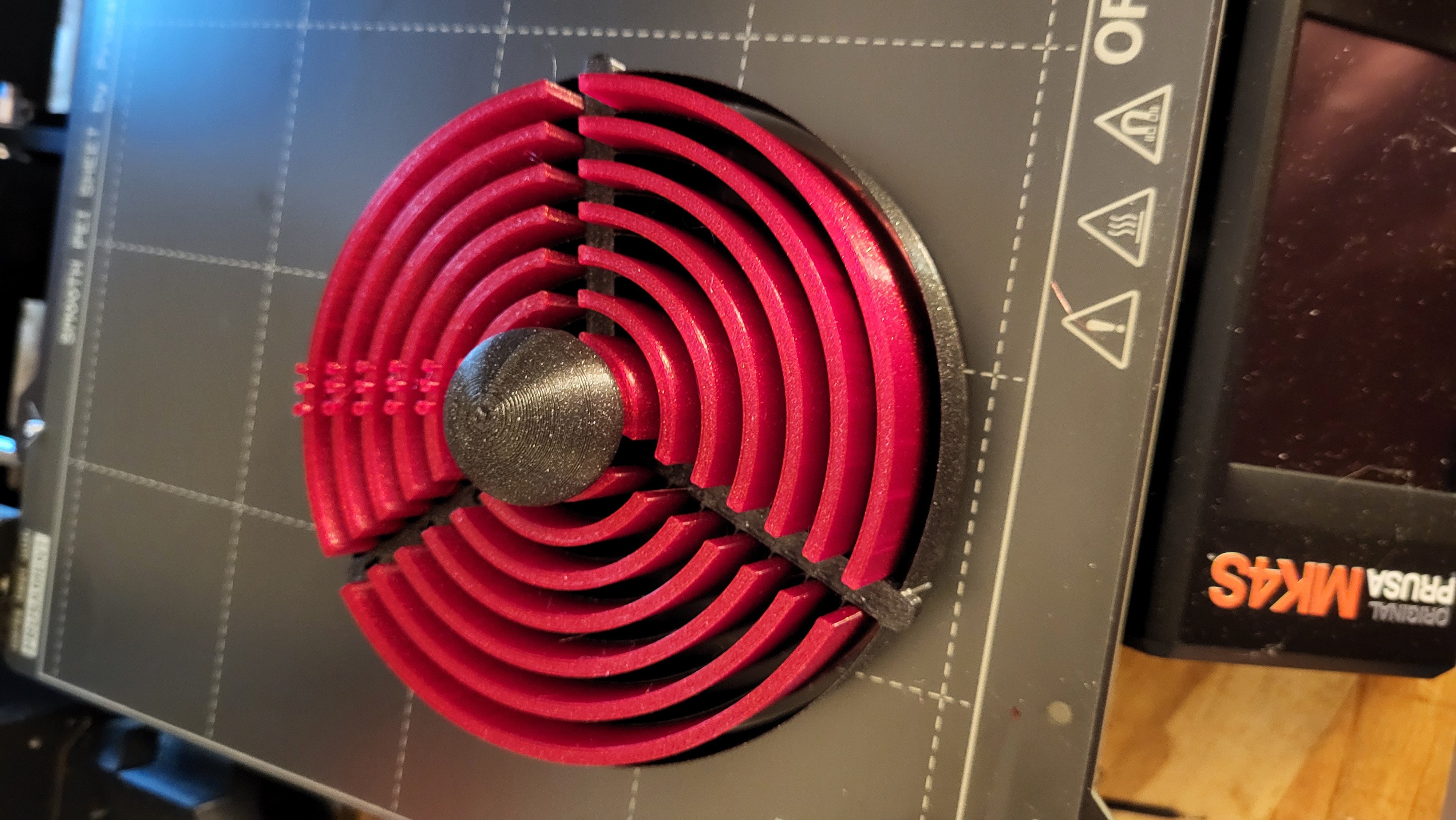

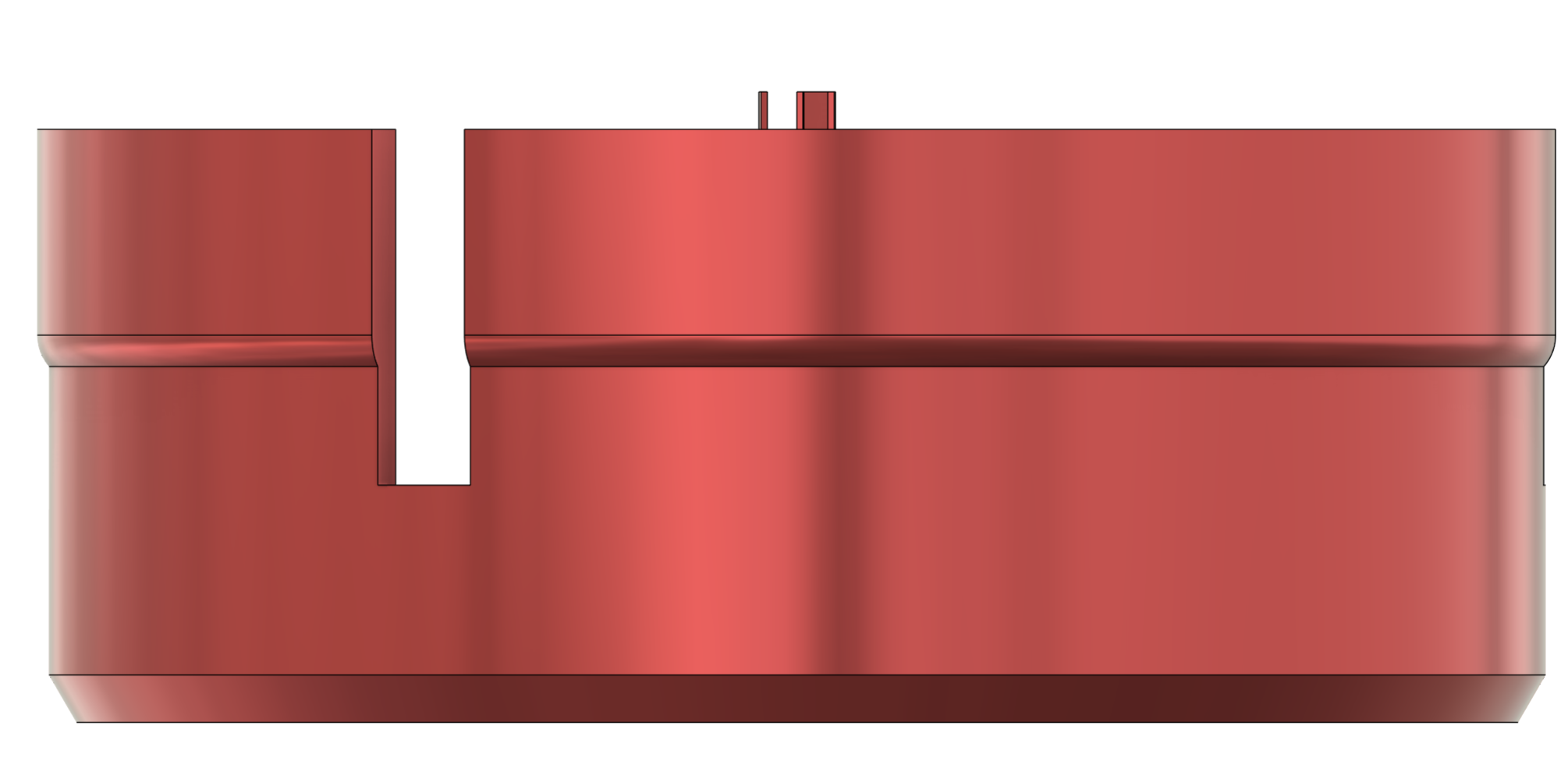

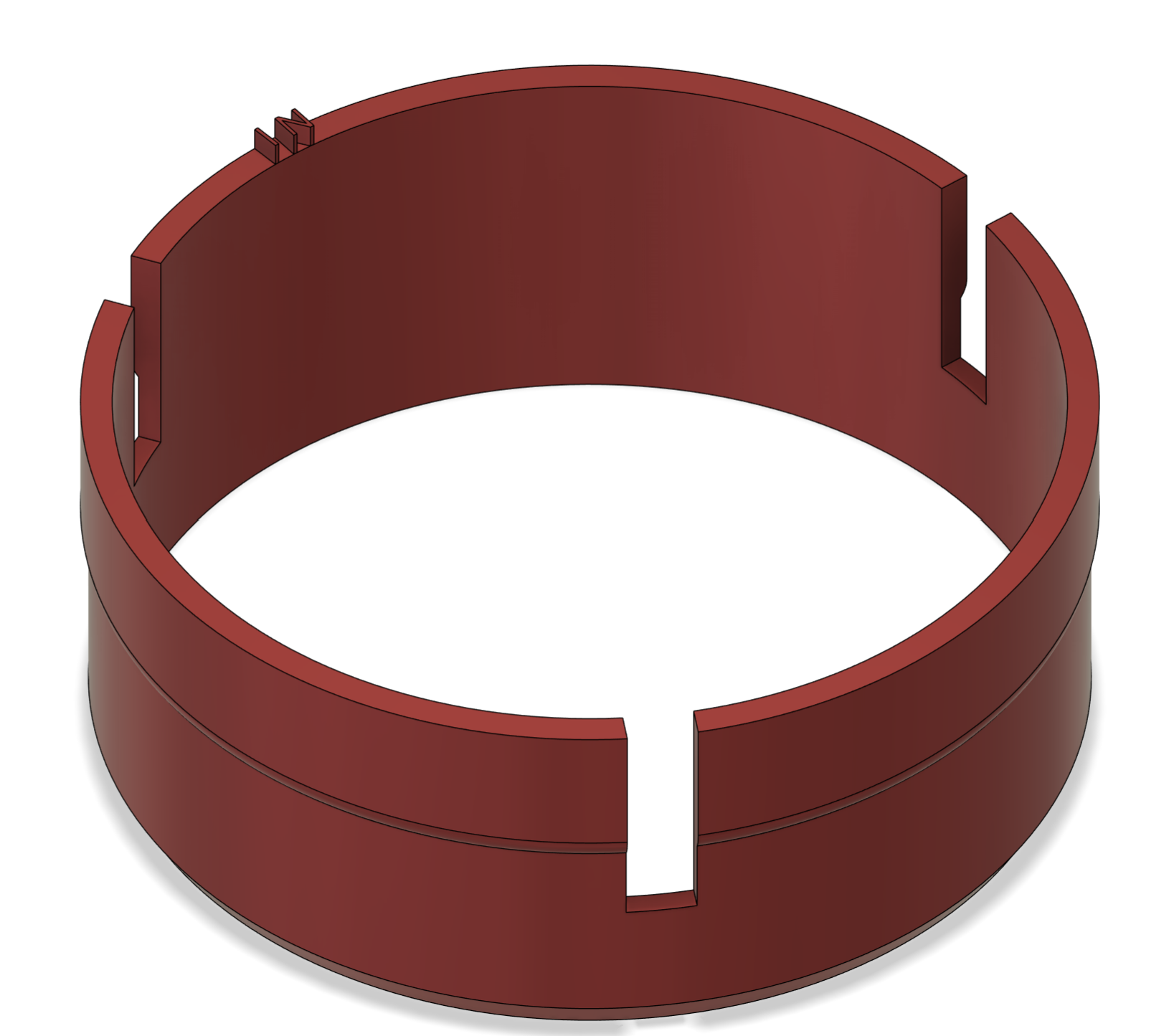

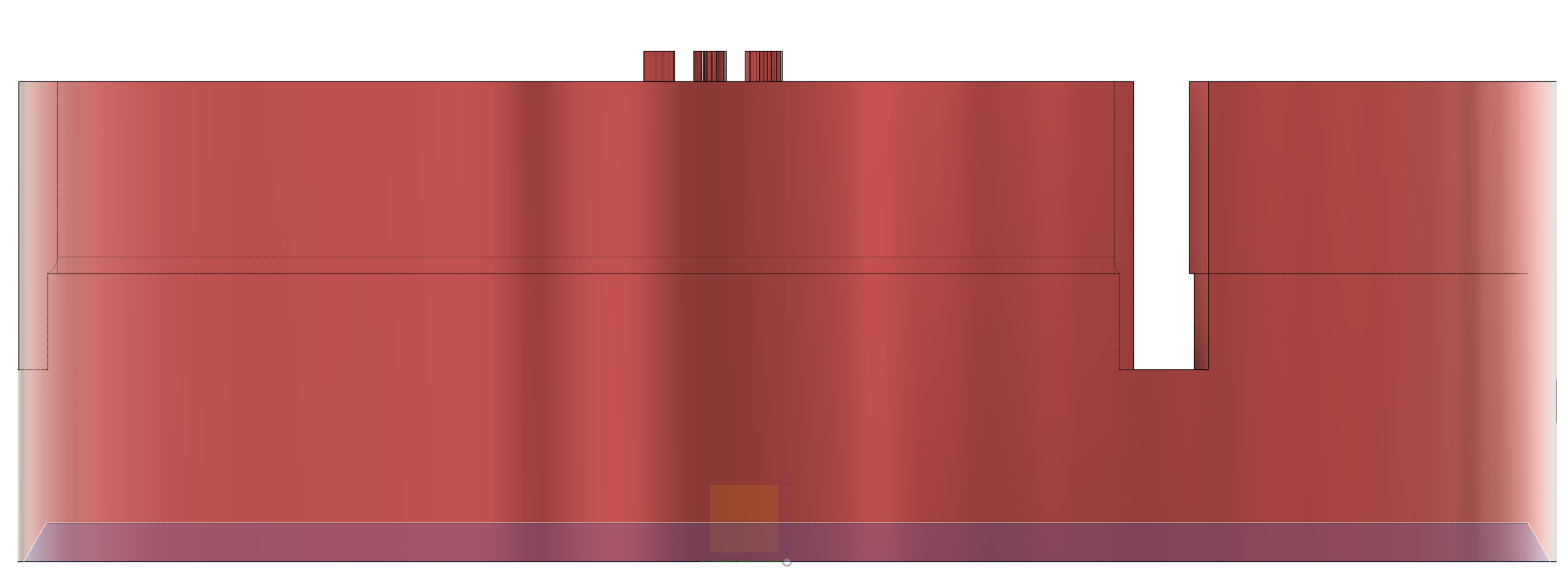

The Ceramic Circle Cutter. Used to cut circles out of clay. There are three main parts: inside cutters, outside cutters, and the centering piece. The image on the left is the inside cutter and the right image is the outside cutter

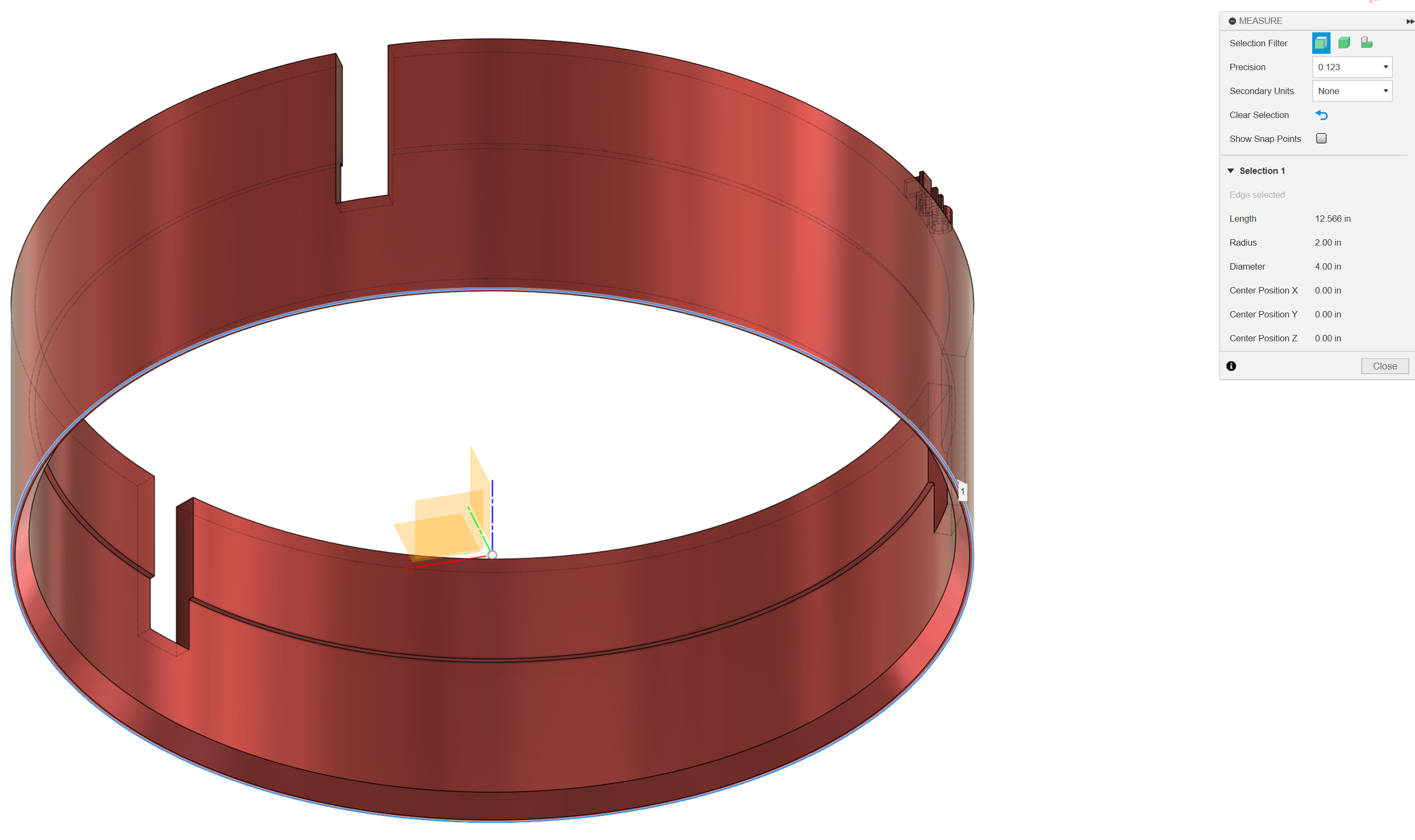

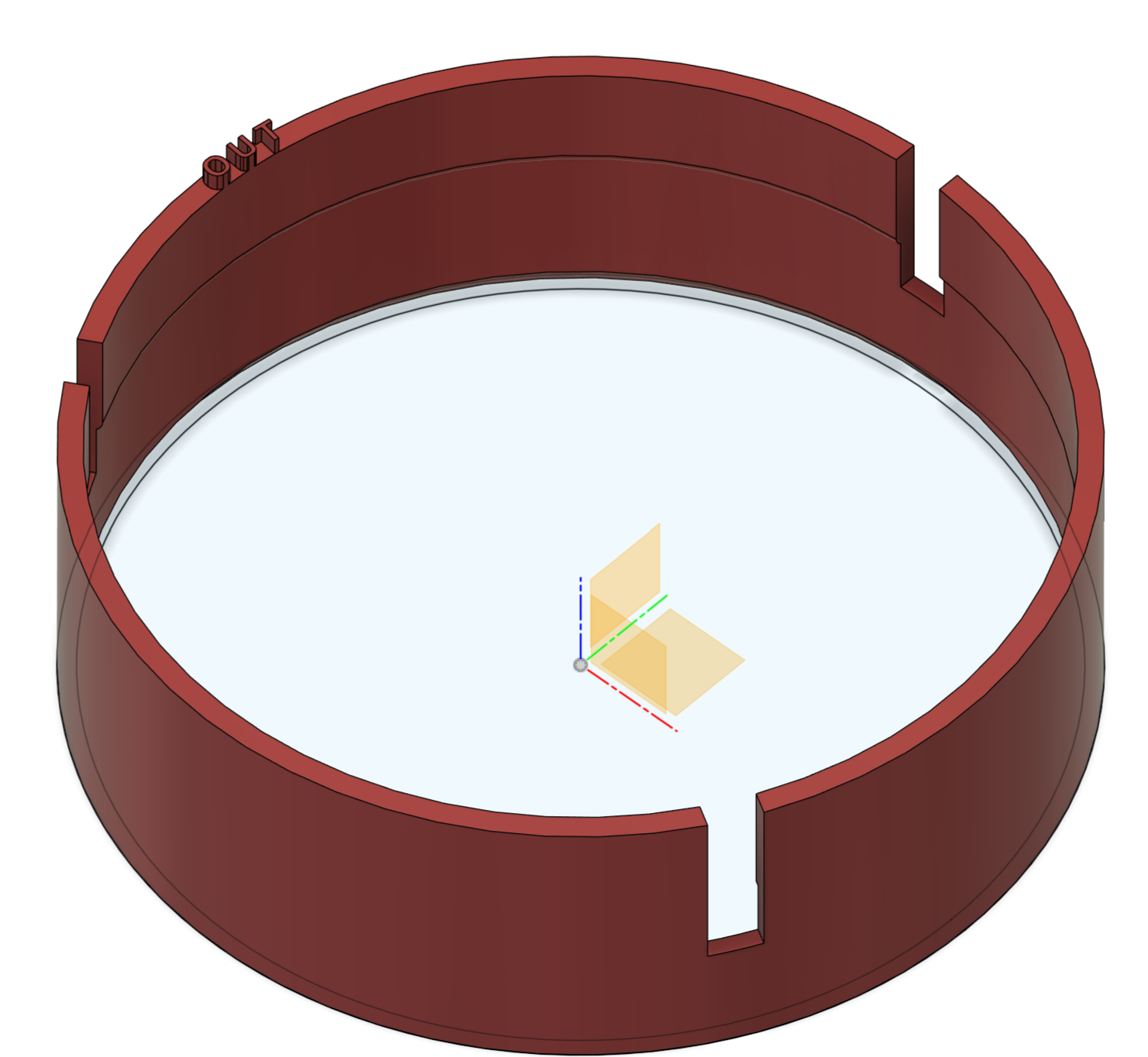

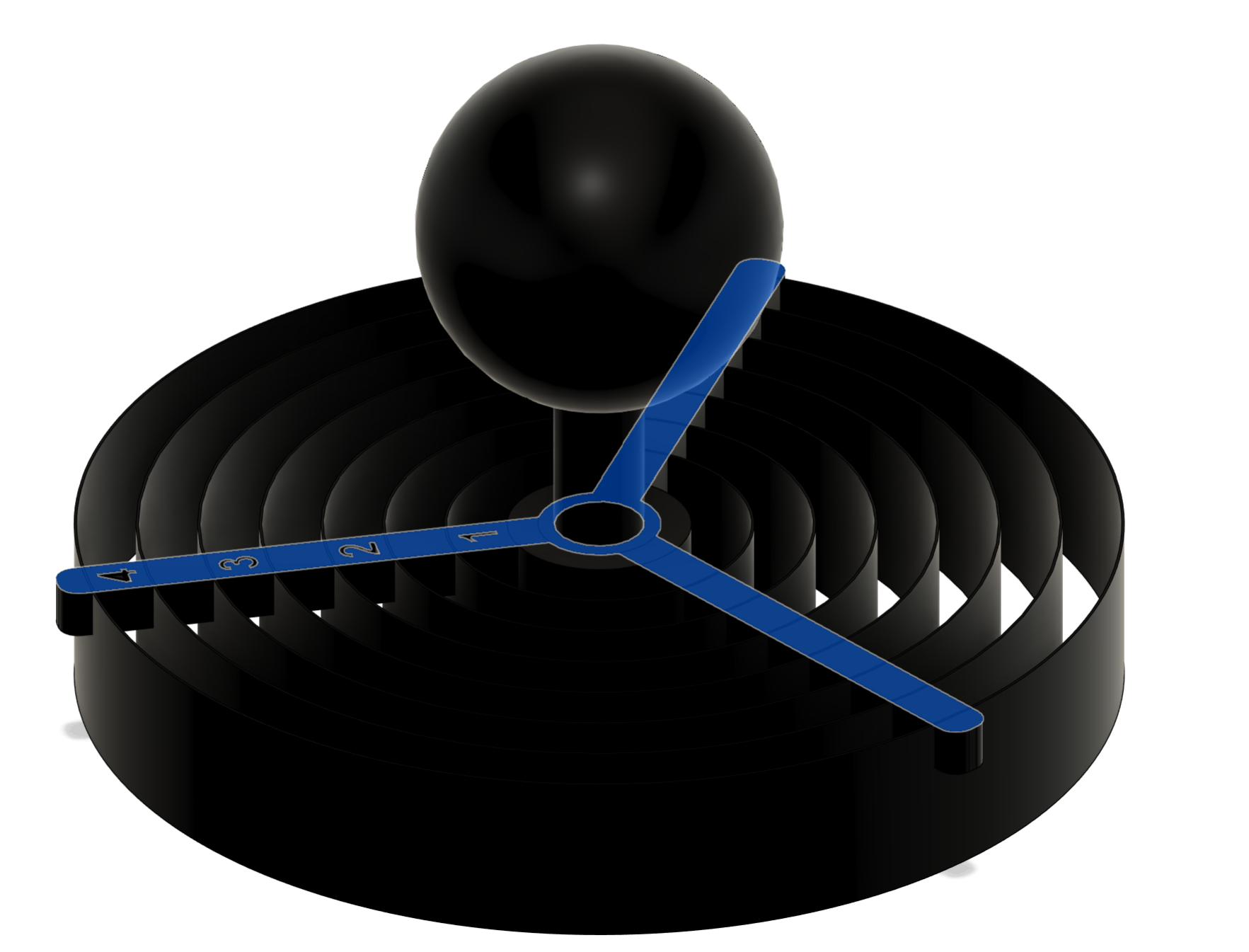

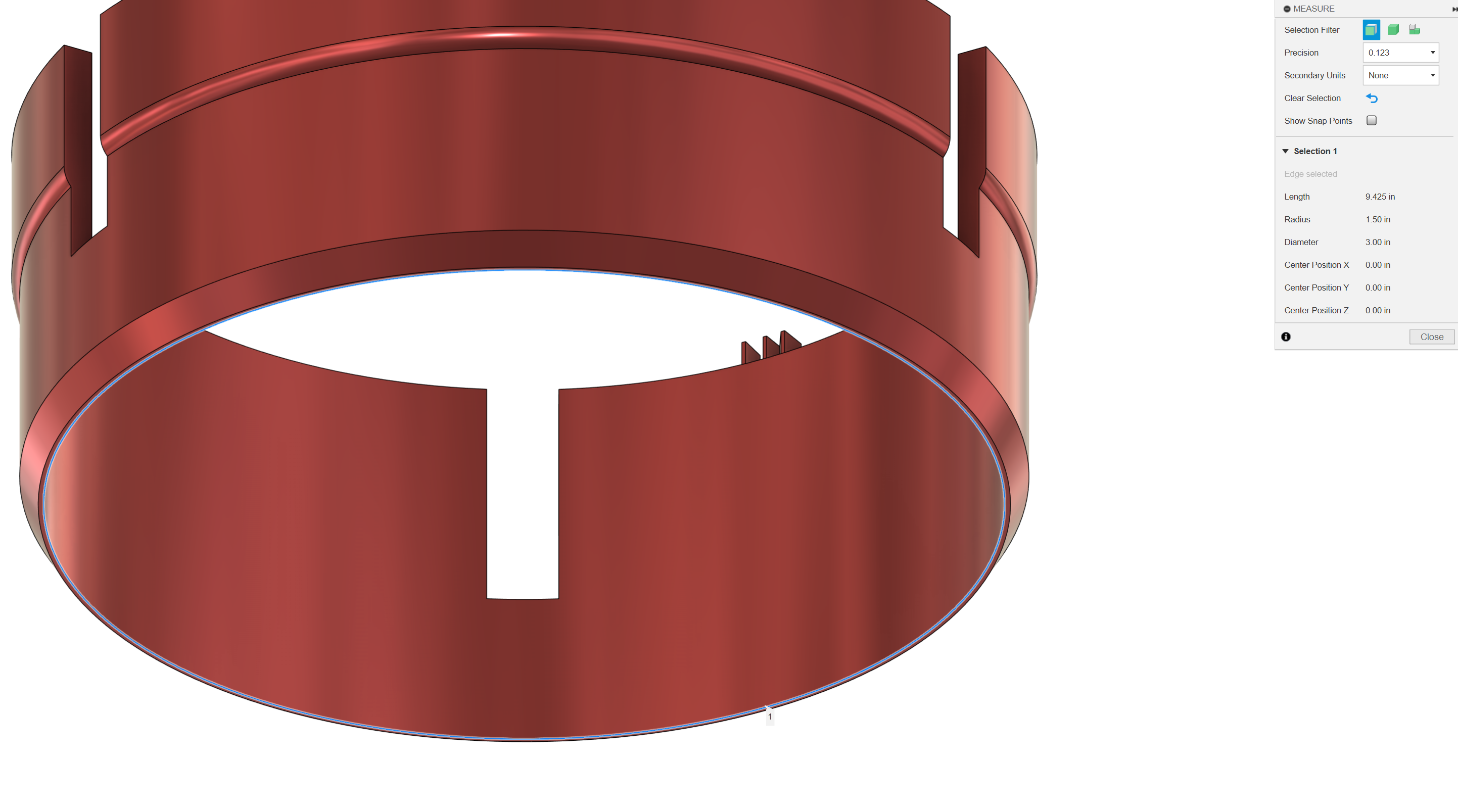

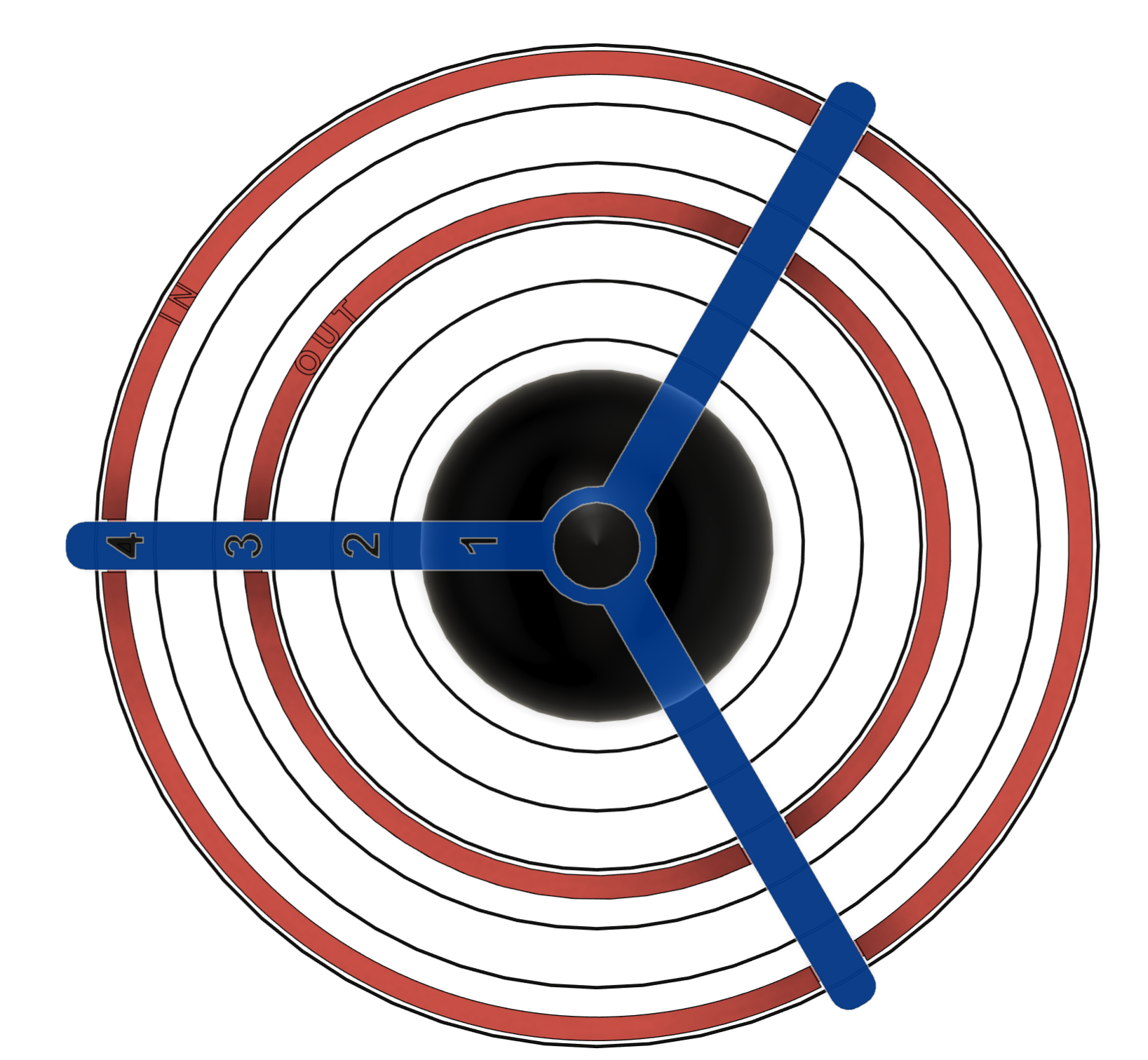

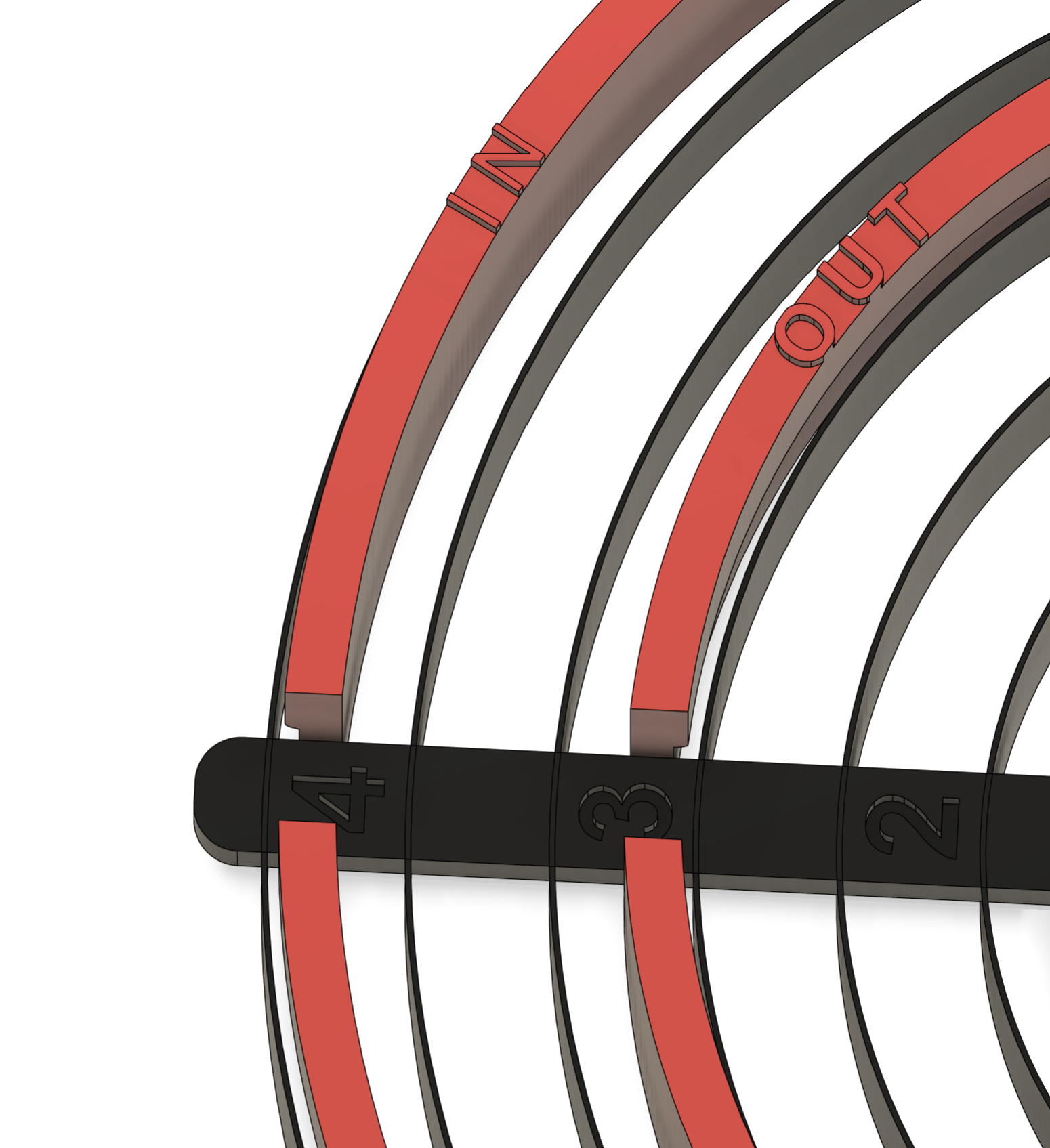

The inside circles are designed to keep the clay inside the circle circular, while the outside circles are designed to keep the clay outside the circle circular. The centering tool can to be used if you want to create a ring cut.

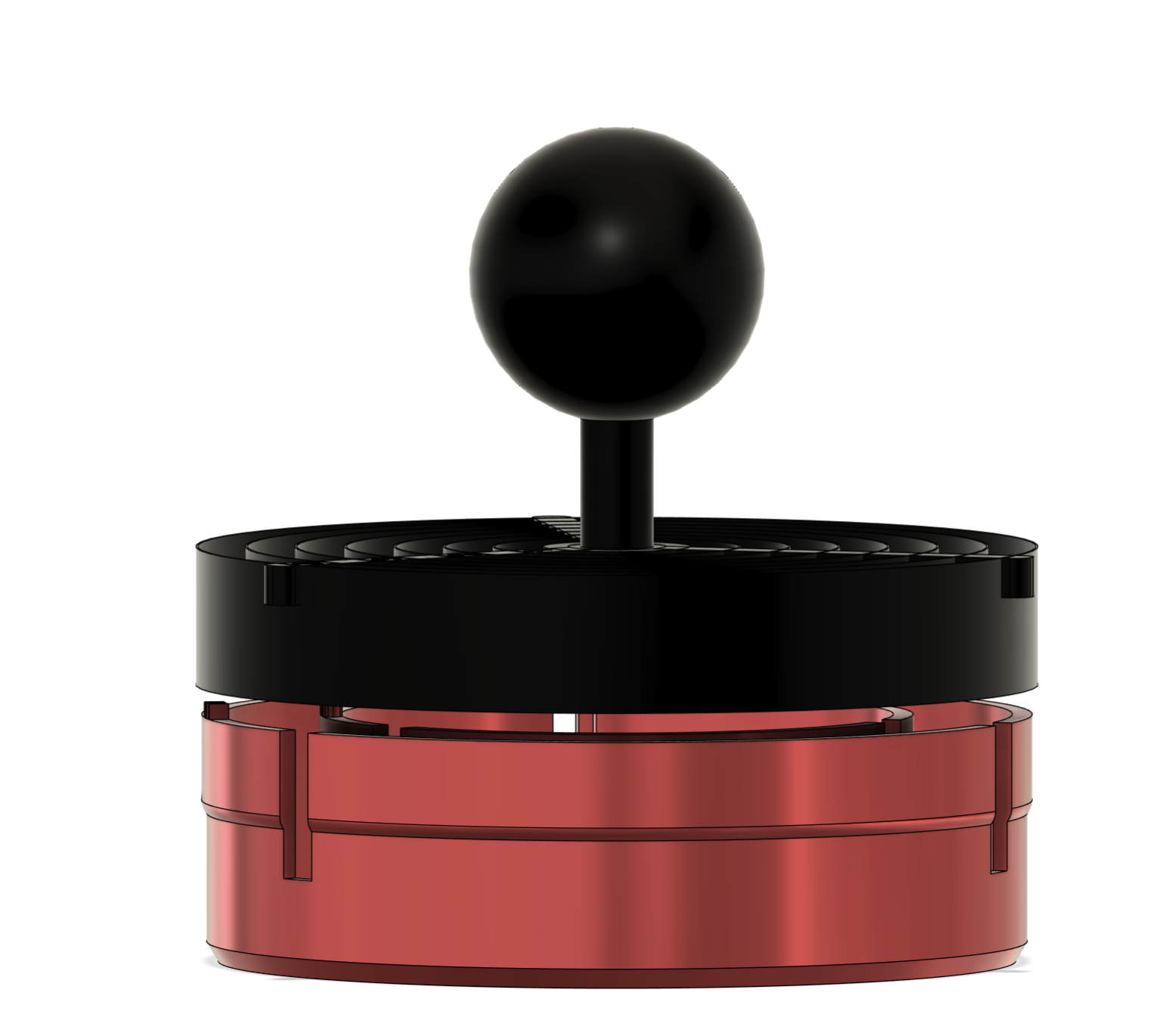

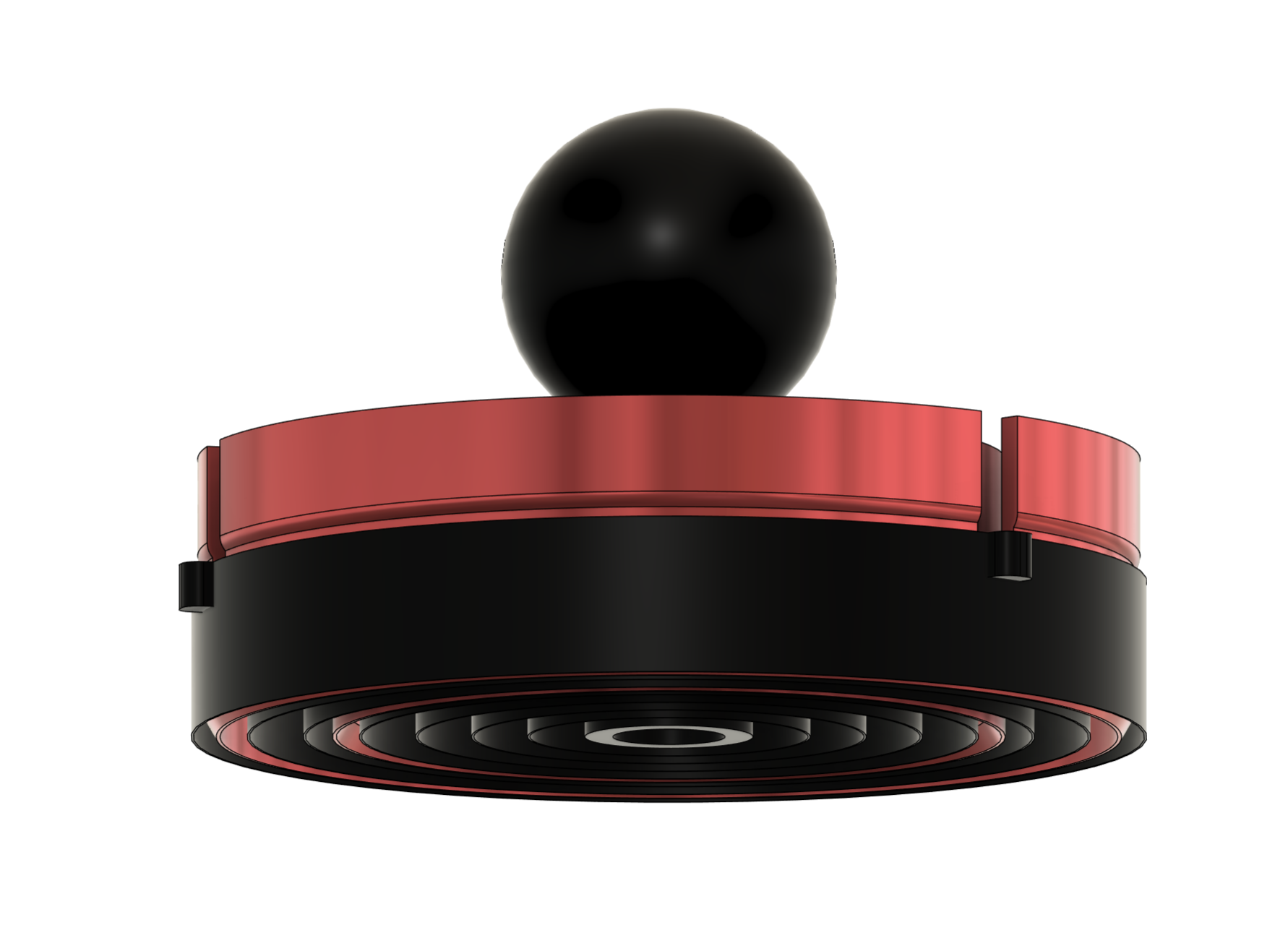

The tools works by either placing it down into the circle cutters or pushing the cutters up into the centering tool. Line up the tool on the clay and press down on the circle cutters to cut a ring. Once done, lift the centering tool out then collect the circle cutters.

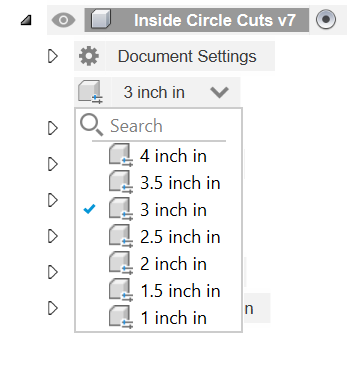

The STL files for the cutters provide cutting diameters from 1 inch to 4 inch with .5 inch intervals. If you want to create custom cutting sizes, the Autodesk fusion files-the cutting sizes are configurable-are available for the cutters; however, the centering tool has not been configured yet.
