LumenPNP ReferencePushPull Feeder Modifications

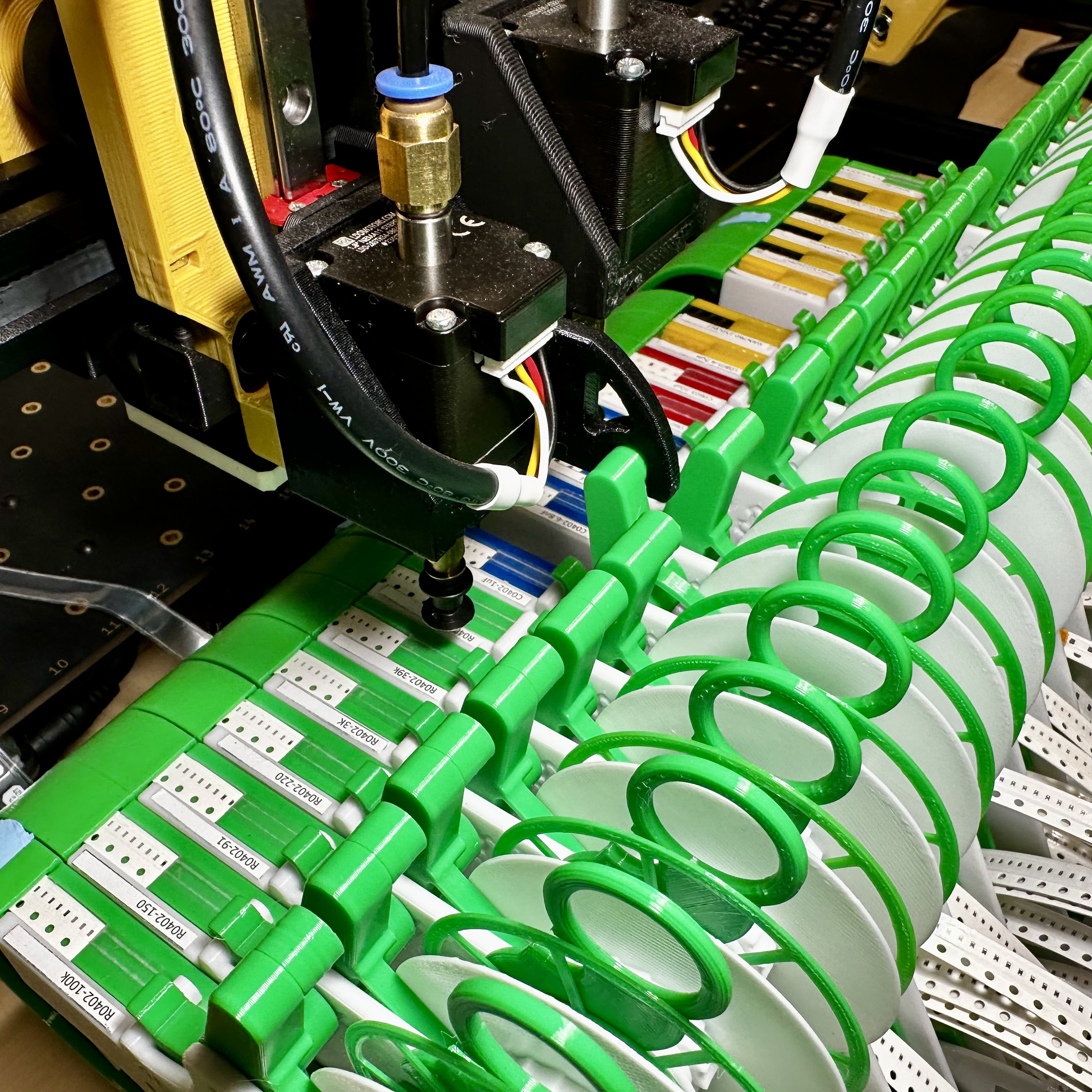

This is a collection of 3D-printable parts that can be added to a LumenPNP v3 pick-and-place machine to allow the use of Mark Maker's (makrzone) ReferencePushPullFeeder feeder. I've had very good success with these feeders and I really appreciate the obvious effort he put into their design for use by the community.

NOTE: I have included .STL versions of Mark's feeders that I exported from his OpenSCAD models and tweaked slightly to work with my LumenPNP. These are purely for your convenience and I make no guarantees they'll work with your printer. All rights, trademarks, copyrights and everything else is owned by Mark and I strongly suggest you check out his design here:

• https://makr.zone/new-all-3d-printed-tapereel-feeder/399/

Print Settings

Use your best judgment on what you think will give the best results depending on the part, but generally speaking, I used the following settings:

• Printer: Prusa Mini+ and Prusa MK3.5
• Print Settings
  • 0.4mm nozzle
  • 0.20mm layer height
  • 15% infill
• Filament: generic PETG
• Supports: none
• Brim: none

Print Instructions

1. All files are pretty self-explanatory and should be aligned to print without supports.

Assembly Instructions

1. I have written up a little PDF instruction document that walks you through the changes needed on your machine, so give it a read before printing anything out.
