Model information
- Source
- Printables
- Category
- Test Models
- License
- Creative Commons — Public Domain

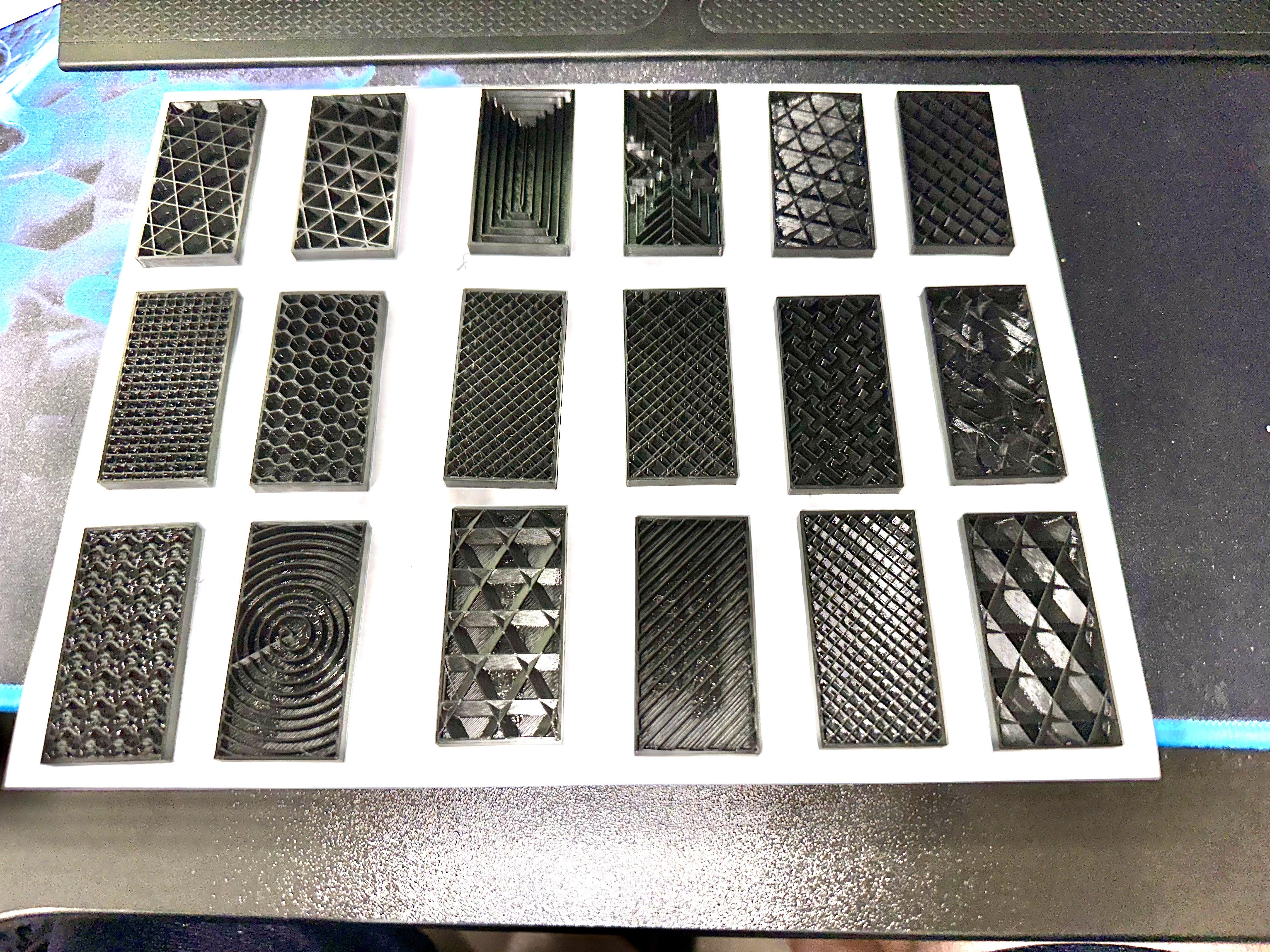

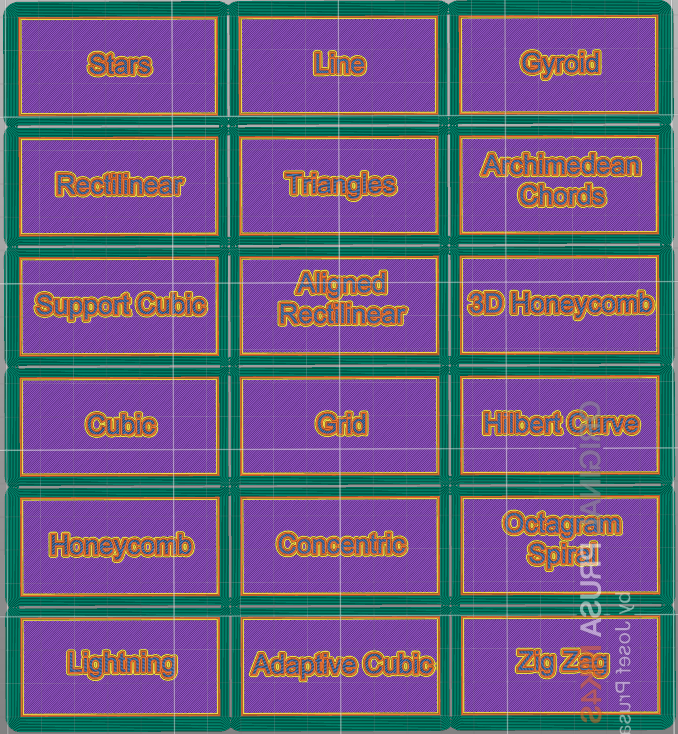

I wanted a full collection of the available infill types and couldn't find a list of all of them together so I decided to create my first model. Each card has the infill name embossed in the back and measures 30 x 60 x 5 mm.
PRINT SETTINGS:
Solid Layer - Top = 0
Infill @ 20% just to see a little more of what's going on since the pieces are only 5mm tall.
Brim active. I found this connected everything at the edges of the brim which may not be necessary but having it one large piece instead of 18 small ones gave me peace of mind against one piece failing and ruining the rest.
