Glasses Topper

Order a print of this model

We calculate the final price from your selected file. You review and accept it before payment.

Saved on this device.

Model information

License
Creative Commons — Public Domain

For those who have magnetic glasses frames (casper to be precise, iykyk) this is really cool to make your own design! Here is how i got it to match “perfectly”:

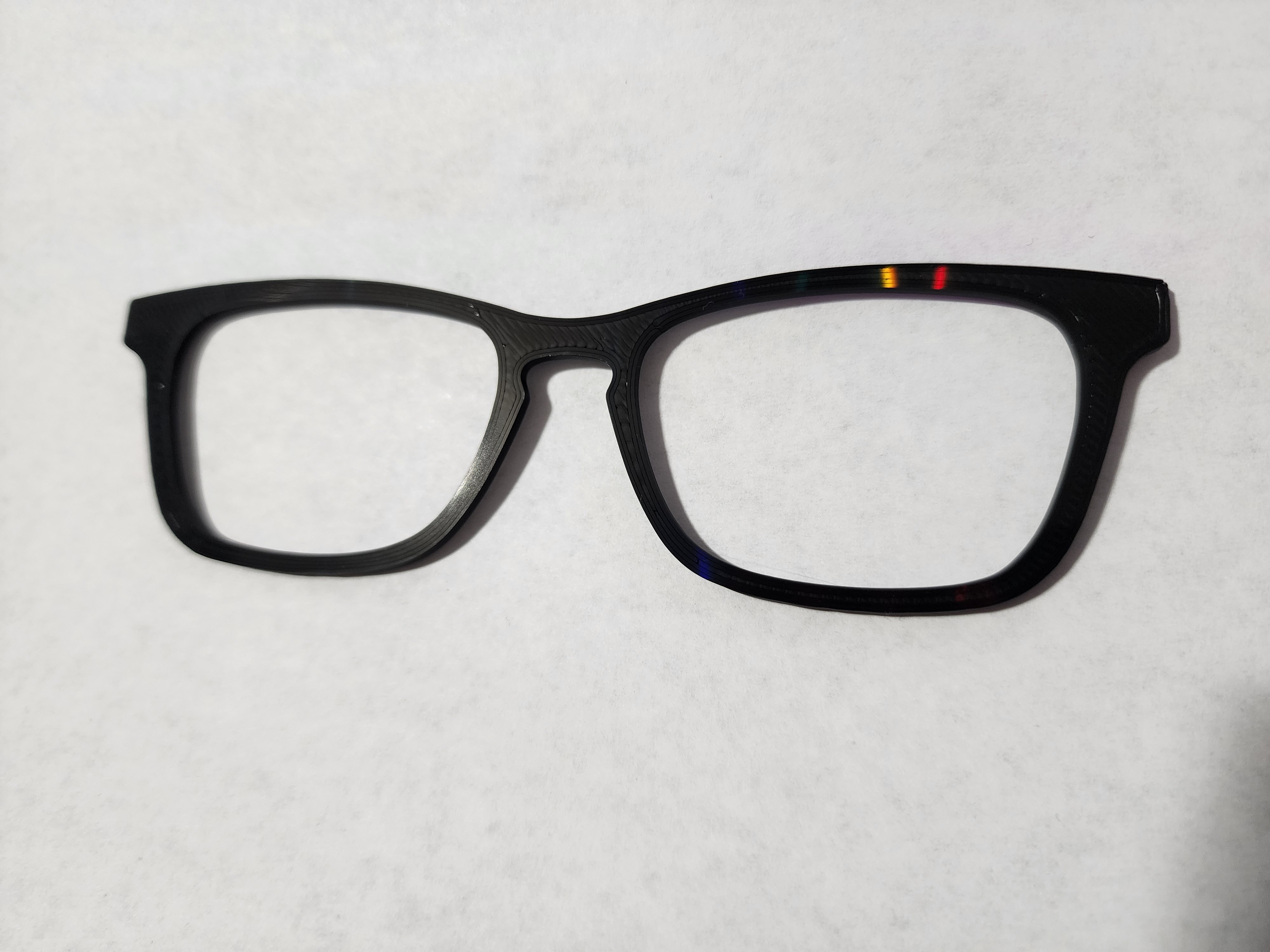

Printed on P1P with a smooth holographic plate for the light effect with Elegoo black PLA (went for streaks as you can kind of see in the pictures). I found that black reflects the holographics best that's why i chose that. Print took 15ish minutes to complete and i found just a tad of shrinkage so keep that in mind for the magnet holes.

my measurements (scale) were: x: 137.36 (101%); y: 43.47 (101%); z: 2 (66.67%)

the holes i made as cylinders as those were the magnets i have and it is a 6mm hole but i didn't merge them so you can alter if you need to for thickness, diameter, more precise placement, etc.

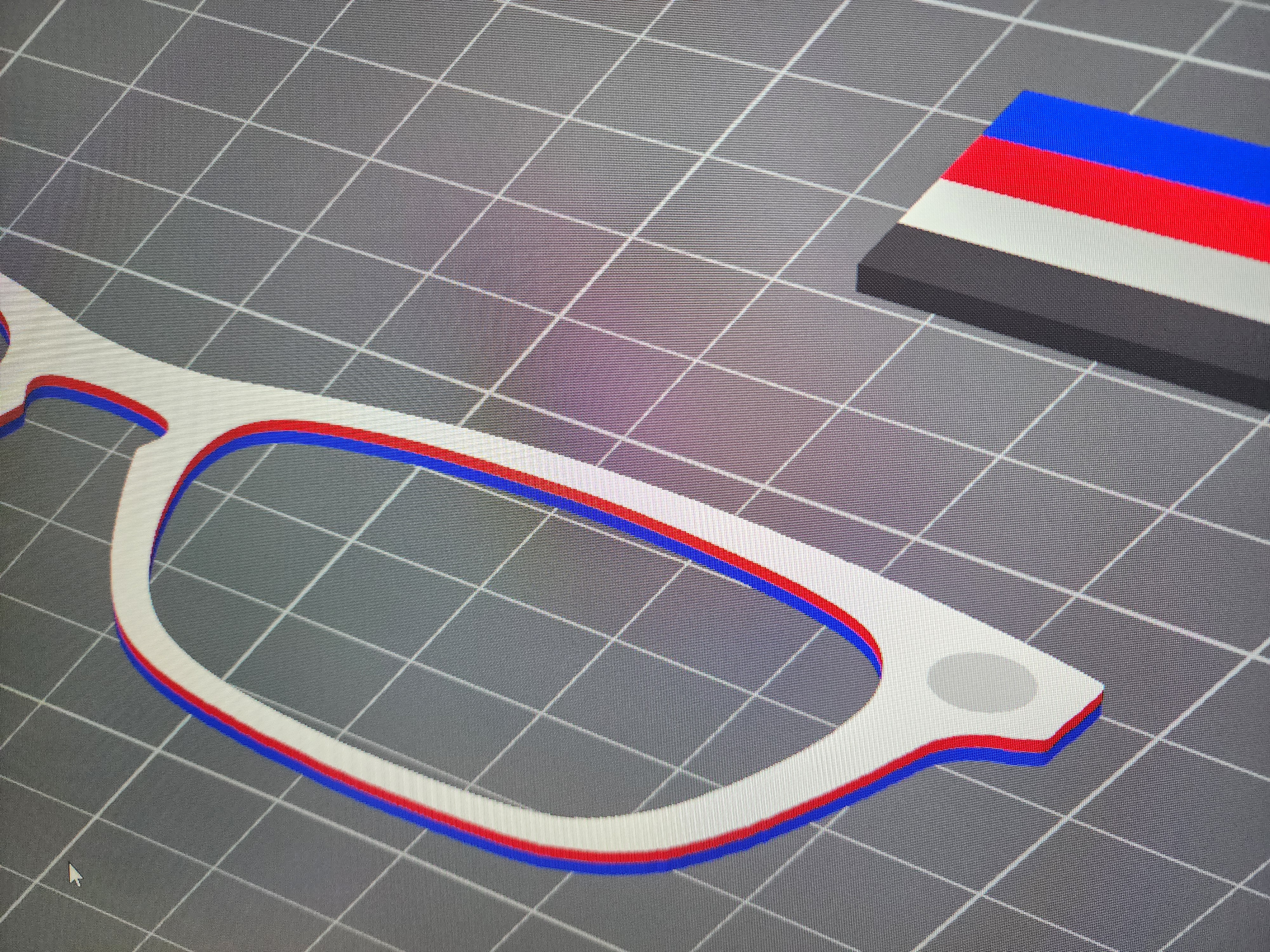

this model has a few different sections that could be painted different colors so you can play around with that as well with or without an AMS (for no AMS you just have to add pauses and can manually swap out the filament at every layer if you choose to!) (pics of multicolor for reference).
