Linear actuator
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Electronics
- License
- Creative Commons — Attribution — Noncommercial — NoDerivatives
A linear actuator using a 28BYJ-48 stepper motor and an arduino controller,

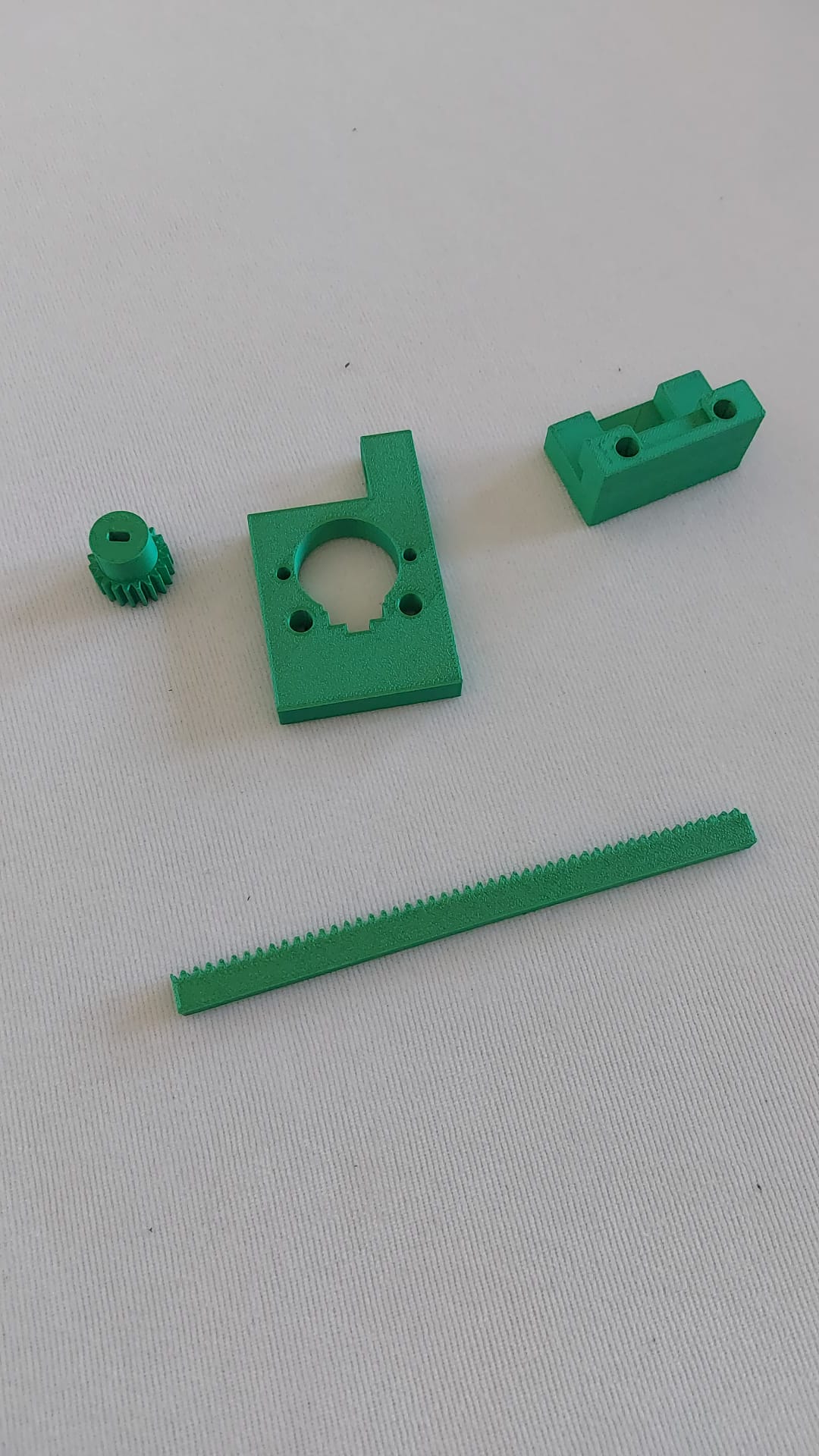

It uses M8 bolts to keep it together, and some smaller bolts to keep the servo on the holder, they should come with the servo, All parts execpt the arduino and motor are 3D printed and are easy to assemble
All tolerances should be all fine

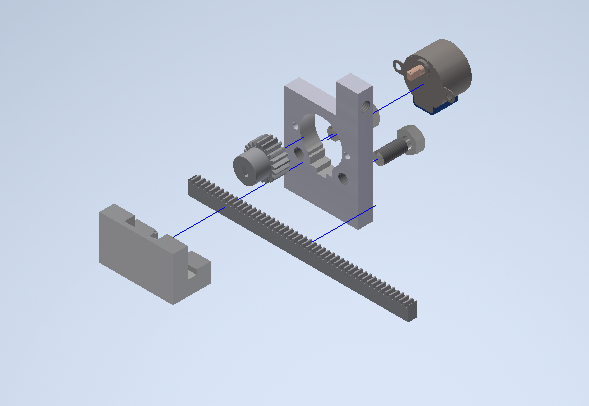

Assembly drawing:
