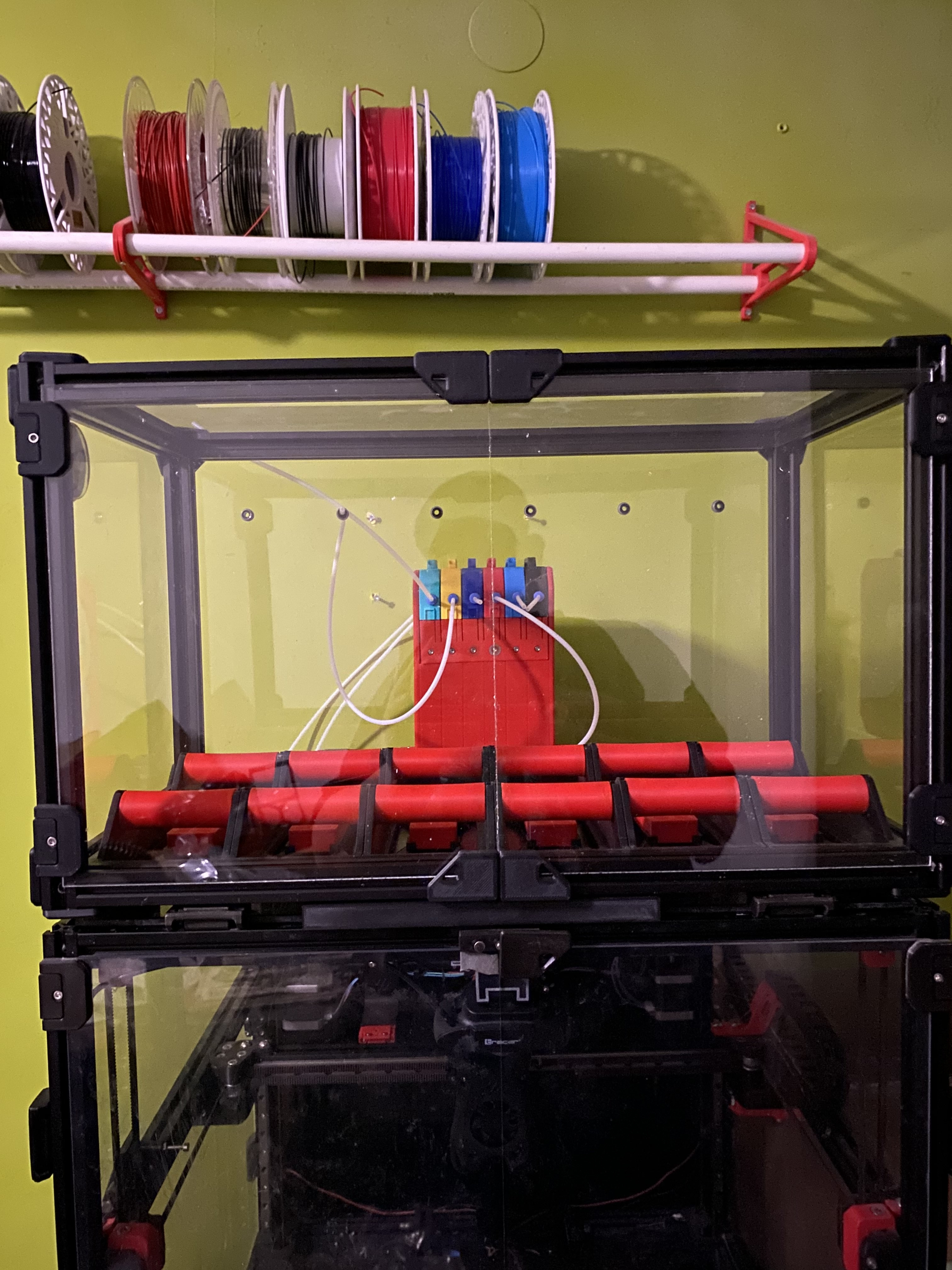

Armadillo DryBox
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Voron Parts & Upgrades
- License
- Creative Commons — Attribution — Share Alike
Github page: https://github.com/Gnierat/Armadillo-DryBox
Facebook: https://www.facebook.com/profile.php?id=100090093557794
| Component | Qty | Source |
| Frame | ||
| Aluminium Profile 2020 L470 Thread on each end | 4 | V-Slot |
| Aluminium Profile 2020 L230 Thread on each end | 4 | V-Slot |
| Aluminium Profile 2020 L300 holes 10mm from eatch end | 4 | V-Slot |
| Panels | ||
| Bottom ABS Panel 3mm 484x244 | 1 | Fabertec |
| Top Clear PMMA Panel 3mm 484x244 | 1 | Fabertec |
| Side Clear PMMA Panel 3mm 274x244 | 2 | Fabertec |
| Door Clear PMMA Panel 3mm 242x274 | 2 | Fabertec |
| Back Clear PMMA Panel 3mm 484x274 with holes (DXF) | 1 | Fabertec |
| Prints | ||
| Corner | 20 | |
| Base | 6 | |
| [a]_Roller | 12 | |
| [a]_Spacer | 24 | |
| [a]_SilicaGel Box | 6 | |
| [a]_SilicaGel Lid | 6 | |
| Stand | x | Print as needed. Scale length. |
| Door Hinge | 4 | From Voron GitHub |
| Handle A | 2 | From Voron GitHub |
| Handle B | 2 | From Voron GitHub |
| Latch | 2 | From Voron GitHub |
| Others | ||
| 8mm Stainless Steel Rod L75mm | 12 | |
| 608 Bearing | 24 | |
| 3x6mm Magnet | 8 | |
| M3x8 SHCS | 70 | |
| M3 T-nut | 70 | |
| M5x16 BHCS | 16 | |
| ECAS04 | 6 | Aliexpress |
