"Locking" Organizer Drawers

A set of drawers for organizing electronic components. But, of course, it could be used for other things.

“Locking”

The biggest feature of this set is the “locking” feature. The drawers can be clipped in to secure them for travel or moving, or left unclipped for easy access. Either way the drawers look completely closed.

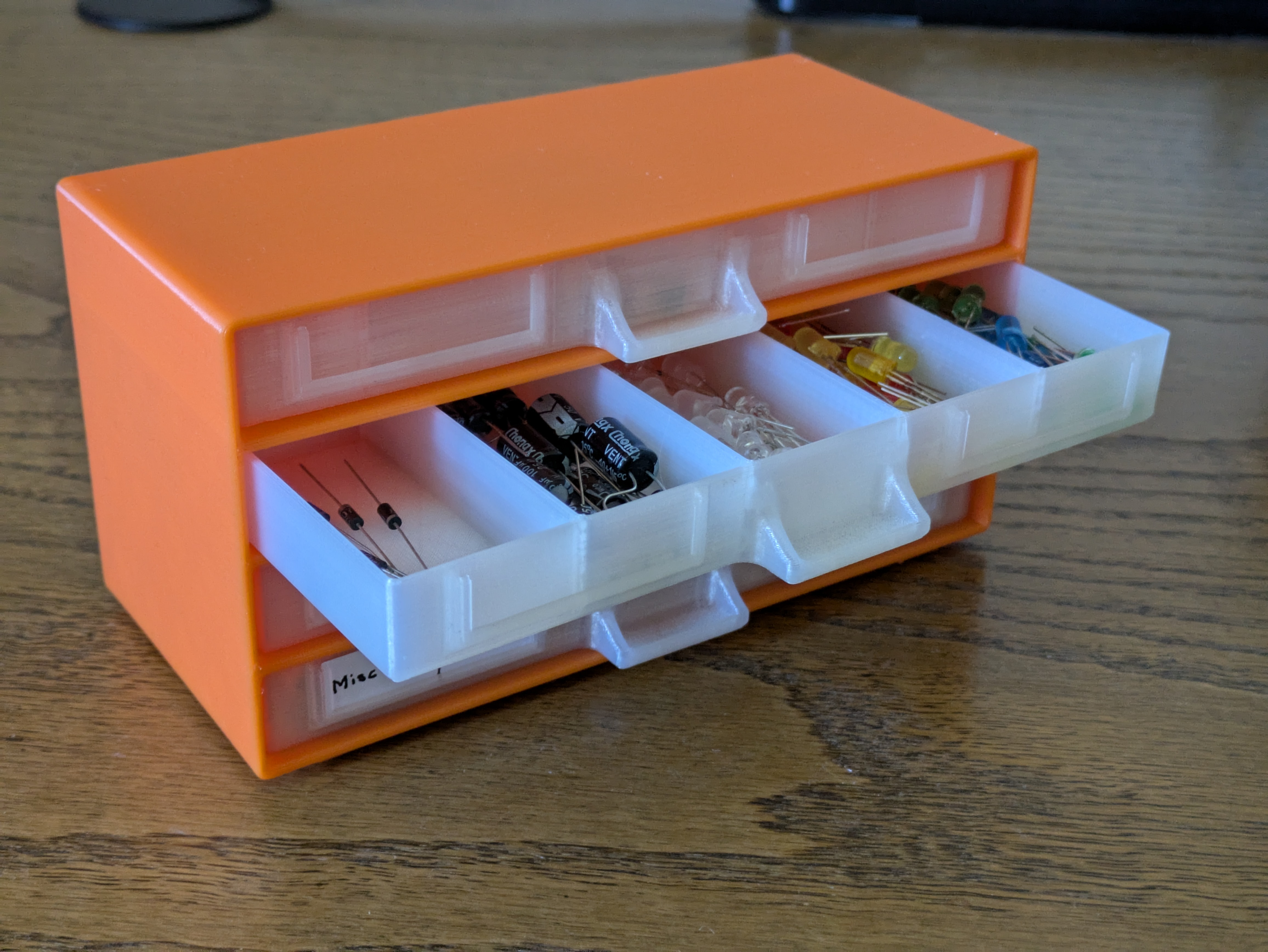

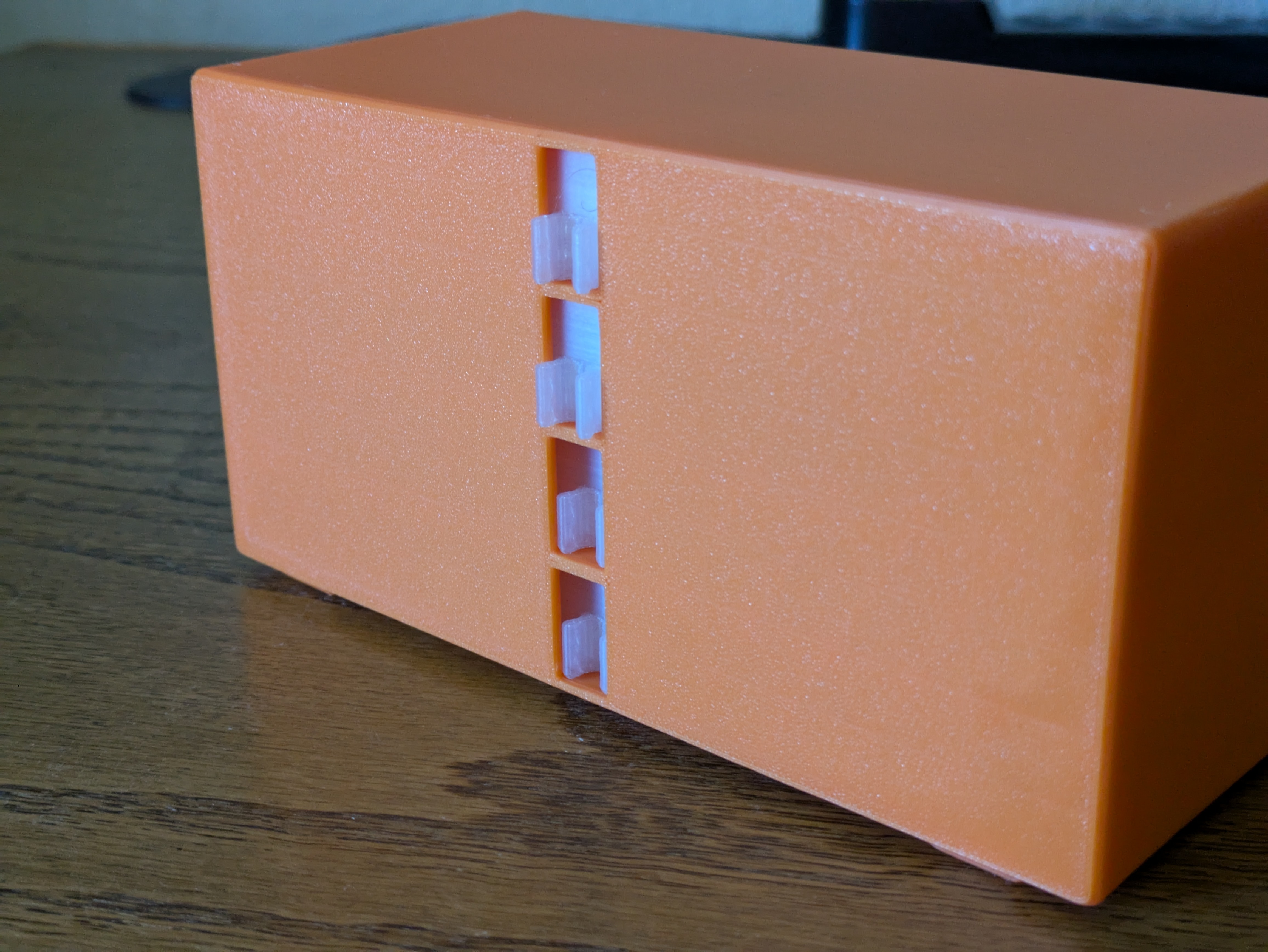

For reference: First photo is unclipped, second is clipped, third shows back side with top 2 clipped and bottom 2 unclipped.

Drawers

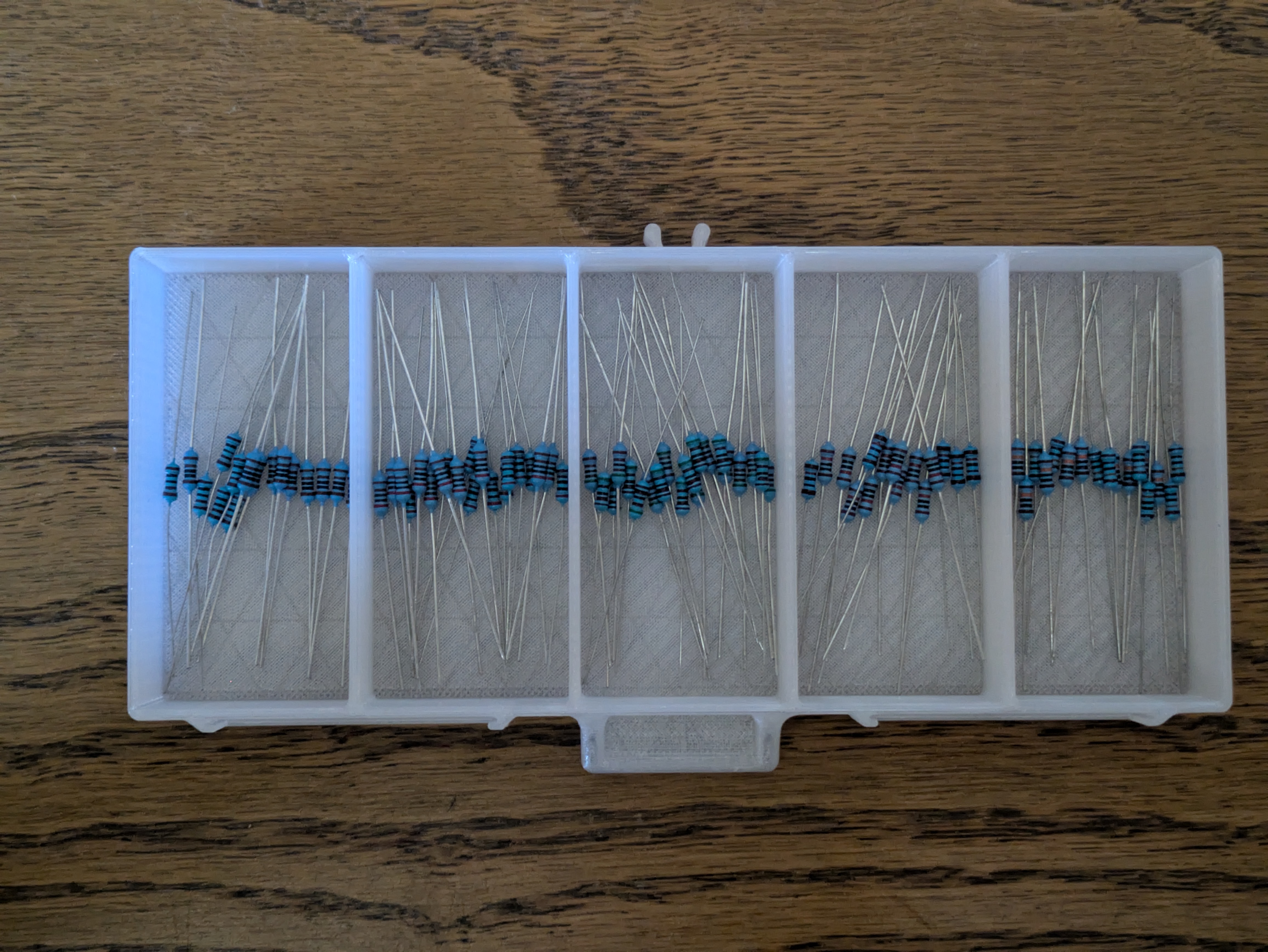

The depth of the drawers are dimensioned to fit the length of THT resistors, which means it also fits most smaller components too.

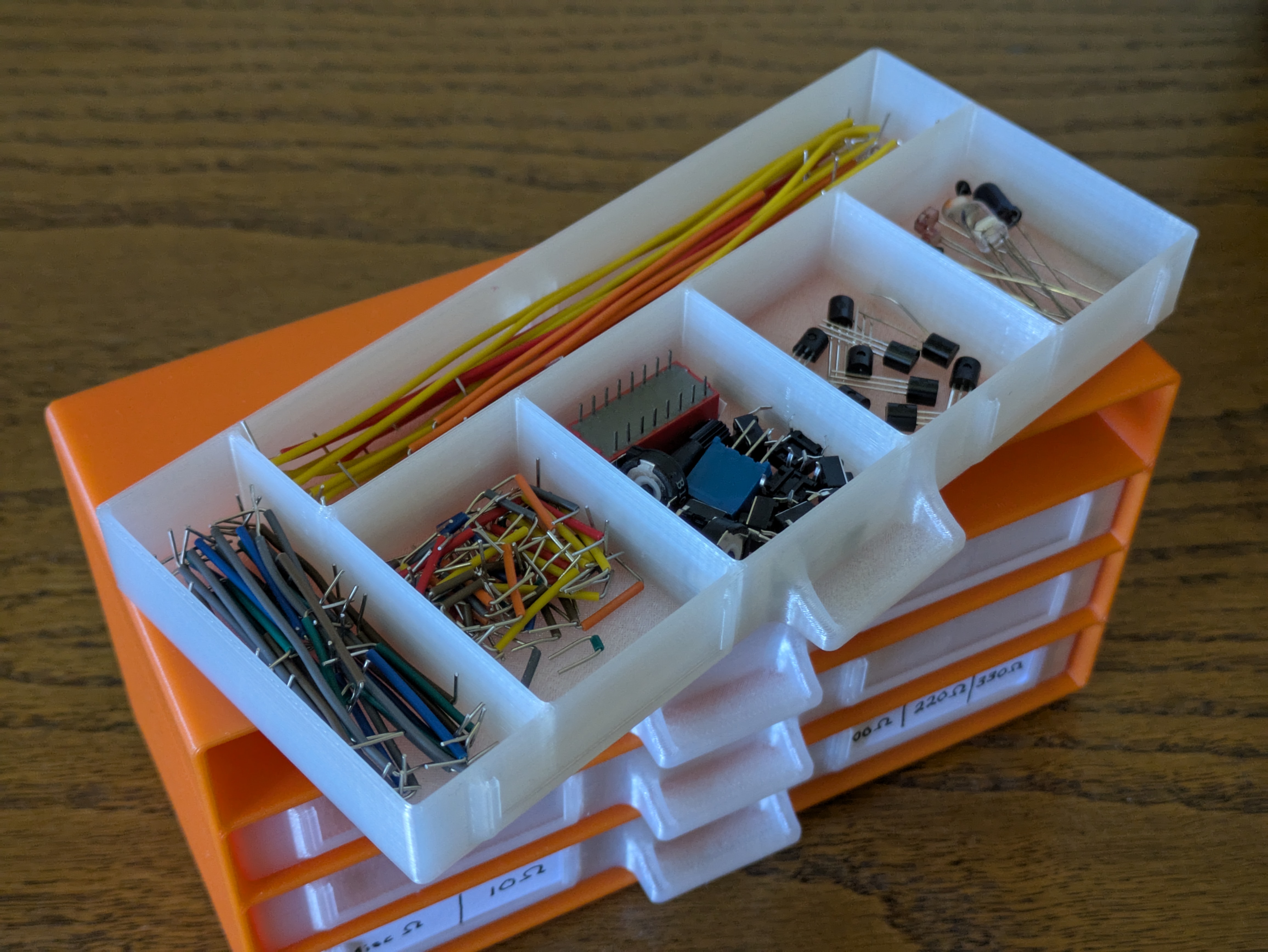

There are 2 designs for the drawers. One for resistors and other long leaded components. The other has a space for short breadboard wires and such. If you have a specific configuration you want, let me know and I'll see what I can do!

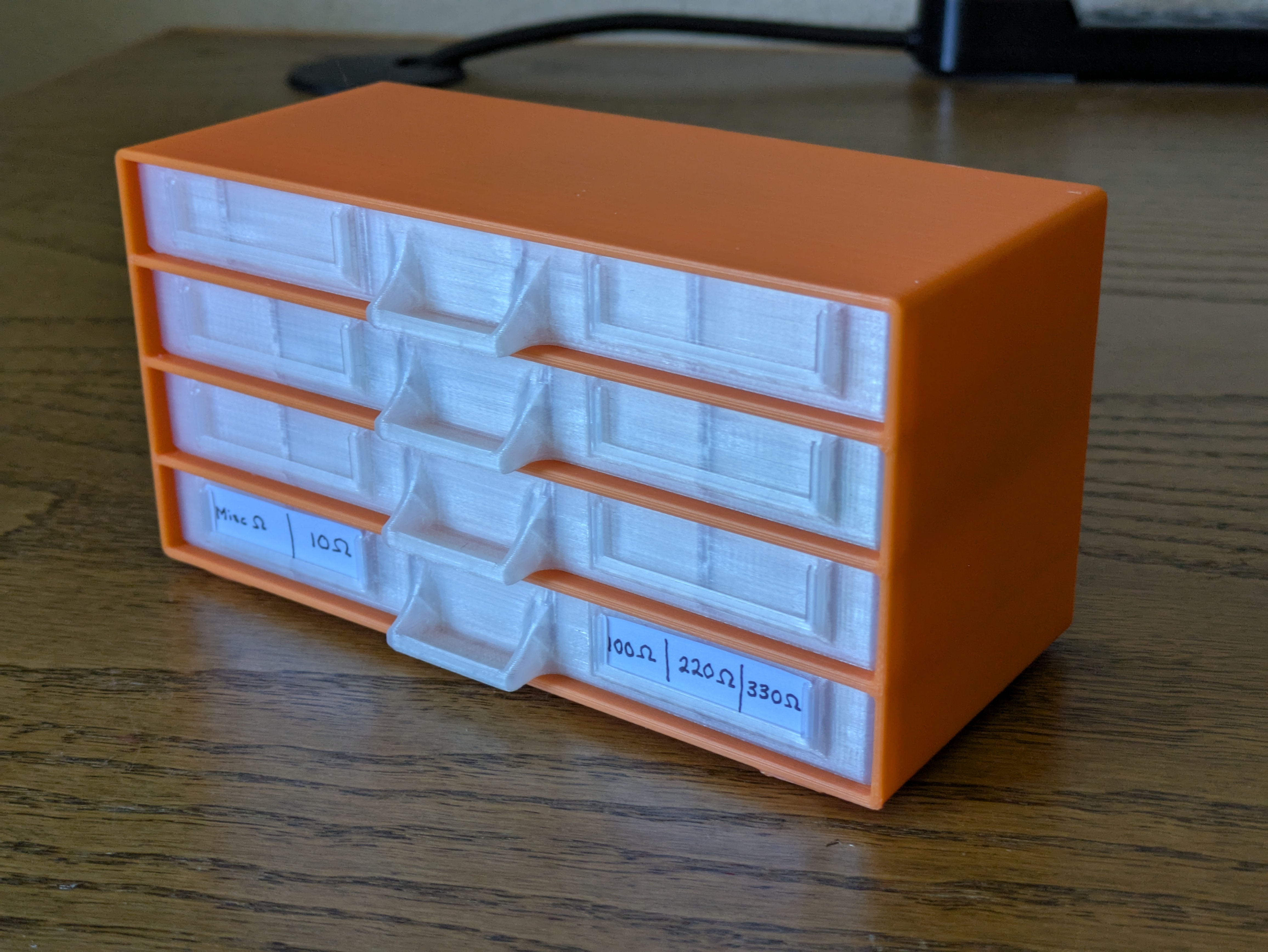

There are slots for 2 labels per drawer.

Frame

The frame has 2 versions, a 4 drawer set and a 5 drawer set. Print with the back face down.

Grip Pads

The bottom has space for TPU pads for added grip. Installation can be a little tricky. I recommend putting each of the four taps in the slots one at a time. If it is a really tight fit there is a loser fitting pad in the files below.

You could also put some other rubbery things in those slots if TPU is not an option.

Let me know if you have any questions and happy printing!
