Modular Storage System Inspired by Tom Clancy's The Division 2

This customizable, modular storage system, inspired by Tom Clancy's The Division 2 stash, offers a versatile solution for organizing gear. Stackable, interchangeable containers in Singles (1/4 slot) and Doubles (2/4 slots) allow flexible configurations.

Container Types:

-Shallow Trays

  • Purpose: Low-profile trays for small items, used standalone or atop 3/4-height containers.
  • Height: 14.5mm
  • Stacking: Up to 7 trays fit within max height (105mm total, allowing lid clearance).
  • Available Configurations: Single or Double.

-Half-Height Containers

  • Purpose: Mid-sized containers for moderate storage.
  • Height: 52.5mm
  • Available Configurations: Single or Double.

-3/4-Height Containers

  • Purpose: Deeper containers, toppable with shallow trays for space optimization.
  • Height: 78mm
  • Available Configurations: Single or Double.

-Deep Containers

  • Purpose: Full-height containers for maximum capacity.
  • Height: 105mm
  • Available Configurations: Single or Double.

-Container Dimensions

  • Single: (L) 93.8mm (W) x 43.3mm
  • Double: (L) 93.8mm (W) x 93.8mm

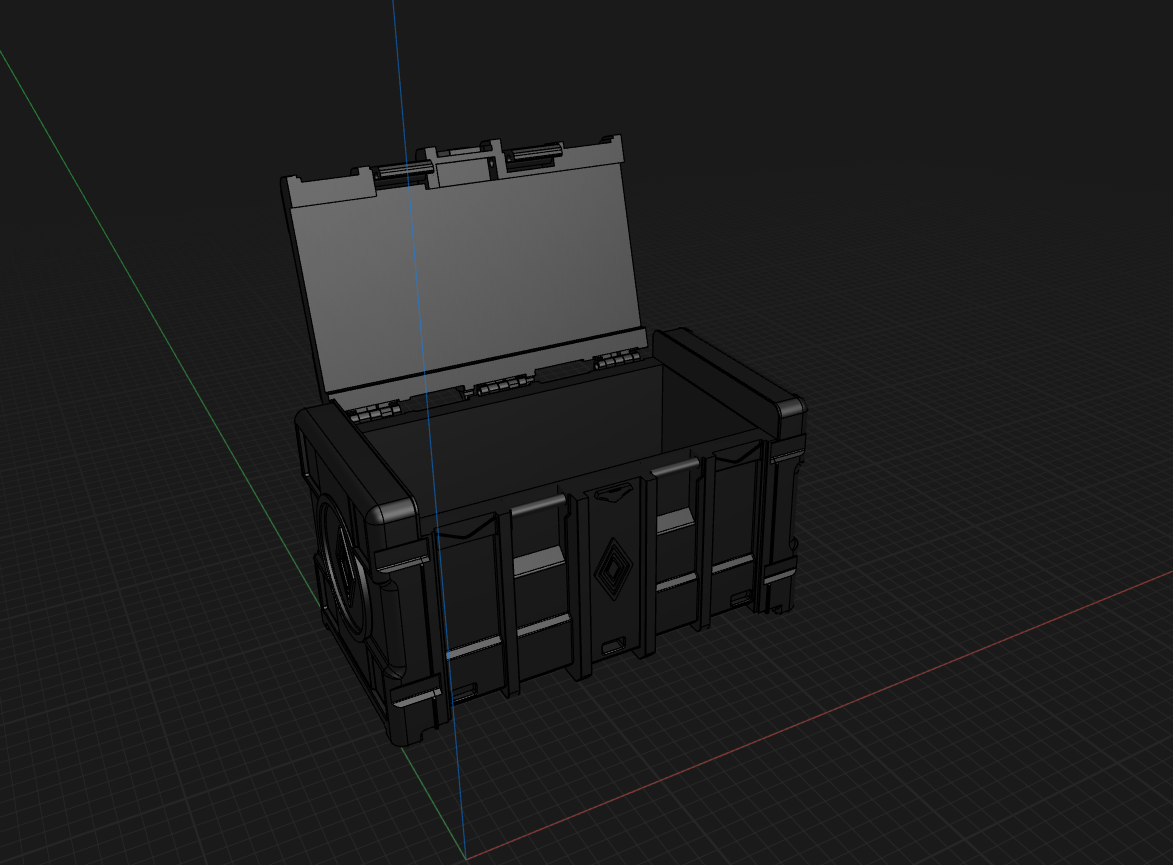

-Stash Box Specifications

  • Internal: (H) 104.85mm (L) x 198.11mm (W) x 100.4mm
  • External: (H) 135.6mm (L) x 245.4mm (W) x 136.2mm
  • Max Bin Height: 105mm (for lid closure)

-3D Printing Recommendations

  • Bed Size: 256 x 256 x 256mm (scale proportionally for smaller beds).
  • Nozzle: 0.4mm
  • Filament: PLA (easy), PETG reccomended (durable), or ABS (strong; ventilate).
  • Settings: Use supports for hinges/lips; increase bed temp 1-5°C for adhesion if needed. 0.2mm clearance for fit; sand if tight.
  • Printer: Tested on Bambu Lab X1C.

-Key Features

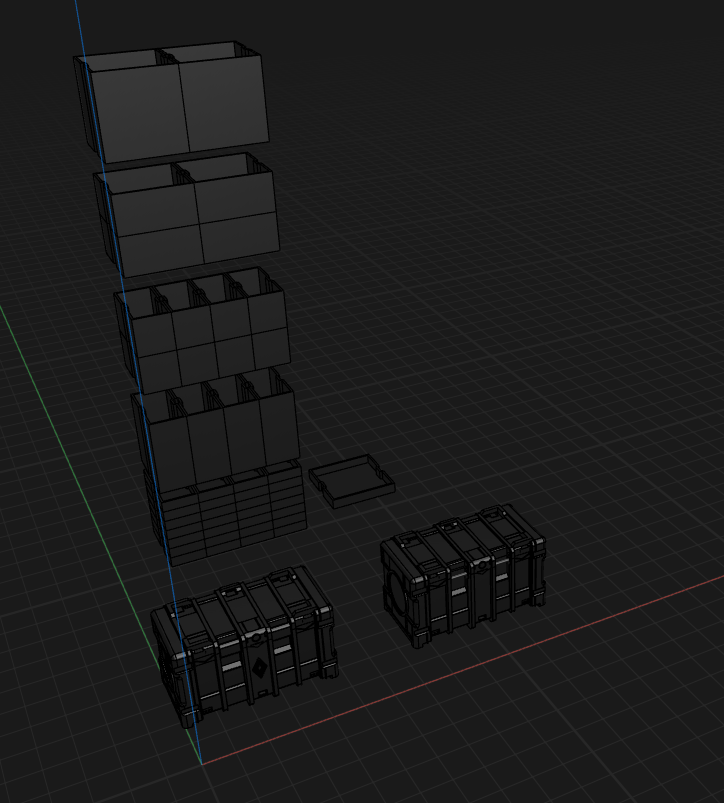

  • Modular Design: Mix Single and Double containers in various heights.
  • Space Efficiency: Optimized for max storage and accessibility.
  • Inspired Aesthetic: Tactical Division 2 style, ideal for gamers, hobbyists, or organizers of tools, collectibles, or accessories.

This system blends functionality with a bold, game-inspired look, perfect for precise, practical storage.
