Wire Goniometer
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Tools
- License
- Creative Commons — Attribution — Noncommercial

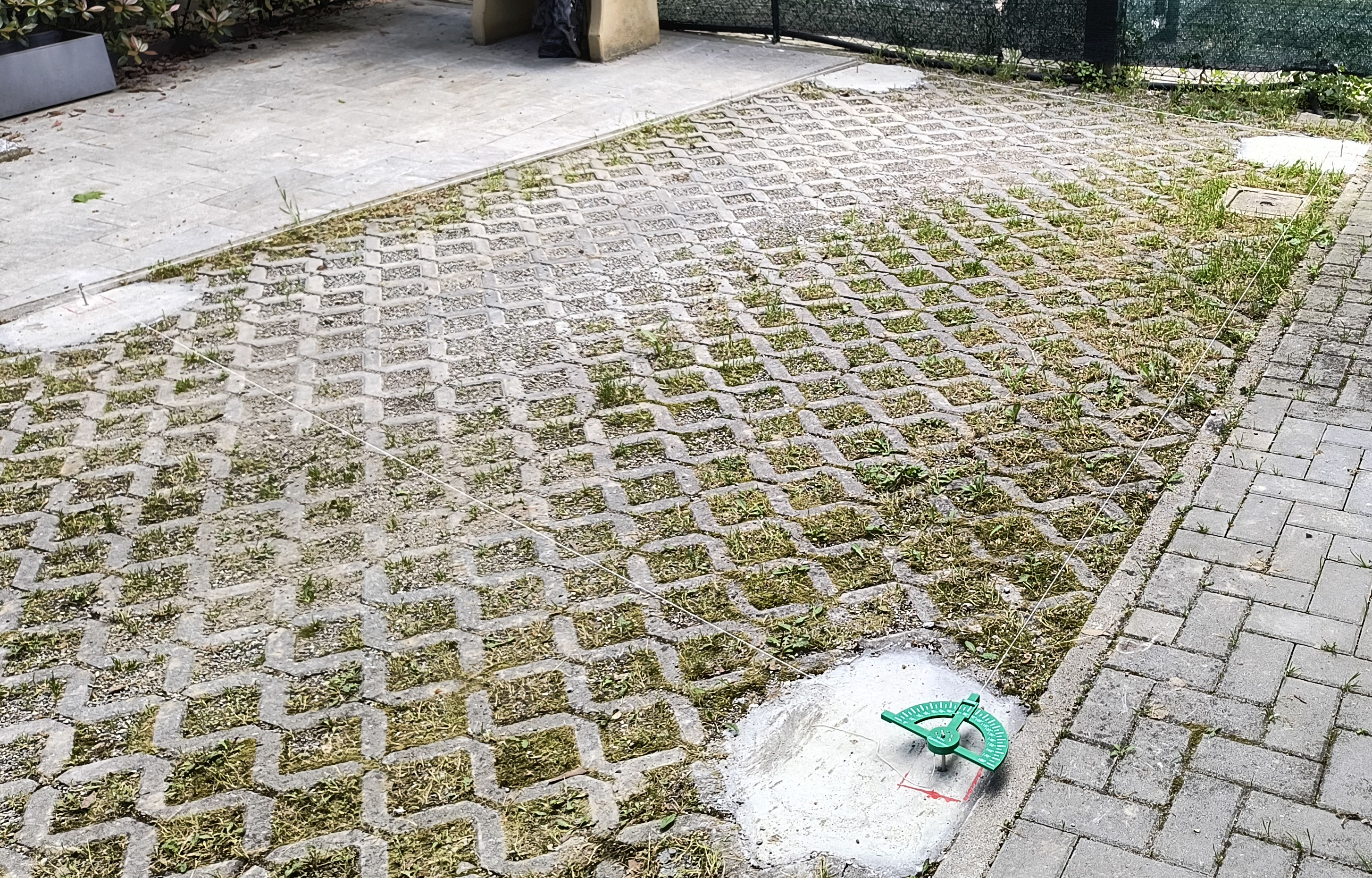

This project arose from the need to build a hail shelter for the car
With simple string, 4 steel pins and the wire goniometer, measurements can be made with 1 degree accuracy.

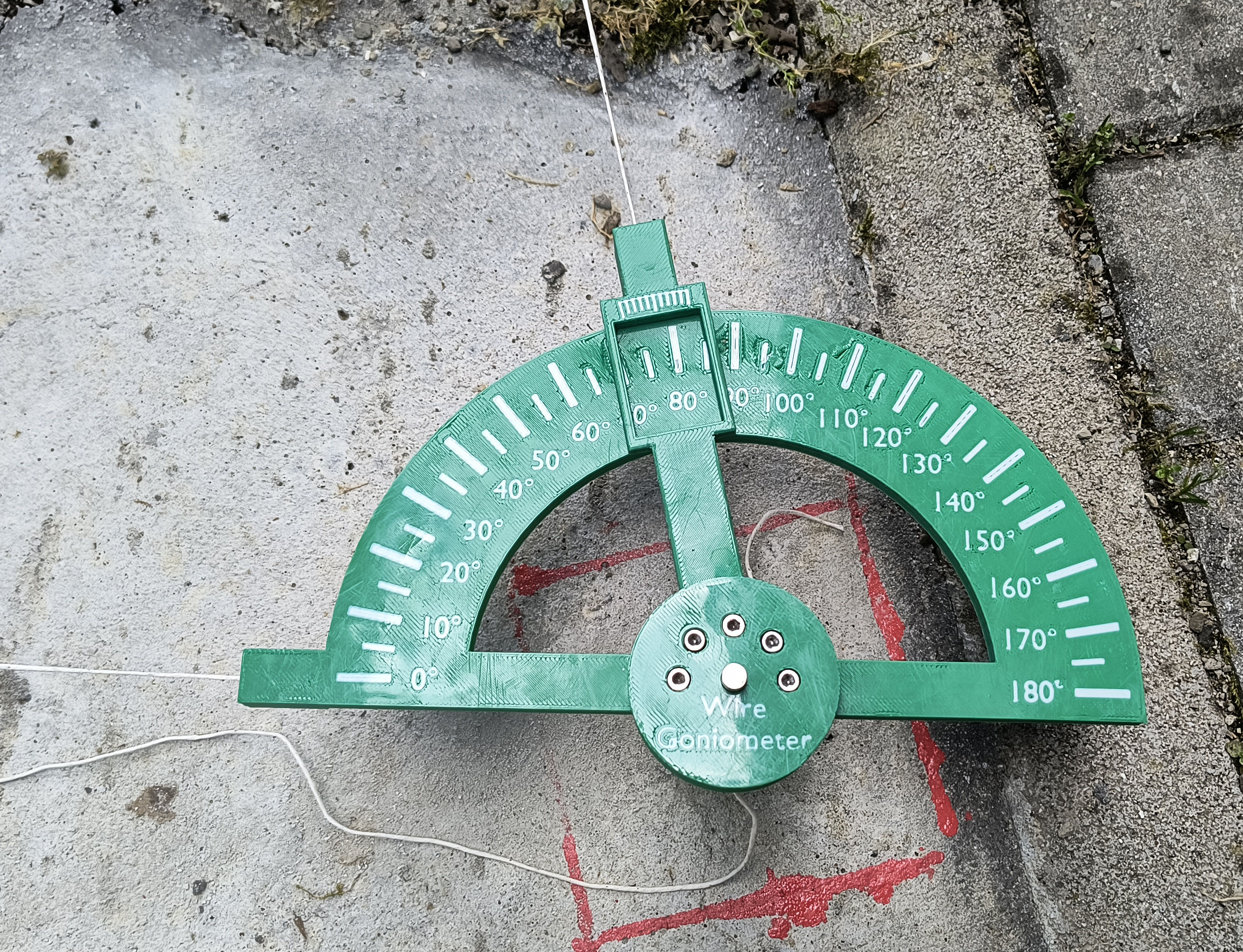

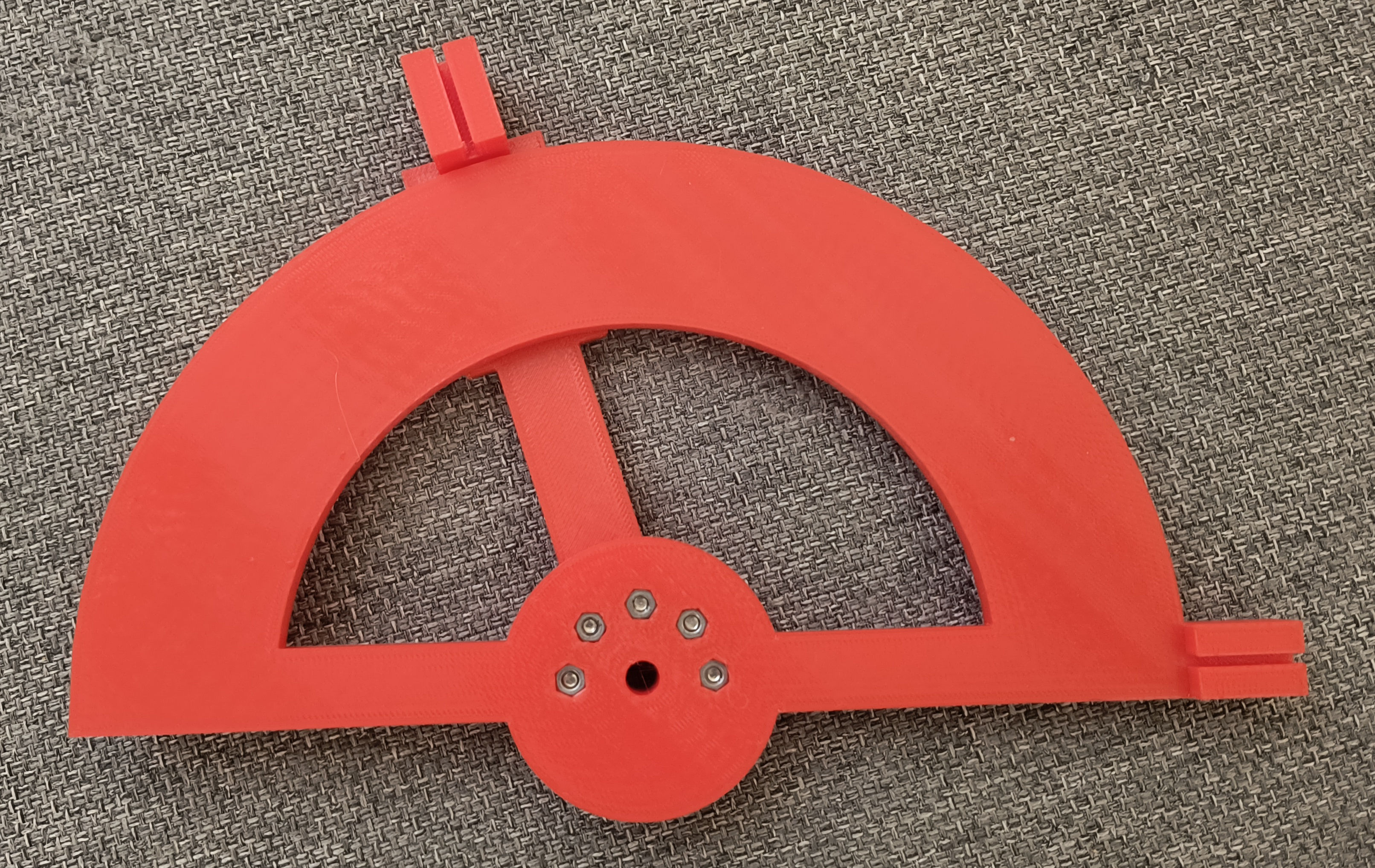

With the wire well stretched, simply insert the centre of the goniometer into the pin and insert the wire into the 2 slots and read off the value using the arm's single-degree scale to resolve the measurements to 1 degree accuracy

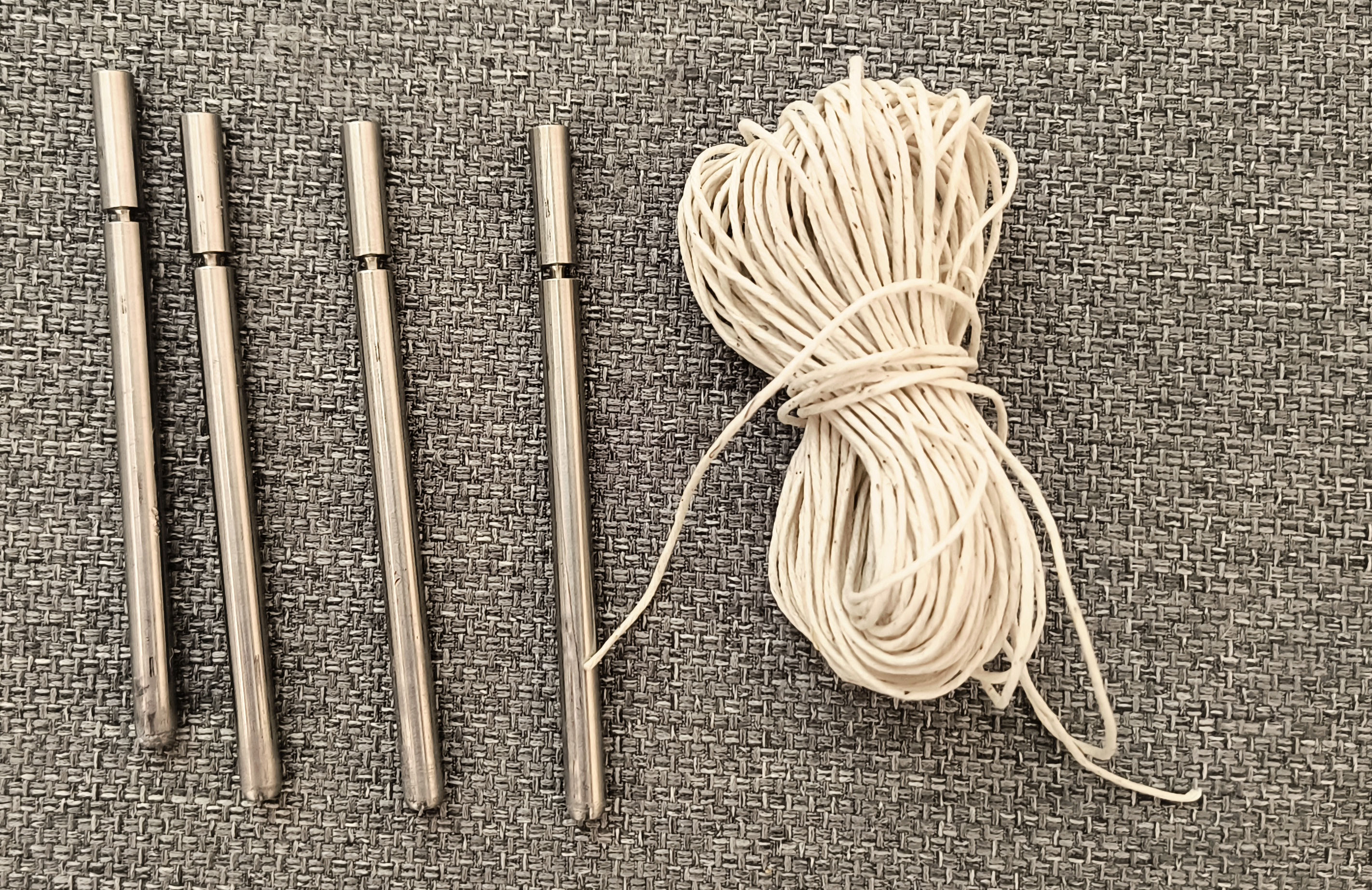

The steel bars are 6 mm in diameter and have a lathe-machined slot to wind the wire
