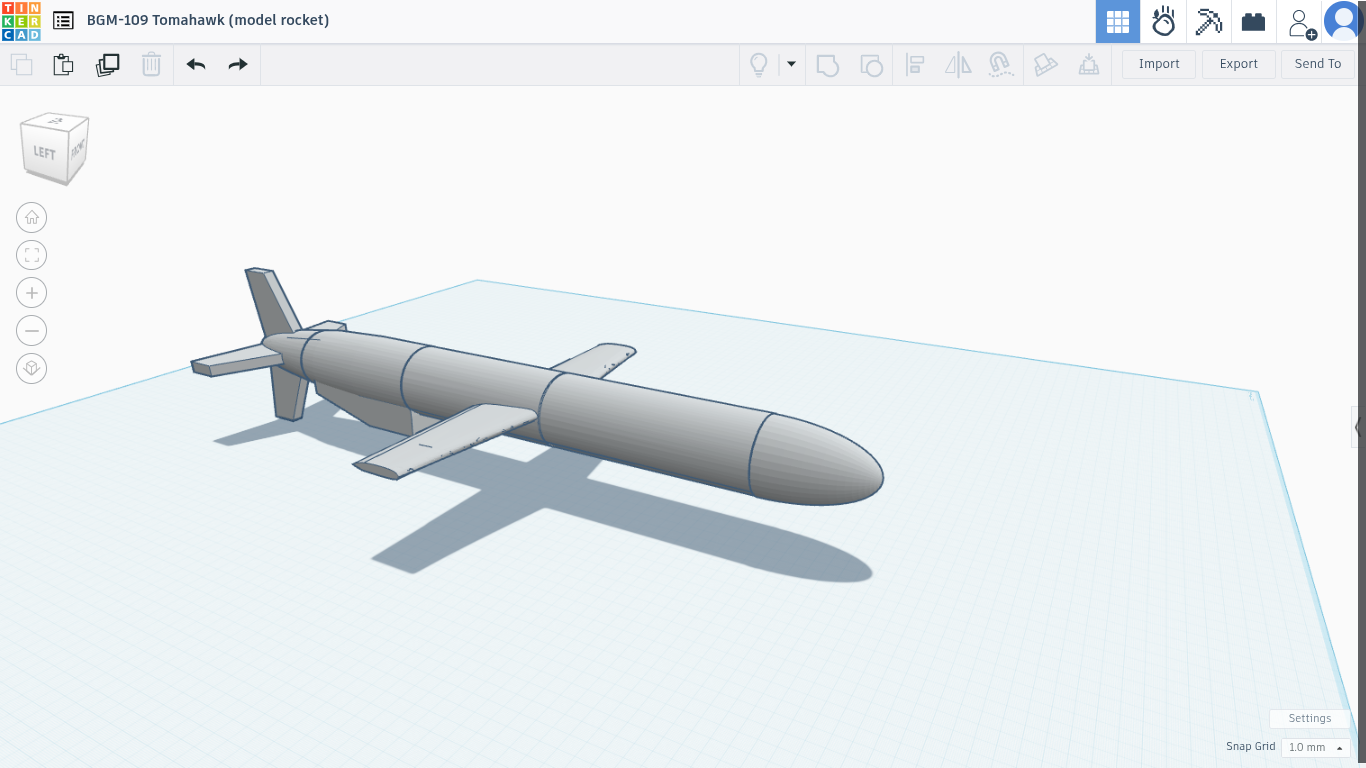

BGM-109 Tomahawk (model rocket)
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- RC & Robotics
- License
- Creative Commons — Attribution — Noncommercial
Printing:
Filament: Any
Nozzle: 0.4/0.6
Temperature: whatever your printer says
Supports: None. (depending on your printer, you may want to do automatic trees for the wings.)
Time: Depends on your printer. My Flashforge could do it in 7 hours, but it could take a while.
Assembly: glue together everything but the nose, insert metal object into hole, then glue on the nosecone. Then, glue 3" of a plastic straw onto the bottom of the fuselage, but not on the center.
Preparation: Insert engine, add the starter, and push in the plug.
Launch: Slide down the launch pole through the straw guide, put the clips on the starter, BACK AWAY 30 FEET, and fire a missile that you made yourself!
Recovery: Add a parachute. Or don't. Totally up to you. (parachute highly reccomended)
V2 Update: I hollowed the rocket out for a recovery system.
V3 Update: I rescaled it to fit better engines and fixed the recovery system.
Disclaimer: By printing and firing this rocket, you assume all responsibility and liability for any damages that may result. Rocket is not tested.
EDIT: DO NOT USE AS MODEL ROCKET FOR SCALE MODEL PURPOSES ONLY NO LAUNCH BAD IDEA VERY DUMB WAY TO DIE MAY EXPLODE DO NOT GIVE FILE TO IRAN VERY BAD NOT MY FAULT
