Filament Breakout Sensor
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Electronics
- License
- Creative Commons — Public Domain
*PRINT AT 120% SCALE BECAUSE I AM BAD AT CAD*

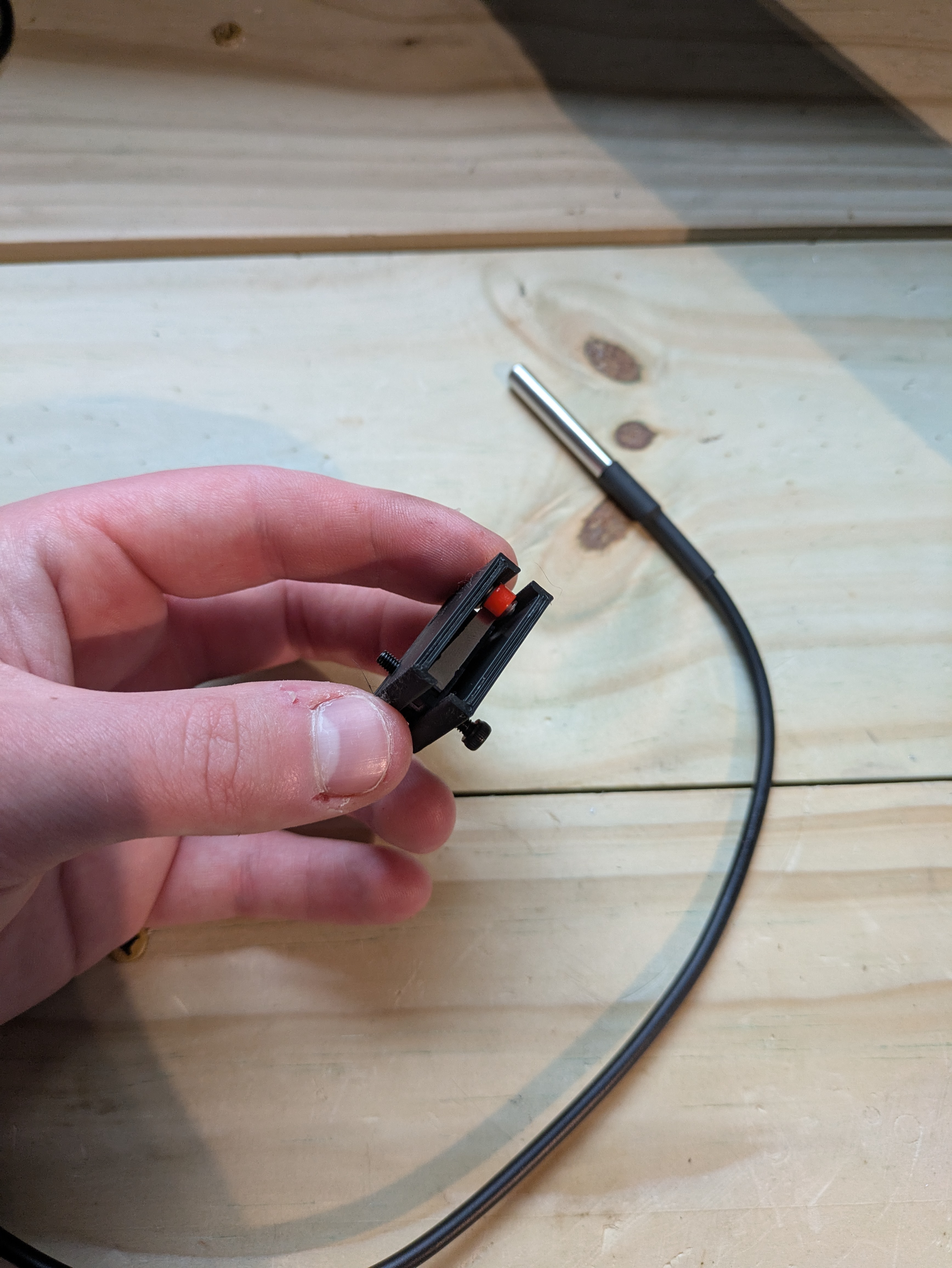

Filament breakout sensor. Uses a rolling limit switch to detect when there is no tension on the filament being produced indicating a breakout. I intend to use this to sound an audible alarm.
Non Printed Parts:
- 1x Limit switch: Hiletgo KW12-3 AC 250V 5A SPDT 1NO 1NC
- 1x m3 screw - buy a bunch and use the desired length for your mounting.
- https://www.amazon.com/dp/B0CDSHT6GZ?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
