Gophert NPS GripStack Plates v.1
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Other Ideas
- License
- Creative Commons — Attribution

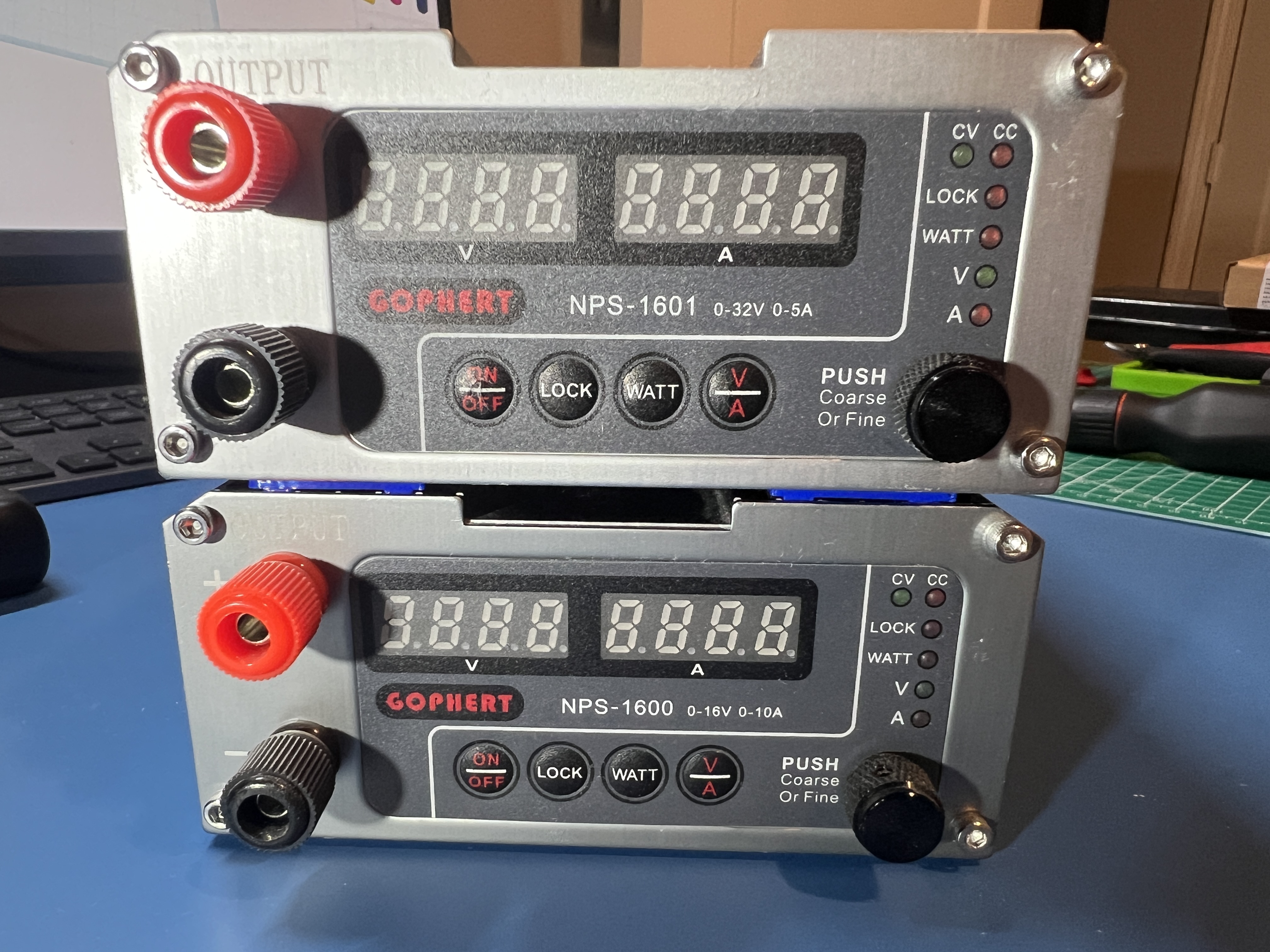

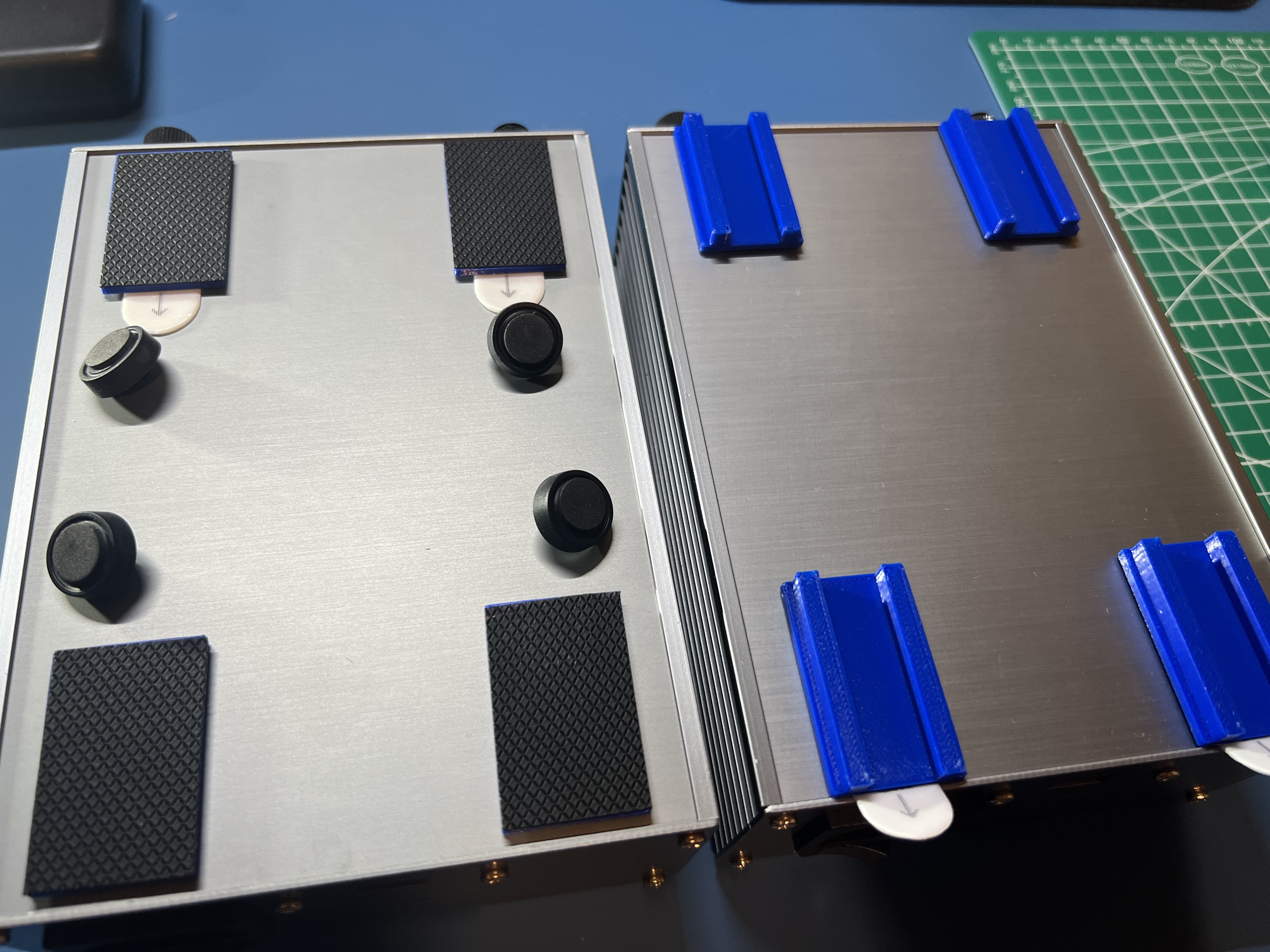

There are two different types of plates, bottom plates for adding grip tape, and bottom plates for stacking. If enough people find them useful, I will redesign them to use screws/bolts through OG holes for more secure mounting, instead of using 3M command strips.

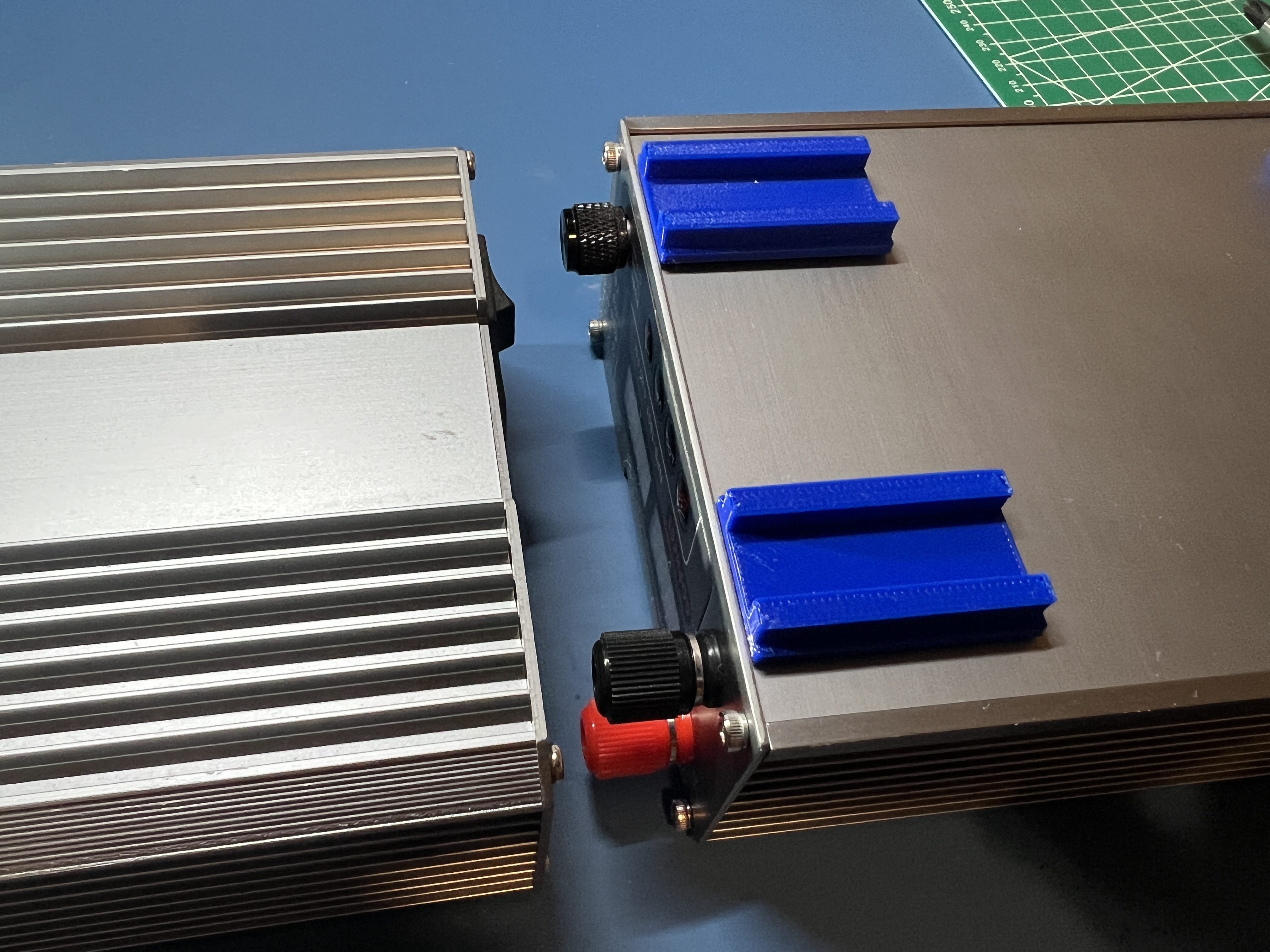

For easy alignment on stack plates; slot the stack plate into the top grooves of the bottom Gophert, slide them against the front and back plates, slowly turn the Gophert on its side, and slowly move the top Gophert into position while also laying on its side. I recommend turning the command strip pull tabs inward if you leave them on, to prevent the front/back plate edges from biting them.
Printer Used: Prusa Mini+
Material: Esun PLA+
Grip tape: Yorwe 1in wide rubber grip tape
Command Strips: 3lb white Med - cut in half
Basic Printer settings:
Filaments Preset: Esun PLA @205C all layers
Density: 15%
Infill: Gyroid
Top/Bottom Pattern: Monotonic
