Duender Base Electronics Mounts
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Other Printer Parts & Upgrades
- License
- GNU General Public License v2.0

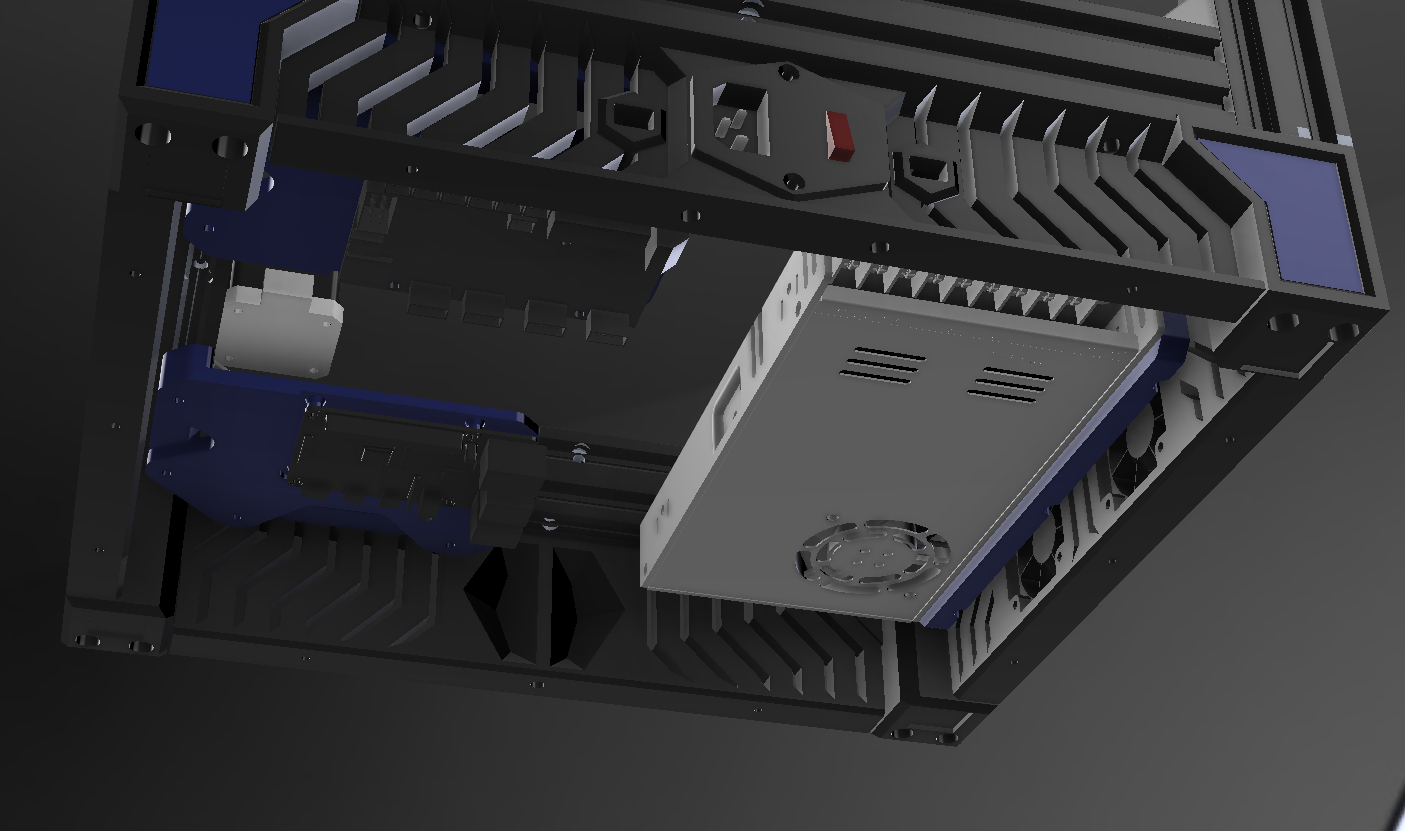

These are electronics mounts that fit in my Duender Base Case. Currently there's a mount for a Raspberry Pi, an ender 3 control board (or anything that with the same form factor) and a mount for the ender 3 power supply.
If you have cut or plan to cut your lead screws then you don't need the spacers. Print the power supply mount upright, the rest can be printed flat.
There are spaces for heatset inserts in the control board mount, but I have left them out in the RPi mount as the mounting holes in are M2.5 in the RPi. You need M3 bolts for everything except the bolts in to attach the power supply. Those are M4.
