Shoes Drawer hinge
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Other House Equipment
- License
- Creative Commons — Public Domain
This is a simple hinge for my shoes cabinet flip out drawer. It is supposed to receive a post with a size of 10mm, head with diameter ≤ 18mm, no thicker than 4mm

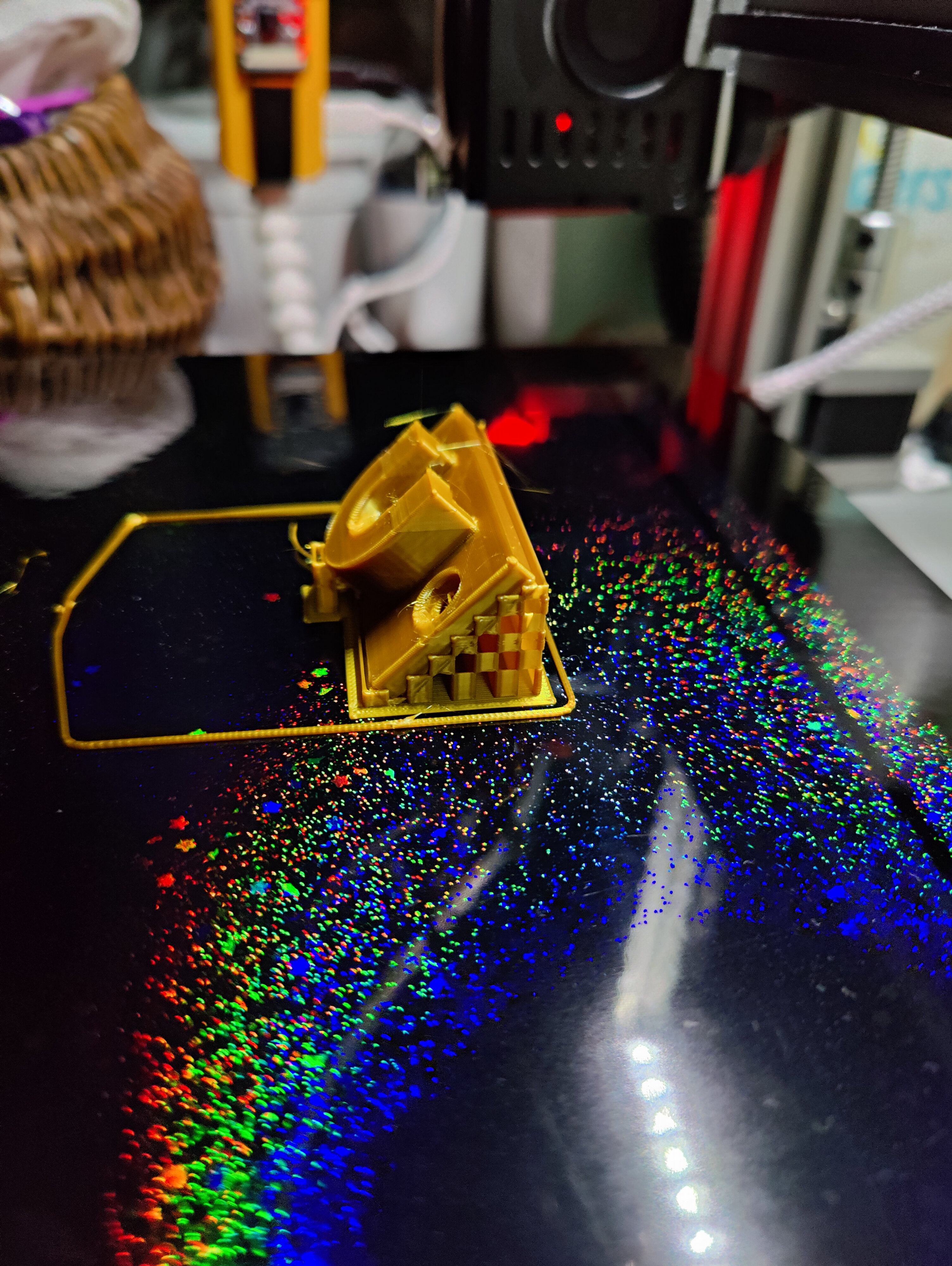

Probably you would need the chamfered part, otherwise the door of the drawer scrapes against the hinge. Pictures are without the chamfer and cut them by hand in order not to scrape against the door.
Print at 45 degrees for better strength.
