Compact Flash card reference model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Computers
- License
- Creative Commons — Attribution — Share Alike

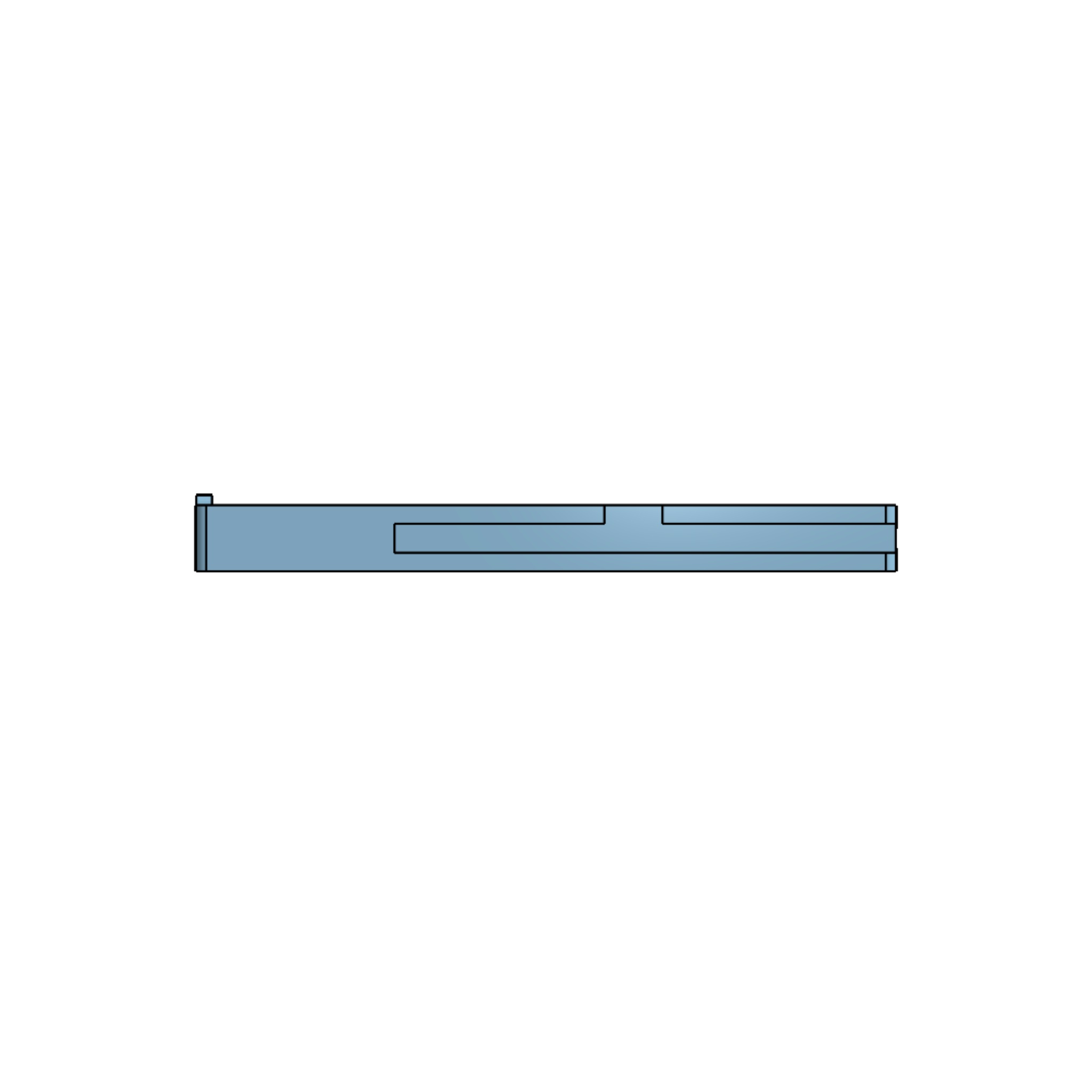

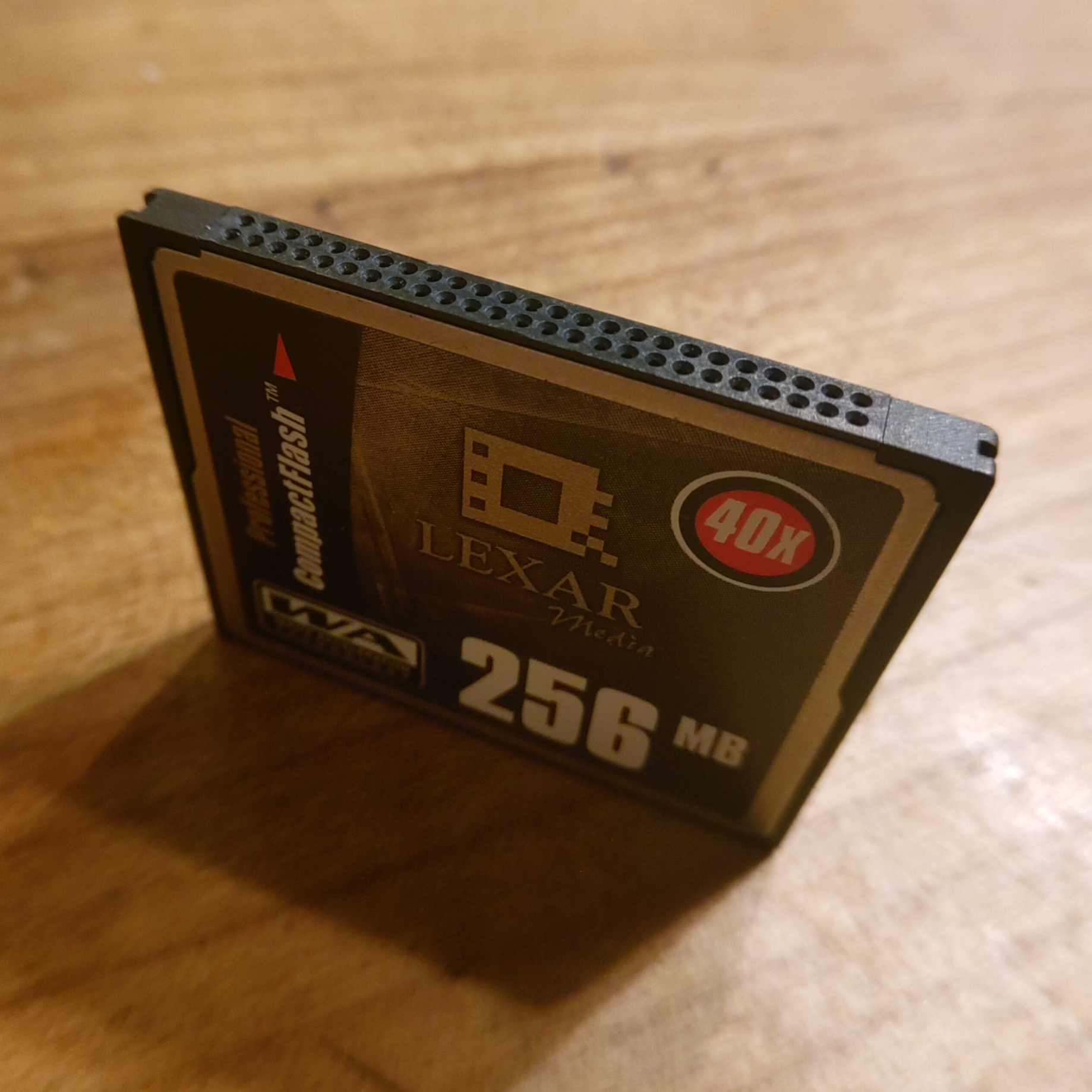

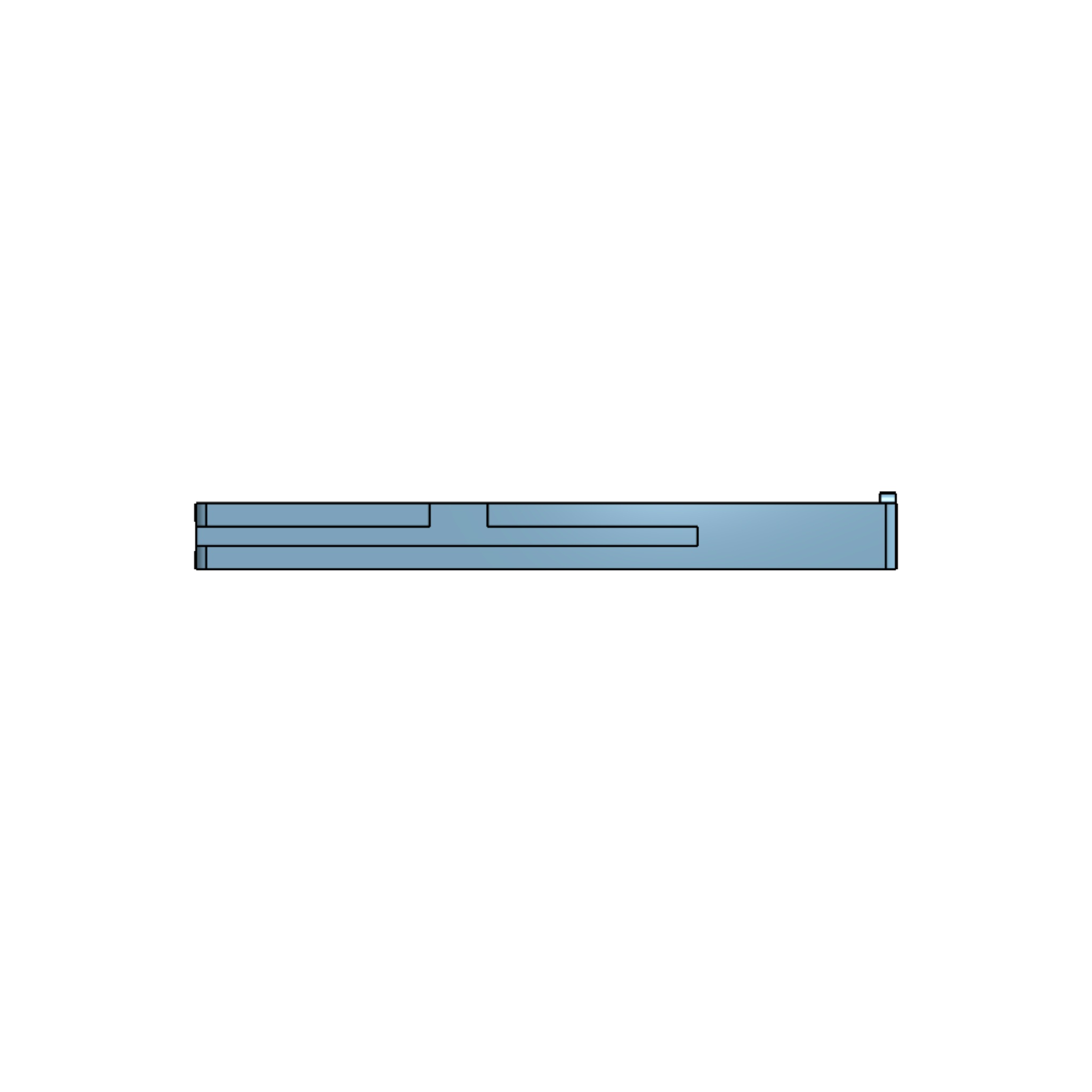

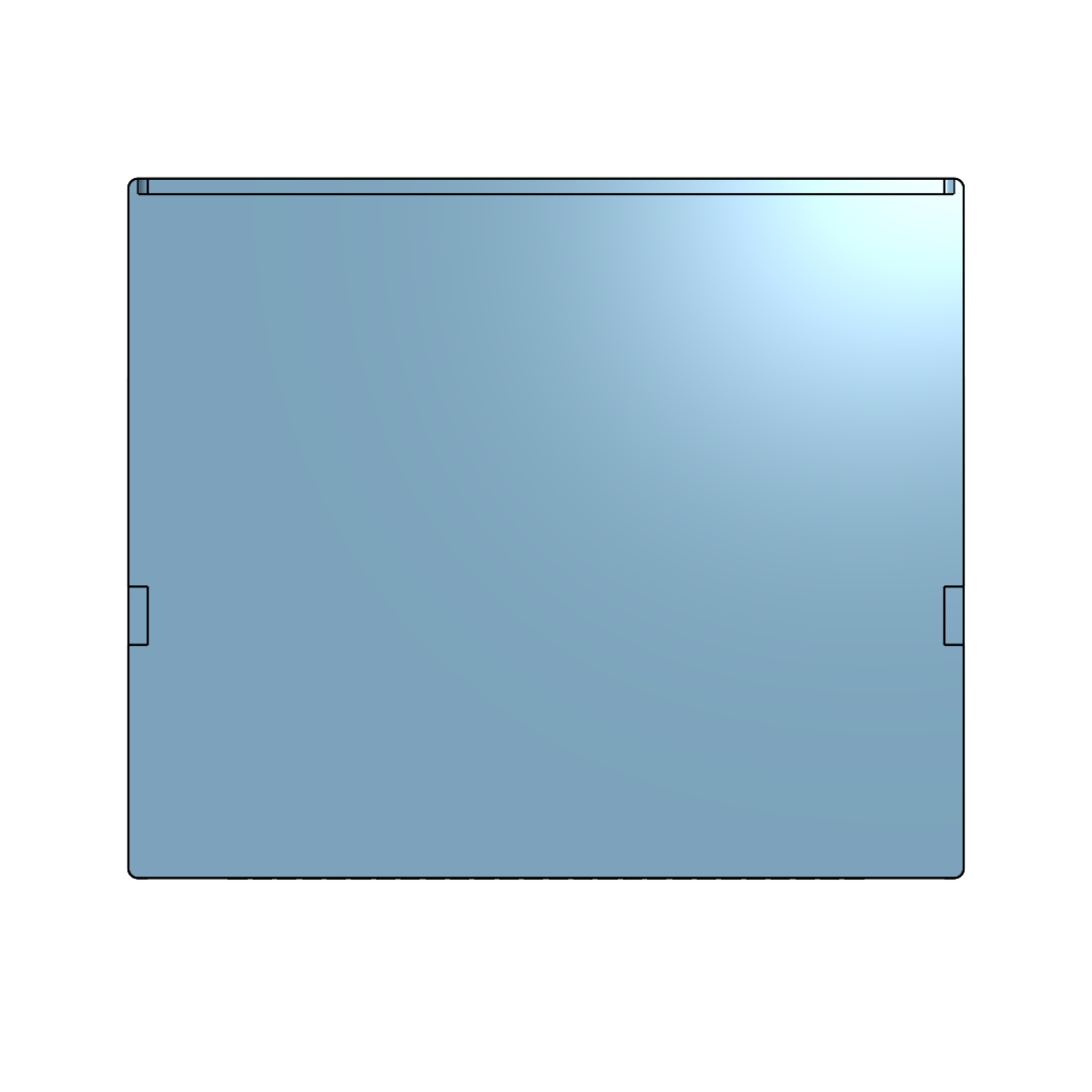

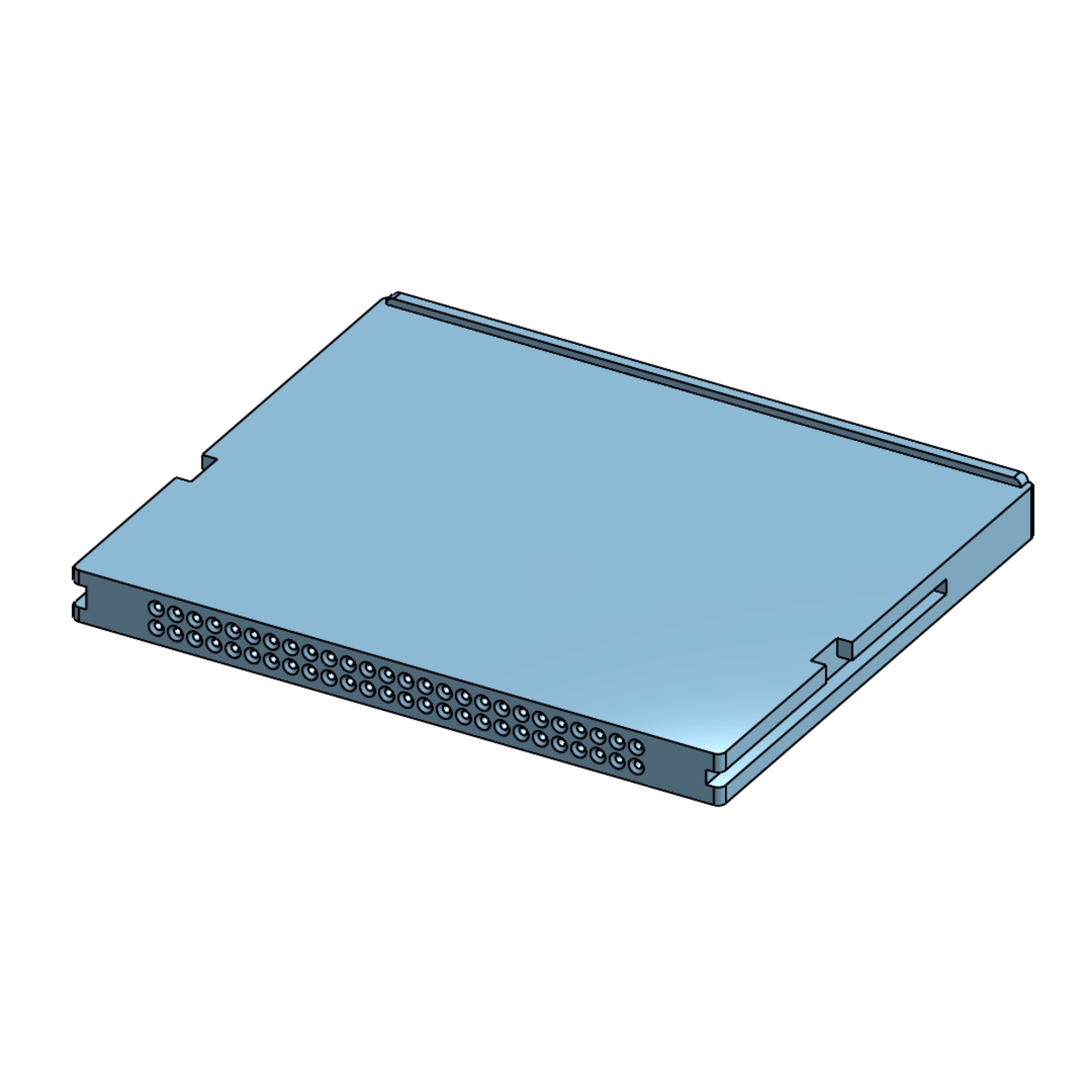

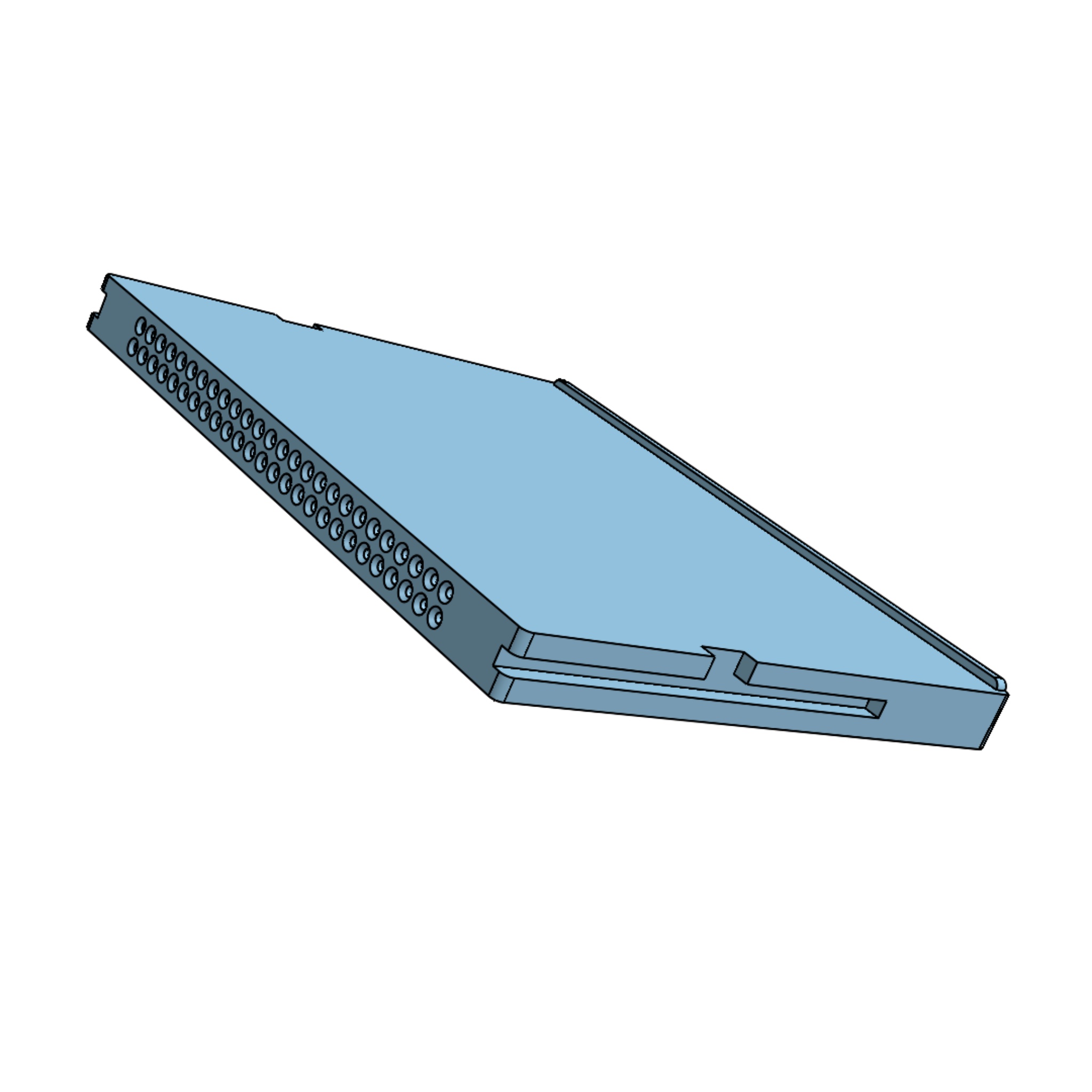

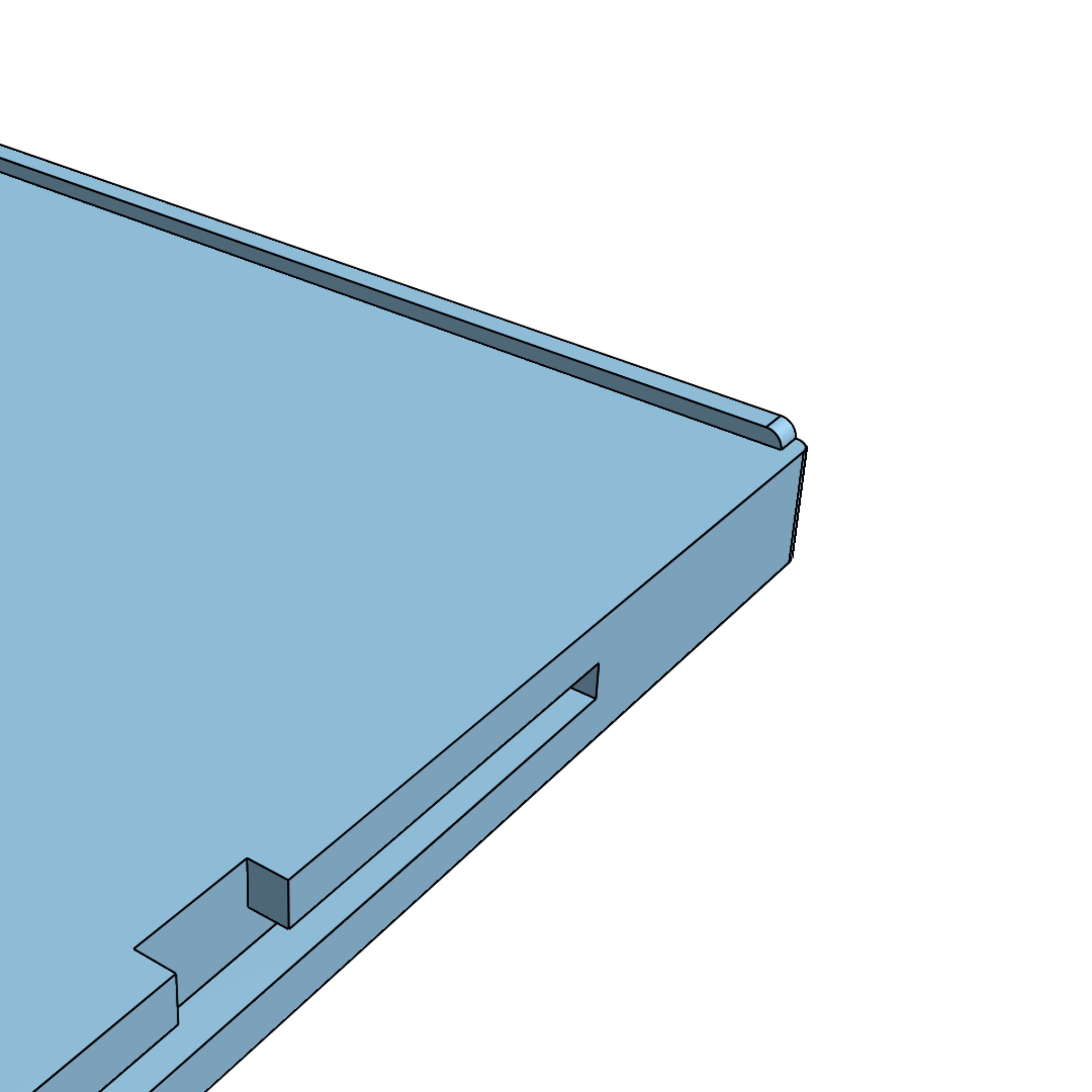

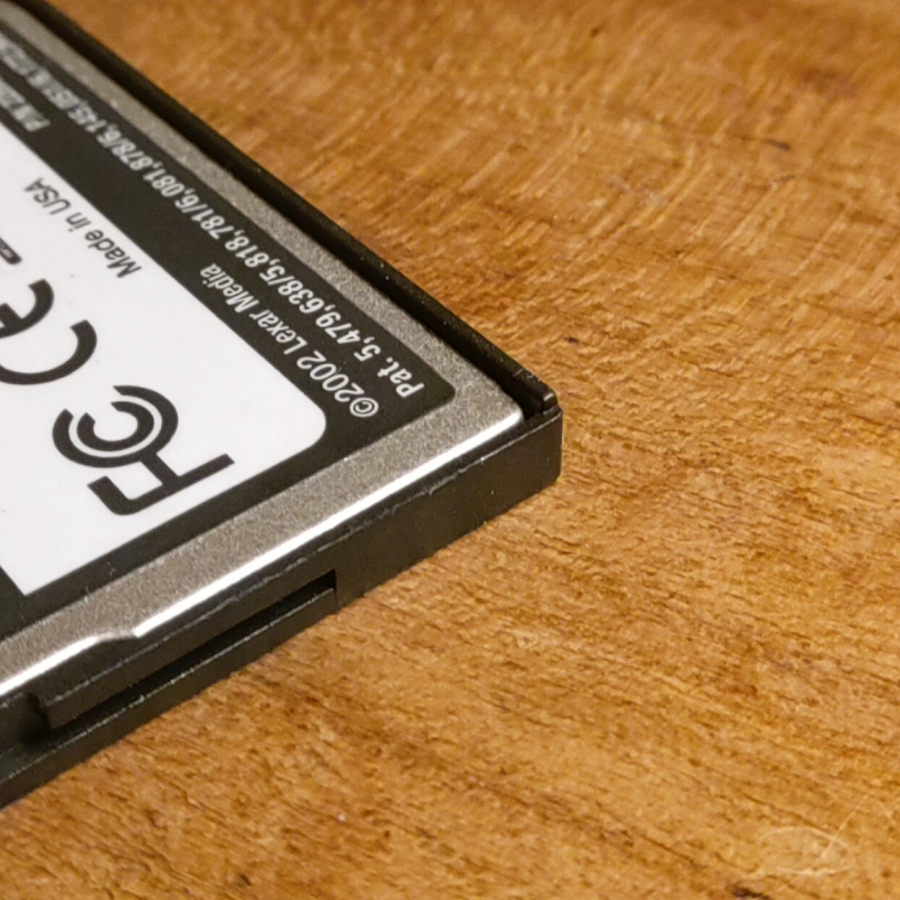

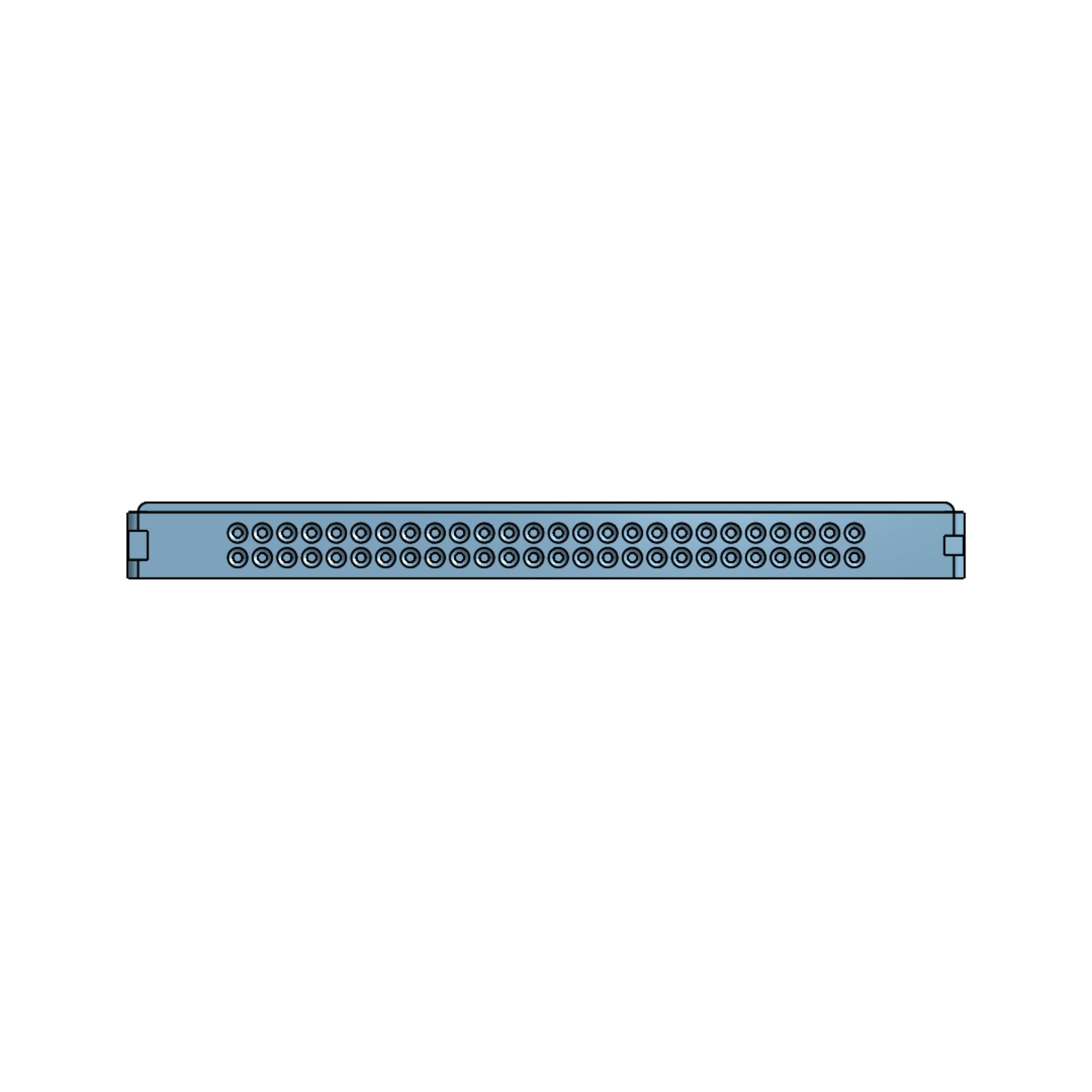

I couldn't find a detailed, accurate model of a CF card for a future project so I went and found an old one and this model was born - it's a general dimensional reference model for a CF (Compact Flash) memory card and is modeled specifically after a (it's a mouthful) 256MB LEXAR Media 40x Write Acceleration Technology, Professional CompactFlash™ Memory Card 2260... It fits nice and snugly in three CF card sockets I've tried so I think it should work well as a reference model - the 50 holes for the contact pins are exactly accurate too if they're needed. A resin SLA printer will do a better job at printing it compared to FDM but this is aimed at being used as a digital reference and assembly part.
✅ STEP and STL included!
