Curvy Vape Caddy (Parameterized)

Order a print of this model

We calculate the final price from your selected file. You review and accept it before payment.

Saved on this device.

Model information

License
Creative Commons — Attribution — Noncommercial — Share Alike

I created this parameterized vape caddy so that I can carry everything besides the vape in one hand. The two tall sections are meant for Q-tips, the medium section is meant for material, and the small section is meant for a 1g jar to hold a cap.

You should be able to customize all of the sizes in fusion as long as you don't change which section is tallest/shortest (if you want to change that, you'll have to edit the fillets).

For personal use only. Please contact me if you wish to sell this Caddy. If you post a remix please keep the license "Creative Commons - Attribution - Non-Commercial - Share Alike"

To customize this Caddy:
Obtain and install a free copy of Autodesk Fusion: https://www.autodesk.com/products/fusion-360/personal
In Fusion, File -> Open -> Select .f3d file

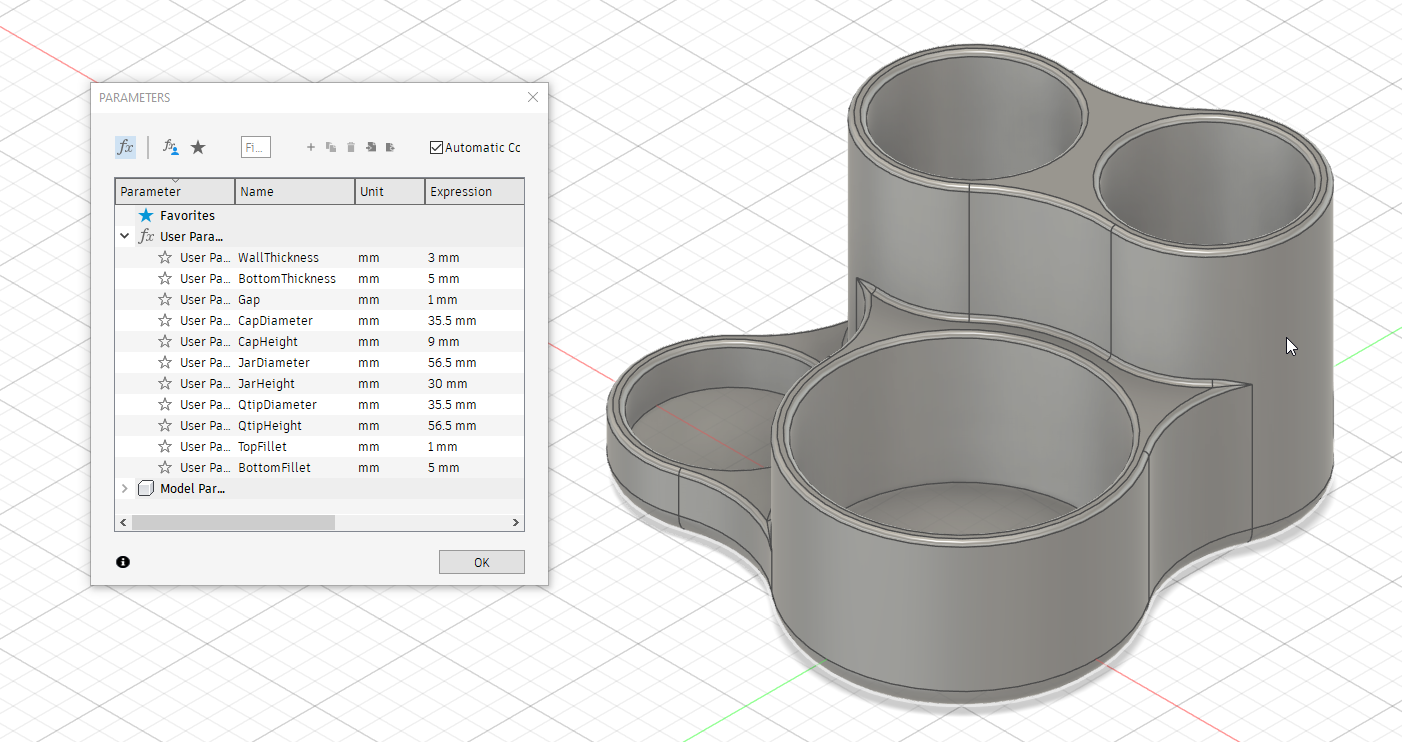

Modify -> Change Parameters
Change values and hit okay
Save
File -> Export -> Select .stl file
Export

Parameter Guide:
Gap is extra distance between circle sections past WallThickness
CapDiameter should probably be at least 0.25mm larger than diameter measured with calipers. With my printer 0.25 provided a snug fit, but this could be different on your printer.
JarDiameter should probably be at least 0.5-1mm larger than diameter measured with calipers. With my printer 0.5 provided a slightly loose fit, but this could be different on your printer.
TopFillet must be less than or equal to WallThickness/2
BottomFillet should probably be less than or equal to BottomThickness/2
