Philips Products Hygiene and Loading Station - Wallhanger

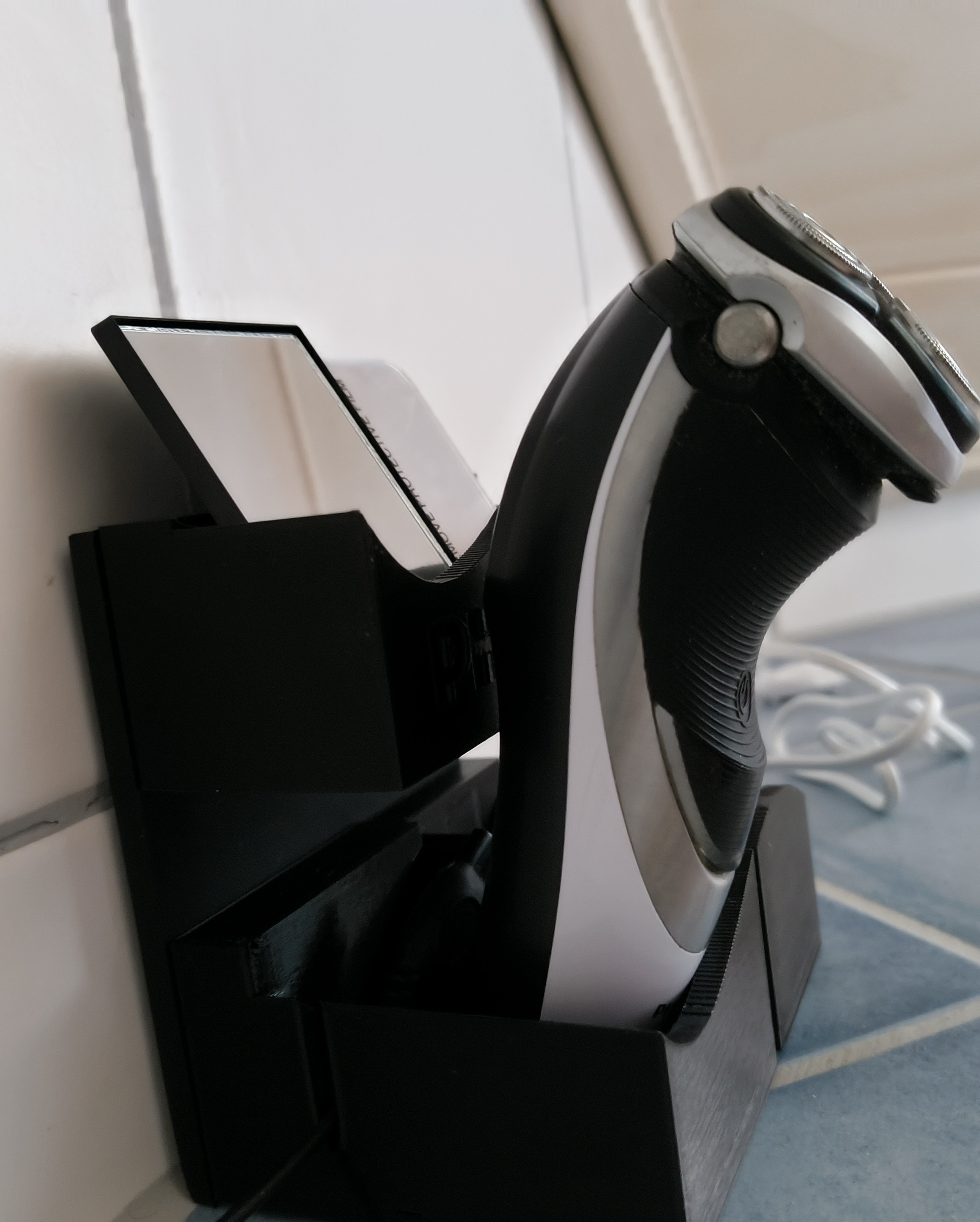

This modular loading solution is a great addition for your bathroom. The design is inspired by the Philips company logo. It was developed for the Philips power touch 5000 (PT 923) razor, the Philips OneBlade and the Philips Sonicare EasyClean (HX6530) electric toothbrush, but its dimensions should fit a lot of other different Philips products. The razor came with a stand. If your razor doesnt have a stand, it shold fit in anyway.

It is a good solution if the socket of your philips product is too far away to place it on the shelf or if you need a shorter way to your outlet in general. This model is also suitable for anyone who wants a stylish addition to their bathroom. The model offers space for everything you need for your personal hygiene. You can also use it as a toothbrush station for children who cannot reach the top shelf.  You can choose which part of the boxes you want to print.

The click system makes it easy to attach and remove the boxes. This is good for easy cleaning and the ability to make adjustments.

Various options are available for mounting on the wall. There are drill holes available, but mounting with sturdy double-sided adhesive tape is also possible. When mounting, the rails that do not extend to the end of the panel must be at the top.

The completely product station consists of four STL files.

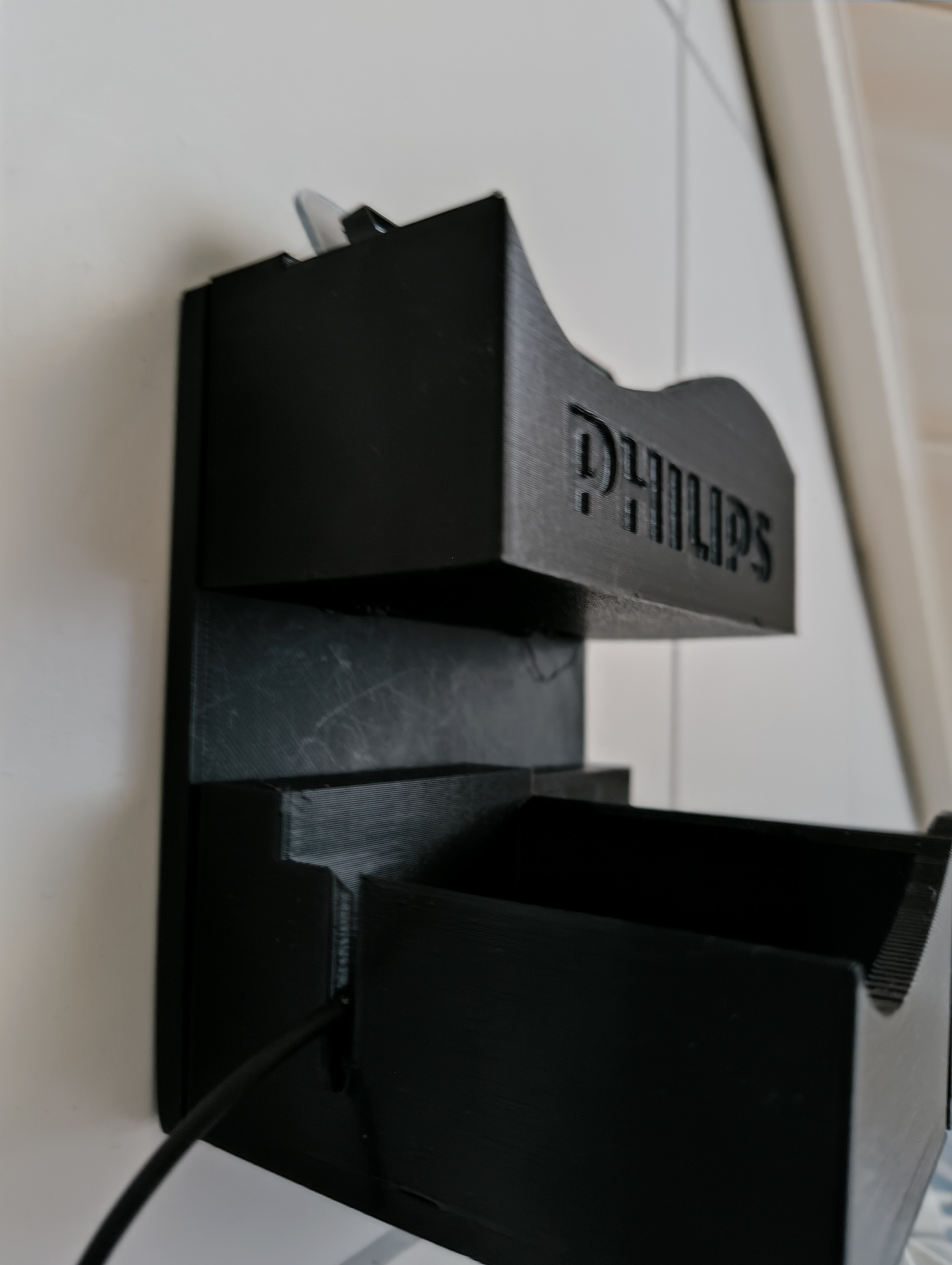

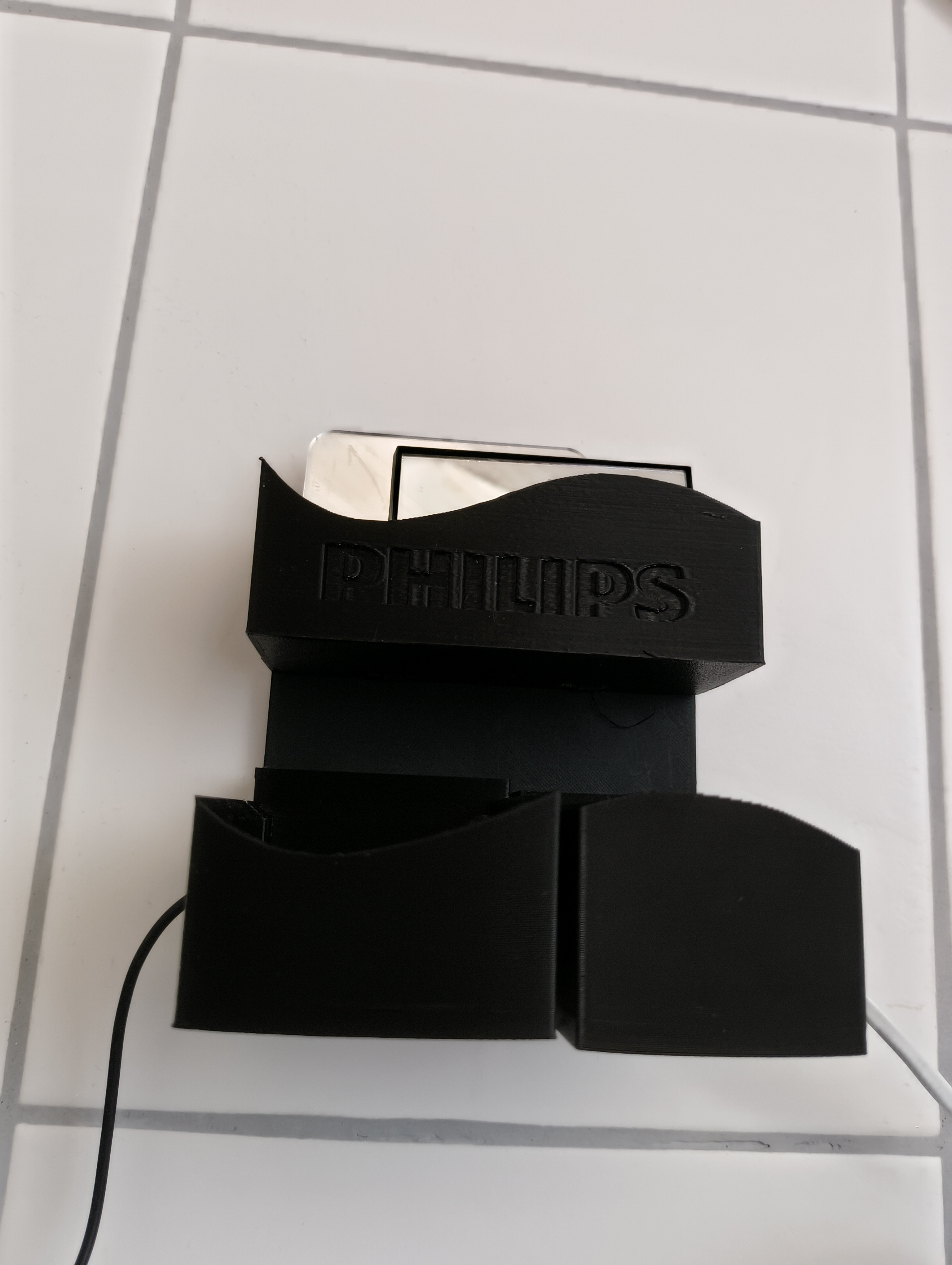

Holder_philips_station is the file for wall mounting and the basic holder. Since it can be a little tricky to fit the lower boxes in, there is also the Holder_philips_station_bottom and the Holder_philips_station_top available. This way you can choose which hanger you want and the distance between the two pieces.

Box_left is intended to be attached to the bottom left of the basic holder. An opening for the charging station cable is planned in it.

Box_right has two options available. You can print it with an outlet for a cable or without one. The one with an outlet is named Box_right_outlet. The box needs to be attached to the bottom right of the base bracket.

Mirror_holder is planned as a holder for a mirror, but can also be used for other small items for your personal hygiene (razor, more blades...).

The product was printed with PETG.

The holder was printed with 40% Gyroid infill and 5 walls.

The boxes were printed with 20% Gyroid infill and 3 walls, a bottom layer of 5 walls.

Everything was printed with a brim.
