Rod Wrapper Station
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Tools
- License
- Standard Digital File License
Rod wrapping station for working thread onto rod blanks to fix guides and add decorative patterns to your setup
BOM
Printed Parts
3x Washers (optional)
1x Spring (optional)
1x Carrier Part a
1x Carrier Part b
1x M7 bolt
2x M7 nuts
1x Spacer
1x M7 Spring (optional: use an actual spring here instead if preferred)
Assembly
- Lay out carrier A and B - use m7 bolt as a guide then secure both carriers down using screw holes

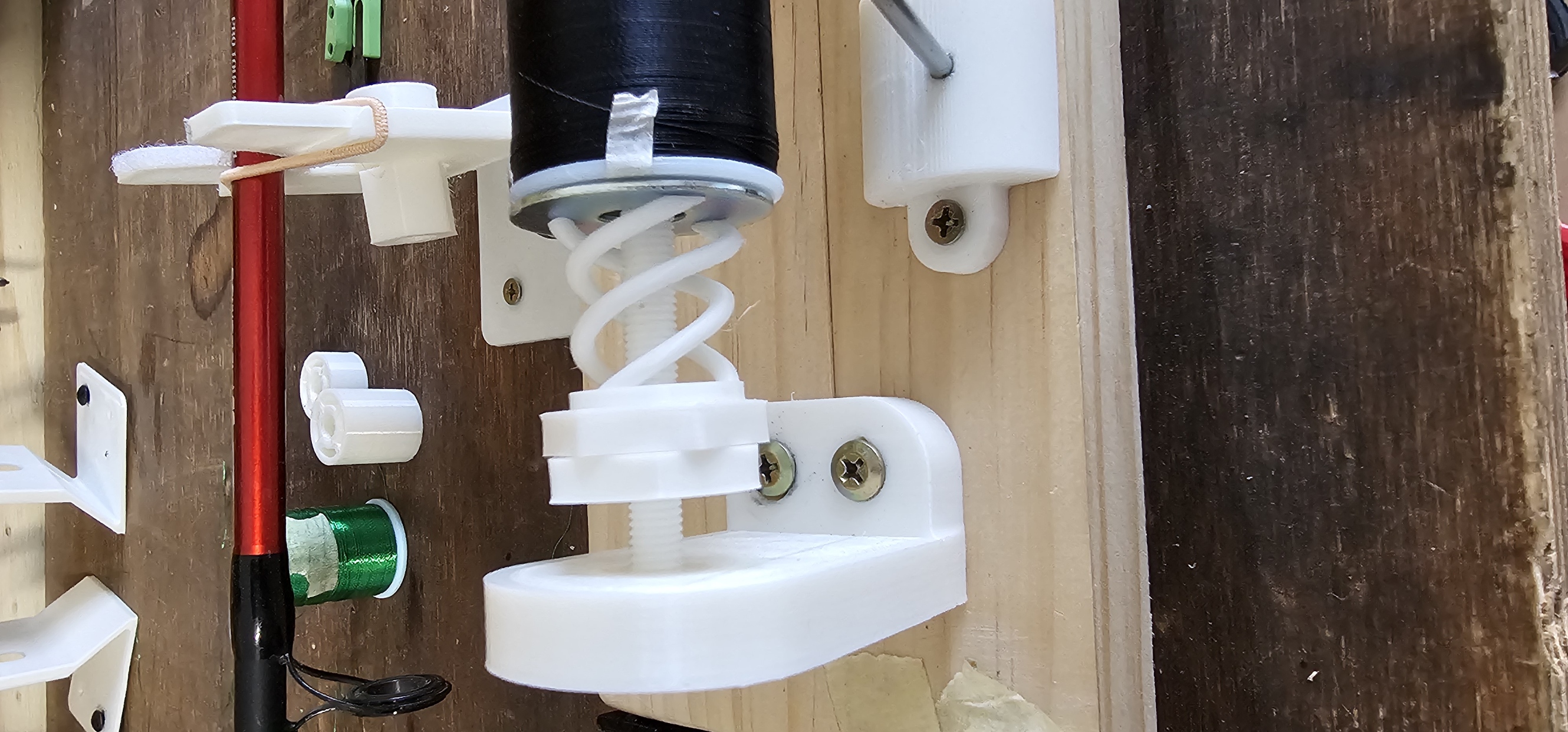

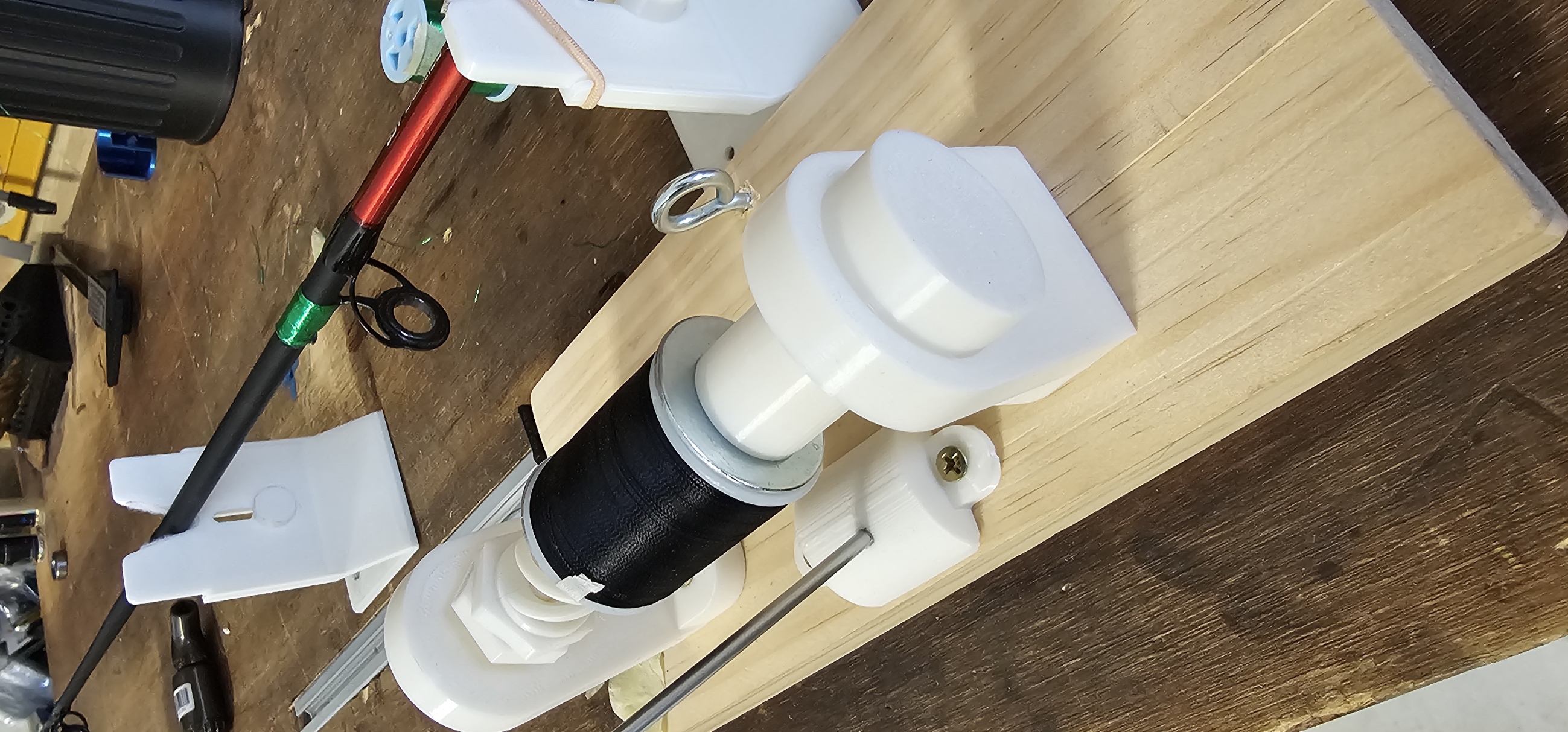

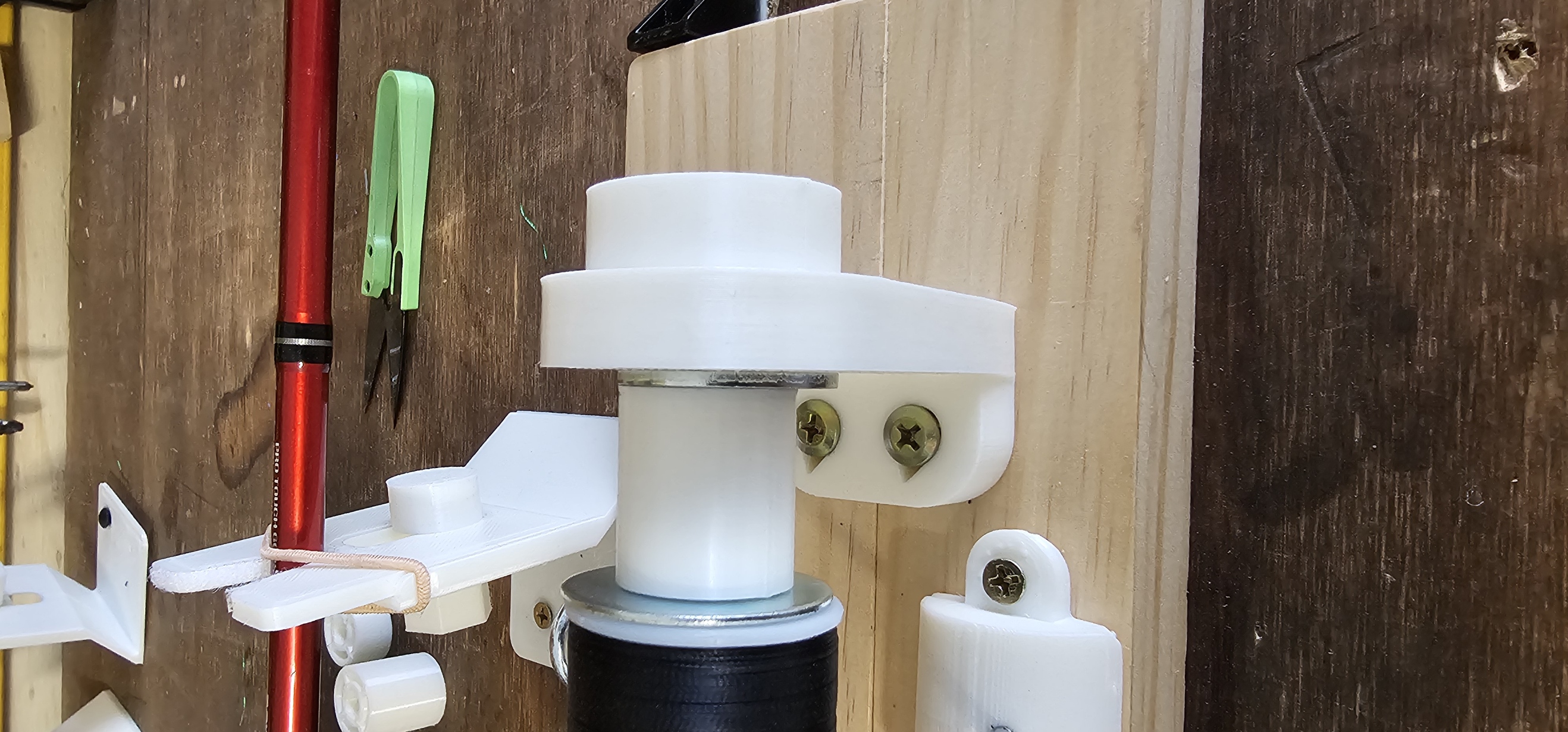

- Lay your assembly along the printed bolt. I chose to use 3 washers (nut>nut>spring>washer>Thread Spool>washer>spacer>washer)
- Finally thread M7 Bolt through bolt into part b to secure
- Adjust tension by winding m7 nuts. 2nd nut jams and secures the first one so it doesnt move

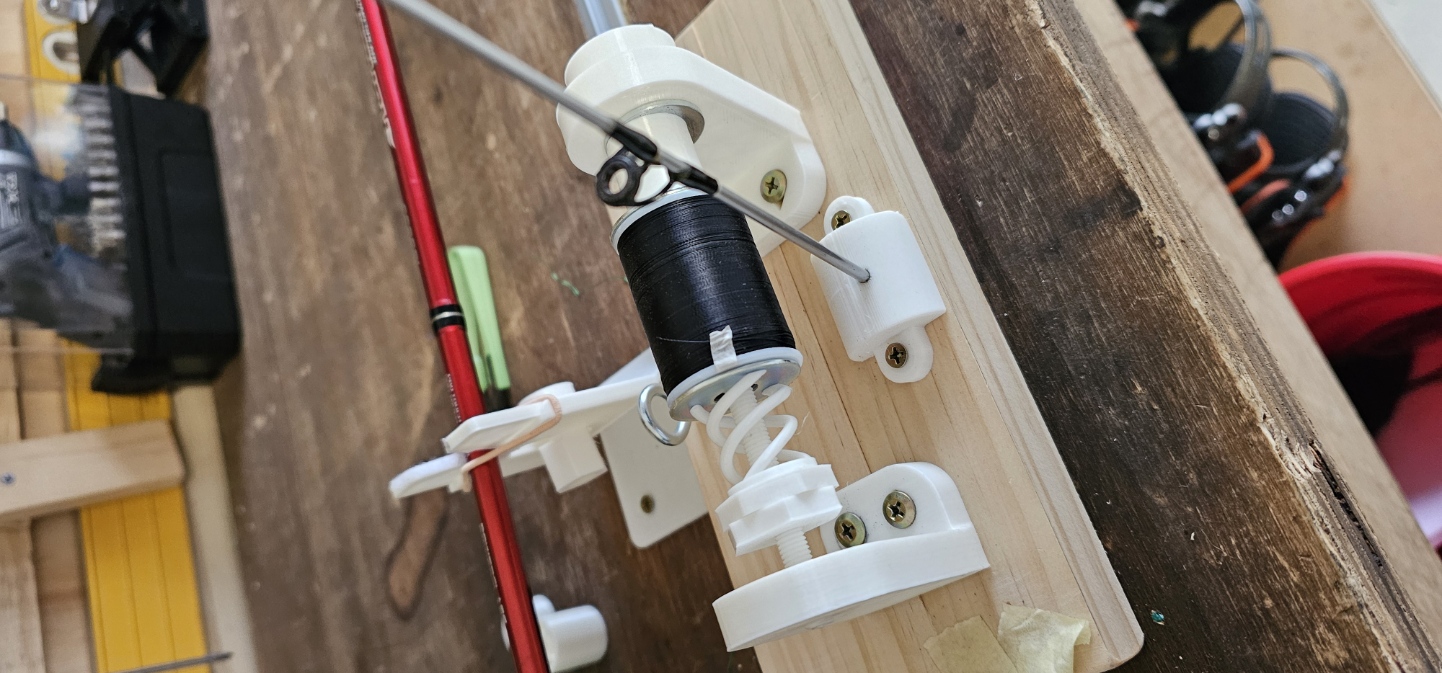

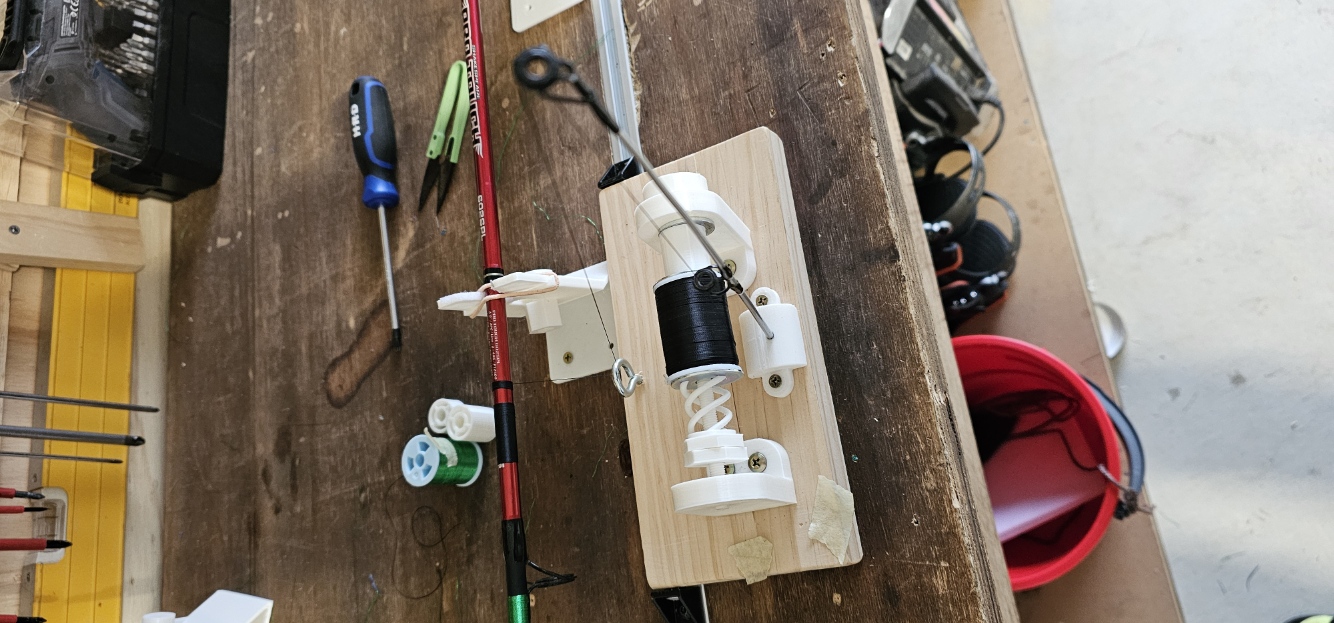

- Use the tensioner arm (base .stl included) if you like otherwise an eye bolt will work. I've added both in the image
Printing
Doesnt matter what nozzle as long as you can print 0.2 layer height to capture the threads on the m7 bolts and nuts sufficiently
