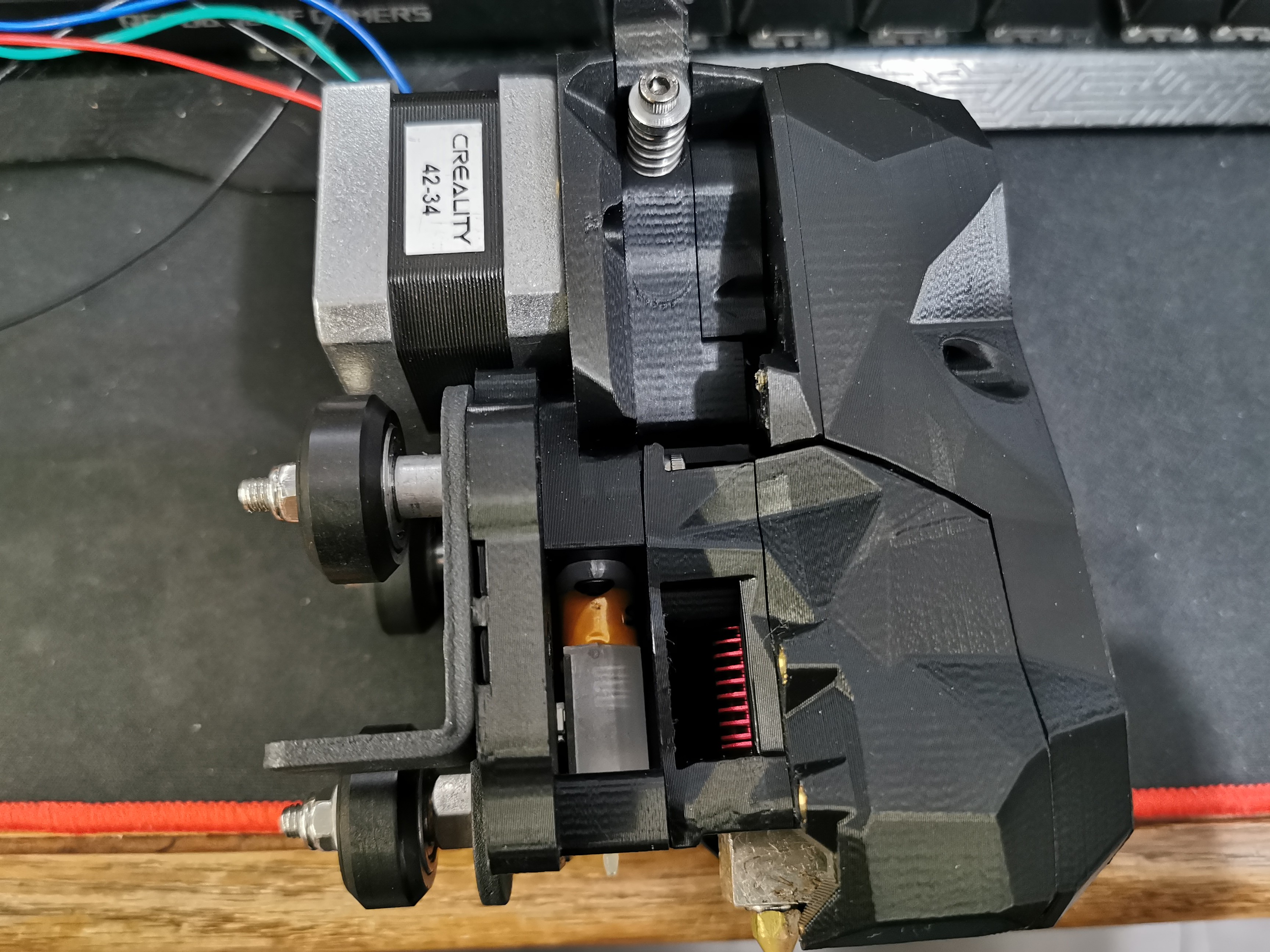

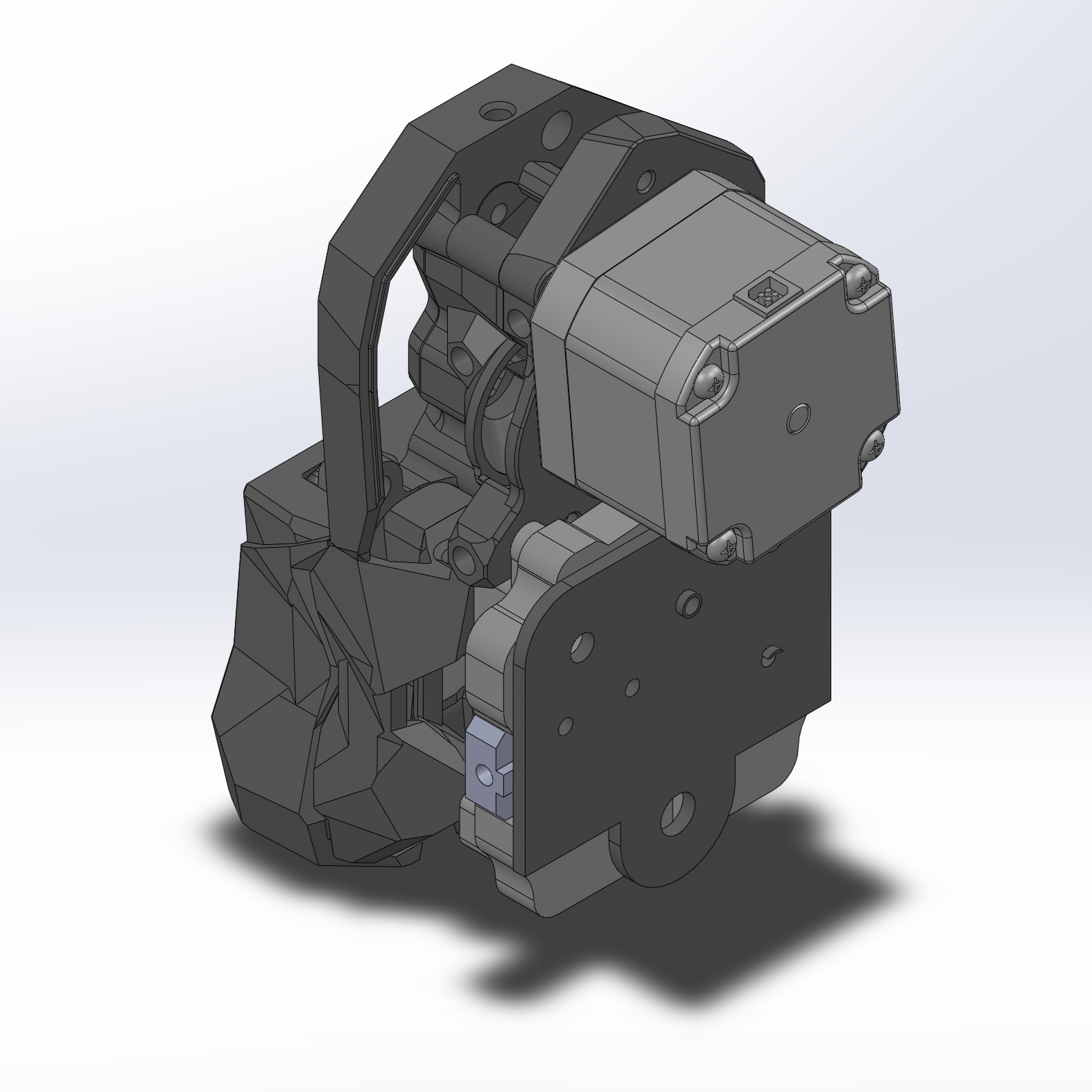

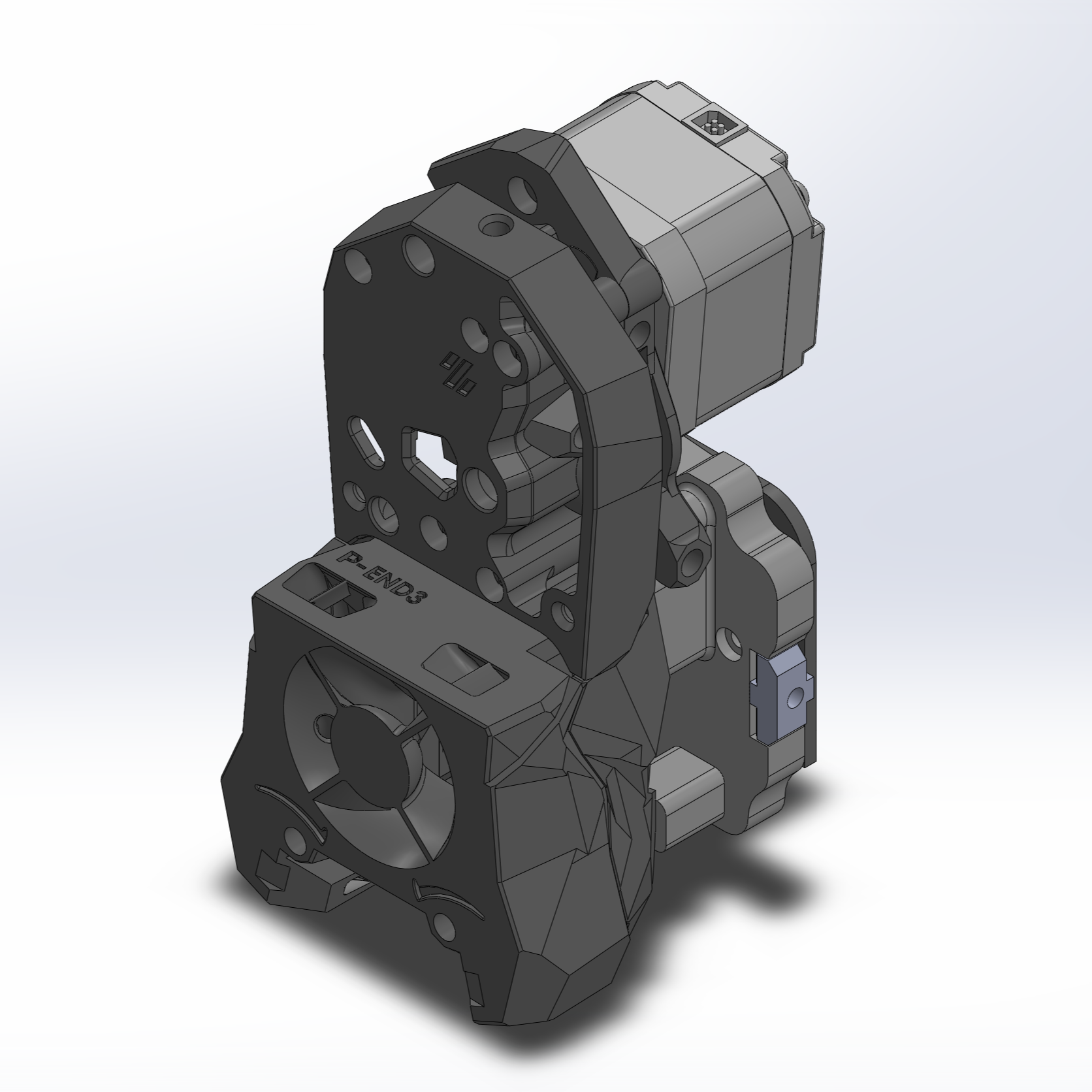

Duender Stealthburner Mount
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Creality Parts & Upgrades
- License
- GNU General Public License v2.0
The Duender SB Mount Plate should be printed with
ABS or ASA (I suppose most filaments should be fine)
40% infill
4 walls
0.2mm layer height
0.4mm extrusion width
5 top / bottom layer
(Aka Standard Voron Settings)
Requires 9x Voron standard heatset inserts
"Duender SB Mount Plate v4 NEMA17" Requires 10x Voron standard heatset inserts
Also removes the requirement of cutting small slots for belt routing in a duender build
https://www.printables.com/model/1174545-duender-2x-creality-ender-3-corexy-convertion
Designed to be compatible with the “Voron stealthburner Clockwork2 nema17 with cable cover”
https://www.printables.com/model/642252-voron-stealthburner-clockwork2-nema17-with-cable-c
The difference between the NEMA 17 and NEMA 14 versions is the removal of the sloped clearance cut on the back that allows the NEMA 17 motor gear backlash to be set and the routing of the BL touch cable.
The NEMA 17 version is compatible with NEMA 14 motored stealthburners.
"Duender SB Mount Plate v4 NEMA17" uses 2x "Duender SB Mount Belt Clamp v2" to clamp the belts instead of clamping the belt between the Mounting Plate and the E Plate
