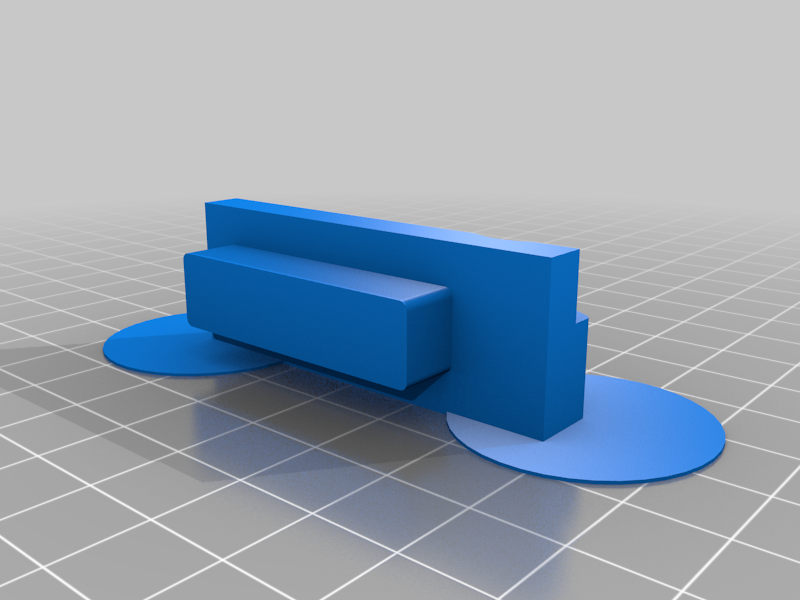

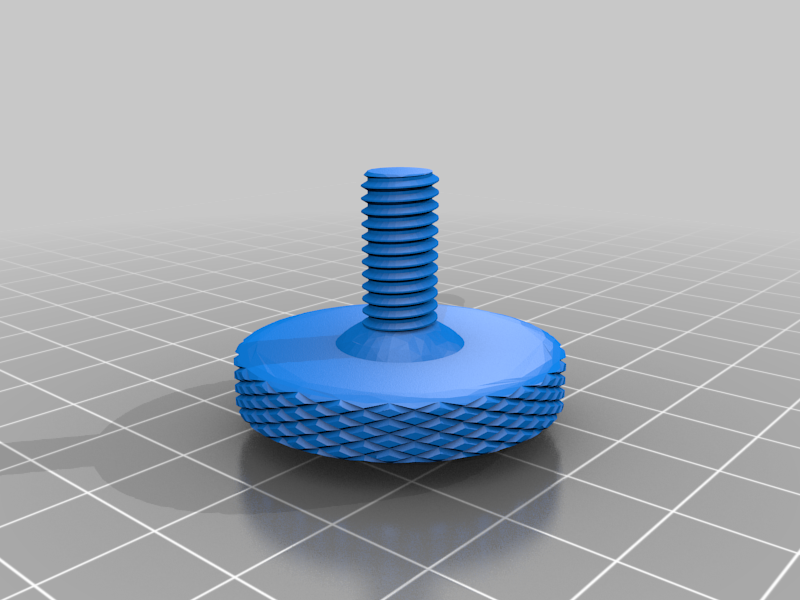

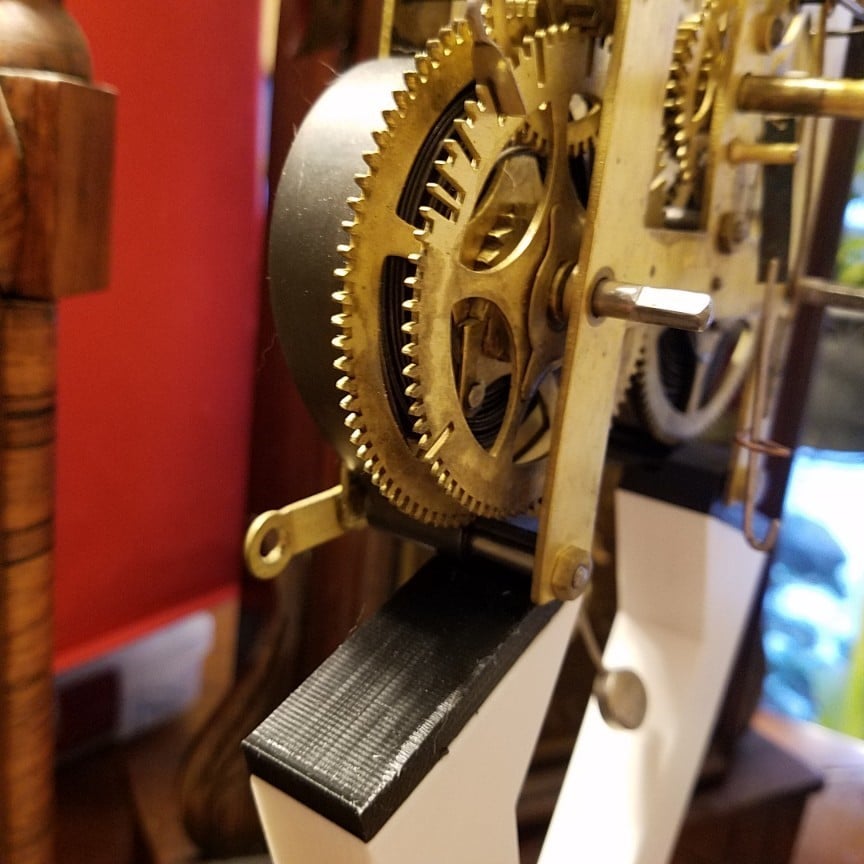

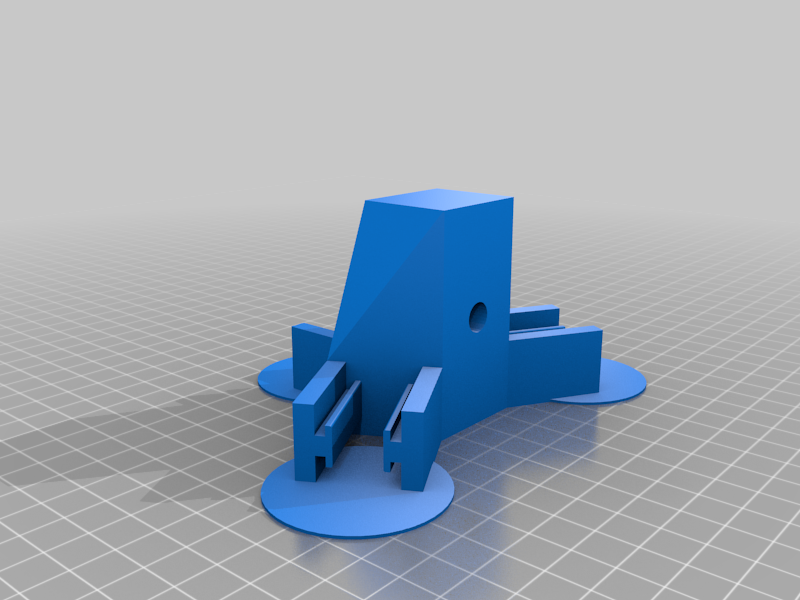

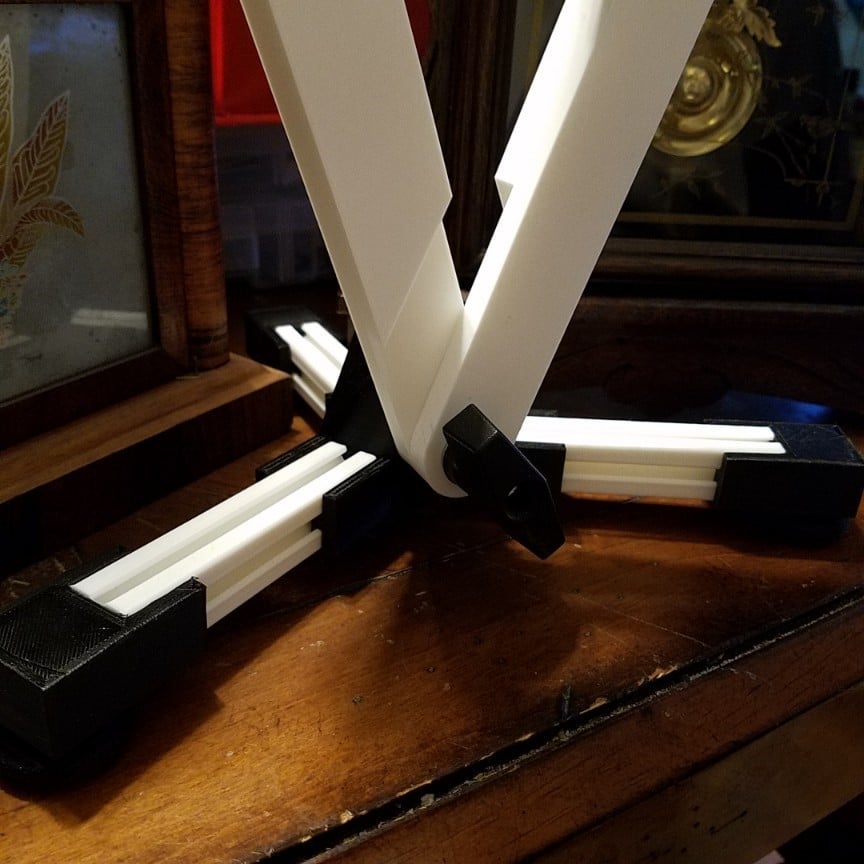

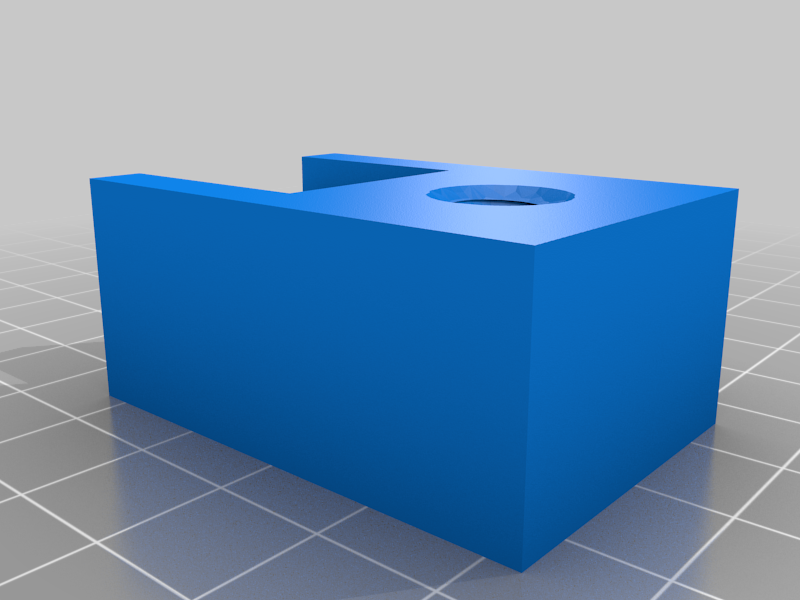

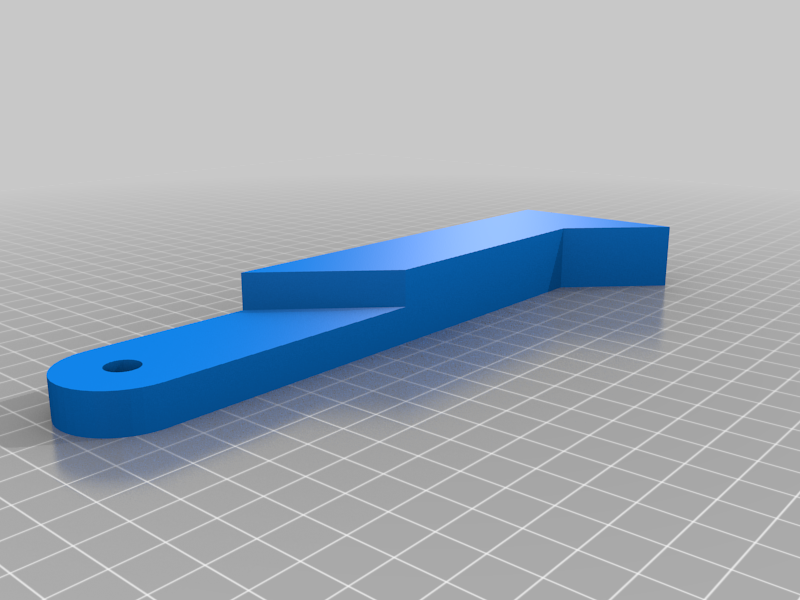

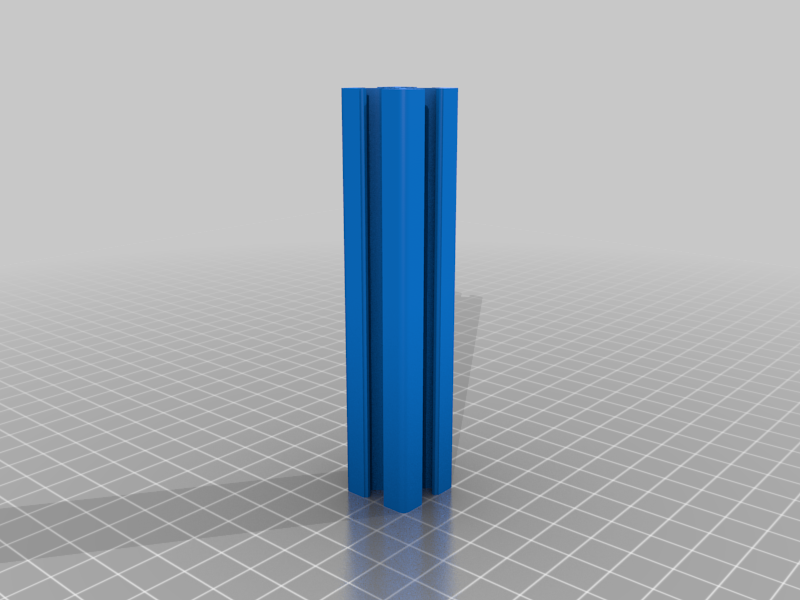

This is my take on a 3D printed Clock movement repair / test stand. The model was a wooden test stand design, see pics. The base tripod base is 2020 profile with end caps that have levelers. The long arms are printed exactly the same and assembled as shown with a bolt and knob. The arm tops are mirror images and they slot into the tops of the long arms, allowing you to custom design the tops for a specific type of movement. Overall the stand holds the movement securely, but I have found that the 2020 base is a little wiggly.
Print Settings
Printer Brand:
Creality
Printer:
Ender 3 Pro
Rafts:
No
Supports:
Yes
Resolution:
.2
Infill:
35%
Notes:
I added lily pads to most of the PETG parts because I was having warping issues on sharp corners. All parts are printed with 1.6mm walls (4 layers) and 35% infill (cubic).
