Displaycase for models
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Miniature Gaming Accessories
- License
- Creative Commons — Attribution

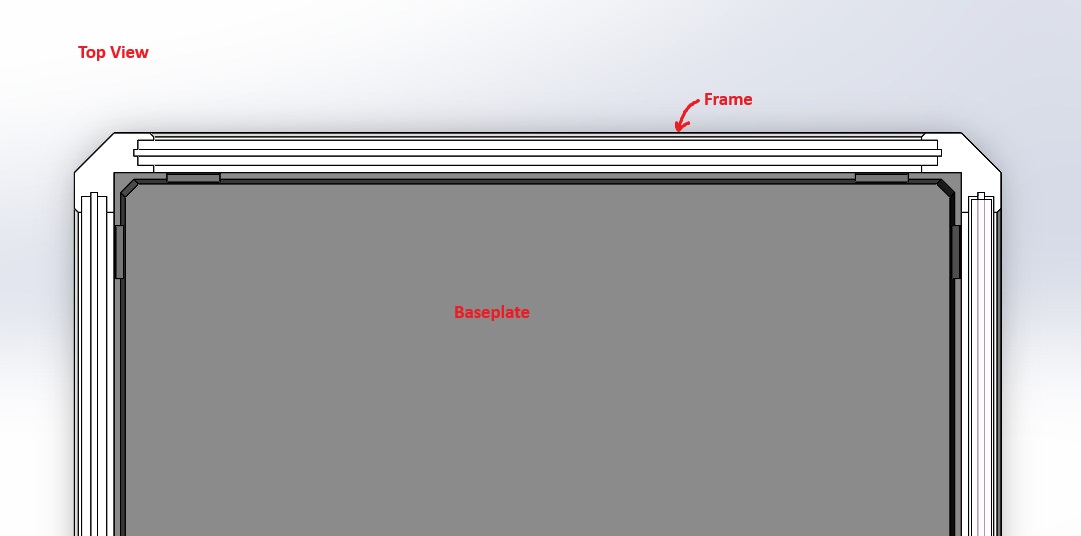

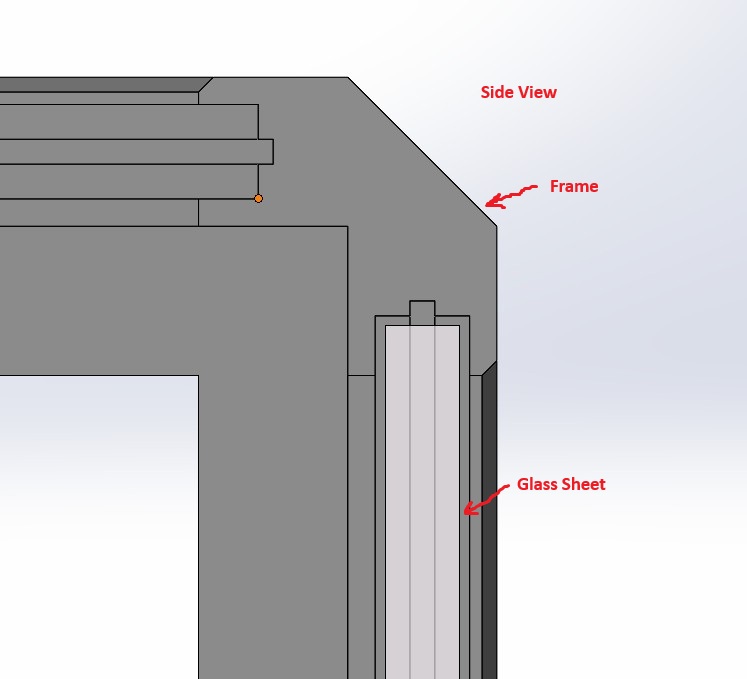

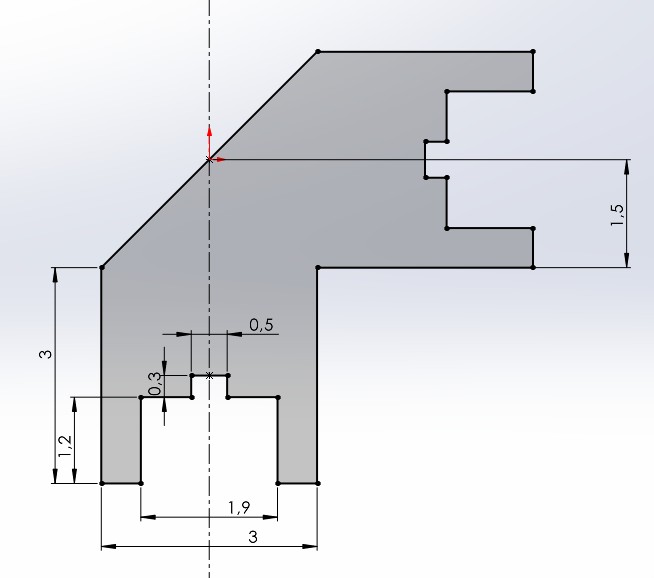

I hate dusting figurines, so I made this display case. The frame is made from a U-profile for 1.5 mm thick acrylic glass panels. There is also a small groove in the frame to prevent the adhesive from seeping out of the sides. I made a plug connection at each end of the frame. Hopefully it will work; if not, it can be easily cut off.

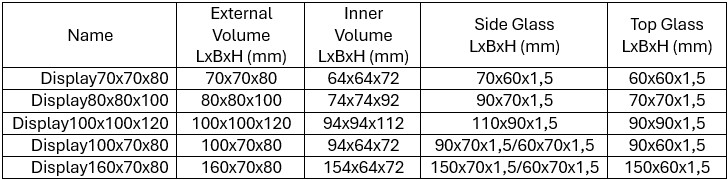

I made the following sizes:
| Name | External Volume LxBxH (mm) | Inner Volume LxBxH (mm) | Side Glass LxBxH (mm) | Top Glass LxBxH (mm) |
| Display70x70x80 | 70x70x80 | 64x64x72 | 70x60x1,5 | 60x60x1,5 |
| Display80x80x100 | 80x80x100 | 74x74x92 | 90x70x1,5 | 70x70x1,5 |
| Display100x100x120 | 100x100x120 | 94x94x112 | 110x90x1,5 | 90x90x1,5 |
| Display100x70x80 | 100x70x80 | 94x64x72 | 90x70x1,5/60x70x1,5 | 90x60x1,5 |
| Display160x70x80 | 160x70x80 | 154x64x72 | 150x70x1,5/60x70x1,5 | 150x60x1,5 |
