Dual Z-Axis Upgrade for Anycubic Kobra 2

Dual Z-Axis Upgrade for Anycubic Kobra 2

The dual Z-axis upgrade for the Anycubic Kobra 2 is a modification that adds a second lead screw and stepper motor to the gantry, providing increased stability and precision. This modification addresses a common issue with single Z-axis printers where the gantry can sag or become misaligned, especially with heavy direct-drive extruders or during fast movements. By distributing the load across two lead screws, the upgrade ensures the X-axis remains level throughout the print, leading to improved layer consistency and reduced artifacts like "Z-wobble" or "ringing."

Key Components

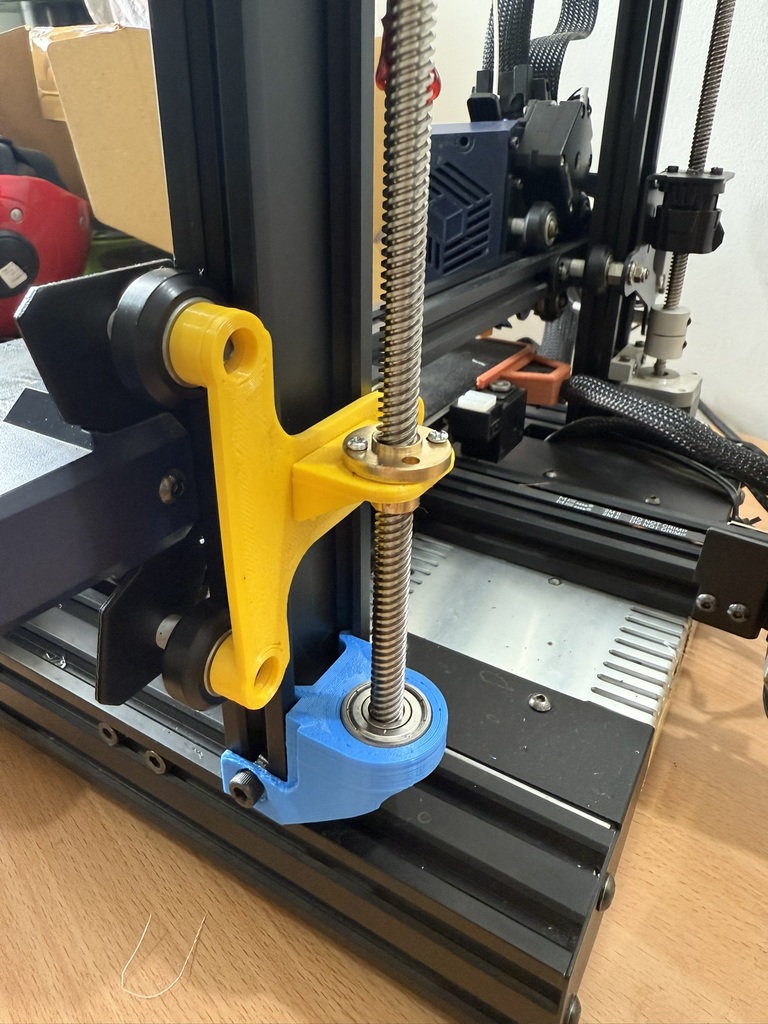

•             Second lead screw (400 mm length) and nut  1 Set: To lift the other side of the gantry.

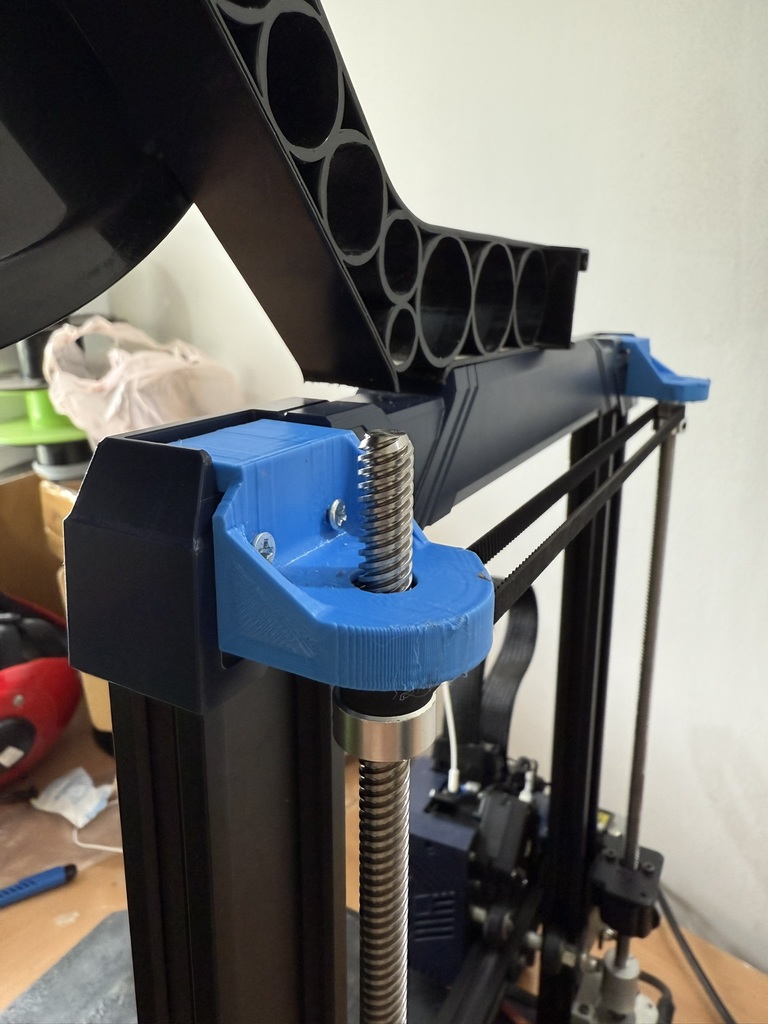

•             3D printed parts: Brackets and mounts to secure lead screw to the frame and gantry.

•             Timing belt (610 mm loop length) and pulleys (8mm bore 20 teeth): belt to synchronize the movement of both lead screws, ensuring perfect alignment.

•             Bearing 608Z 3 Nos

Benefits of the Upgrade

The dual Z-axis upgrade significantly enhances the Kobra 2's performance. The improved stability minimizes vibrations and gantry sag, resulting in more accurate and reliable prints. This is particularly beneficial for high-speed printing and for larger or taller models. The upgrade also reduces the need for frequent manual bed levelling, as the gantry's stability helps maintain the distance between the nozzle and the build plate more consistently. Overall, it's a worthwhile modification for anyone looking to push the limits of their Anycubic Kobra 2 and achieve higher quality prints

https://youtu.be/6lhLXp0ZXuY
