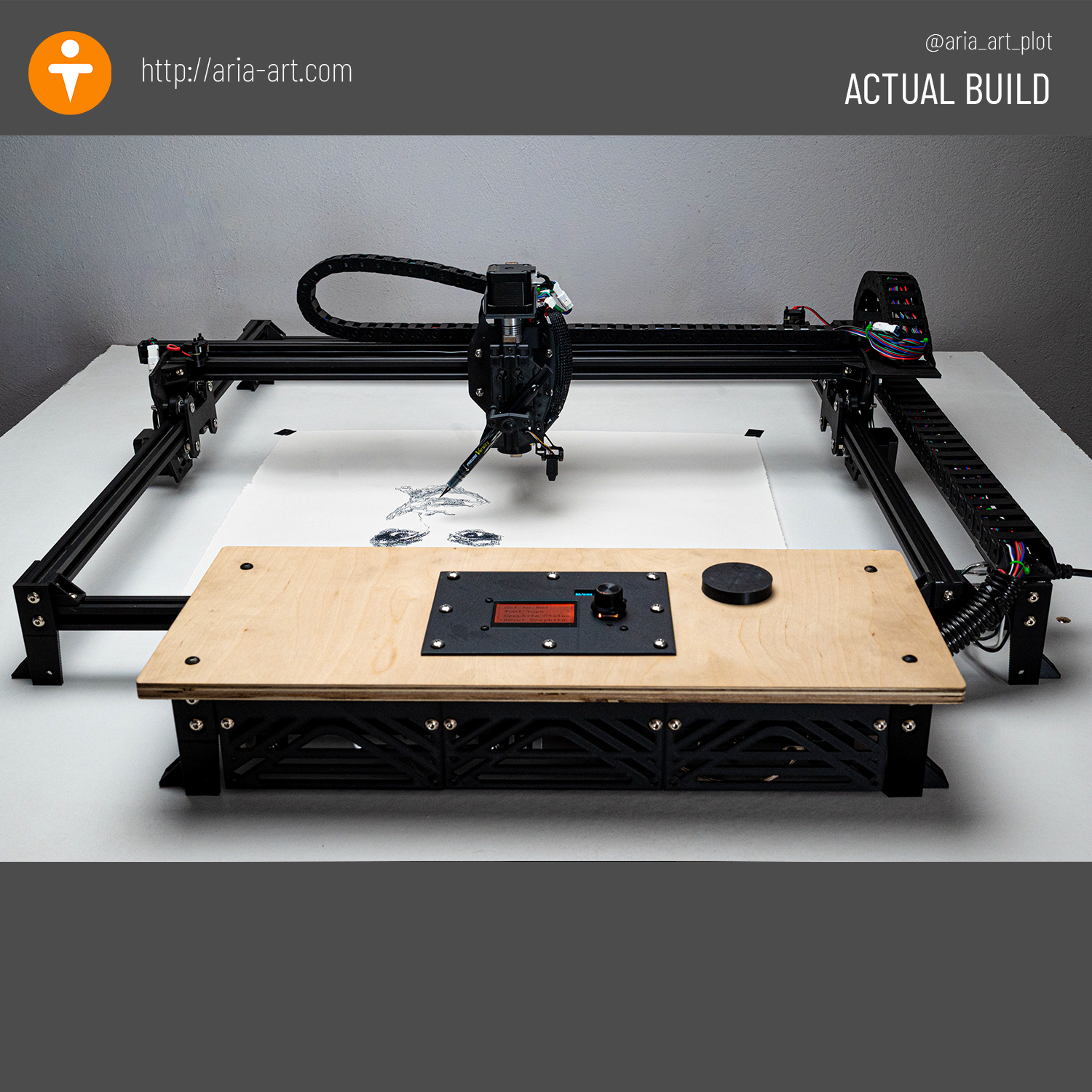

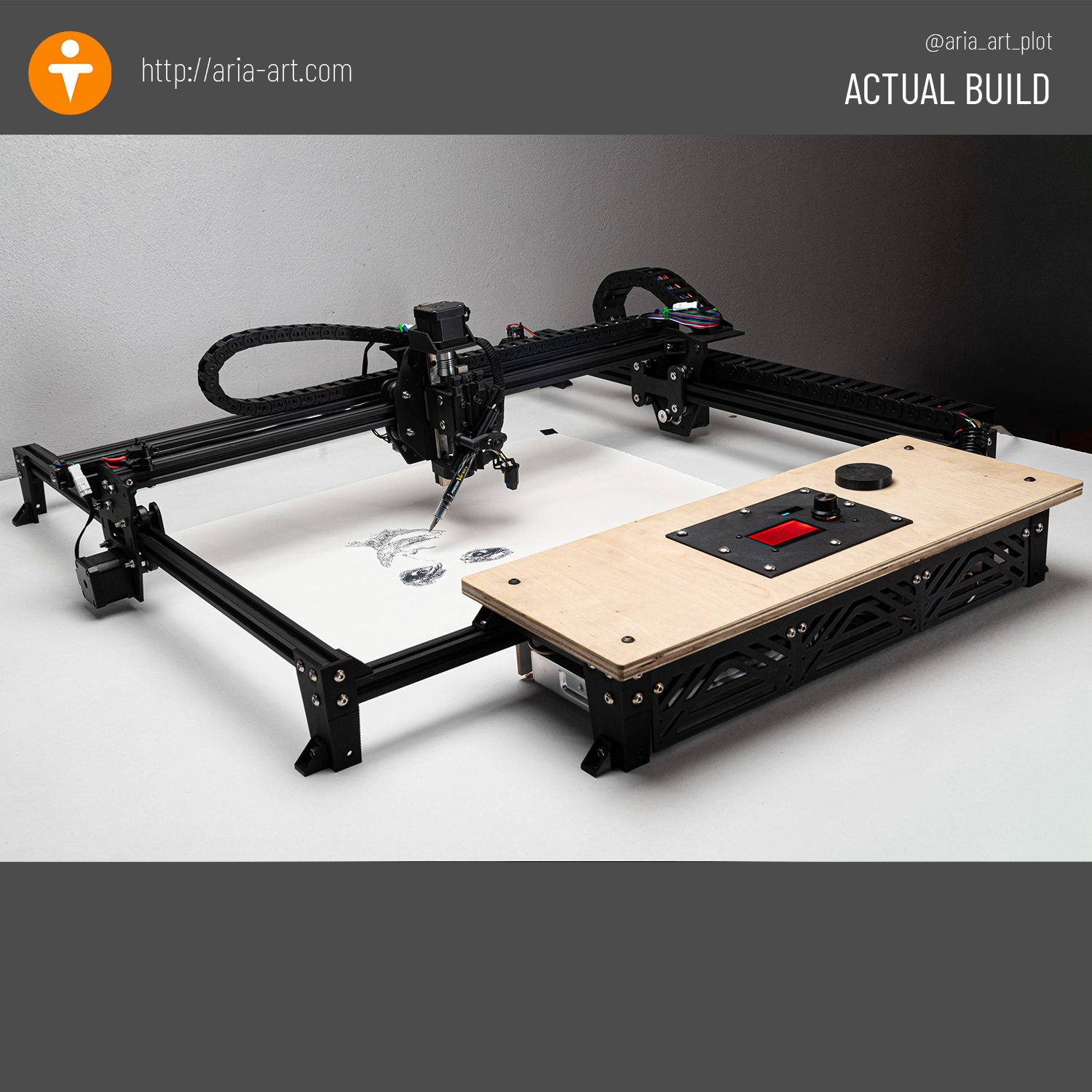

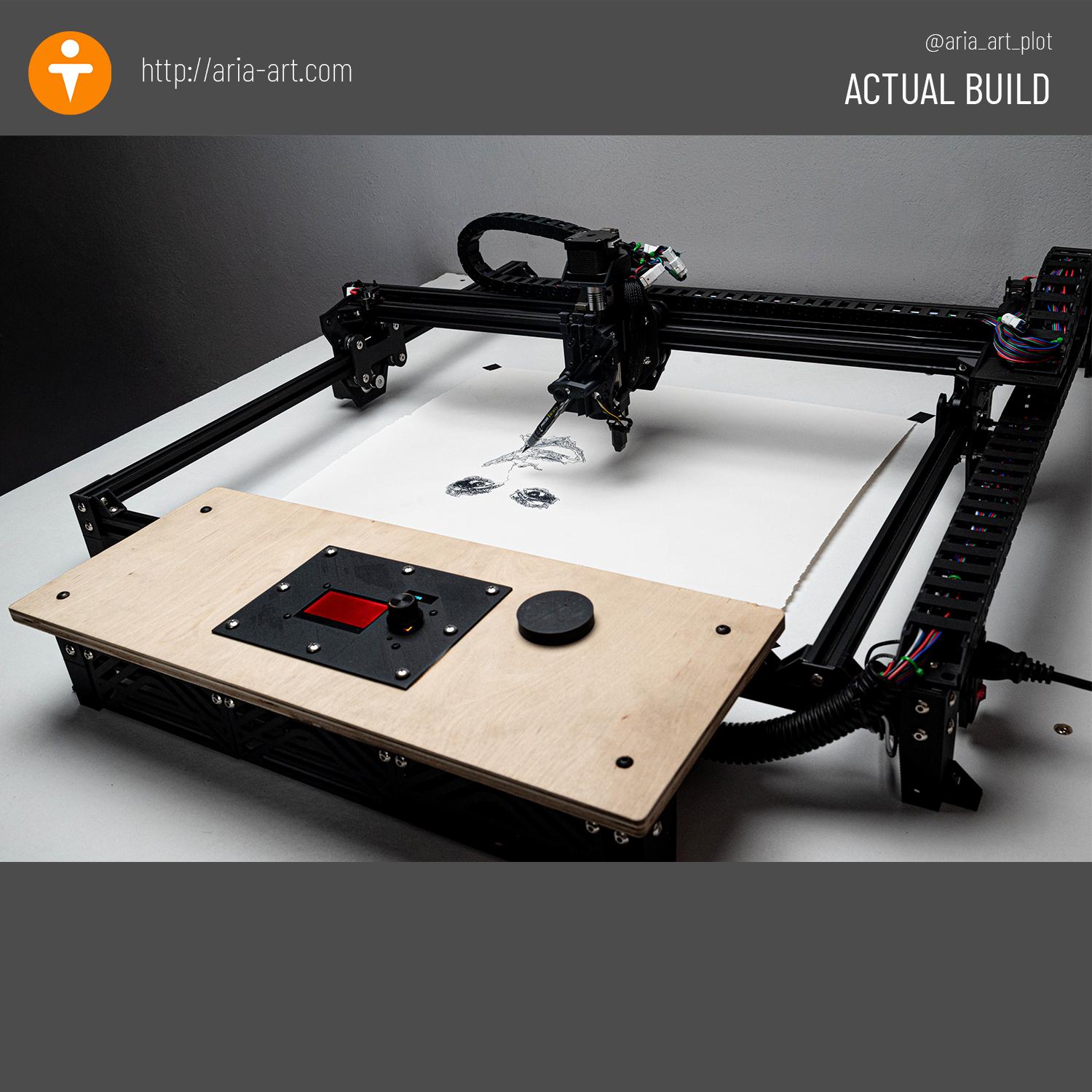

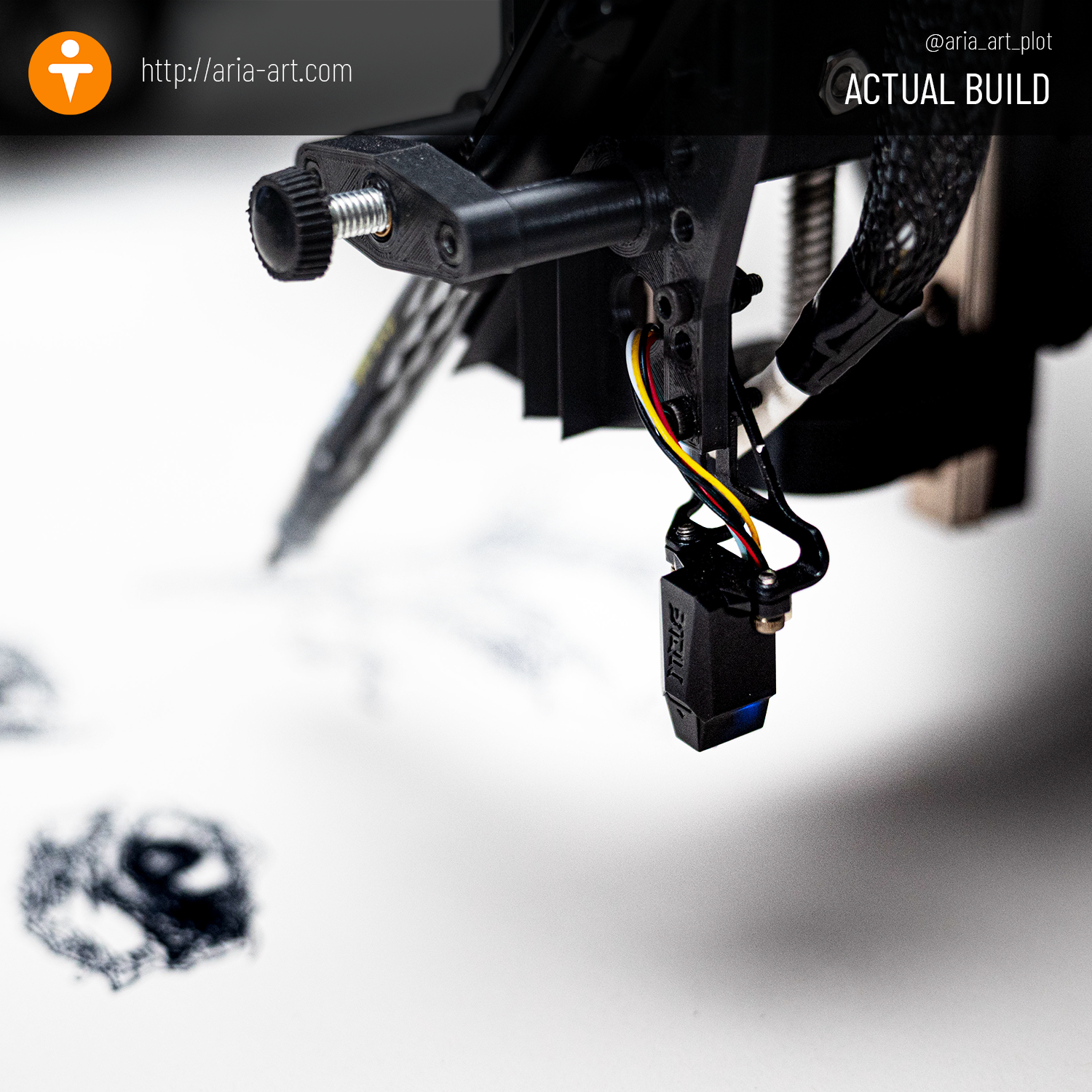

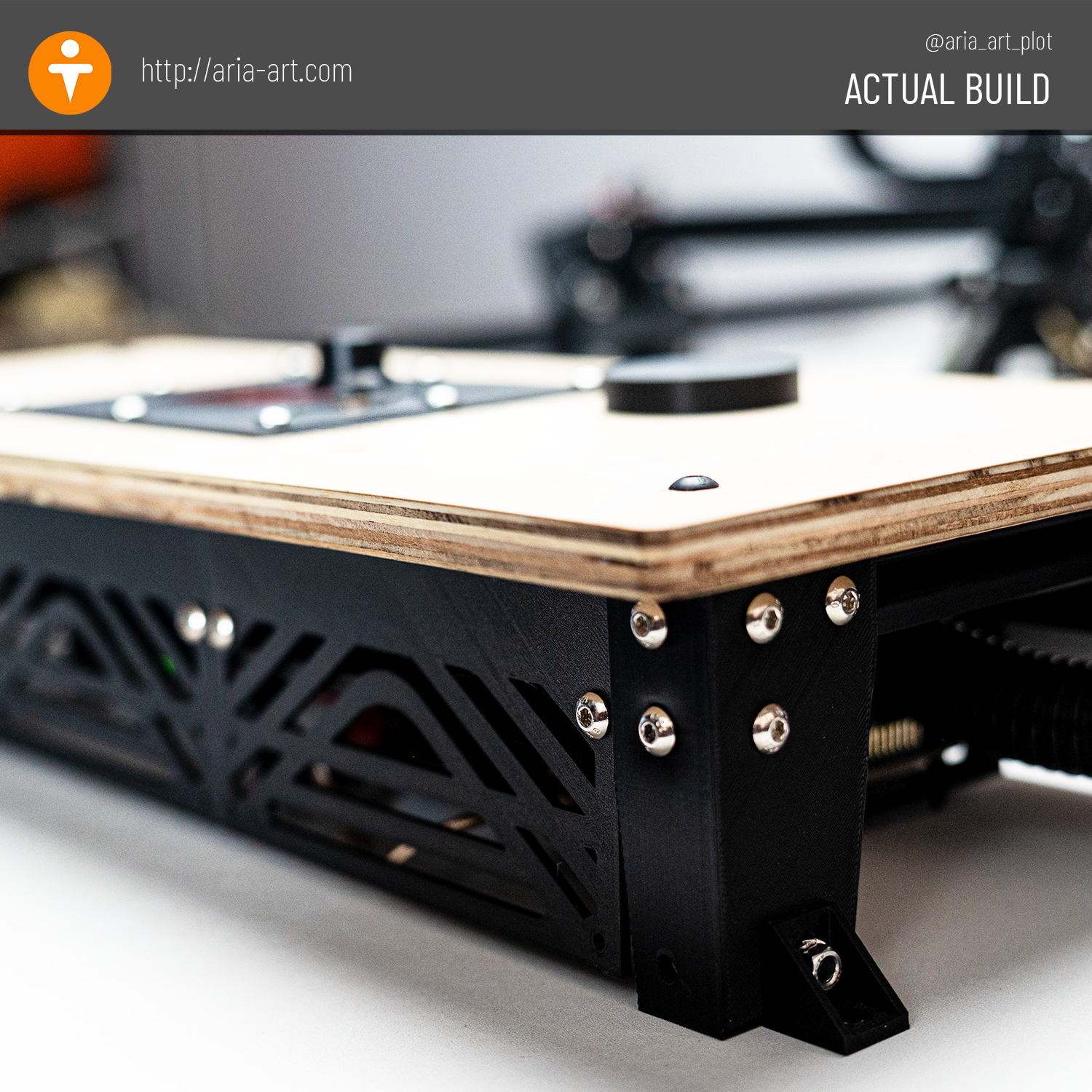

Aria Art Plotter - NOW Fully Open Source CNC Drawing Machine
Build a professional-grade art plotter for ~$600 in parts
The Aria Art Plotter is a fully open-source CNC drawing machine with a 20 x 20 inch, (500mm × 500mm) drawing area and sub-millimeter precision. After a year of development and months of reliable studio use, I'm releasing everything—all design files, firmware, documentation, and assembly guides—completely free to the maker community.
Why I Built This (And Why It's Open Source)
Large-format art plotters cost $$+. I wanted one but couldn't justify the price, so I spent twelve months figuring out what works: reliable canvas compensation, whisper-quiet operation, and production-ready performance. Now you can build one without spending a year learning what I already learned.
By releasing Aria as open source, artists and makers everywhere can create large-format physical artwork without breaking the bank. No paywalls. No gatekeeping. Just great tools for making art.
What You Get (100% Free)
- Complete STL files for all 3D printed parts
- DXF files for laser-cut frame components
- 180-page assembly guide with detailed instructions
- 14 step-by-step build videos on YouTube
- Full bill of materials with component sourcing
- Klipper firmware configurations ready to use
- Active community support on GitHub
Technical Highlights
- 20x20in ,500mm × 500mm drawing area expandable ready.
- Sub-millimeter precision
- MGN12 linear rails for smooth motion
- BIGTREETECH Manta M5P + CB1 electronics
- TMC2209 silent stepper drivers
- Canvas compensation system
- Klipper firmware integration
Resources
- Website: https://aria-art.com
- GitHub: https://github.com/gustavomayoral/aria_art_plot
- YouTube: @Aria_Art_Plot (assembly videos & tutorials)
- Support Development: https://ko-fi.com/ariaartplotter
License
This project uses multi-licensing to ensure everything stays open:
- Software: GPL-3.0
- Hardware: CERN-OHL-S-2.0
- Documentation: CC BY-SA 4.0
Support Version 2.0
If you find this project valuable, consider supporting development of Version 2.0 (larger format, better controls, and many more) through Ko-fi. All core files will always remain free.
Build yours. Share your art. Improve the design. That's the point.
