BrewPi Sensor Breakout Box
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Kitchen
- License
- Creative Commons — Attribution
Overview

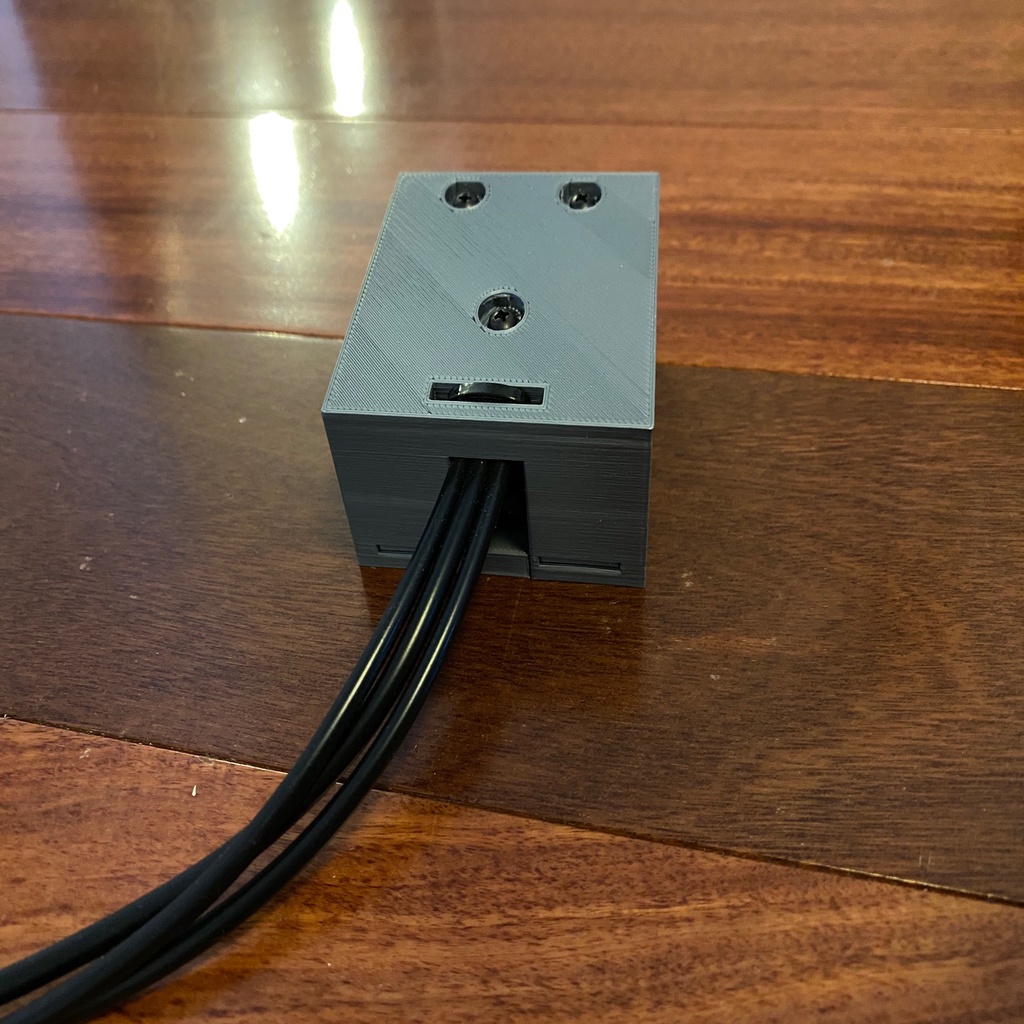

This is a printable box designed to hold one of the sensor breakout boards I designed for my ESP ports of the BrewPi firmware. This box contains the sensor breakout PCB (with attached sensors) allowing you to place the sensors closer to your fermentor (including inside your fermentation chamber if needed).
This box is intended to be used with one of two PCBs:
RJ-45 Sensor Breakout Board: https://PCBs.io/share/zOEWW
RJ-11 Sensor Breakout Board: https://PCBs.io/share/r16lD
Bill of Materials
- 1x PCB (links above)
- 5x M3 x 12 Pan Thread Machine Screws
- 3x M3 3mm Hex Nut
- 2x M3 Square Nut
- 1x Small Zip Tie
Assembly
- Solder all components onto the PCB
- Inser the PCB into the case with the RJ-45/RJ-11 jack sticking out the front, and feed the cables through the back

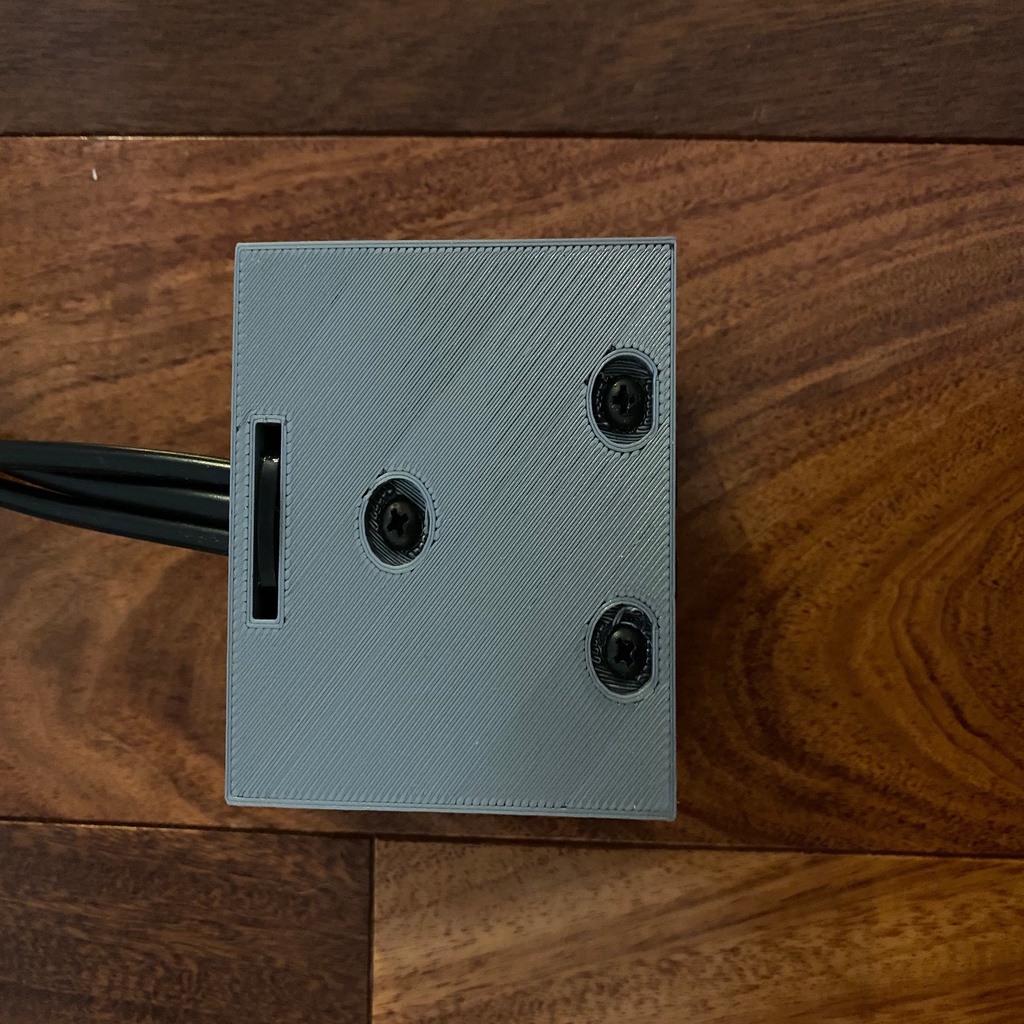

- Insert 3 of the screws through the holes in the back of the case, and thread them through the PCB
- Screw the 3x hex nuts onto the screws to secure the PCB to the case

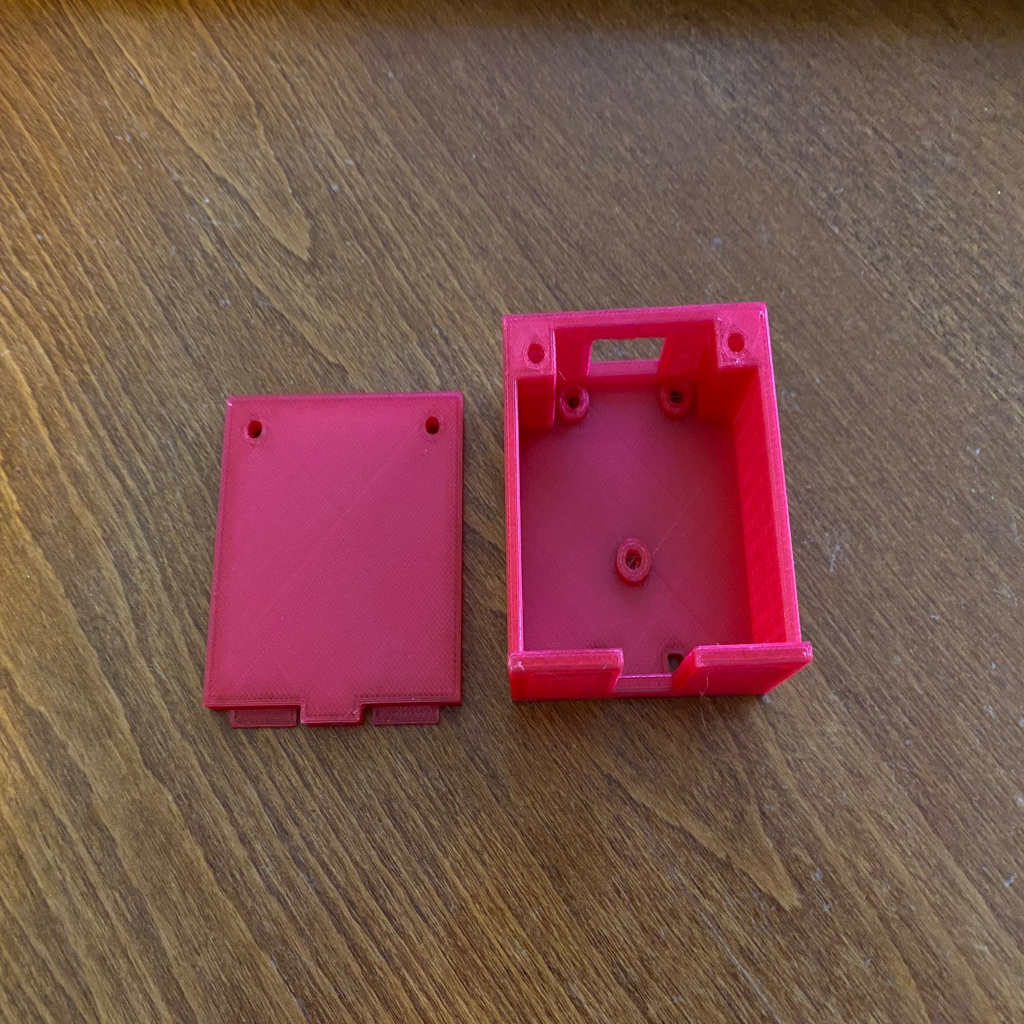

- Attach the lid to the top of the case by inserting the tabs into the holes on the case body
- Insert the 2x square nuts into the holes on the front of the case body

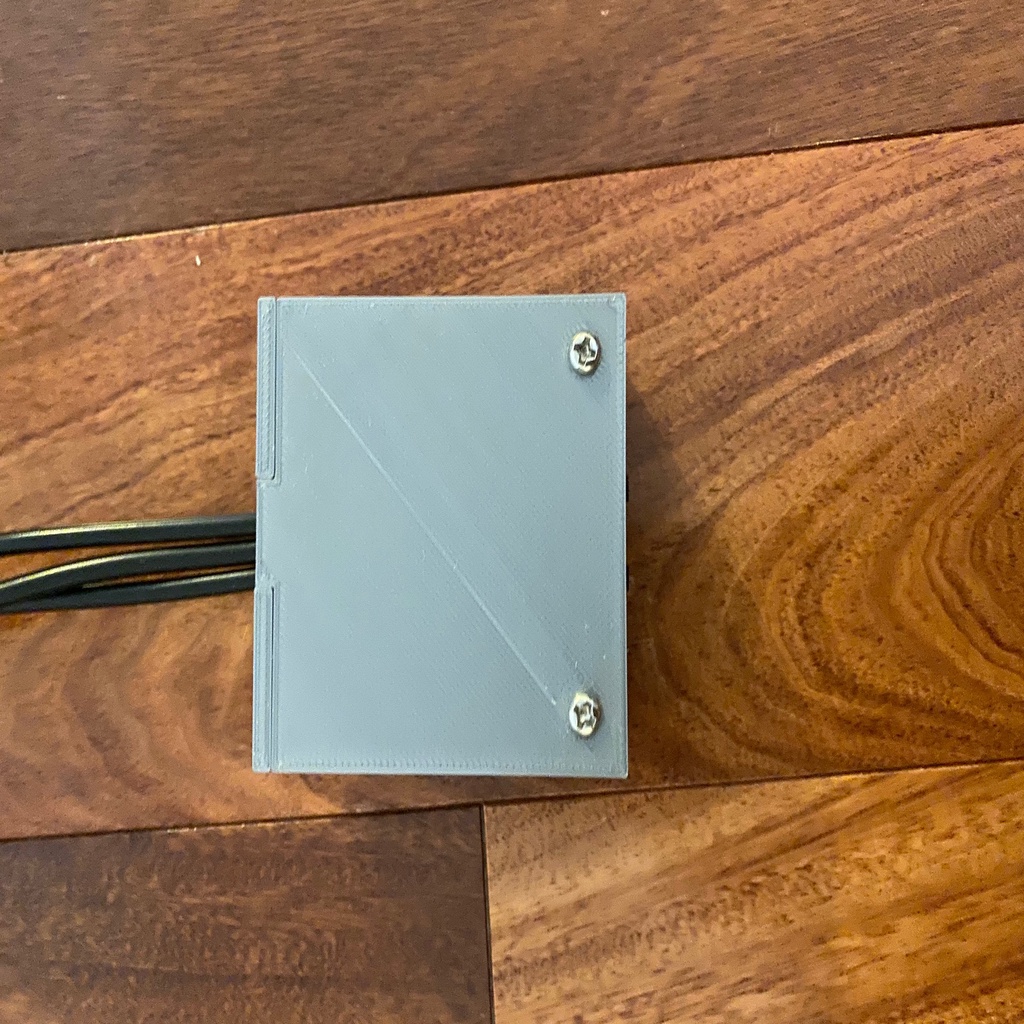

- Screw the remaining 2 screws into the holes on the case top, threading them into the square nuts previously inserted in the case body. Do not overtighten!
