Rocket Ejection Charge Well
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- RC & Robotics
- License
- Creative Commons — Attribution — Share Alike

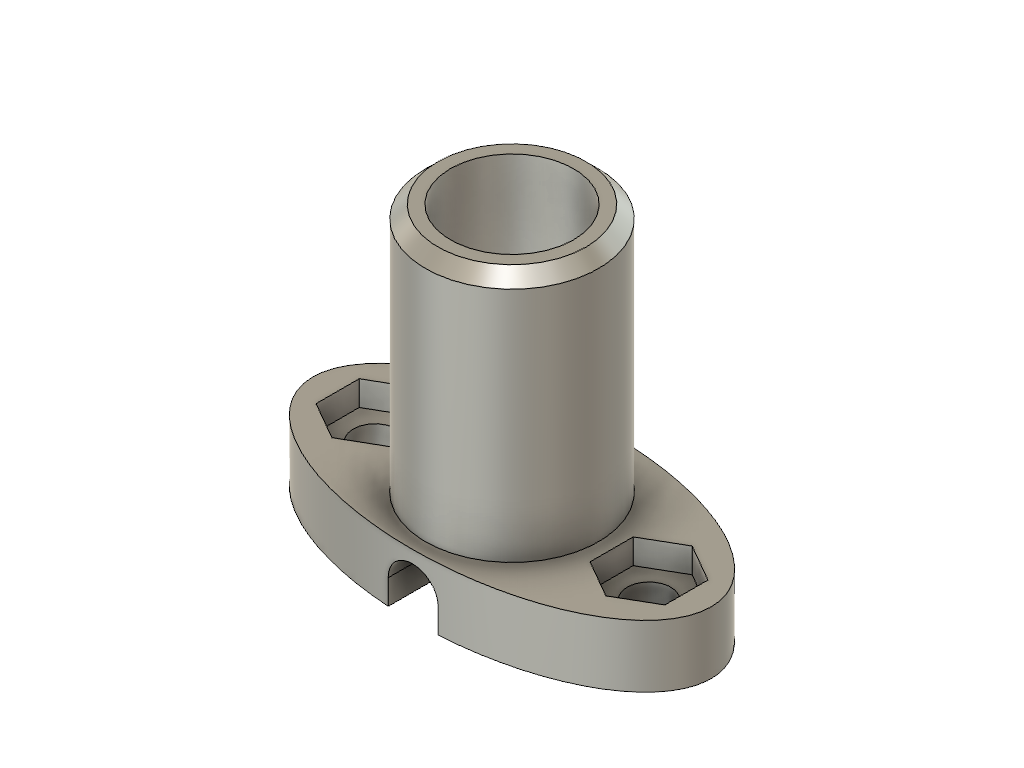

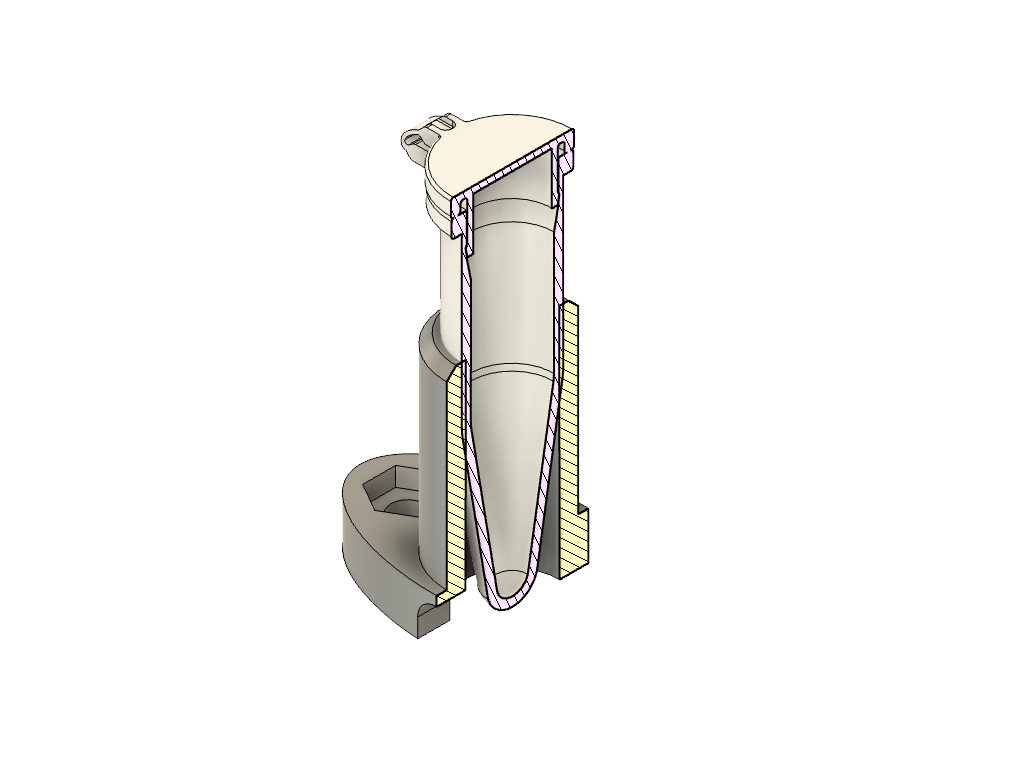

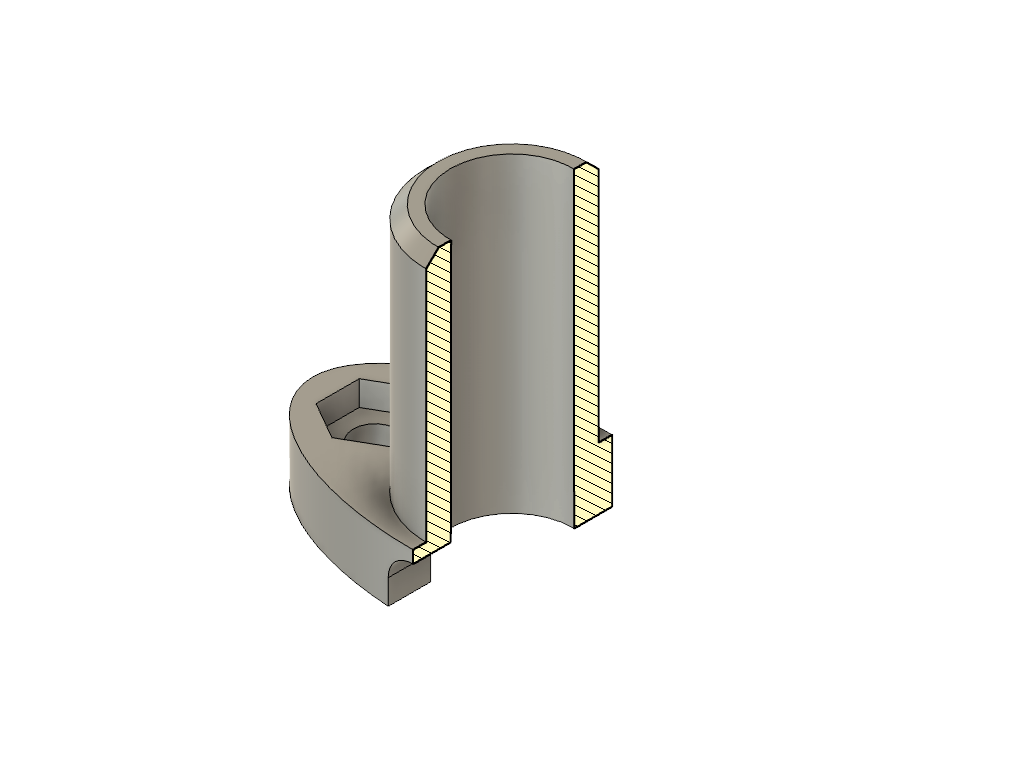

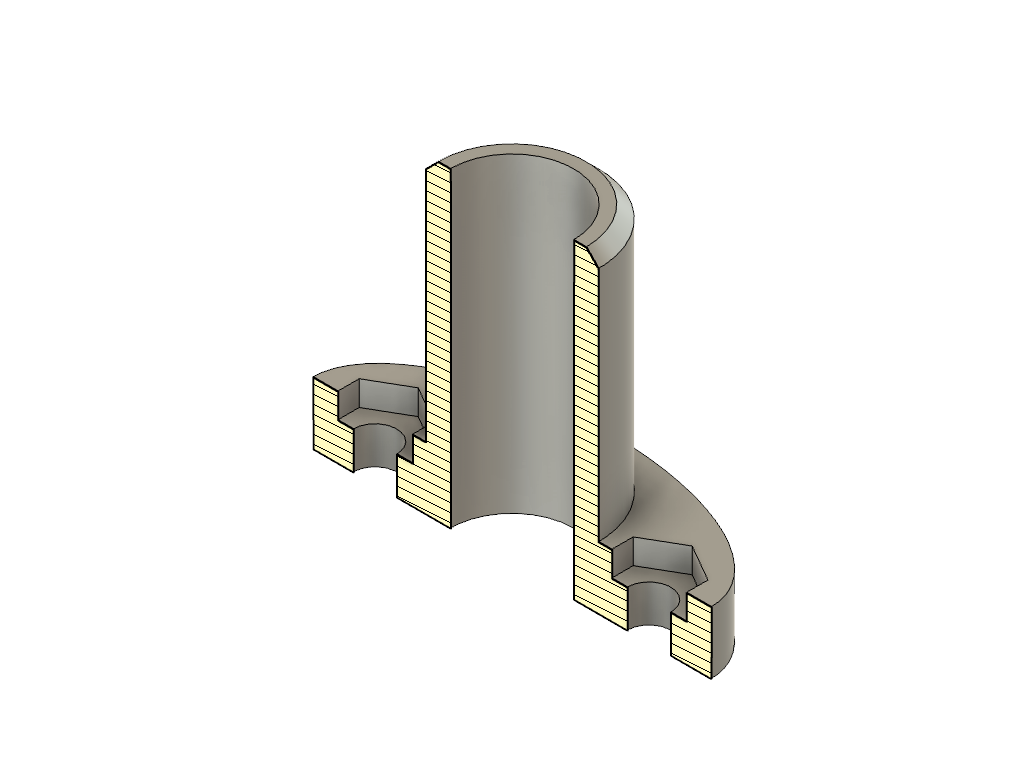

The design uses standard 1.5mm centrifuge tubes to hold the black powder/pyrogen and efficiently have the igniter head at the base of the charge. Snipping the bottom off the tube allows the igniter wire to thread through the base and out the side of the well. The charge well uses brass screws and knurled inserts to connect the igniter wires to the internals of the ebay.
