Based on the brilliant Ikea Ivar front mode hook customizable by viljoz I needed to shade my thermostat from direct morning sun.

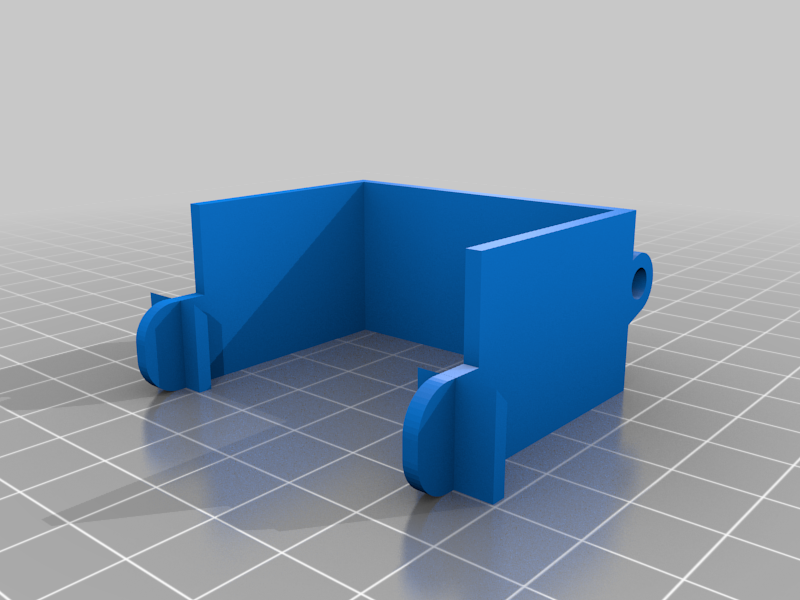

Instead of a hook, I wrote a module: front_mount() that holds a horizontal wood dowel with my paper flag on it.
Prints without support, but for me the front needed a brim. The front STL is in print orientation: after printing, turn it upside down to use.
The hollow shaft that holds the flag has a chamfer that, at print time, is on the bottom edge so it doesn't need support.
Print Settings
Printer Brand:
Prusa
Printer:
i3 MK3
Rafts:
No
Supports:
No
Resolution:
0.2mm. Standard 0.4mm nozzle
Infill:
20%
Notes:
Print the front with a brim.
Post-Printing
To Use
Put the back part of the mount into the holes in the ivar. Slide the front down so it locks into the back part.
