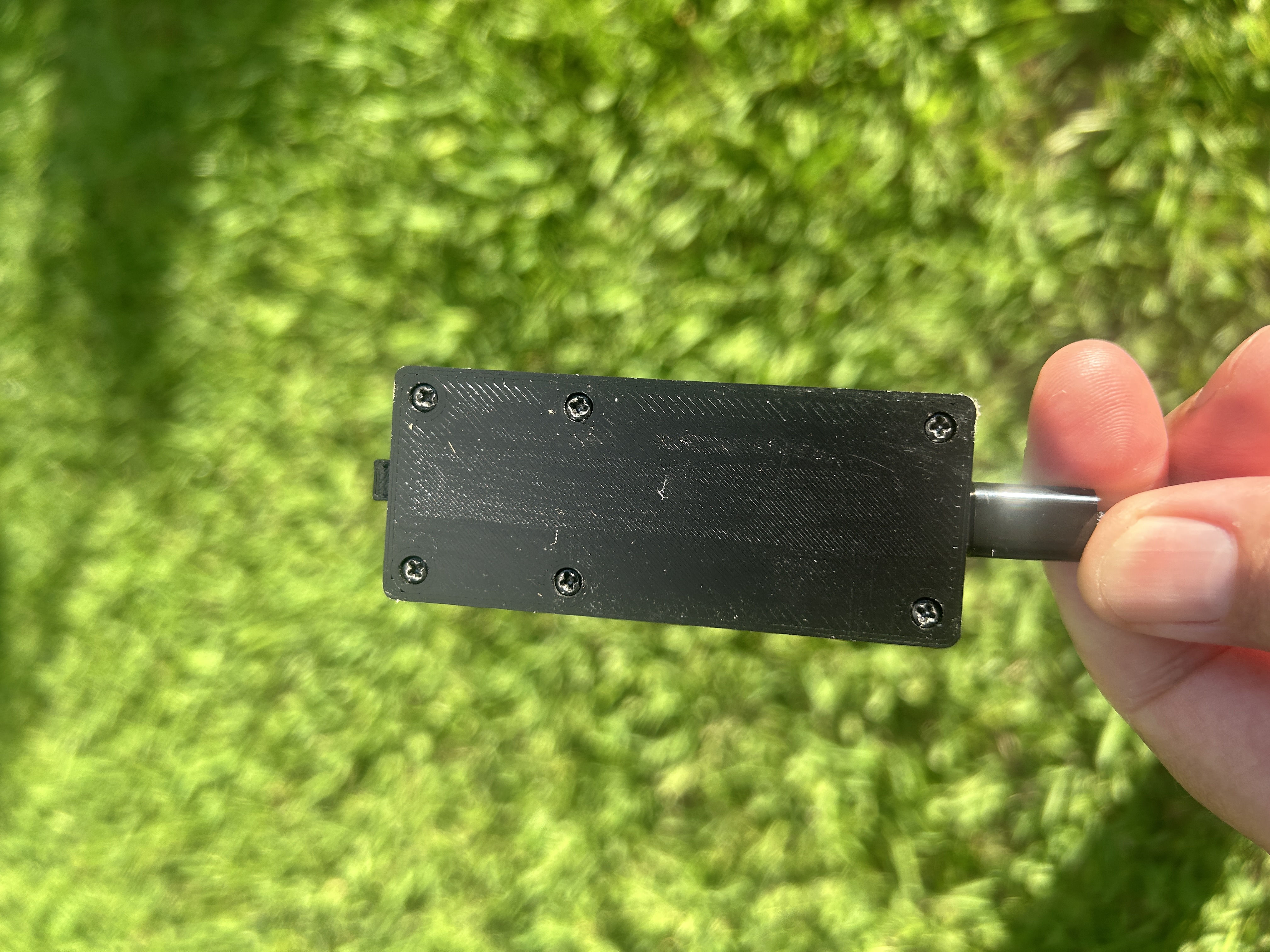

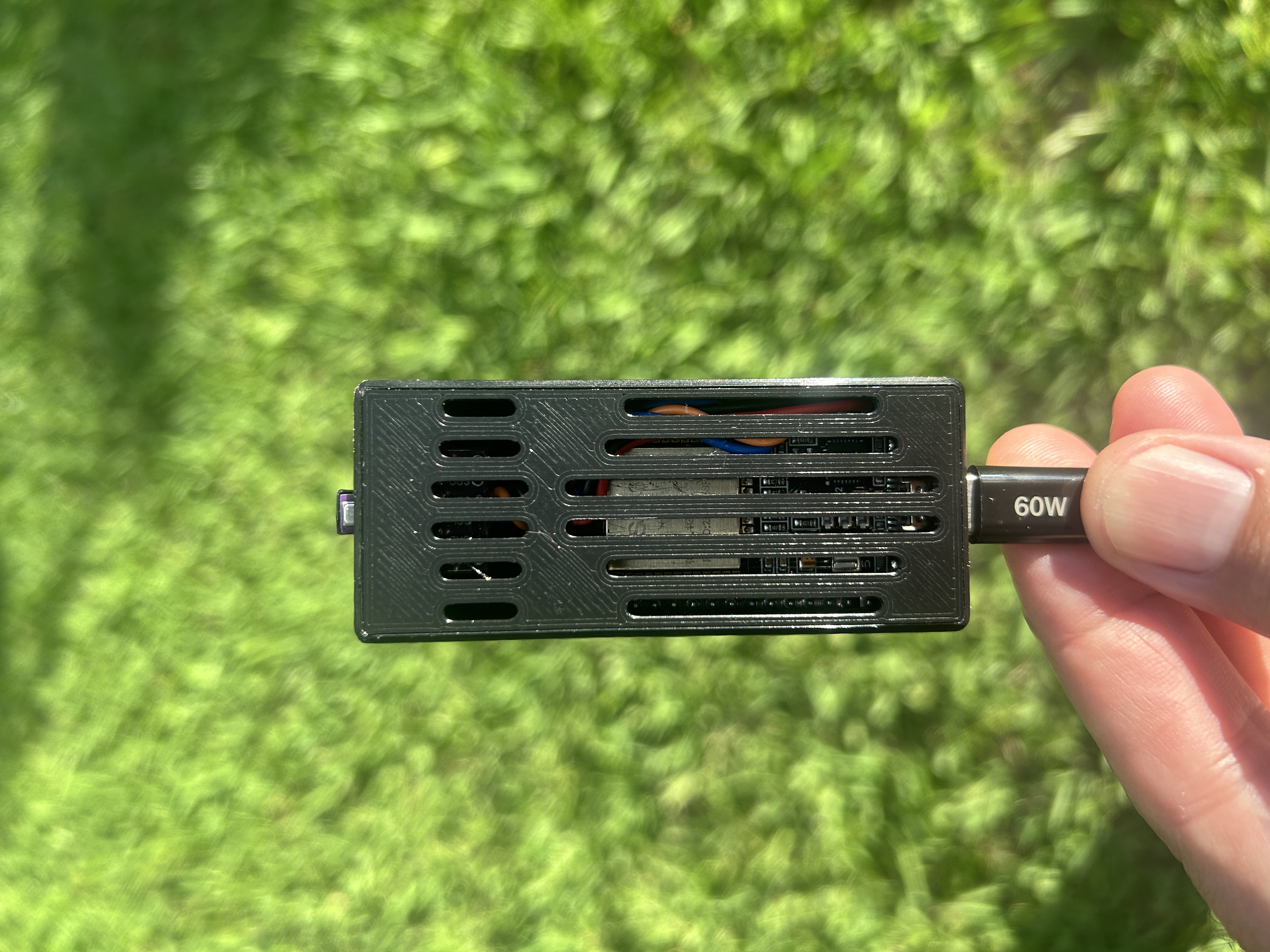

This enclosure was built to house the ESP32 and sensor that measures humidity, temperature, pressure, among other things for use in HomeAssistant. You can print in PLA as it is used in room temperature indoor conditions. This is designed to have the pins removed from both parts. No need to de-solder them, just cut them off. Plenty of room for wires. The firewall leaves enough room for the 4 wires to go through and is there to prevent the esp32 from transferring heat to the sensor. I've added the YAML file for HomeAssistant. The txt file will also show you the pinout for the sensor. Use a USB-C to power it. Box uses 6 M2.3x5mm screws
