Screen Printing MicroReg Posts
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Tools
- License
- Creative Commons — Attribution — Noncommercial — Share Alike
These use 1/4"X1.5" Carrage Bolts.

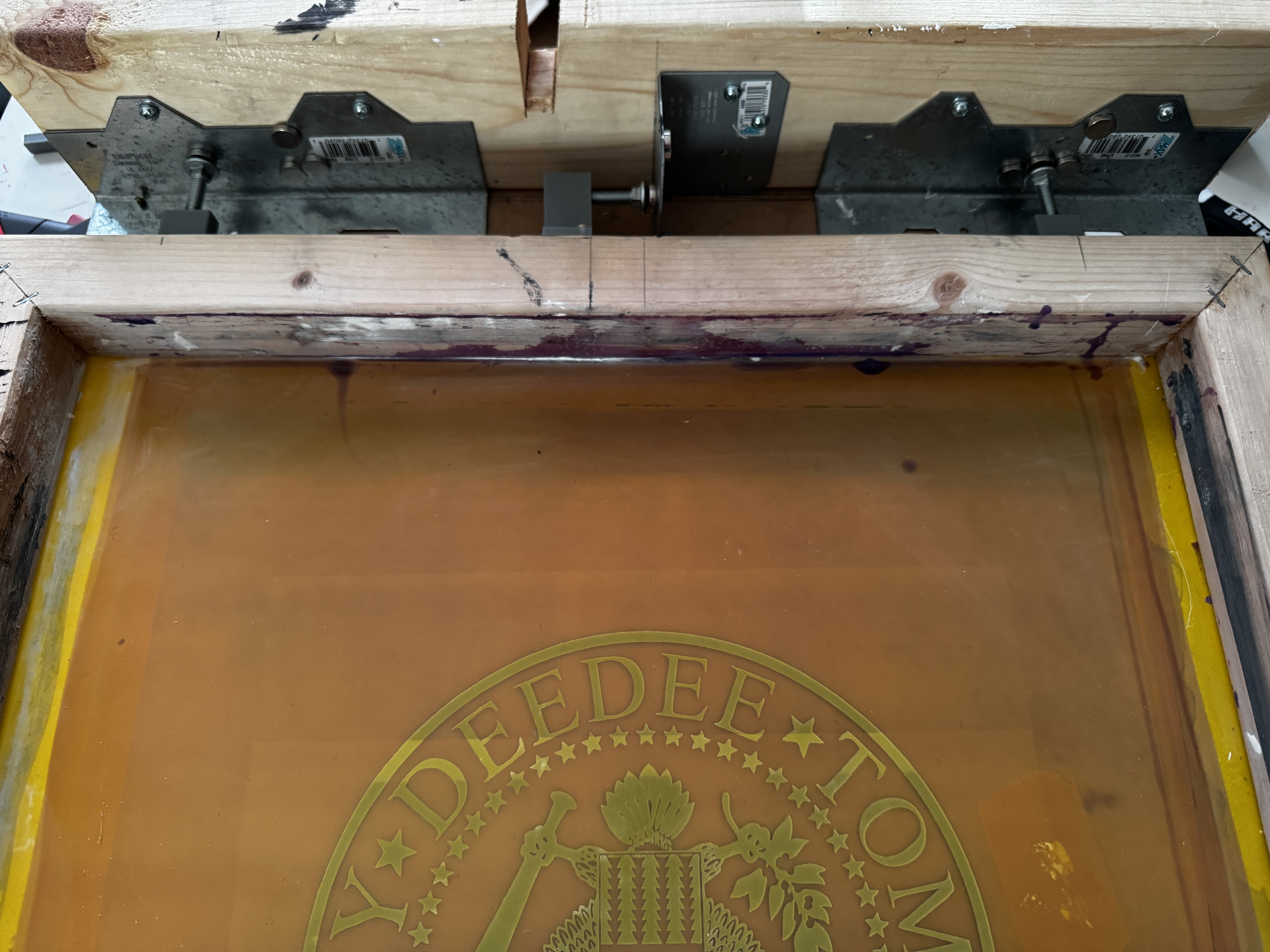

Run the carriage bolt through a couple times to get the threads cut. Mount onto a 20"X24" screen the following way

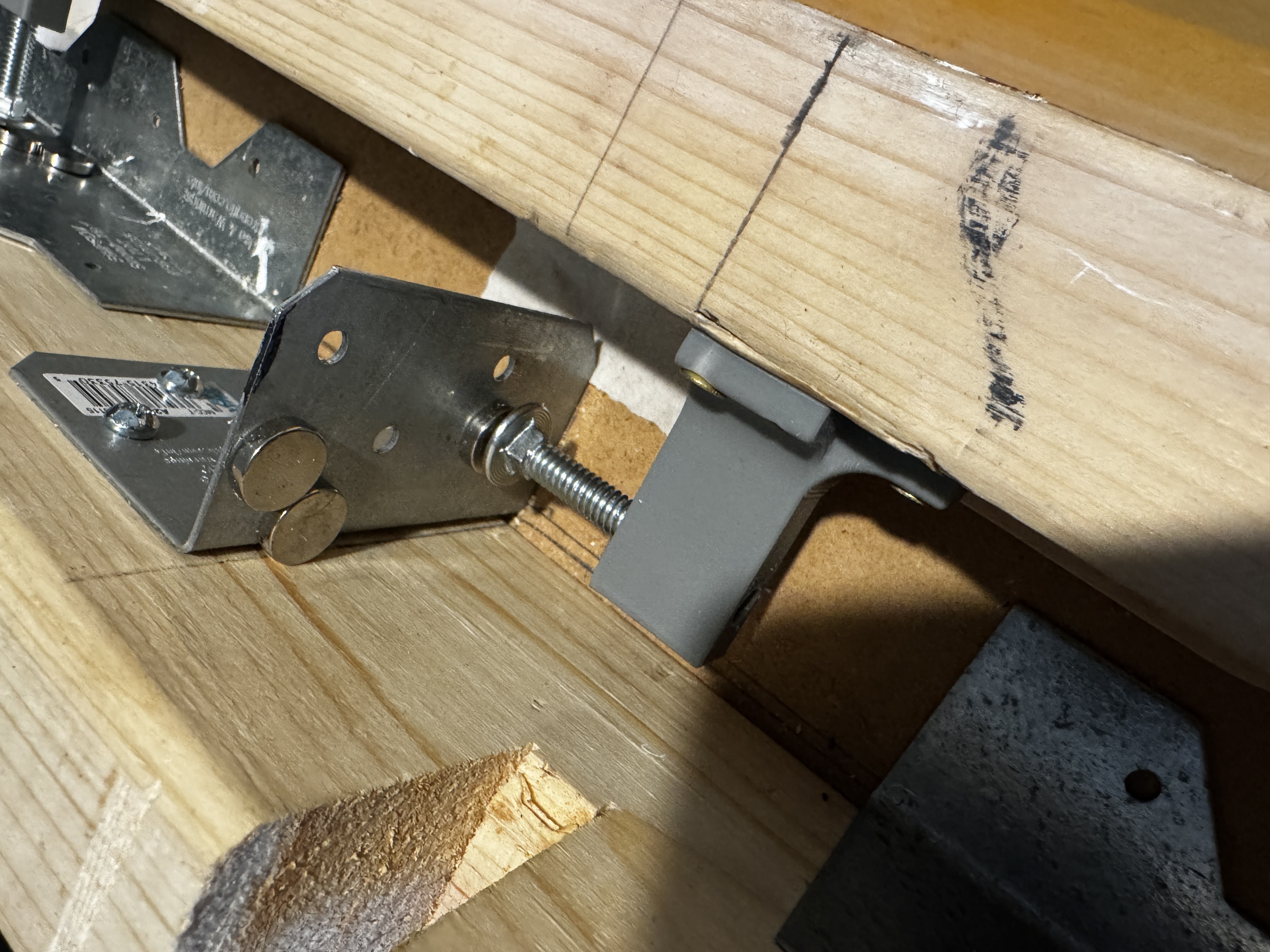

side-reg-postsside-reg-posts - 3" in from outside edge

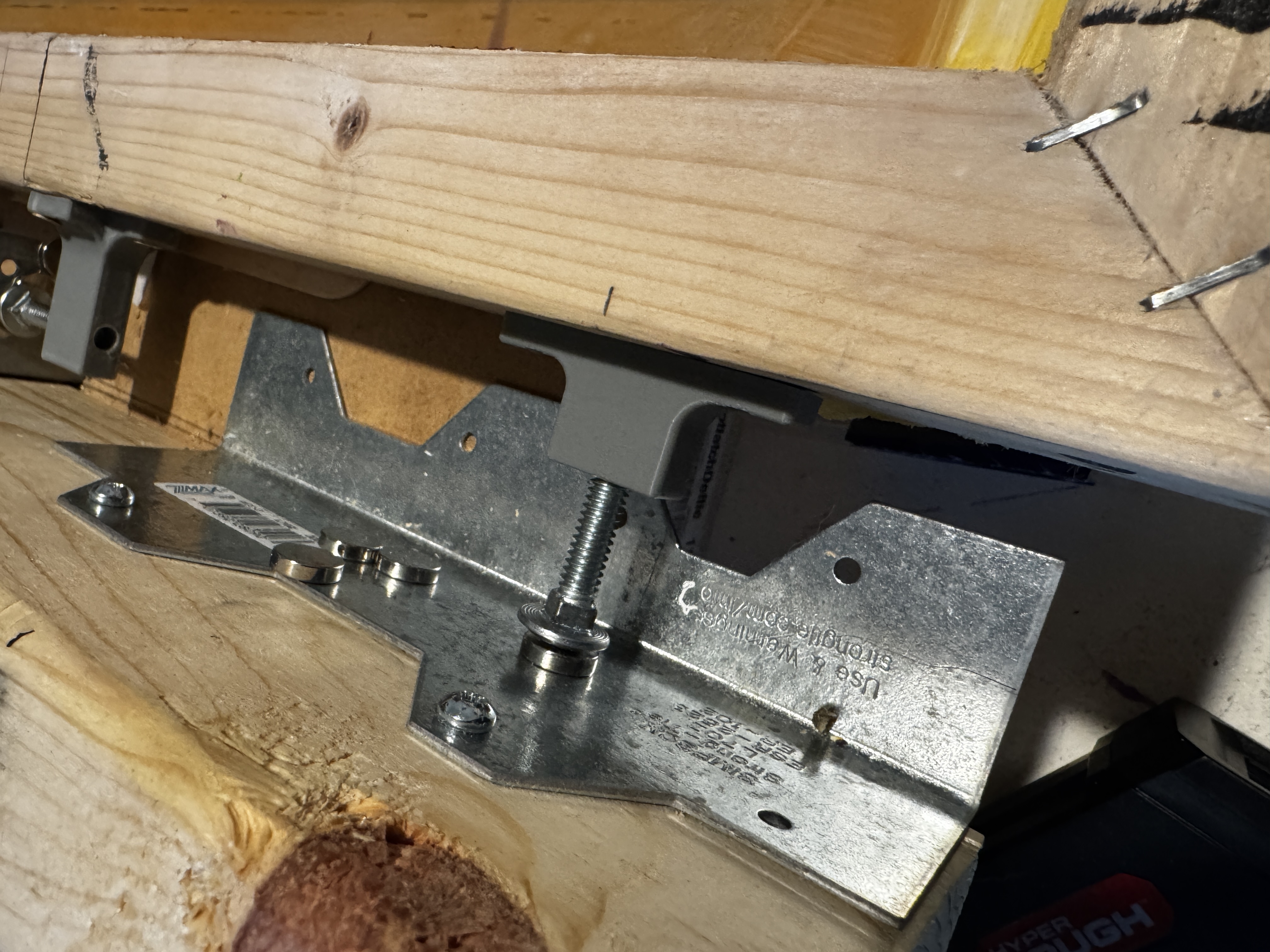

Center-reg-postCenter-reg-post - 1" left of center

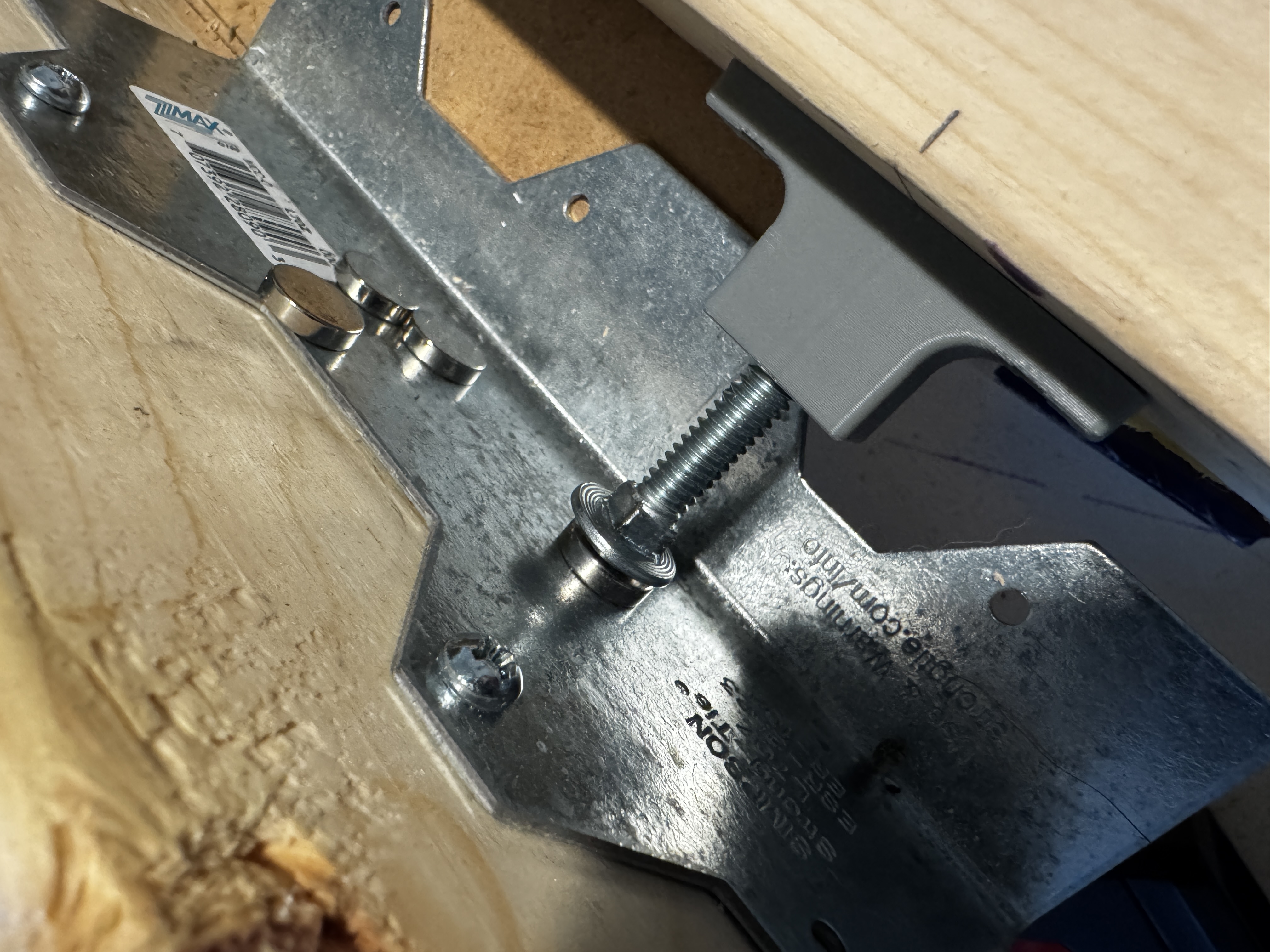

Magnets capture and lock the screen in place, the depth of the 3 bolts adjust alignment of the screen.
Adjustment process:
1, Adjust left bolt until best alignment is achieved
2, Adjust right bolt until best alignment is achieved
3, Repeat left and right for L/R best alignment
4, Finally adjust center to bring the center into alignment
Alignments should be short movements, mm not inches.
Included a wrench to use in case the magnets prove annoying and keep grabbing the wrench
Press Plans here: https://drive.google.com/drive/folders/1bcPRIYUFkDQ8bMY6cePmyKKUSHoohh6N?usp=sharing
