VESA 200 Raspberry Pi mount
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Computers
- License
- Creative Commons — Attribution — Noncommercial

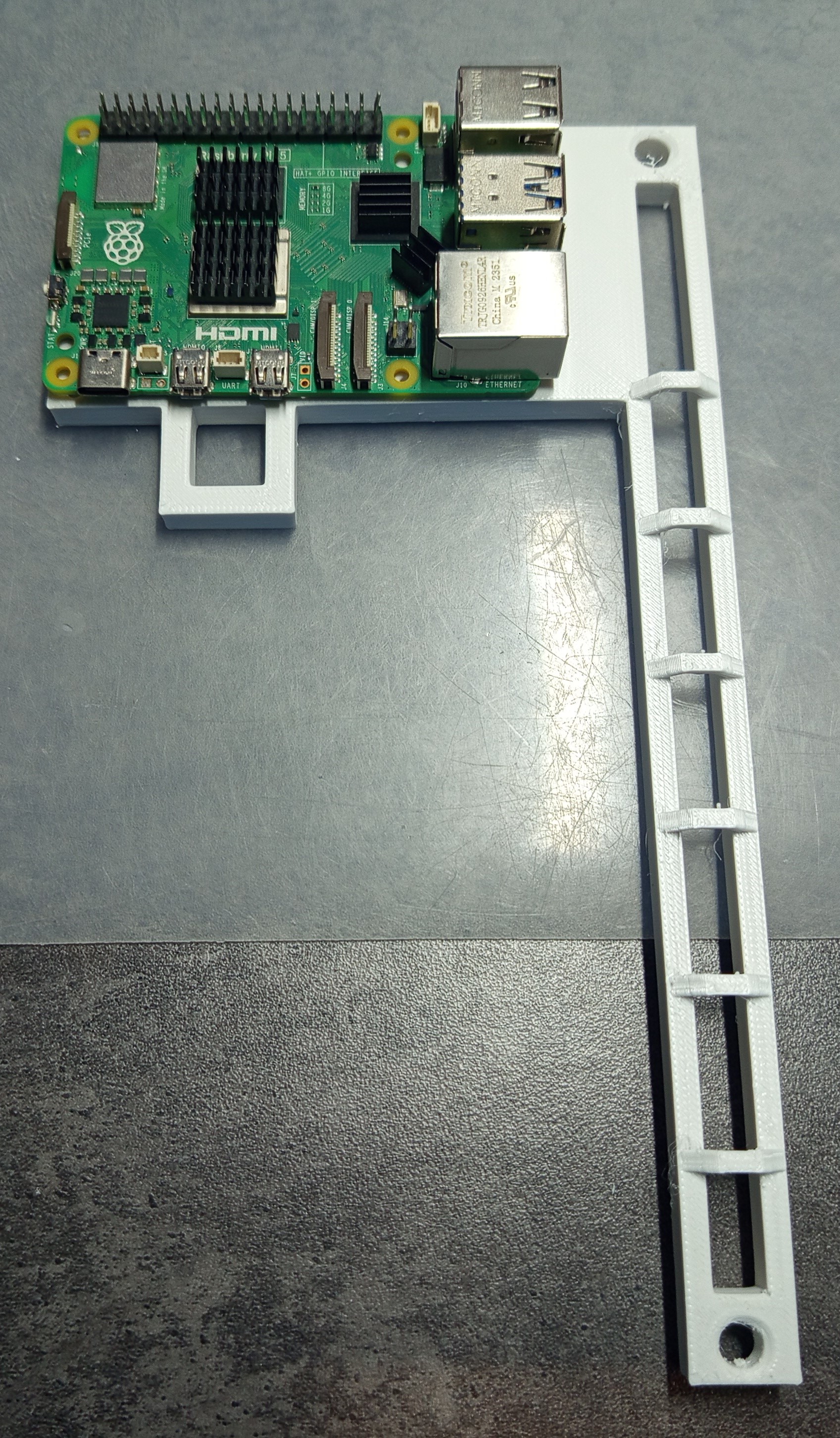

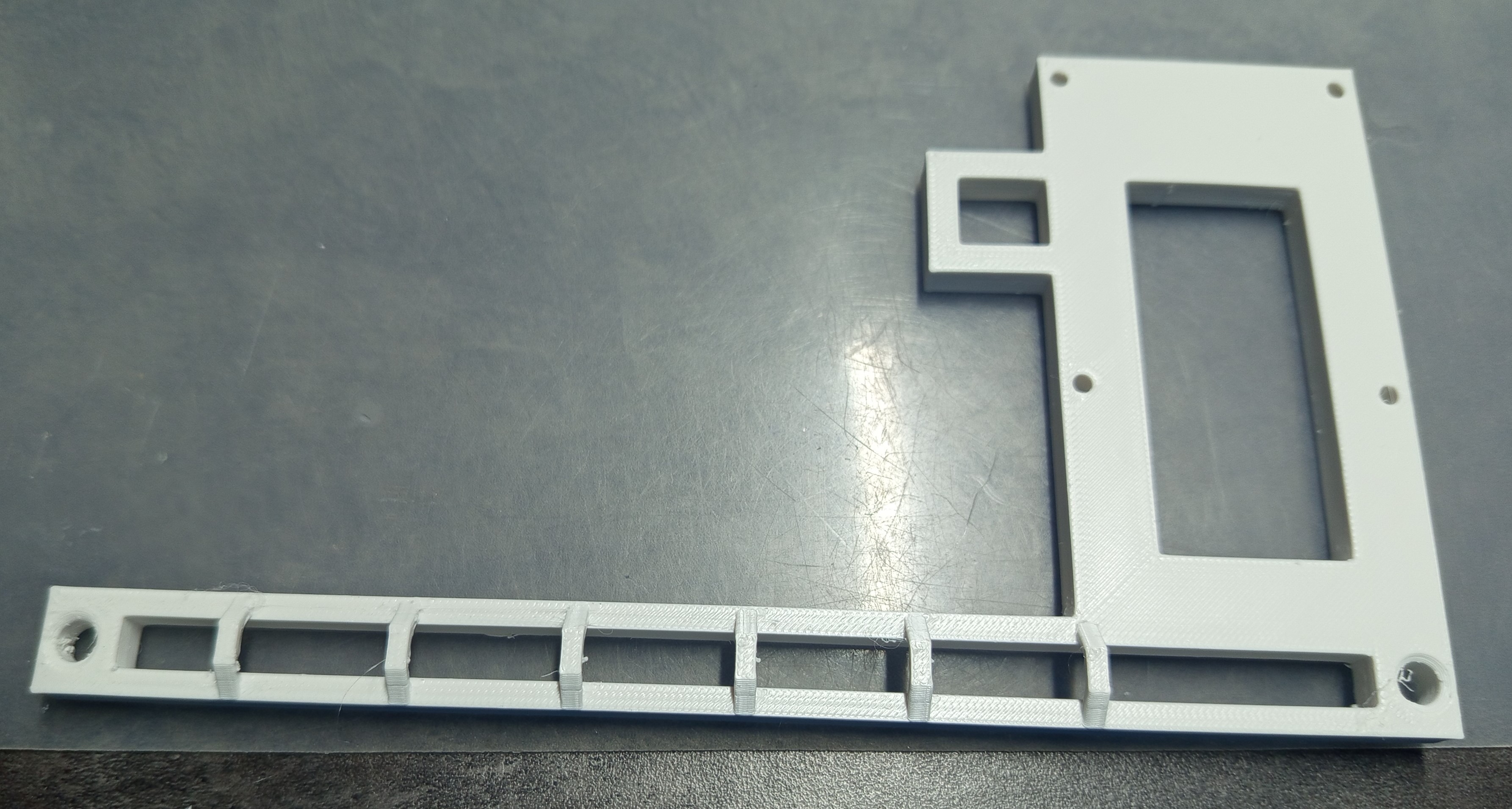

VESA 200 mount for Raspberry Pi. Mount Raspberry Pi to a TV or monitor. Alsow you can use cable ties to fix hdmi, LAN, USB cables to mount plate.
Sourse of model:
https://github.com/artemlazarev/3dmodels/blob/main/vesa200raspberypi5.FCStd
desigded in freecad 1.0
Settings:
Material: PLA
Nozzle: 0.4 mm
Layer: 0.2 mm
Infill: 5-10 %
Support: No

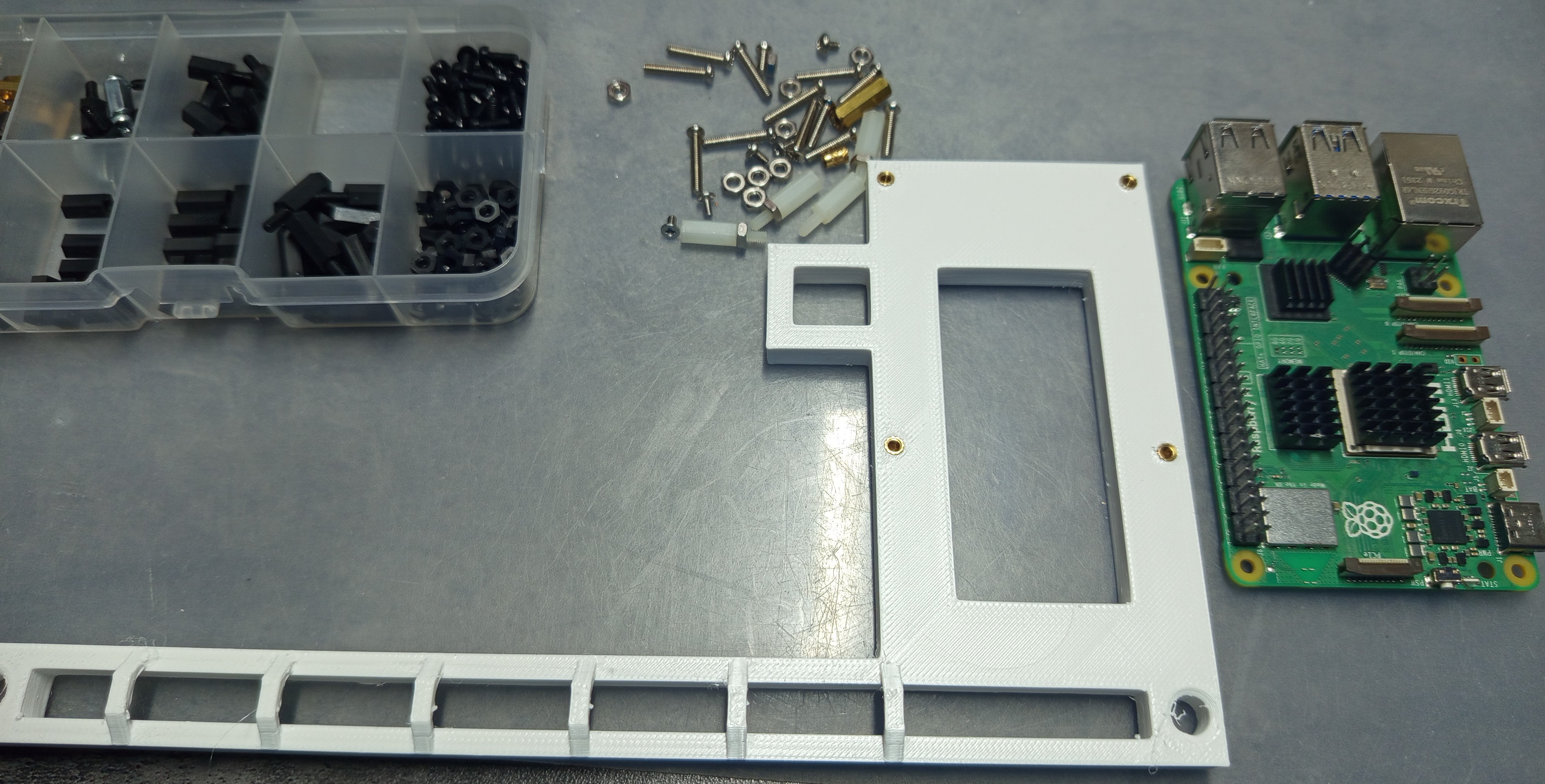

For assembly:
4x inserts: 5mm, M2.5(OD3.5mm)
4x M2.5 screw
2x M6 screw
several cable ties
