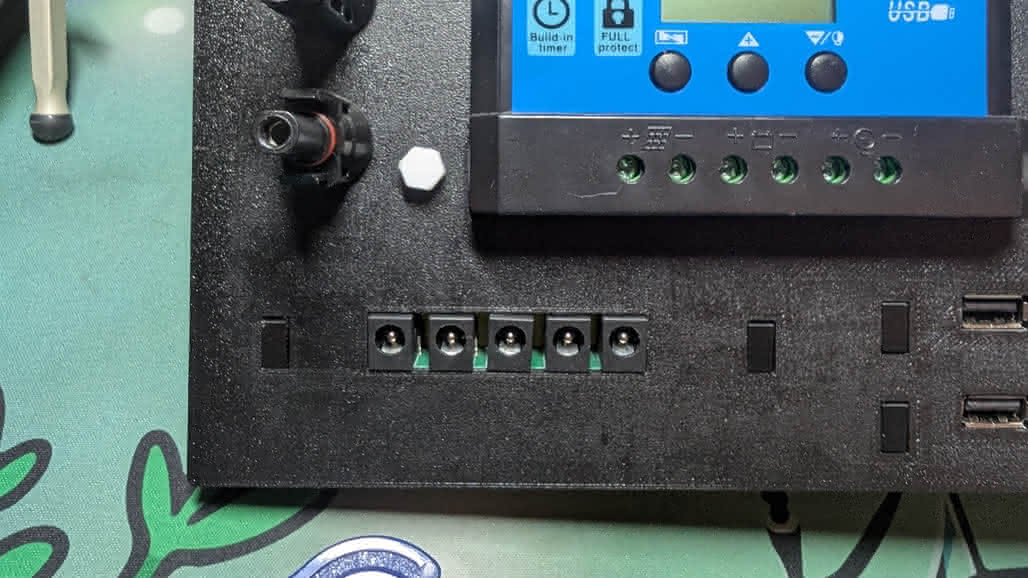

This OpenSCAD library allows you to create a mounting bracket for any PCB, along with a port surface that allows you to attach the PCB to a 3d-printed box or enclosure with simple clips.
This requires you to have made a model of the PCB that you would like to create a holder for. You can use OpenSCAD's import feature to use an external STL file, or you can create a model in OpenSCAD.
It is recommended to download the full ZIP archive (or clone the git repo linked below), as it contains a guided example in examples/stl-import-example/import_stl_bracket_demo.scad. The library itself also has some documentation in the form of source comments in parameterized_holder.scad
Note: OpenSCAD's model preview is buggy with these types of non-convex parametric files, make sure to do a full render (F6) to see what it will look like.
This is also available as a git repository here
