.35 Whelen, Double Snap Latch, Split Hinge Modular Ammo Box
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Tools
This version has these improved features:
- ramped front catch
- text for multicolor
- ramped latch fixture for easier assembly
- ramped hinge fixture for easier assembly

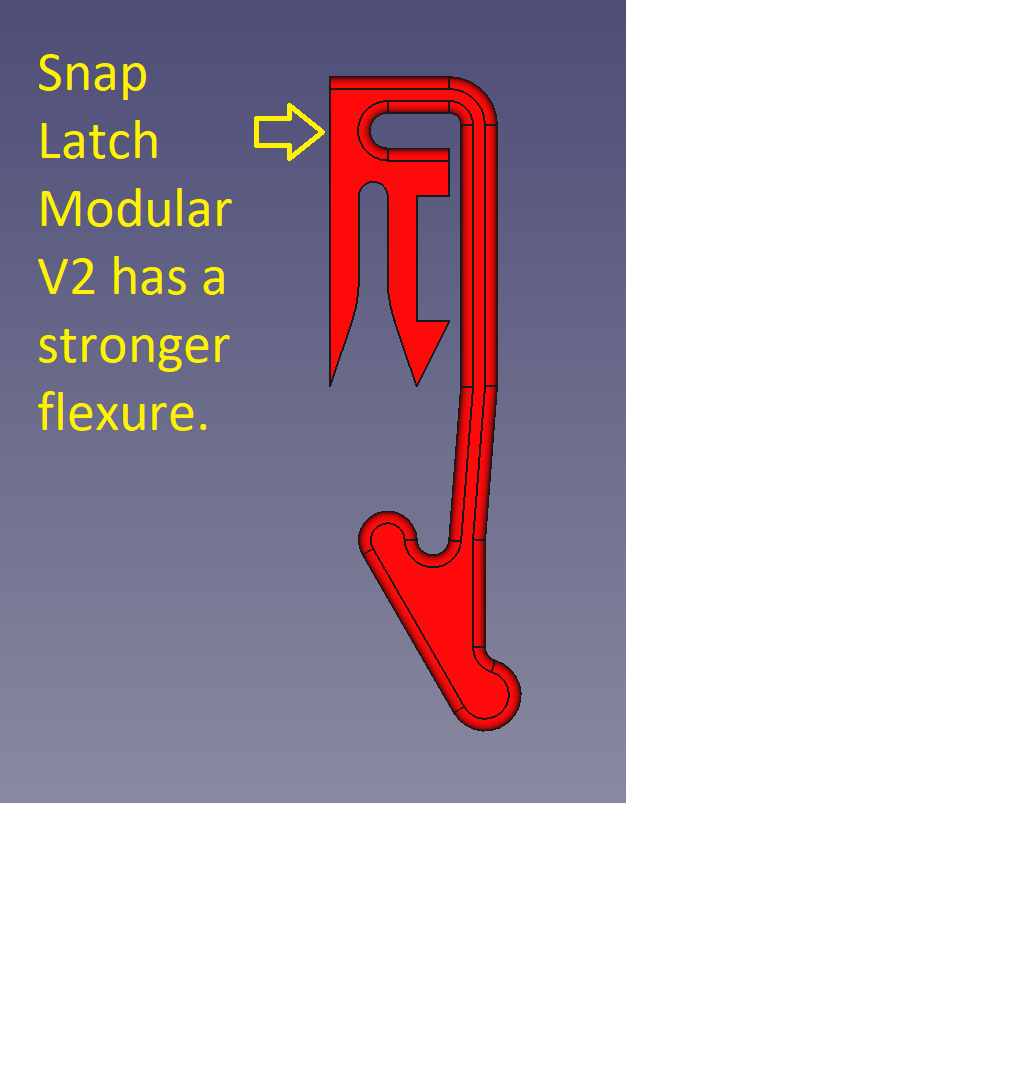

The Snap Latch snaps into a locked state when it is pressed towards the box front and it passes over a retaining tab. To open the box, pull the latch past the retaining tab and lift the box's lid.
Look in my Ammo Boxes Collection https://www.printables.com/social/261776-brass_ring/collections/167118 to see my ammo boxes with different latches and hinges options.
Other ammo boxes of this type can be found in my Double Snap Latch Ammo Boxes Collection https://www.printables.com/social/261776-brass_ring/collections/519398.
This cartridge box is printed as separate parts that are printed in orientations chosen to maximize strength and then snapped together.
The box halves require moderate infill (10%-20%) and can be printed with no supports, but I prefer to paint on supports under the flat sections on the hinge hoops, the latch hoops, and the latch catch. I printed with 0.16 layer height in PETG and PLA.
Check for the latest hinges and latches in https://www.printables.com/model/187176-modular-ammo-box-common-parts or https://www.thingiverse.com/thing:5270385.
Assembly instructions: See the attached PDFs
Category: Tool Holders & Boxes
